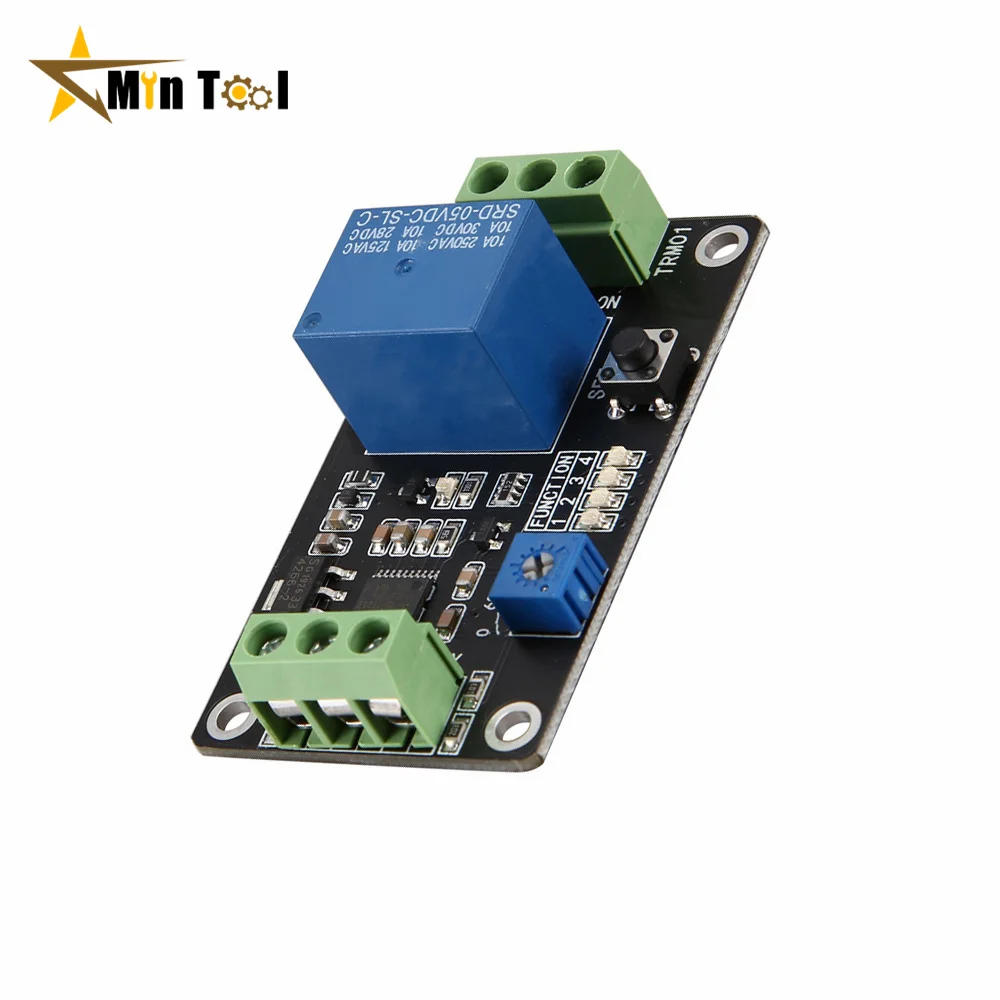

• DC5V 12V 24V Delay Timer Relay TRM01 Delay Time Relay Self-locking Relay Delay Trigger Power Supply Feature 1: Widely used 2: Compact length 3: Stable performance 4: Simple operation 5: The module is preset with four functions to meet a variety of software needs TRM01 time put off relay module is fabricated from advantageous elements and carefully designed and processed It has secure performance and straightforward operation It can be extensively utilized in diversified control events that require postpone self-locking The module is preset with 4 applications to meet a wide range of utility needs, and other particular purposes could be personalized and added in step with user wishes Features: 1 Equipped with delayed pull-in, not on time disconnect, self-locking and set off delay functions; 2 It has the anti-reverse strength supply function, and the module usually are not broken when the flexibility is hooked up reversely; three There are 3 working voltage versions of 5V/12V/24V for customers to make your mind up from; 4 The timing length can be set arbitrarily between 0 seconds and a hundred and twenty seconds; five Parameters would be saved, and the settings should not lost when the flexibility is off 1 Module operate The user can select one of the following 4 purposes in the course of the buttons, and choose the put off time by means of adjusting the potentiometer The postpone time T1 could be adjusted between zero seconds and one hundred twenty seconds Function F1: Power-on postpone pull-in: After delaying T1 time from power-on, the relay pulls-in, and a high-level pulse signal is given to the X1 interface at any time, and this function is reset and restarts operation; Function F2: Power-on delay disconnection: When powering on, the relay is closed After the T1 time, the relay is disconnected A high-level pulse signal is given to the X1 interface at any time This operate is reset and begins operating again; Function F3: Self-locking relay mode: Give the relay X1 interface a high-level pulse sign to make the relay close, after which give a high-level pulse signal to the relay to show off Function F4: Level trigger mode: When powering on, the relay is disconnected and a high-level sign is given to the X1 interface The relay instantly closes After the X1 port sign disappears, the relay nonetheless closes When the final time T1 is reached, the relay disconnects 2 Electrical parameters Working voltage: DC 5V, 12V, 24V available (should now not exceed +/-10% of the nominal voltage) Working current: lower than 80mA at 5V (less than 1mA when the relay isn't always in action) Less than 35mA at 12V (less than 1mA when the relay isn't activated) Less than 18mA at 24V (less than 1mA when the relay isn't activated) Working temperature: Recommended -20℃-60℃ (limit differ -30℃-70℃) Load capacity: Relay normally open port Maximum load capacity: DC 0-30V/10A, AC 0-250V/10A Maximum load skill of relay usually closed port: DC 0-28V/10A, AC 0-125V/10A Three module interface Module voltage/signal input terminal: There is a 3-wire interface, and all interfaces have terminal blocks for consumer comfort 1 DC+: effective pole of DC energy supply 2 DC-: unfavourable pole of DC strength supply 3 X1: Input sign detection interface Relay load output: 3-wire interface, all interfaces have terminal blocks 1 COM: relay public interface 2 NO: Normally open interface of the relay The relay is left floating before ultimate and short-circuited to COM after closing three NC: Normally closed interface of the relay, short-circuited to COM before the relay is closed, and left floating after remaining Package list: 1*Delay relay module

•
•
•
•
•
