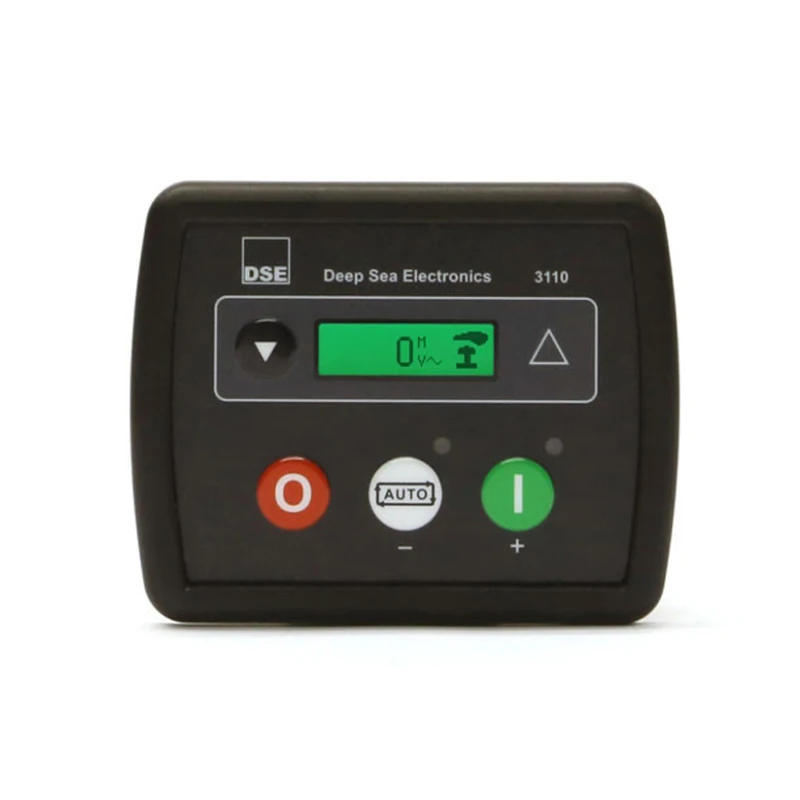

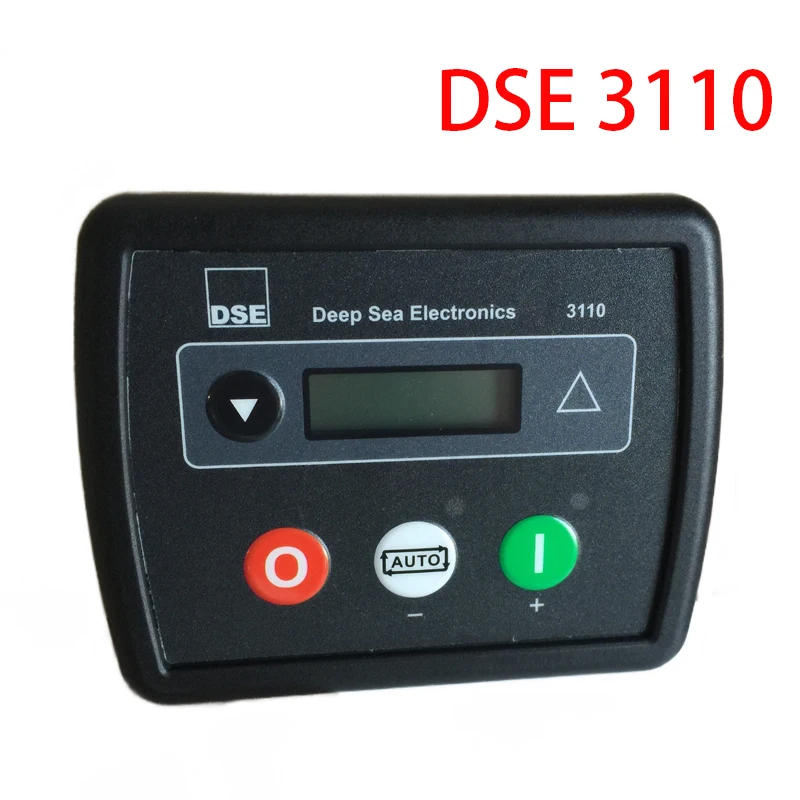

• Diesel Genset to Replace DSE3110 Products The DSE3110 can be utilized as a handbook or uto birth module for unmarried genset functions or engine solely functions The module is designed for both digital and non-electronic engines and give advanced engine monitoring and protection elements The DSE3110 includes a backlit icon LCD exhibit that gives a clear indication of engine status at all times The module displays engine speed, frequency, voltage and engine working hours, and displays warnings and shutdown status The module includes fixed and flexible outputs in addition configurable inputs, making this product splendid for a variety of functions The module would be programmed using the front panel or utilizing the DSE Configuration Suite PC utility The module is supplied in two models: CAN - for digital engines only Optional frequency (Hz) induction from the foremost C alternator, suitable for genset purposes MPU/LT - For non-electronic engines only (magnetic pickup/alternator sensing) Optional frequency (Hz) induction from the key C alternator, suitable for genset purposes Optional magnetic pickup pace sensing is obtainable Main elements - Backlit icon LCD show - Front panel enhancing - LED and LCD alarm indication - Power save mode - C N and magnetic pickup/liter versions accessible (specify at time of order) - PC configurable - 6 electronic inputs - four outputs (2 configurable in magnetic pickup/liter, four configurable in C N version) -Configurable timers and alarms - Remote configuration for off-site configuration - Remote birth enter Main Advantages - Tamper-proof hour counter offers correct information for tracking and upkeep cycles - Simultaneous tracking of multiple engine parameters - Modules can be configured to fit particular person purposes - Engine applications solely - Compatible with assorted CAN engines - Simplify configuration with DSE Configuration Suite PC utility - IP65 ranking (with optionally available gasket) for increased water resistance - License-free PC software Specification DC energy supply continual voltage rating: 8 to 35 V continuous CRNKING differential pressure: capable of surviving for fifty ms within zero V, offering a delivery voltage of not less than 10 V earlier than the differential pressure, and gear recovery to five V This would be finished without an internal battery Charge failure/excitation: 8 to 35 V fixed delivery 2 W Nominal usual voltage: 12 mA at 23 V, 24 mA at 18 V Maximum operating current: 12 mA at 35 V, 24 mA at 30 V Output output A (fuel): 2 A DC at delivery voltage Output B (start-up): 2 A DC at delivery voltage Auxiliary outputs C & D: DC at 2 A delivery voltage Generator Voltage range: 15 V- 333 V AC (L-N) Frequency range: three Hz to 75 Hz Magnetic pickup Voltage range: ± zero to 70V Frequency range: 10,000 Hz (maximum)

•
•
•
•
•
