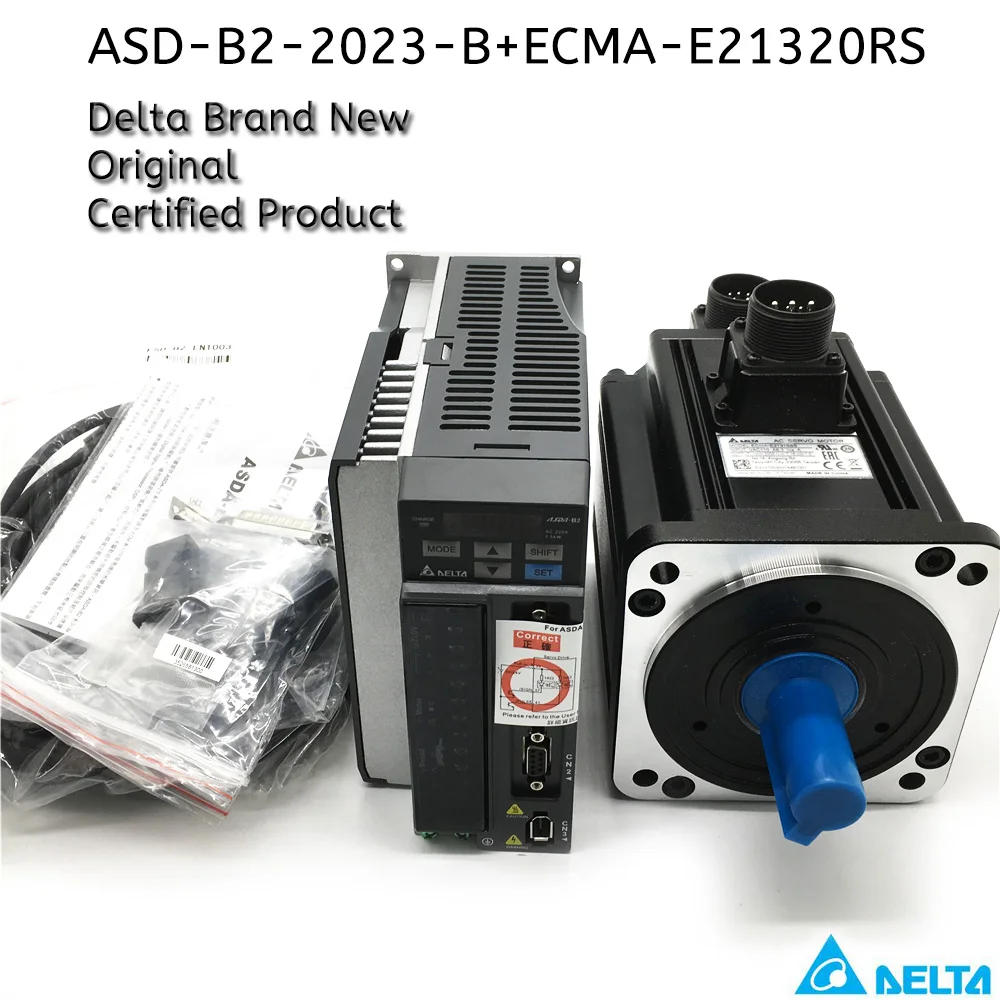

• Please prefer the model in step with your wishes :-) Driver only: solely ASD-B2-2023-B Driver (without cable) Motor only: solely ECMA-E21320RS Motor (without cable) Brake Motor only: only ECMA-E21320SS Motor (without cable) Motor kit: ASD-B2-2023-B+ECMA-E21320RS (with 3m power cable and 3m encoder cable) Brake Motor kit: ASD-B2-2023-B+ECMA-E21320SS (with 3m strength cable and 3m encoder cable) To get the English manual, please click on here Features Implements High Precision Positioning Control ► ASDA-B2 series servo drivers support 20-bit and 17-bit encoders The sequence satisfifies the demand of high-precision positioning management and steady operation at decrease speeds ► Applying the encoder with a better decision can cut the cogging torque and upgrade the motor's precision 2500ppr of Torque Ripple 17-bit of Torque Ripple ► Outstanding functionality with increased speed: Up to 550Hz frequency response and settling time is beneath 1ms ► 10ms acceleration time from -3000r/min to 3000r/min when working with out load Example: Servo motor frame sizes 60mm and 400W Satisfifies a Variety of Industry Demands ► Three management modes available: Built-in position, Speed, and Torque (Speed and Torque mode canbe controlled by way of inside parameters or analog voltage) ► High-speed differential command (up to 4Mpps) for prime precision positioning control ► Three notch fifilters are supplied to suppress the mechanical resonance effificiently and make the formulation function more smoothly ► Lead friction repayment parameter is specifified for the applying of round interpolation, Z-axis movement and ball screw to reduce the loading of the controller ► For bar feeders and other kit requiring high torque output, motor defense parameters are provided to guard the mechanical formula Motor Specifications ●Model: ECMA-E21320RS/ ECMA-E21320SS (with Brake) ●Model Flange: 130mm ●Power: 2KW ●Rated torque: nine N ●Maximum torque: 28 N ●Rated speed: 2000 r/min ●Maximum speed: 3000 r/min ●Rated current: 11 A ●Maximum current: 33 A ●Power rating: 62 kW/s ●Insulation class: Class A (UL), Class B (CE) ●Max radial shaft load: 490 N ●Max thrust shaft load: 98 N ●Vibration capacity: 2 G Driver Specifications: ●Model: ASD-B2-2023-B ●Power: 2KW ●Power Supply Phase / Voltage: Three - phase: 170 ~ 255 VAC, 50 / 60 Hz ±5% ●Cooling System: Fan Cooling ● Communication Interface: RS-232 / RS-485 ●Encoder Resolution: 17-bit (160,000 p/rev) ●Main Circuit Control: SVPWM (Space Vector Pulse Width Modulation) Control ●Control Mode: Auto / Manual ●Regenerative Resistor: Built-in ●Receiving optical ruler and encoder sign support fully closed loop management ●Providing high-speed communications networks ●The extension module can design a variety of functions to meetthe wishes of personalized merchandise ●Built-in motion management function (powerful internal role mode) ●Electronic CAM operate can set the optimum motion route of machinery; Maximum making plans 720 level role (for food processorsand sealers) ●Built-in Longmen Synchronous operate (CNC cord Cutting GElectronic Industry machine)

•
•
•
•
•
