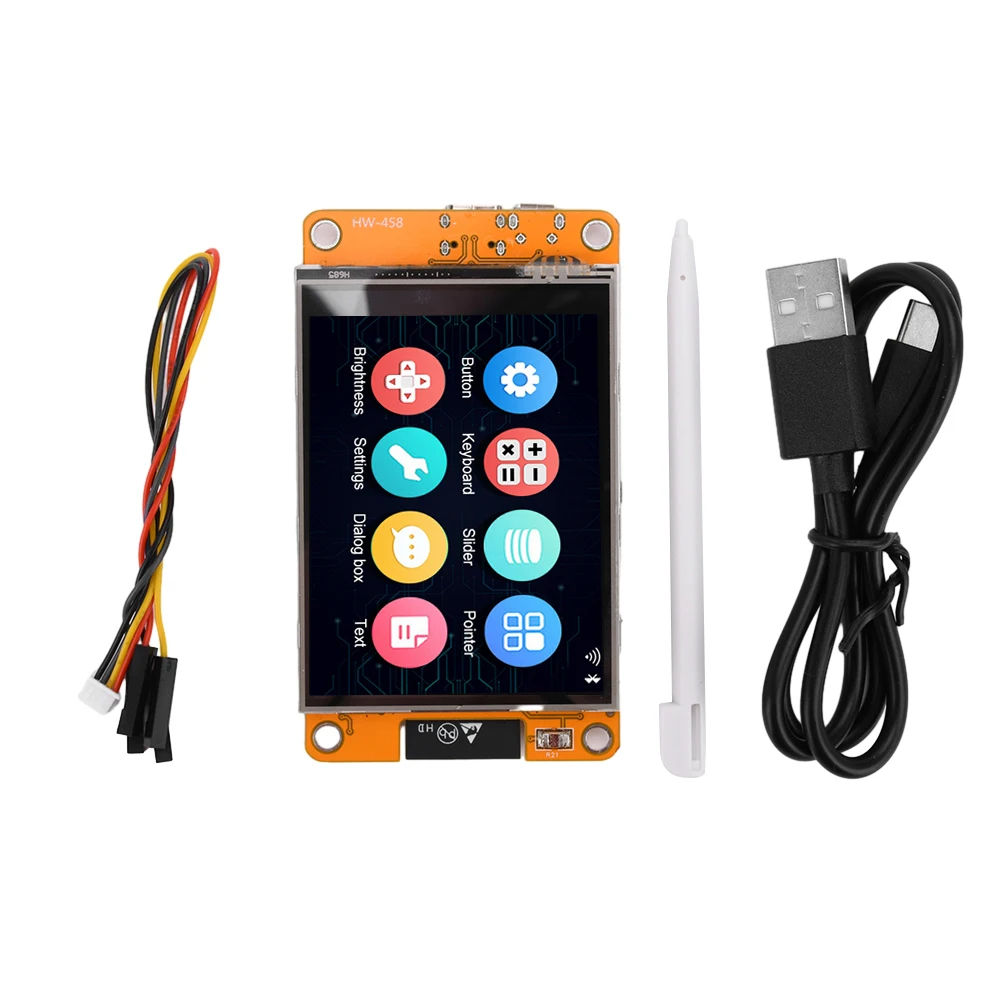

• ESP32 WIFIBT Development Board 2 inch LCD TFT Module 240*320 RGB 65K Smart Color Display Screen 240MHz 600DMIPS For Arduino Features: 1 energy twin core 32-bit cpu, can be used as an application processor 2 a clock frequency of up to 240mhz and a computing calories of as a lot as 600dmips three in 520kb sram four uart/spi/pwm/dac/adc and different interfaces 5 with a tf card slot for easy expansion of storage 6 color screen, supporting 16 bit rgb 65k shade demonstrate 7 clever config/airkiss one click on distribution network Specifications: Product name:esp32 wifi+bt twin mode development board computer screen Display color:rgb 65k shade Size:2 inches Type:tft Driver chip:ili9341 Resolution:320*240 Visible area:43*57 Perspective:>60° Working temperature:-20~70℃ Working voltage:5v Power consumption:115ma Bluetooth:Bluetooth 4/edr and ble criteria Wifi:802/g/n/ Supported interfaces:uart spi、sdio、i2c、ir、adc、dac、pwm Io ports:22 Serial port speed:default 115200bps Spectrum range:2412~2484mhz Antenna form:onboard pcb antenna, get hold of 2dbi Security:wpa/wpa2/wpa2 enterprise/wps Transmission frequency:802:17±2dbm (@11mbps) /802:14 ± 2dbm (@54mbps)/ 802:13 ± 2dbm (@mc57) Interface sensitivity Cck,1mbps:-90dbm Cck,11mbps:-85dbm 6mbps(1/2bpsk):-88dbm 54mbps(3/464-qam):-70dbm Mcs7(65mbps,72):-67dbm Package Included: Display screen*1 Touch pen*1 Type-c information cable*1 4p terminal to dupont wire*1

•
•
•
•
•
