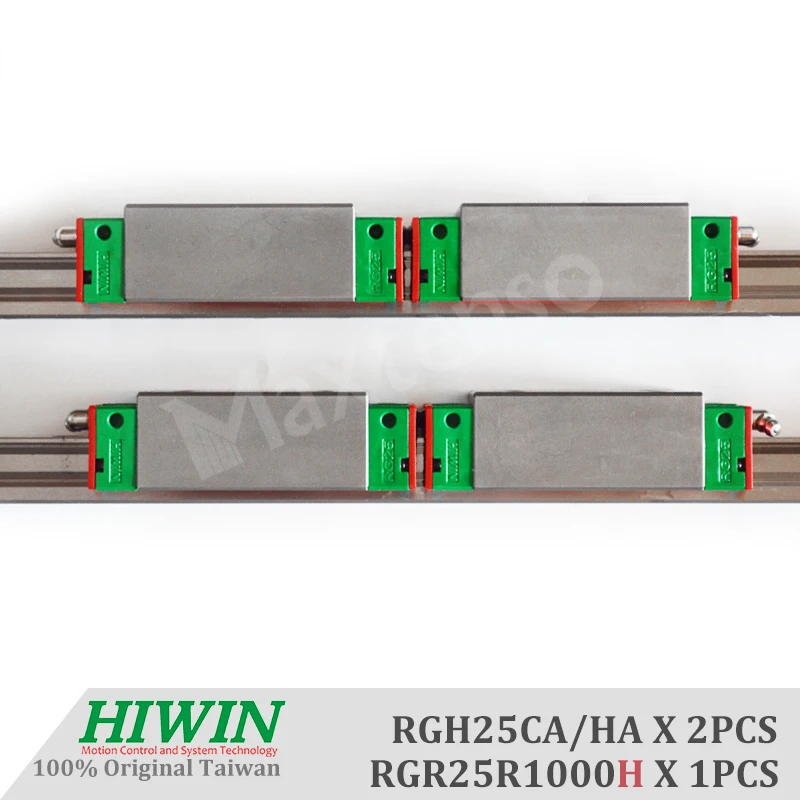

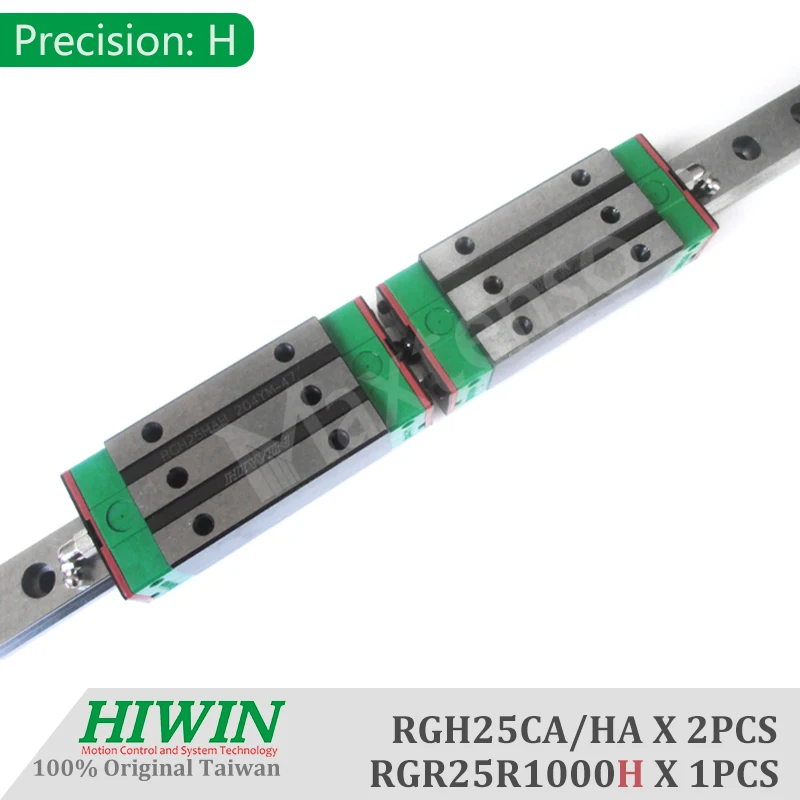

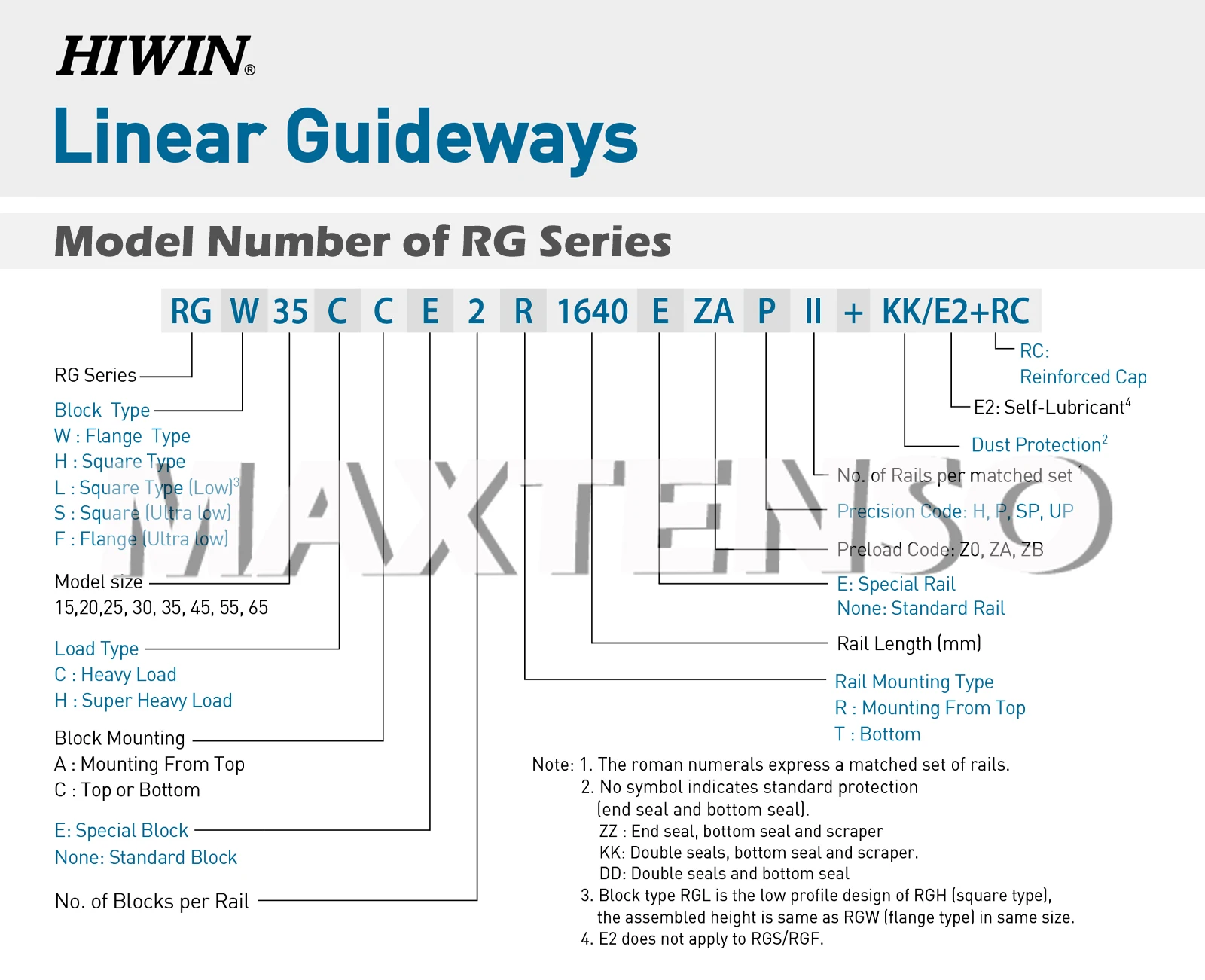

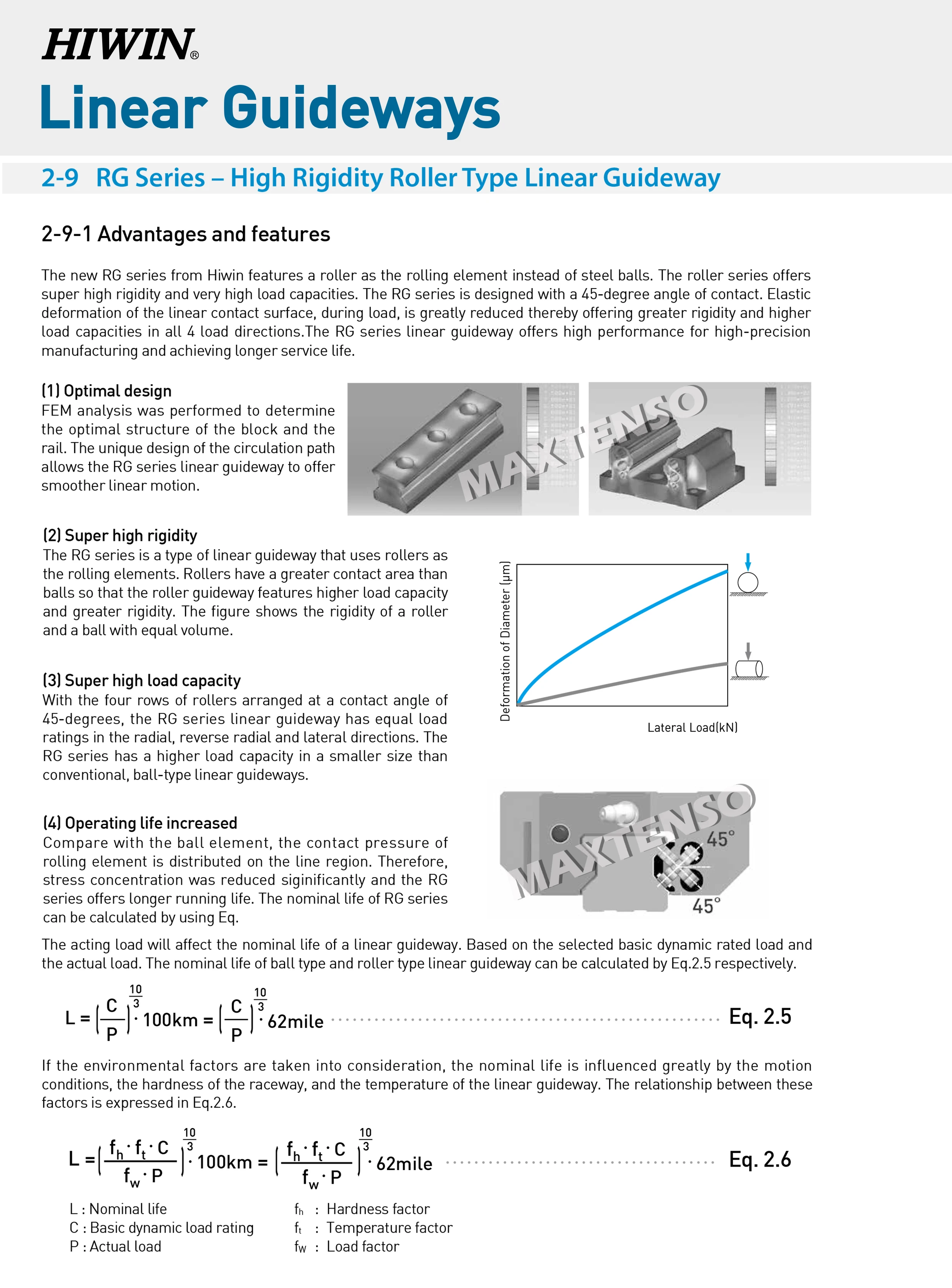

• HIWIN High Rigidity Roller Type Linear Guide Rail & Block - RG SeriesThe new RG sequence from Hiwin includes a curler as the rolling detail instead of steel balls. The roller sequence gives tremendous excessive tension and extremely high load capacities. The RG series is designed with a 45-degree attitude of contact. Elastic deformation of the linear contact surface, throughout load, is tremendously diminished thereby providing bigger tension and higher load capacities in all 4 load directions.The RG sequence linear guideway affords high functionality for high-precision production and reaching longer service life.HIWIN RG Series - Advantages and features1-Optimal design2-Super excessive rigidity3-Super high load capacity4-Operating lifestyles increasedItem ListModel: (HIWIN)RGH25CA2R1000ZBH(HIWIN)RGH25HA2R1000ZBHLength: 1000mmAccuracy: HPreload Value: ZBQTY: HIWIN RGR25 Linear Guide Rail 1000mm x 1PCS + HIWIN RGH25CA/RGH25HA Block x 2PCS = ONE SET(*You will get the set with pre-installed carriages at the rails, please contact us if you need individually packed.)Manufacturer: HIWINOrigin: TaiwanPacking List1SET of HIWIN RGHModel in keeping with your choiceApplication-HIWIN RG Series High pressure Roller Type Linear Guideway-Automation Systems-Transportation equipment-CNC machining centers-Heavy obligation reducing machines-CNC grinding machines-Injection molding machines-Plano millers-Devices requiring high rigidity-Devices requiring high loadcapacity-Electric discharge machinesNote for youMAXTENSO have a full fluctuate of HIWIN products, diversified units and diverse precision products, restricted inventory.HIWIN RG Series with Default Precision: H Preload: ZB, in order for you Precision with P or above class, Please touch us to check whether is it in stock, please contact us, jayden@maxtenso.comMGN/MGW HGH-CA/HGH-HA HGW-CA/HGW-HA EGH-CA/EGH-SA EGW-CA/EGW-SARGH-CA/RGH-HA RGW-CA/RGW-HA etc.HIWIN RG Series High rigidity Roller Type Linear GuidewayOptimal designFEM analysis turned into played to determinethe optimal constitution of the block and therail. The unique design of the circulate pathallows the RG sequence linear guideway to offersmoother linear motion.Super excessive rigidityThe RG collection is one of those linear guideway that uses rollers asthe rolling elements. Rollers have a greater touch area thanballs so that the roller guideway points larger load capacityand bigger rigidity. The figure shows the rigidity of a rollerand a ball with equivalent volume.Super excessive load capacityWith the four rows of rollers arranged at a contact perspective of45-degrees, the RG series linear guideway has equivalent loadratings in the radial, opposite radial and lateral directions. TheRG sequence has a higher load means in a smaller length thanconventional, ball-type linear guideways.Operating existence increasedCompare with the ball element, the touch pressure ofrolling detail is shipped at the line region. Therefore,stress concentration turned into diminished siginificantly and the RGseries presents longer operating life. The nominal lifetime of RG seriescan be calculated by utilizing Eq.Shipment1. The mode of delivery is via default and you can favor when putting an order.2. You are welcome to determine different items of shipping when you want, if now not discovered it, please touch us.3. Item will be shipped ASAP after payment, but most of our merchandise are custom-made, which may end in longer shipping time, please understand, in case you have any questions, please touch us.4. If you are ordering in broad quantities, please contact us to offer delivery discount.Payment1. Full support Aliexpress platform for all fee methods, when you've got charge problems, please touch us.2. Our costs don't include customs duties, please pay attention to the native regulations, if in case you have particular requirements, please contact us.

•
•
•
•
•
