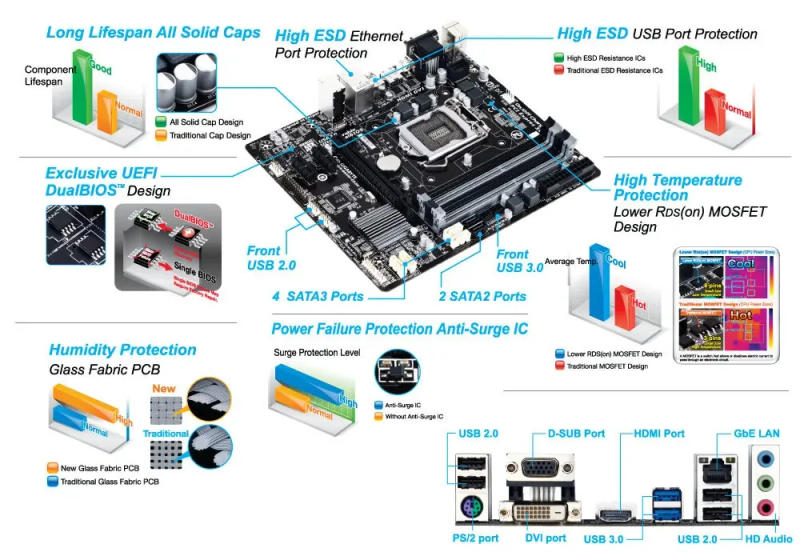

• Supported CPU CPU Socket Type LGA 1150 CPU Type 4th generation i7/i5/i3/Pentium/Celeron Chipsets Chipset Intel B85 Onboard Video Onboard Video Chipset Integrated Graphics Processor - Intel® HD Graphics support:1 1 x D-Sub port, supporting a most decision of 1920x12002 1 x DVI-D port, supporting a most resolution of 1920x1200* The DVI-D port would not help D-Sub connection via adapter 1 x HDMI port, supporting a maximum decision of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz* Support for HDMI 1 version Maximum shared memory of 1 GB Memory Number of Memory Slots 4 × 240Pin Memory Standard DDR3 1600/1333, non-ECC Expansion Slots PCI Express 3 x16 1 x PCI Express x16 slot, working at x16(The PCIEX16 slot conforms to PCI Express 3 standard) PCI Express x1 2 x PCI Express x1 slots(The PCI Express x1 slot conforms to PCI Express 2 standard) Storage Devices SATA 3Gb/s 2 x SATA 3Gb/s connectors (SATA2 4/5) SATA 6Gb/s 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3) Onboard Audio Audio Channels 2/4/5/7* To configure 7 audio, you should use an HD front panel audio module and enable the multi-channel audio function in the course of the audio driving force Onboard LAN LAN Chipset Realtek GbE Max LAN Speed 10/100/1000Mbps Rear Panel Ports PS/2 1 x PS/2 keyboard/mouse port Video Ports 1 x D-Sub 1 x DVI-D HDMI 1 x HDMI RJ45 1 x RJ45 USB three 2 x USB three USB half of four x USB 2 Audio Ports three x audio jacks (Line In, Line Out, Mic In) Internal I/O Connectors Onboard USB 1 x USB 3/2 header2 x USB 2/1 headers Other Connectors 1 x 24-pin ATX leading power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x front panel header1 x entrance panel audio header1 x serial port header1 x parallel port header1 x Clear CMOS jumper Physical Spec Form Factor Micro ATX Dimensions (W x L) 8" x 7" Power Pin 24 Pin Features Features Supports 4th Generation Intel Core processorsGIGABYTE Ultra Durable four Plus TechnologyAudio Noise Guard with High Quality Audio CapacitorsGIGABYTE Hybrid electronic power engineGIGABYTE UEFI DualBIOSGIGABYTE On/Off Charge for USB devicesLAN with high ESD ProtectionHDMI 1, DVI, D-SUBLong lifespan Durable Solid capsGIGABYTE LAN OptimizerUnique Features1 Support for Q-Flash2 Support for Xpress Install3 Support for APP Center* Available functions in APP Center might differ via motherboard model Supported purposes of each application also can fluctuate depending on motherboard specifications@BIOSEasyTuneEZ SetupUSB BlockerSmart TimeLockSmart Recovery24 Support for ON/OFF Charge

•
•
