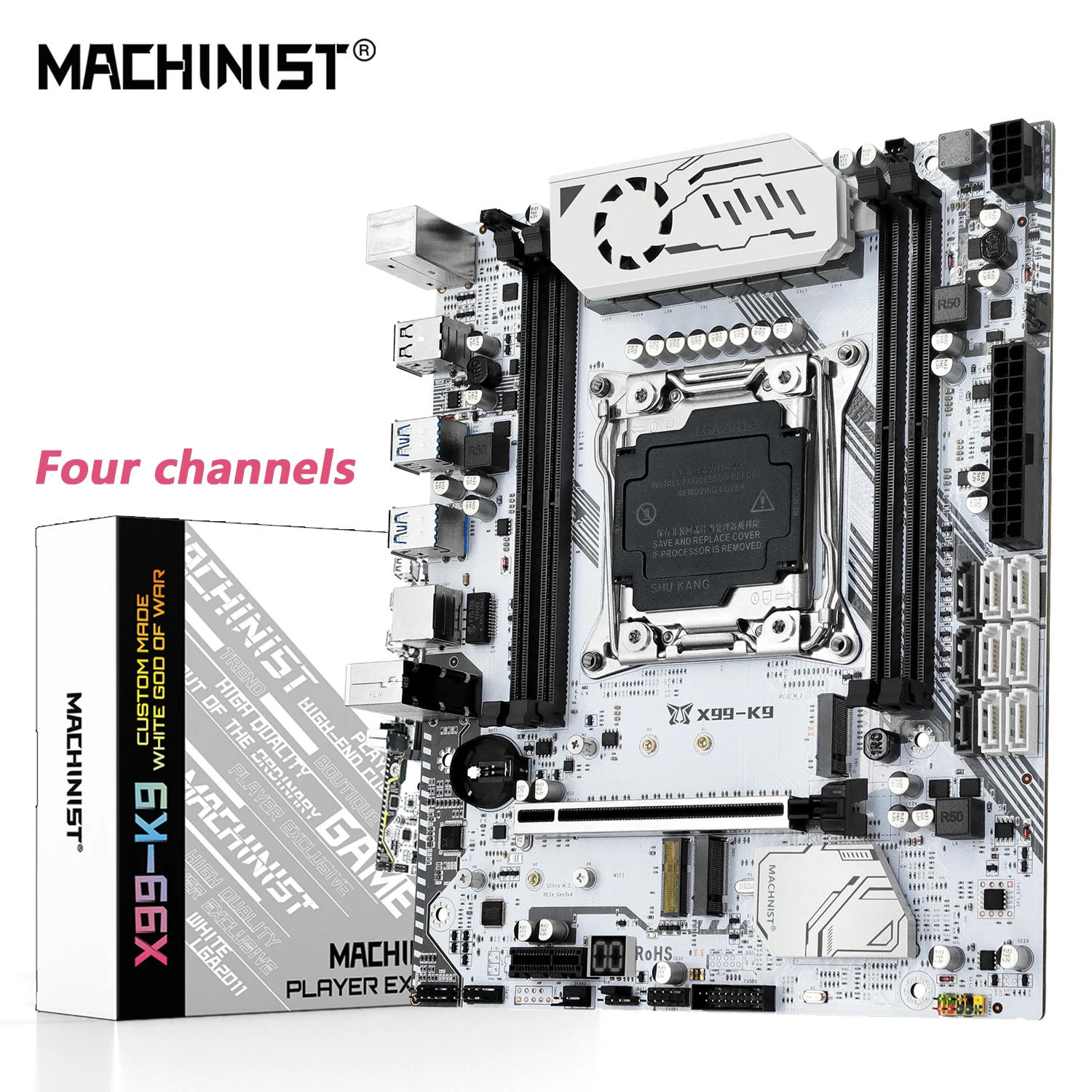

• Kit contains: Motherboard: MACHINIST X99 K9 LGA 2011-3 motherboard*1 Free accessories: I/O shield*1, SATA cable*1, lga 2011 cooling bracket*1 (!!! Everything is manually examined and packaged earlier than sending If there are any gifts missing, please understand!) Motherboard information: >> Brand: MACHINIST >>Motherboard model: X99 K9 >>Processor: Intel LGA 2011-3-pin collection processor >> Chipset: X99/C612 Chipset >>Memory Technology: Quad Channel DDR4 Maximum potential 128GB (32G x 4) Memory slot: 4*DDR4 Supported memory types: Supports DDR4 desktop reminiscence and server reminiscence (Note: Please use Samsung, Kingston, Sandy, Micron, Hynix and different overseas brands Other brands could also be incompatible) >> Post I/O PS/2: 1 two-in-one interface USB interface: 4 USB2; four USB3 Ethernet: 1 Gigabit community card Audio: 1 (Mic-in, Line-out, Line-in) >>Internal connector PCIe: 1 PCIe 16x, 1 PCIe 1x F_PANEL: 1 2x5Pin SATA interface: nine (9 SATA3); 1 ordinary 1x8PIN strength socket; 1 normal 1x24PIN power socket; JAudio: 1 2x5Pin pin; Diagnosis card: 1 piece; M interface: 2 NVME M interfaces NGFF M WIFI card interface >Outline size: 235mm * 200mm >Motherboard weight (including packaging): about 0 kg >> Regarding customs issues, please make sure that you could clear up the customs clearance subject by yourself If you can't resolve it, we do not recommend that you simply buy items in our store We aren't accountable for customs obligations thanks for knowing Notice: (1) The shade of the tank backside plate may well range from batch to batch, nevertheless it will not impression the use of the product Products are constantly optimized and upgraded (2) Due to handbook measurement, please allow an error of 1-3mm (3)Due to various exhibits and various lights, the photographs might not reveal the particular colour of the item thanks for figuring out (4) The platform calls for a magnificent power delivery Please make sure your strength delivery is adequate for this platform (At least 500w model strength supply) (5) The battery within the motherboard picture is not included and will be eliminated earlier than shipment as a result of logistics standards restrict the use of this battery

•
•
•
•
•
