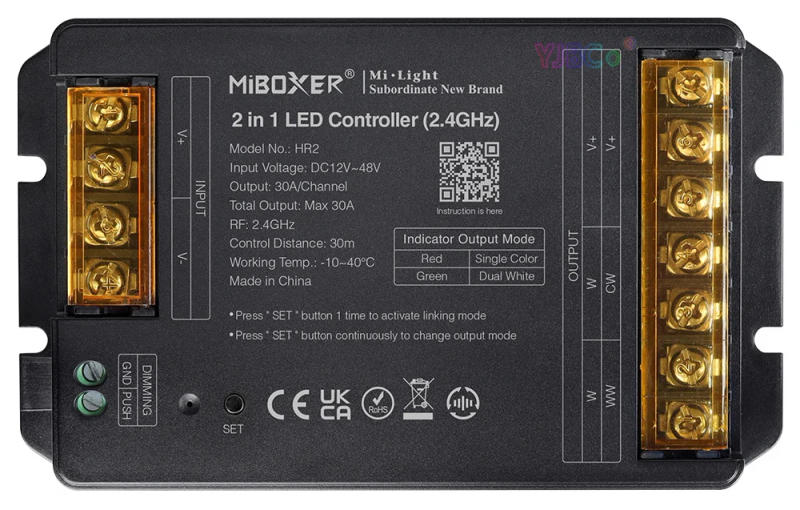

• Description: HR2 2 in 1 LED Controller (2) Output Max 30A • Compatible with Mi-Light / MiBoxer 2 collection remote • Control Distance: 30m • Brightness and color temperature adjustable • Support PUSH dimming • Switching 2 output mode via one button (Single coloration / Dual white) This controller undertake the generally used 2 wireless know-how with the features of low energy consumption, lengthy signal transmitting and strong anti-interference,etc. Controlled by means of wireless remote controller, also with smartphone management and 4G long distance leadership (2 gateway is needed). controller with brightness, CCT output mode. One well matched handheld remote control many controllers at the identical time. Widely used on the controlling of resort light fixtures and home lighting. 1. Color temperature adjustable 2. Dim brightness 3. 2 RF wi-fi transmission know-how 4. Remote control, Control distance 30m 5. Auto-transmitting 6. App management (2 gateway is needed) 7. Support third celebration voice management (2 gateway is needed) 8. Do now not disturb mode Product Parameters Product Name: 2 in 1 LED Controller (2) Model No.: HR2 Input Voltage: DC12~48V Output: 30A/Channel Total Output: Max 30A RF: 2 Control Distance: 30m IP Rate: – Working Temperature: -10~40°C Output connection: Common anode 1pcs * HR22 in 1 LED Controller (2) Output Max 30A Support Tuya smart app leadership (2 gateway is needed) Support 0.33 get together voice management (2 gateway is needed) Connection Diagram: Compatible with the resultant remotes Set up output mode Set up right output mode in keeping with the function of lighting fixtures Setting method: Press "SET" buton continually to modify output mode (attention: it will sign off with out operation within three seconds) Output mode sheet ( confirm output mode in response to color of indicator) 3). Auto transmitting (2 RF distant signal) The comfortable can transmit distant signal to a distinct gentle robotically whereas thedistance between lights are 30m, the handheld remote control distance is unlimited.(Attention: all lighting needs to be related with same remote) 4). PWM immoderate frequency / low frequency switching (only for remote control) Switch to excessive frequency Press "OFF" button 1 time within three seconds and press "ON" button 5 times,Activated effectively as soon as led mild flashes 2 times quickly. Switch to low frequency Press "ON" button 1 time within 3 seconds and press "OFF" button 5 times,Activated efficiently as soon as led light flashes 2 instances slowly 5). "Do Not Disturb" mode is activated and shut down (default activated)Turn on "Do Not Disturb" mode (wide using within the field that have energy failure continually to save lots of energy). 2 RF Remote activate and turn off instruction Turn on "Do Not Disturb" mode: Press "OFF" button 3 times within three seconds and press "ON" button 3 times, Activated efficiently as soon as led mild flashes 4 times quickly Attention: Do no longer disturb mode is activated 1. When the light is OFF status (For example: Use app or remote to show off light)The gentle is OFF reputation when you turn off energy and switch on again. (User must flip off and switch on energy two times occasions to turn on mild or use APP / remote to show on light) 2. When the light is ON repute The light is ON popularity when you turn off and turn on energy one time. Turn off "Do Not Disturb" mode: Press "ON" button 3 times within three seconds and press "OFF" button 3 times, closed efficiently as quickly as led comfortable flashes four occasions slowly. Attention: The mild might be always "ON" reputation whenever you turn on and switch off energy as soon as user closed "Do Not Disturb" mode. Attention 1. Please turn off calories supply earlier than installation. 2. Please ensure enter voltage to be identical as requirements from device. 3. Don't disassemble device if you are not expert, otherwise it is going to wreck it. 4. Please don't use the sunshine within the function with broadly vary metal field or secure electromagnetic wave nearby, otherwise, the remote distance can be seriously affected.

•
•
•
•
•
