Açıklamalar

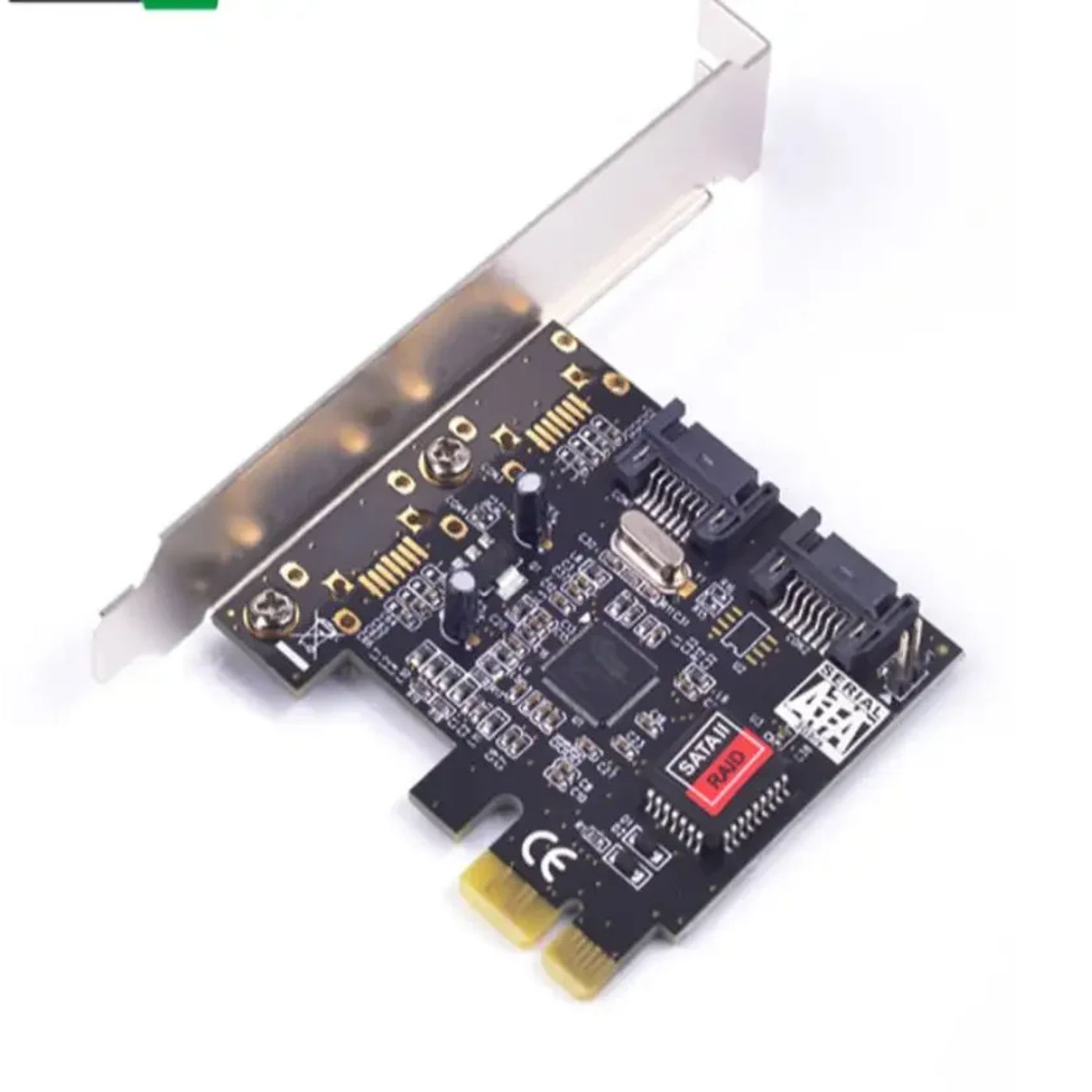

• About Description: 100 percent Brand New And High high quality SIL3132 Chipset for Silicon (FG-ES3132-2IR) Specifications PCI-Express Serial ATA II Controller Card (2-Int Ports) Introduction SATA II 2-Ports with 3Gb/s and RAID Features 2-Internal SATA II ports Support RAID 0, 1 Specification General 1-Lane (x1) PCI-Express with transfer rate 2 Gb/s Full Duplex channel Compliant with PCI-Express Revision 1 Fully Plug & Play well suited Driver supported MS Windows 2000/XP 32-bit/XP 64-bit/Server 2003, Vista, Linux, Mac OS SATA II Interface Compliant with Serial ATA II Specification Data transfer fee up to 3/s Backward well suited to SATA 1 Specification Support Port Multiplier Support 2-independent SATA channels RAID Function (Optional) Supports RAID 0 (striped), RAID 1 (mirror), JBOD Supports Co-Exist RAID Set and Non-RAID HDD System Requirement PC Computer with one PCI-Express x1 Slot Supported OS 1 x 2 Port SATA2 PCI-Express Raid Card 1 x Driver CD

•
•
•
•
