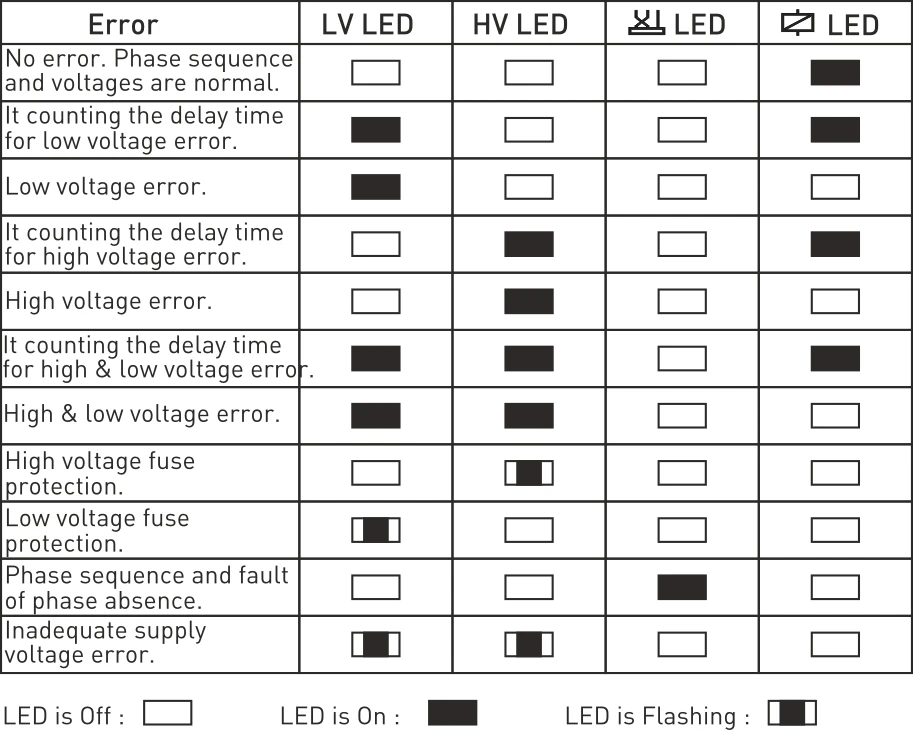

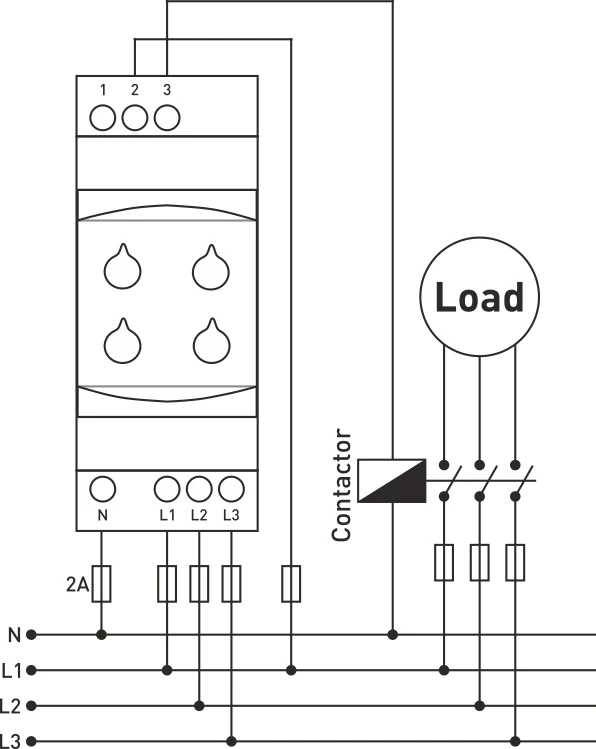

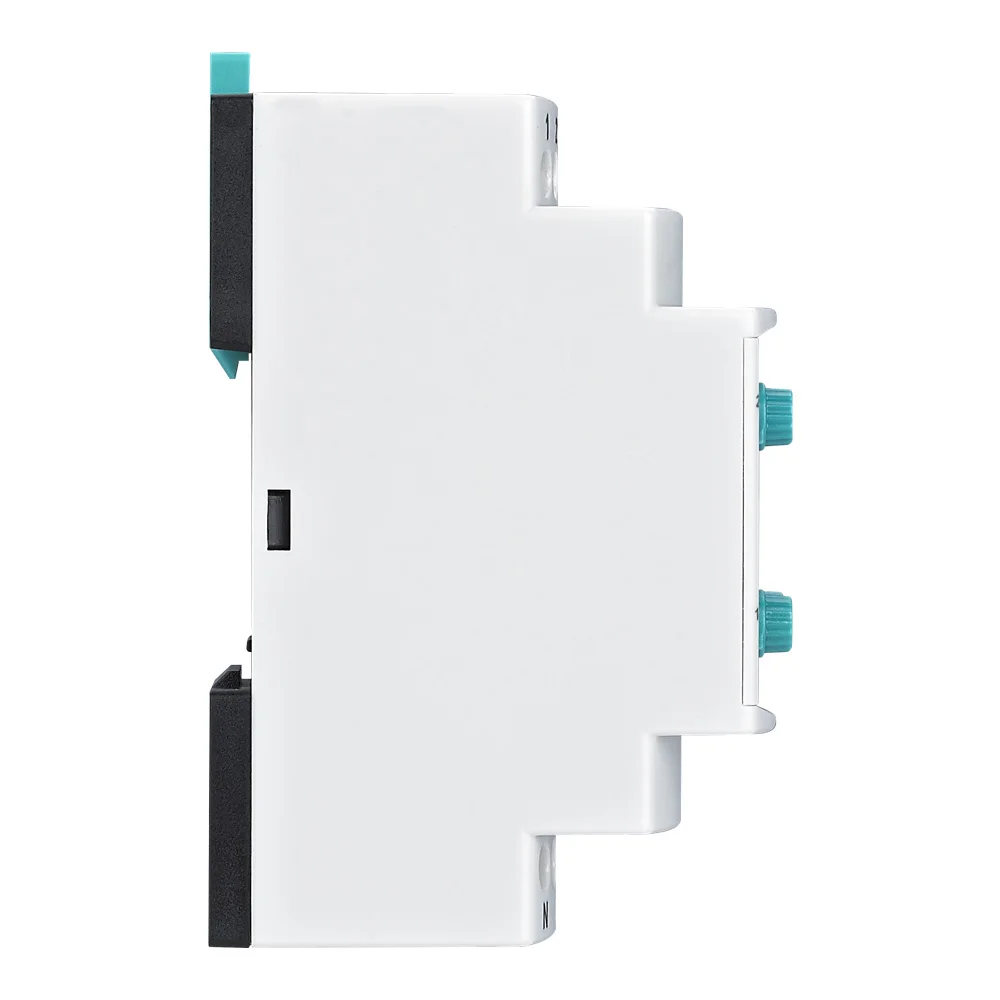

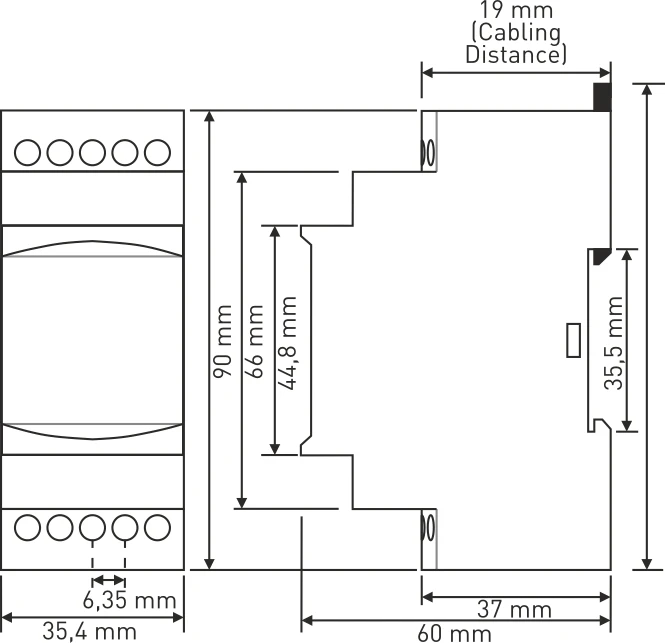

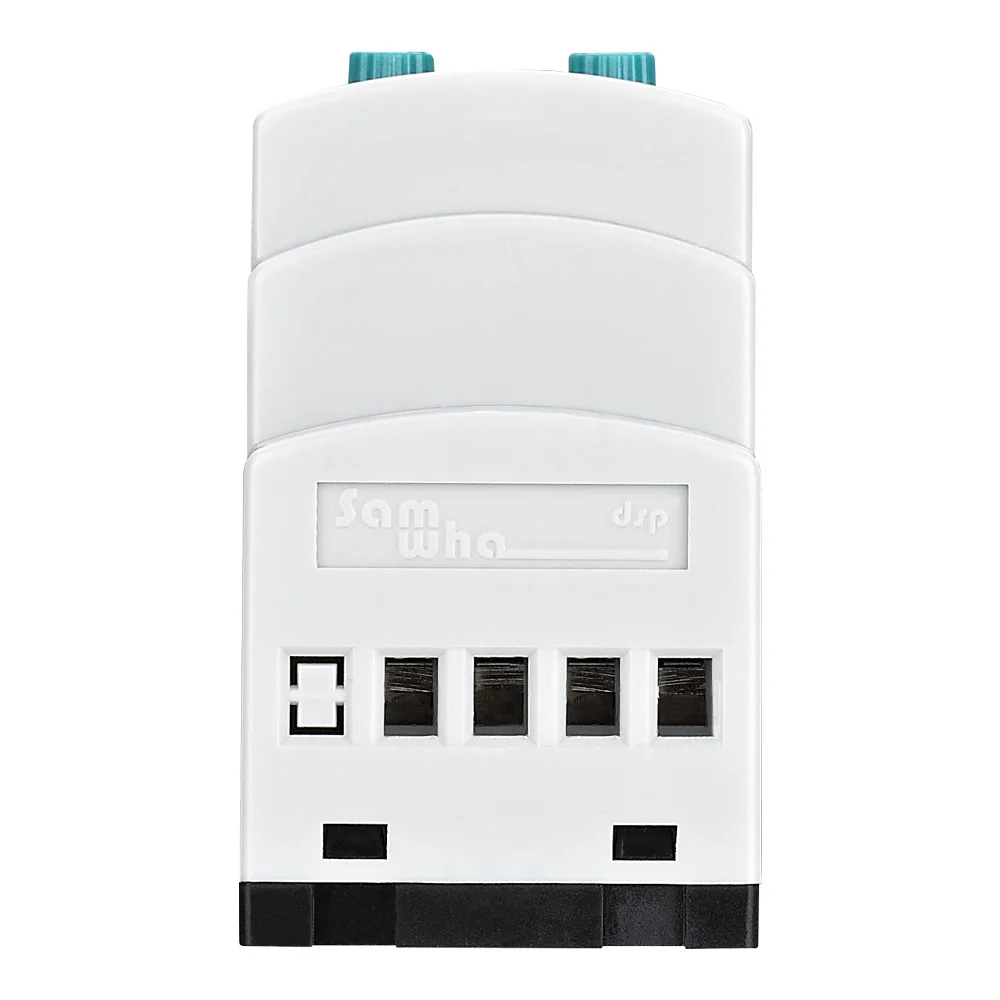

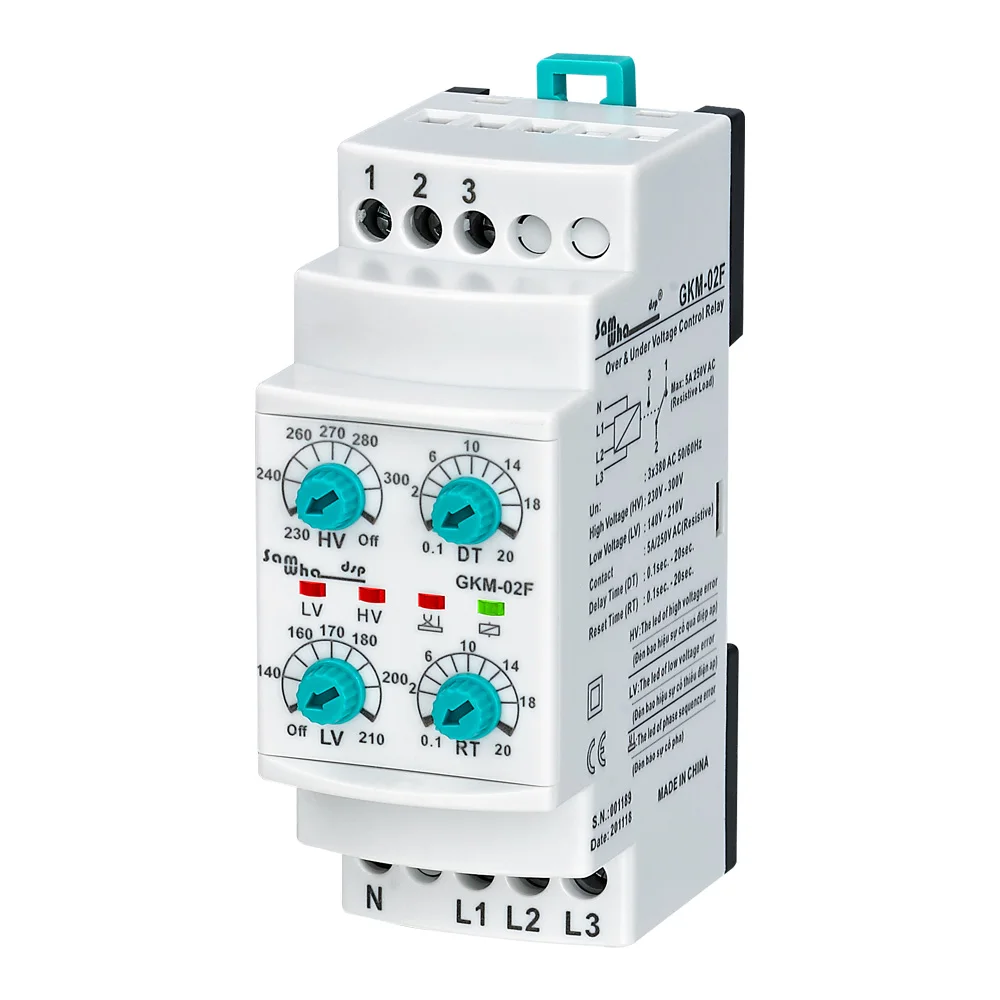

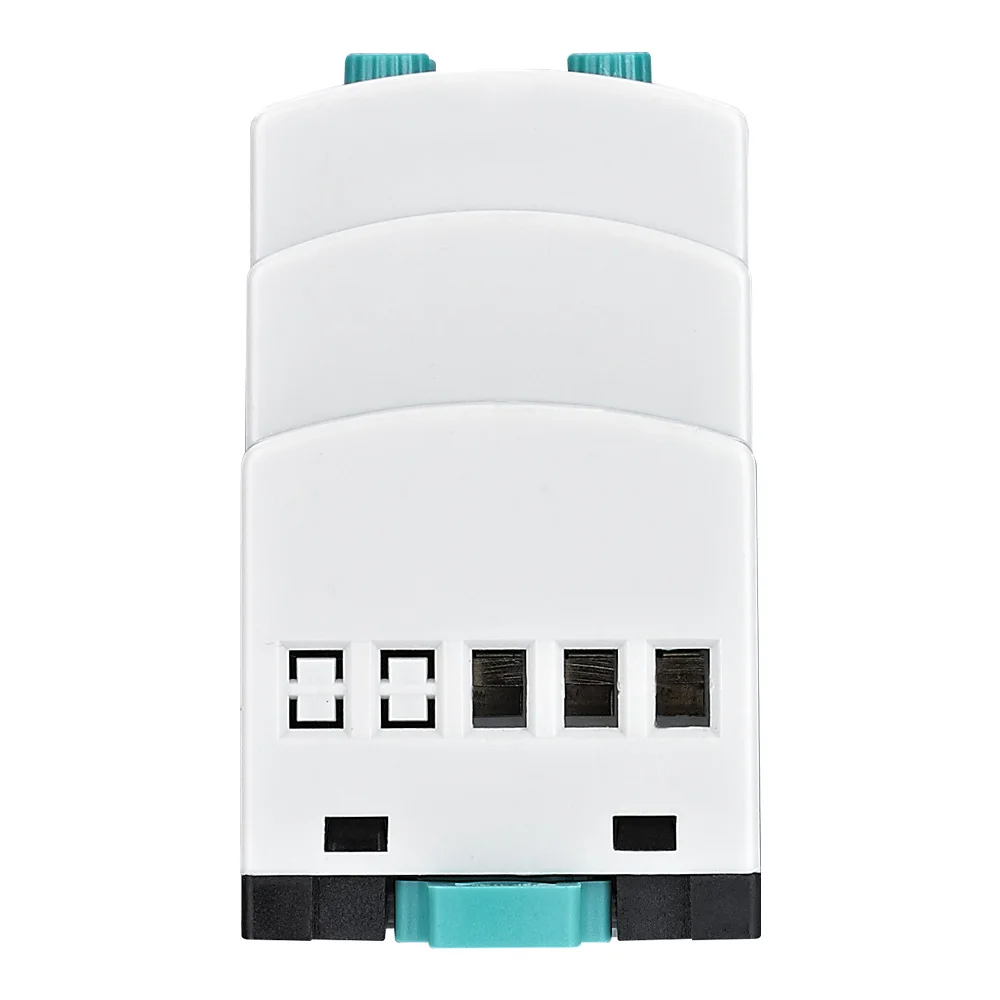

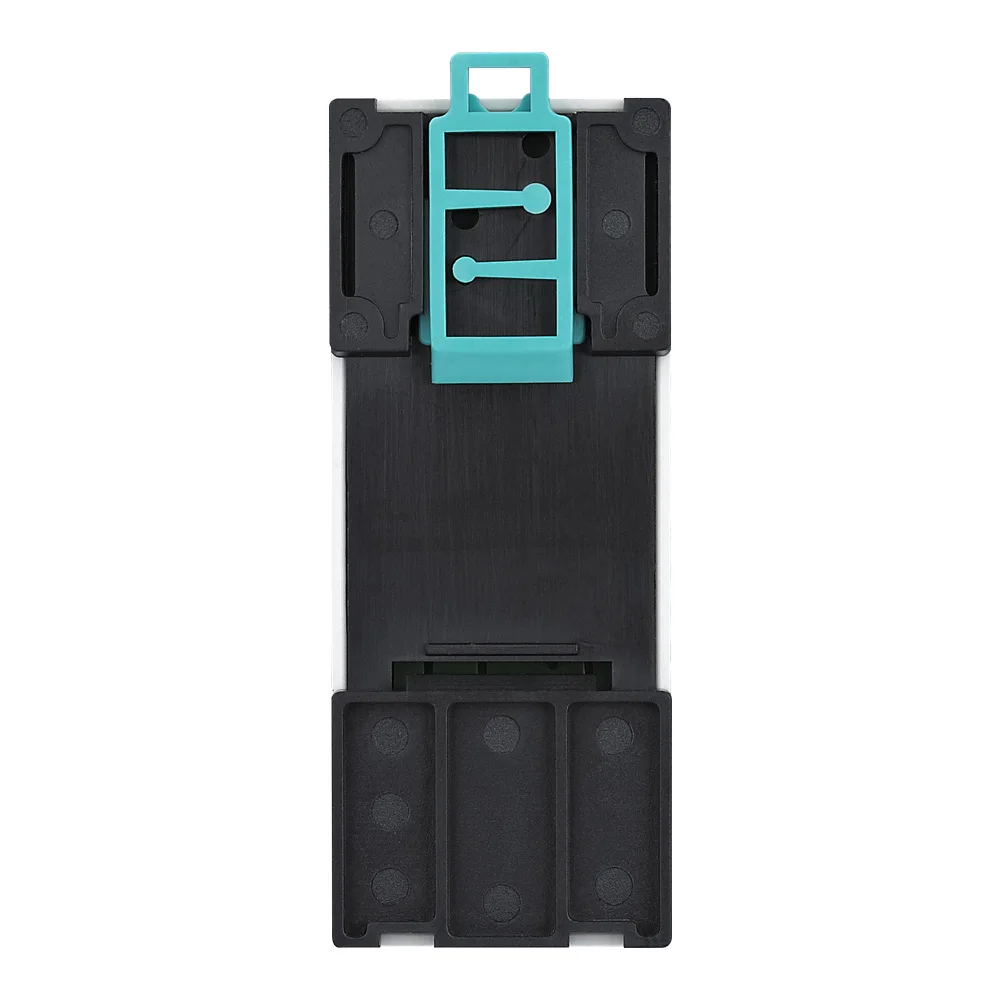

• General Voltage management relays are designed to protect instruments with touchy operating voltage values from faults that may be brought on by mains voltage Usage and Working Principle Make the connections of the device in line with connection scheme Set the required settings of the machine in step with the operating voltage values of the burden When the machine is energized, if the voltage values are narmal in keeping with the set values, the relay gets activated and the relay LED（□） is became on (In the case of models with section series control, the part sequence must also be appropriate When the voltage values exit of the set values, the linked fault LED is on, it waits till the postpone time (DT), after the time has elapsed, the relay will get de-activated and the relay LED is going out When the voltages go back to their normal values, the device waits till the reset time (RT), after the time has elapsed the relay will get activated and the relay LED is grew to become on The High Voltage Protection operate is deactivated when the HV control knob is determined to Off The Low Voltage Protection operate is deactivated when the LV management knob is decided to Off Relay is Activated: 2 (COM) and three (NC) quick circuit, 1 (NC) and a couple of (COM) open circuit Relay is De-activated: 2 (COM) and 1 (NC) brief circuit, three (NC) and a pair of (COM) open circuit Required Settings and Error Notifications HV: High Voltage Set Value, when the voltage rises above this value, HV LED is on LV: Low Voltage Set Value, when the voltage drops under this value, LV LED is on DT: Delay Time, is the time to wait before entering the fault RT: Reset Time, is the time to attend for the relay to pull when the voltages go back to normal LED Notifications By Errors Protection Functions High Voltage Protection- To enter the mistake state: If one or more of the stages goes above the high voltage set value, the HV LED is on, the system waits untilthe set postpone time (DT), after the time has elapsed the relay gets de-activated and the relay LED is off High Voltage Protection-Exiting the mistake state: When all levels drops under via 3% of the excessive voltage set value, the gadget waits for the reset time (RT) After the time passes, the HV LED is off, the relay gets activated and the relay LED is on High Voltage Fuse Protection To input the mistake state: If one or more of the stages exceeds 1 times the rated working voltage, the HV LED is flashes, after a hundred milliseconds the system gets de-activated the relay, and the relay LED is grew to become off High Voltage Fuse Protection - Exiting the mistake state: When all phases drops below by way of 3% of the excessive voltage set value, the gadget waits for the reset time (RT) After the time passes, the HV LED is off, the relay gets activated and the relay LED is on Low Voltage Protection - To enter the error state: If one or extra of the phases goes below the low voltaget set value, the LV LED is on, the system waits until the set delay time (DT), after the time has elapsed the relay will get de-activated and the relay LED is off Low Voltage Protection - Exiting the error state: When all levels goes above via 3% of the low voltage set value, the system waits for the reset time (RT) After the time passes the LV LED is off, the relay gets activated and the relay LED is on Low Voltage Fuse Protection- To input the mistake state: If one or extra of the phases zero instances beneath the rated operatinq voitage, the LV LED is flashes, ater one hundred milliseconds the machine gets deactivated the relay, and the relay LED is became off Low Voltage Fuse Protection - Exiting the error state: When all stages is going above by means of 3% of the excessive voltage set value, the system waits for the reset time (RT) After the time passes, the LV LED is off, the relay gets activated and the relay LED is on Inadequate Supply Voltage Protection - To input the error state: LV and HV LEDs flashes when N-L1 voltage for GKM-02/02F and L1-L2 voltage for GKT-03/03F is lower than the nominal working voltage through zero occasions After one hundred millisecond the device will get de-activated the relay, and relay LED is grew to become off Inadequate Supply Voltage Protection- Exiting the mistake state: When N-L1 for GKM-02/02F, L1-L2 voltage values for GKT-03/03F goes above by way of 3% of the low voltage set value, the system waits till the reset time (RT), after the time has elapsed, the LV and HV LED sturn off relay will get activated and relay LED is on Phase Sequence Protection: If the part sequence of the device is reversed, the part collection error LED(X) will light up and the relay won't gets activated Phase absence is section series fault at the same time Maintenance Switch off the device and release from connections Clean the trunk of system with a swab Don’t use any conductor or chemical may possibly harm the machine Make sure system works after cleaning Warnings Please use the gadget in keeping with the manual Don’t use the gadget in moist Include a change and circuit breaker within the meeting Put the swap and circuit breaker nearby the device, operator can reach easily Mark the switch and circuit breaker as releasing connection for system Specifications Operating Volt: three x 380V AC 50/60Hz Nominal Operating Volt: 220V 50/60Hz High Voltage:230V-300V Low Voltage:140V-210V Delay Time:0 sec - 20 sec Reset Time:0 sec -20 sec Operating Power: <6VA Operating Temperature: -20°C+55°C Display: 4xLEDs Connection Type: Terminal Connection Contact:5A/250V AC (Resistive Load) Cable Diameter: 1,5mm² Weight: zero Mounting: Assembled on the din rail Operating Altitude: <2000meter Dimensions Connection diagram

•
•
•
•
•
