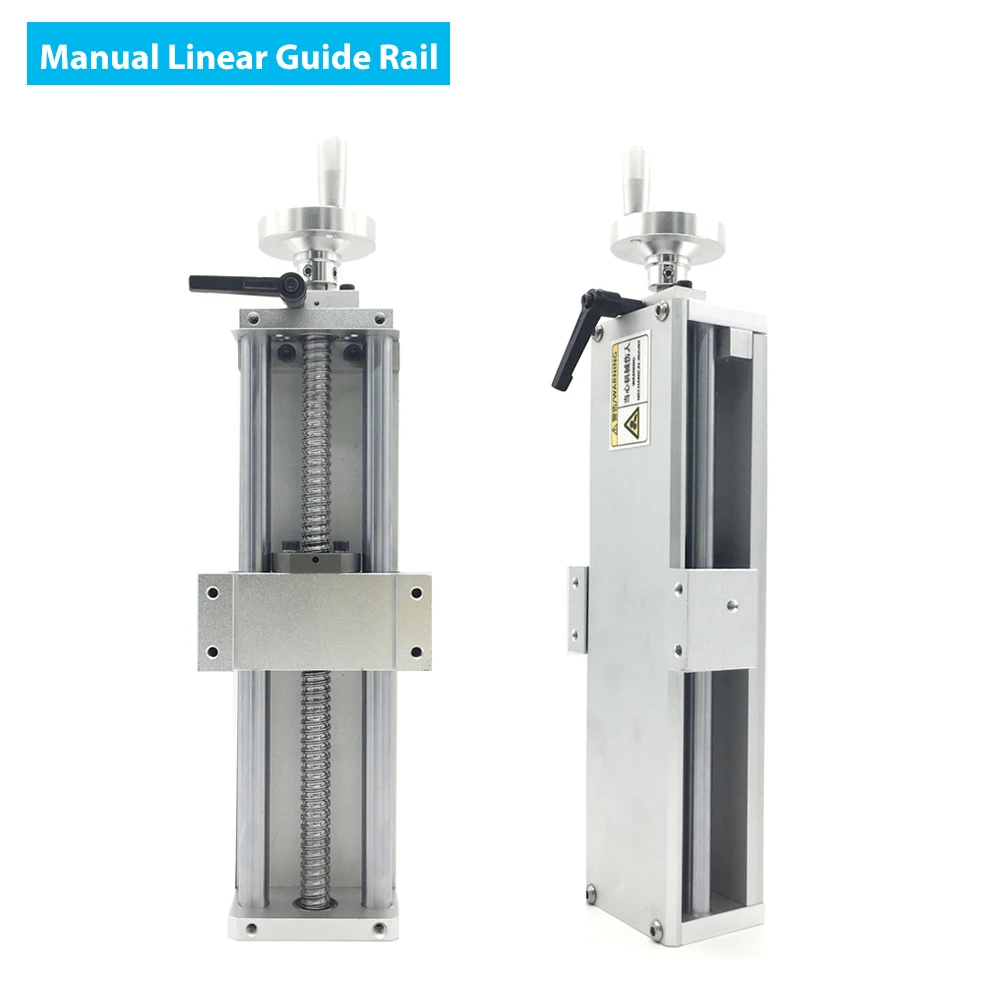

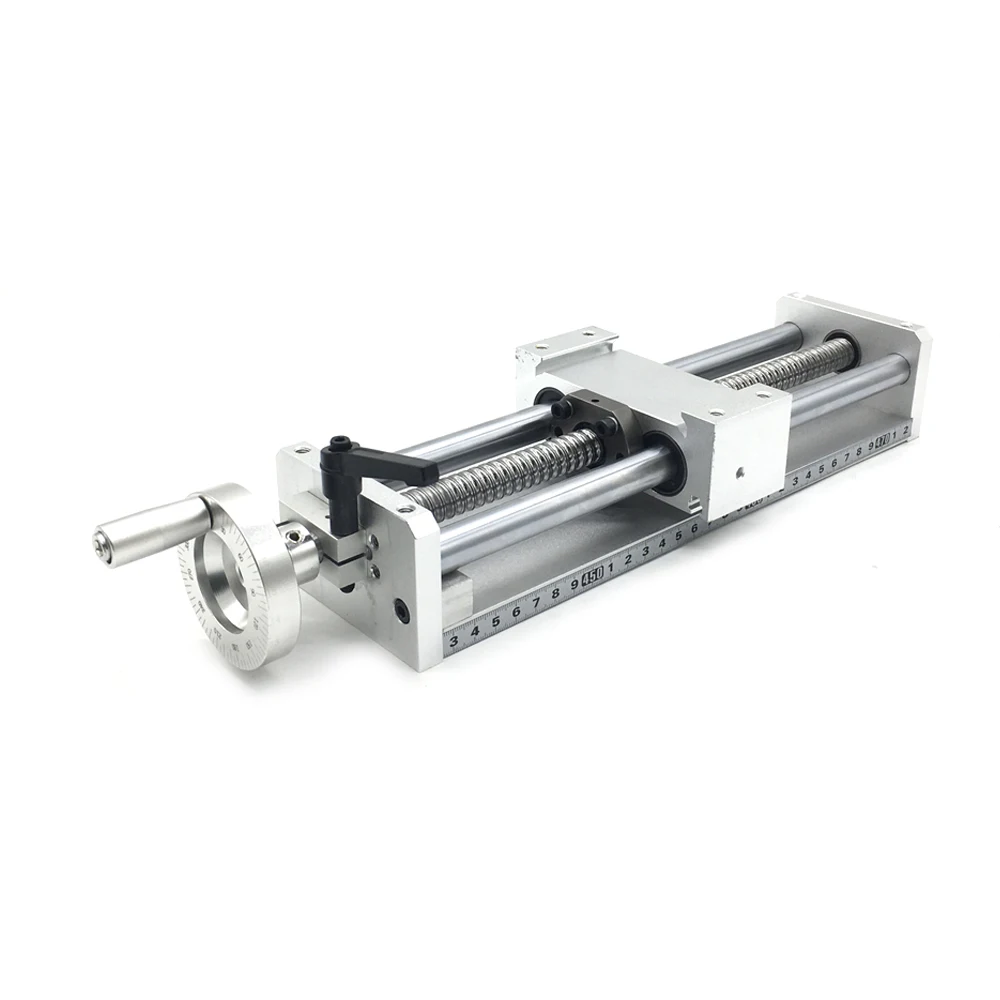

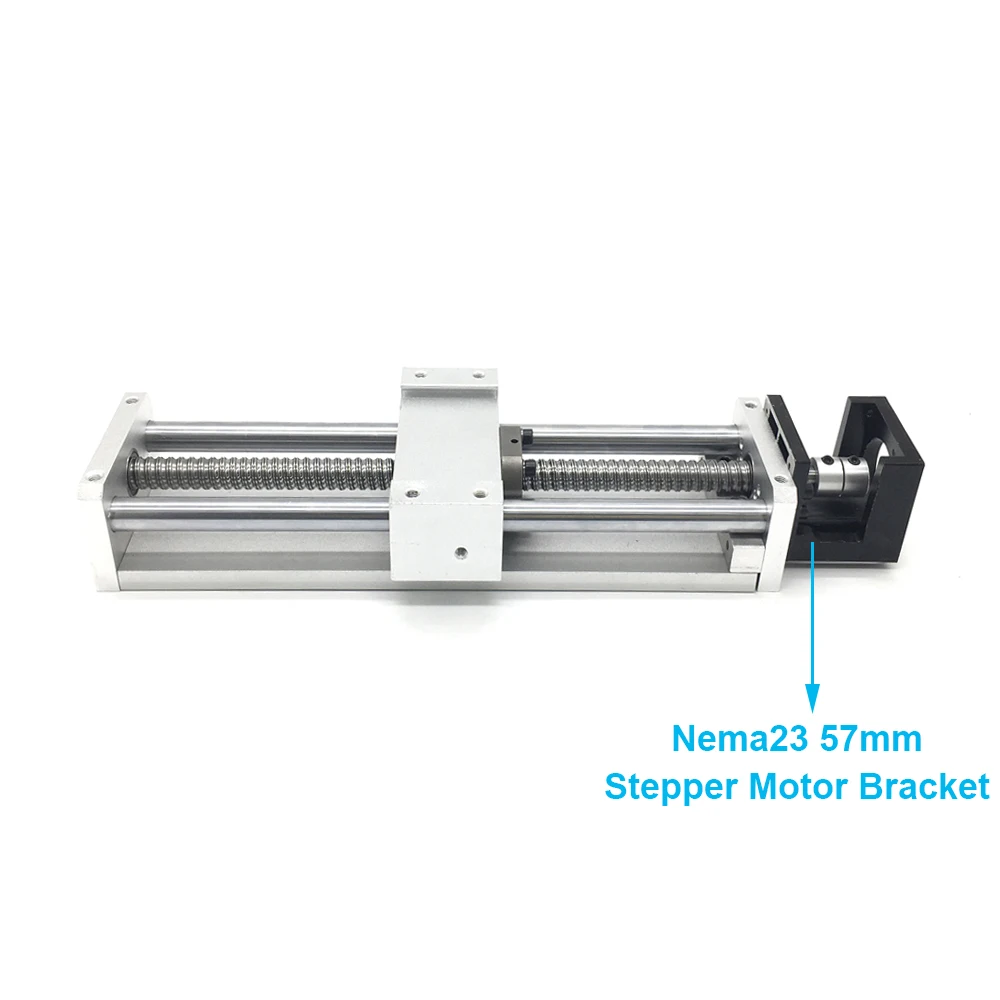

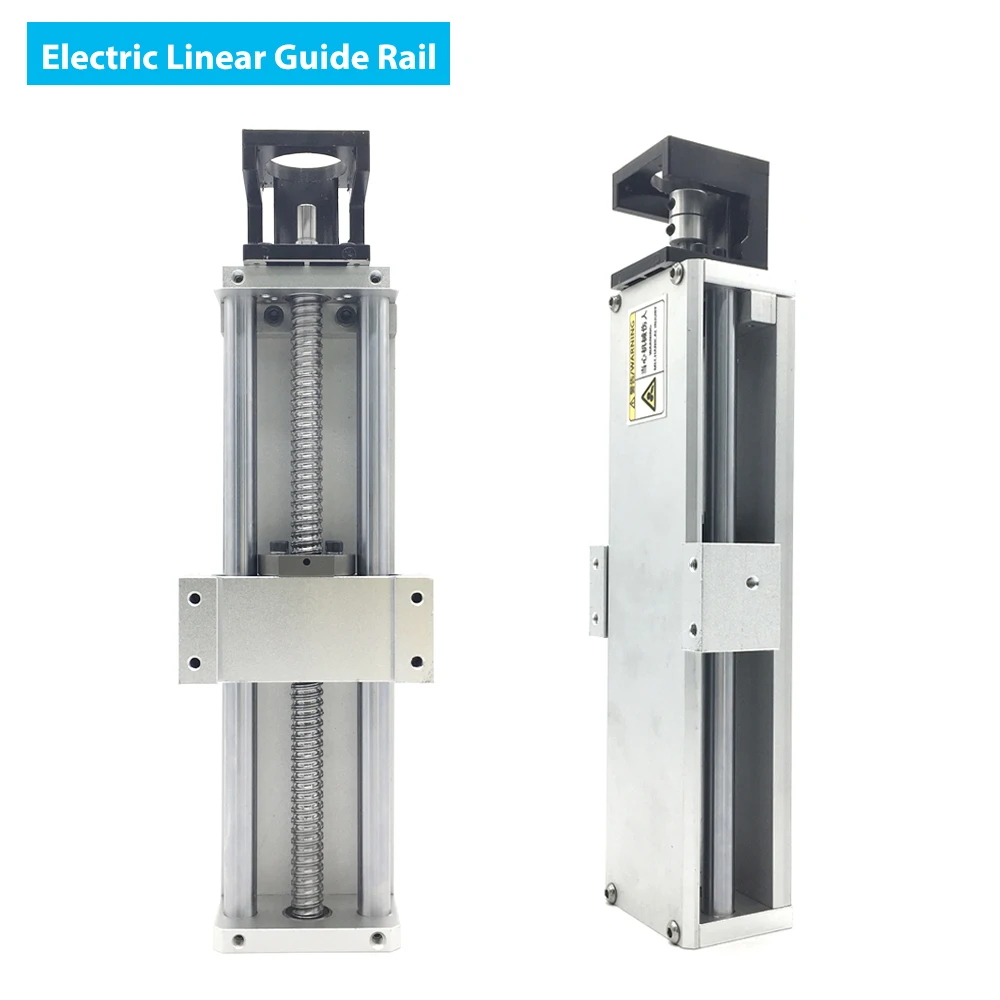

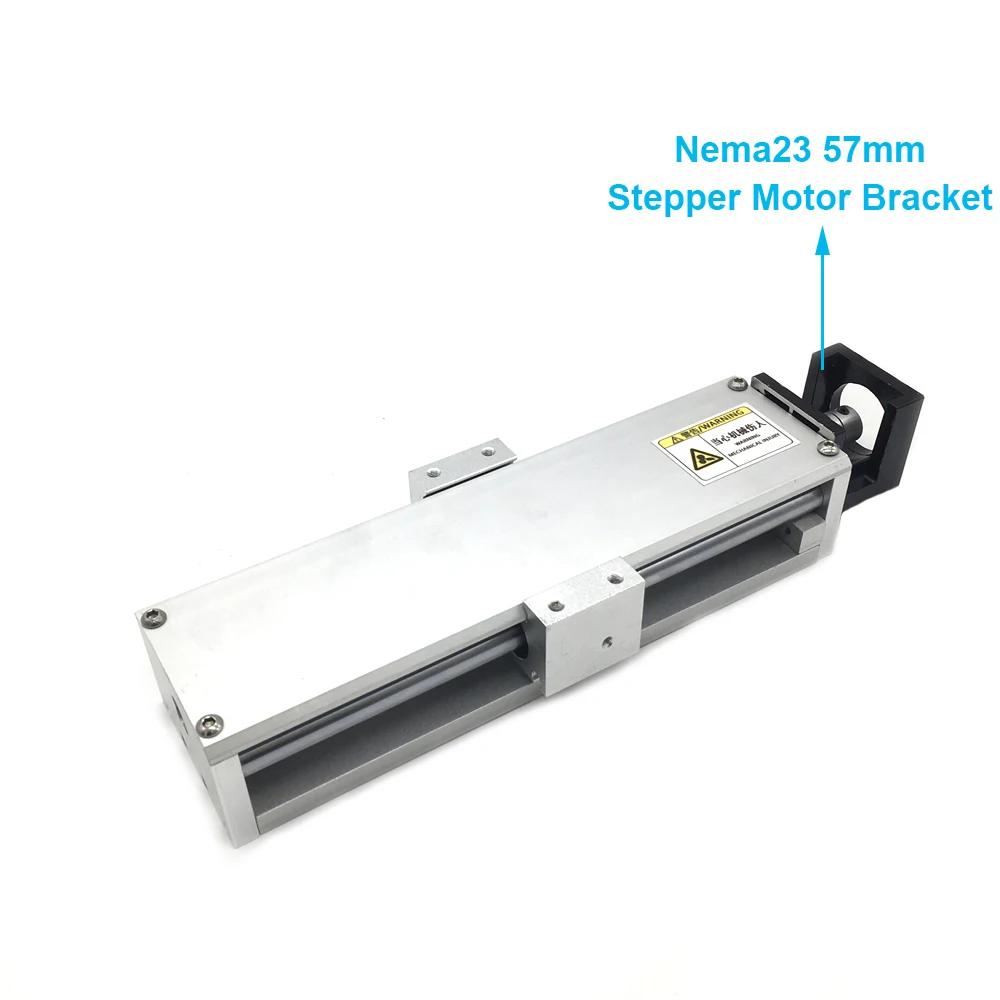

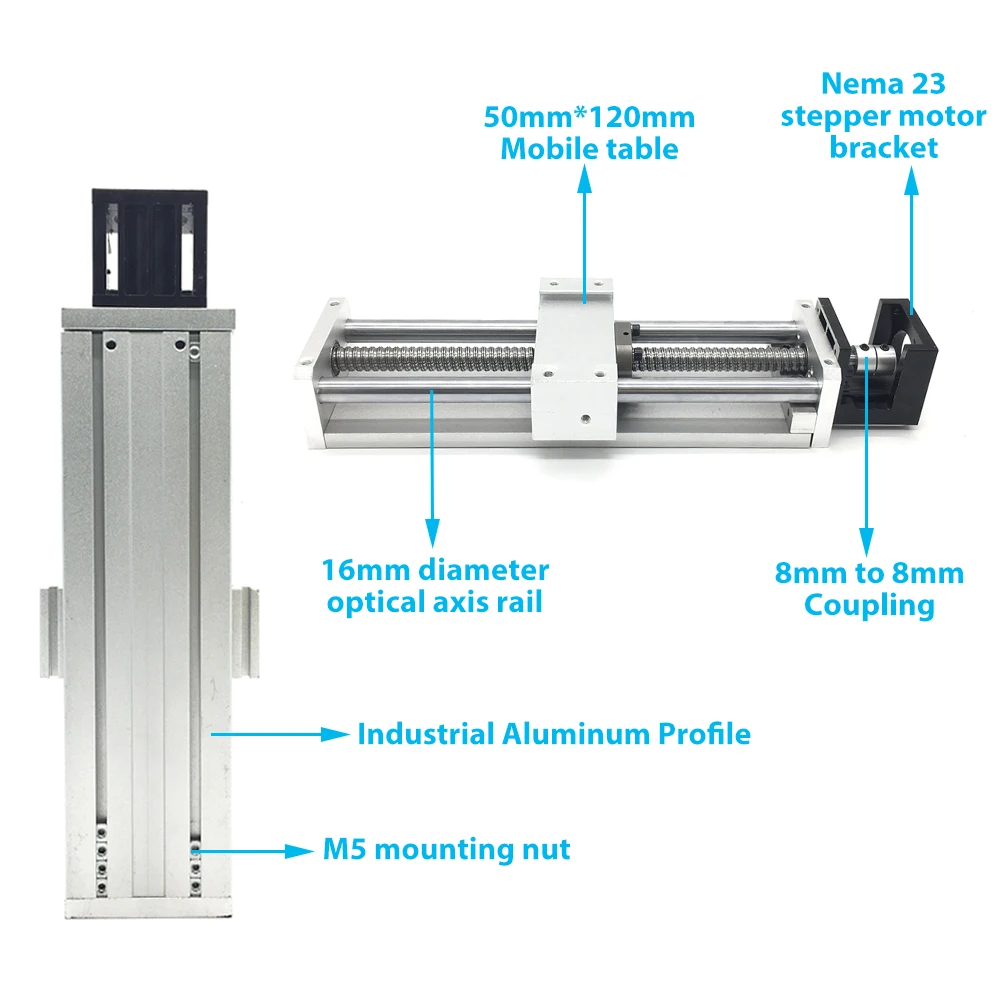

With Nema 23 57mm Motor Bracket: 1* Sliding Table 1* 8mm to 8mm Coupling 1* Nema 23 stepper motor bracket With Nema 34 86mm Motor Bracket: 1* Sliding Table 1* 8mm to 14mm Coupling 1* Nema 34 stepper motor bracket (If you wish 60mm/80mm servo motor bracket, please choose"86 Motor Bracket" to put an order and leave a message :) With Handwheel: 1* Sliding Table 1* Handwheel ●Model: KR60 ●Material: Industrial Aluminum Profile ●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates as soon as and the panel moves 5mm)/ SFU1610 ●Ballscrew accuracy: C7 level ●Mobile panel/ desk size: 50mm*120mm ●Guide Type: 2* optical axis rail ●Guide diameter: 16mm ●Horizontal load: 50KG (Max) ●Vertical load: 25KG(Max) ●Motor bracket type: For stepper motor: 57mm/86mm Optional For servo motor: 60mm/80mm Optional ●Effective stroke: 100mm-500mm Optional ●Total slide desk length: Electric version: Effective stroke+183mm Manual version: Effective stroke+207mm ●Maximum speed: 200mm/s ●Ballscrew Repeat positioning accuracy: 0.03-0.05mm
Gözden geçirmek
0 people rated this product

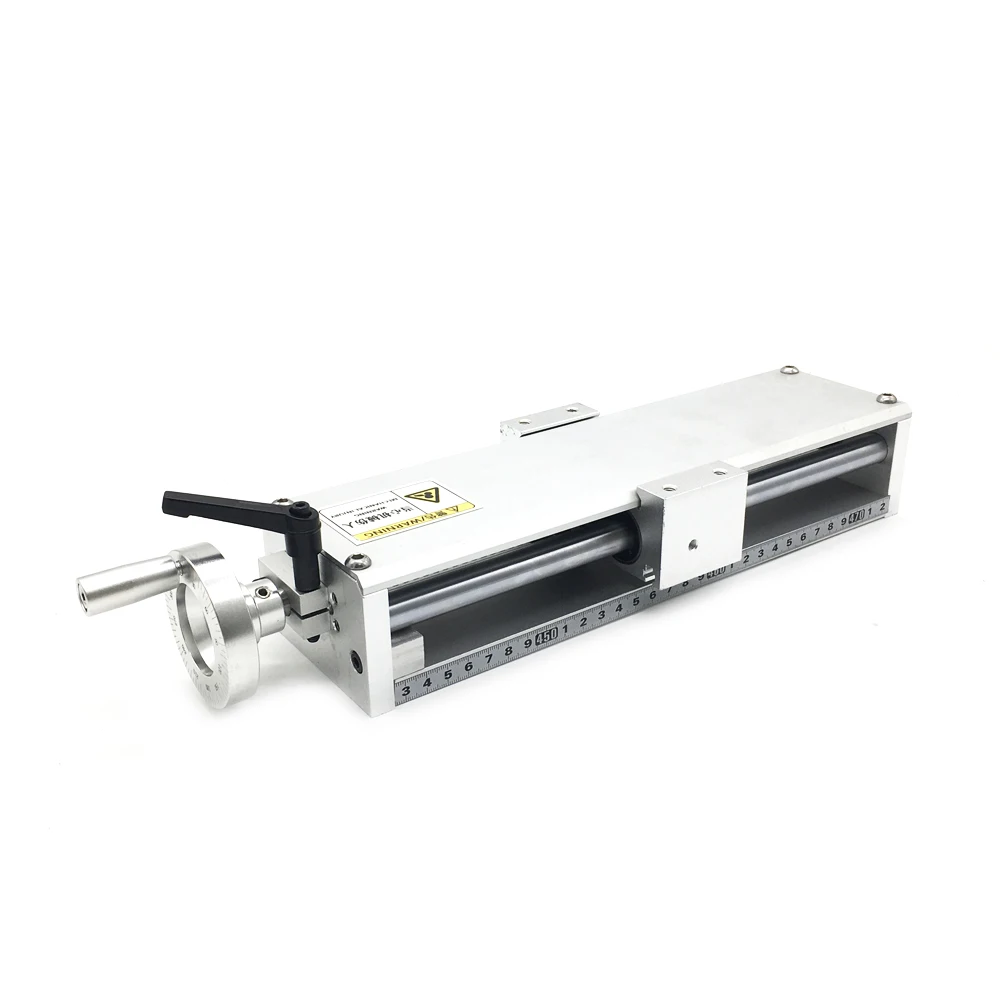

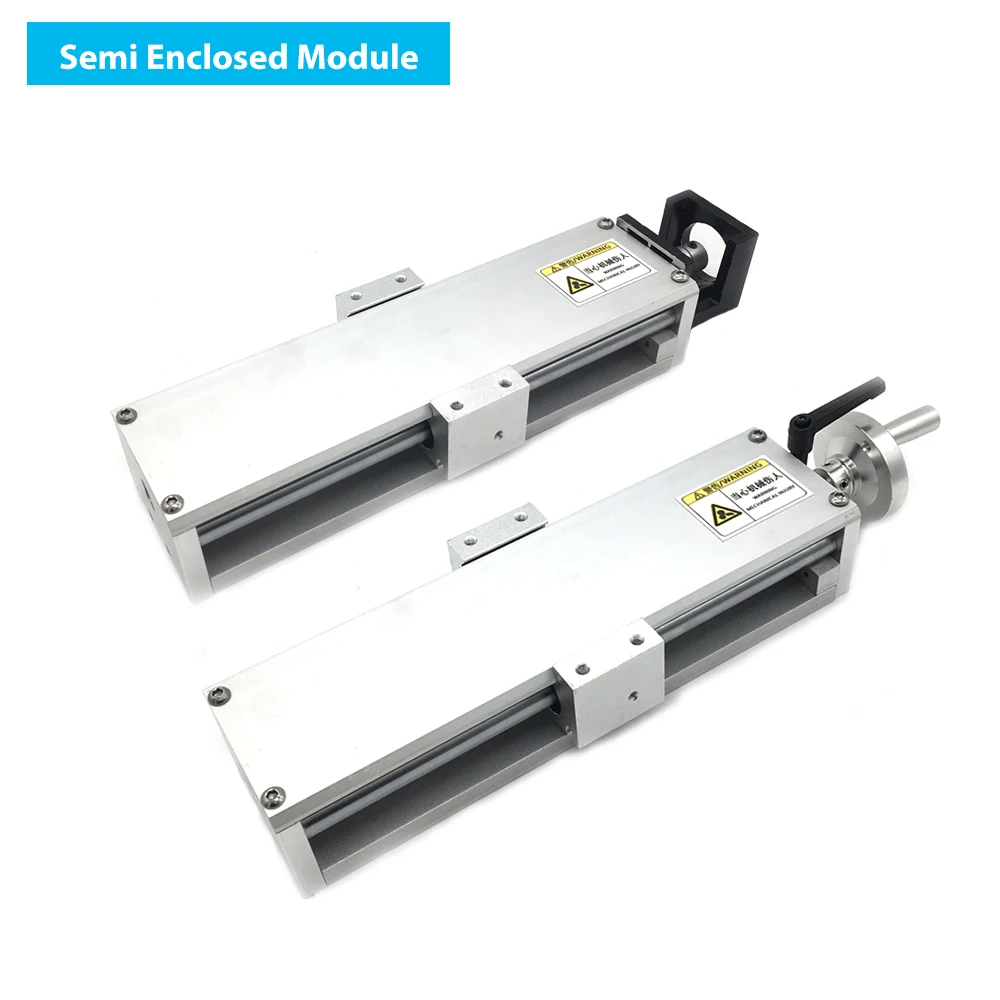

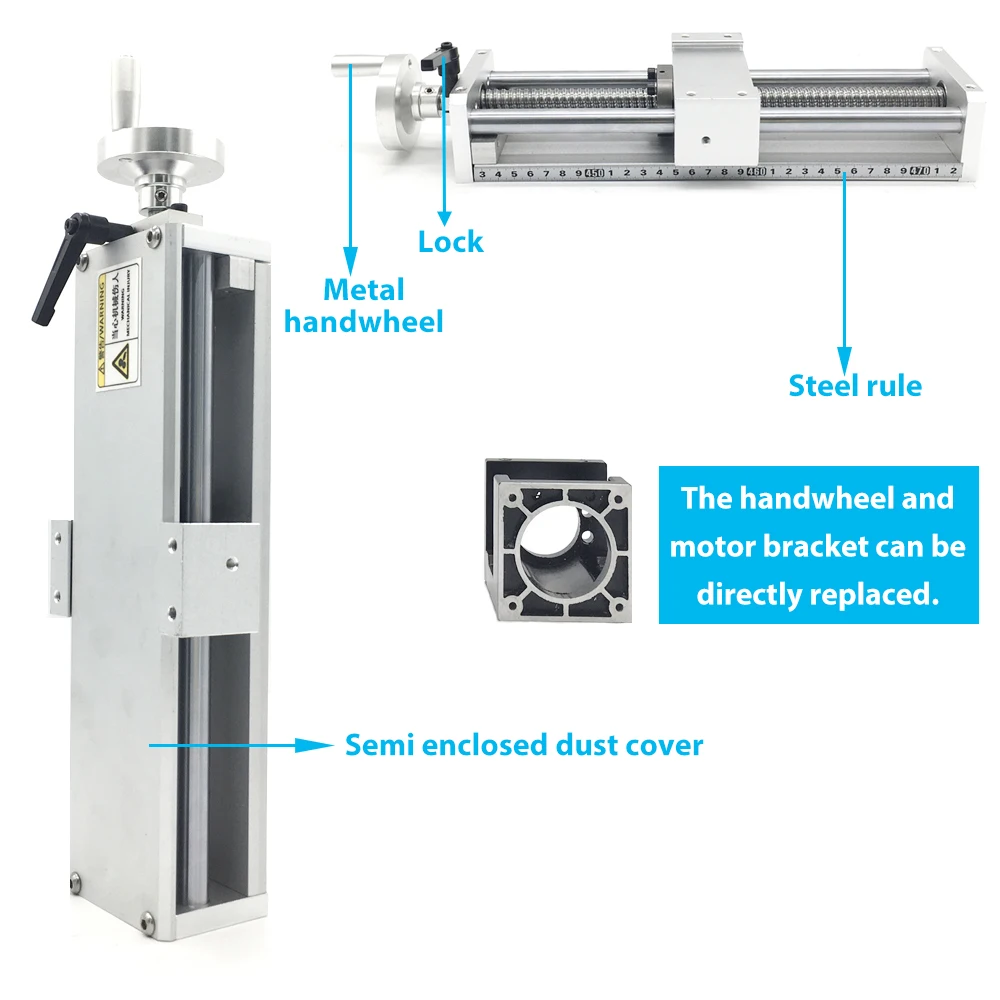

Semi Enclosed Module CNC Sliding Table Dust Cover Linear Guide Rail Table Manual Optical Axis Guide Aluminum XYZ Stage
