1 LCD demonstrate and cursor scale line;
2 carbide measuring head
3/absolute dimension interchange at any position(ABS function)
4 retention function, handy to apply in events the place direct studying isn't always suitable;
5 strength off for non-response within five minutes;

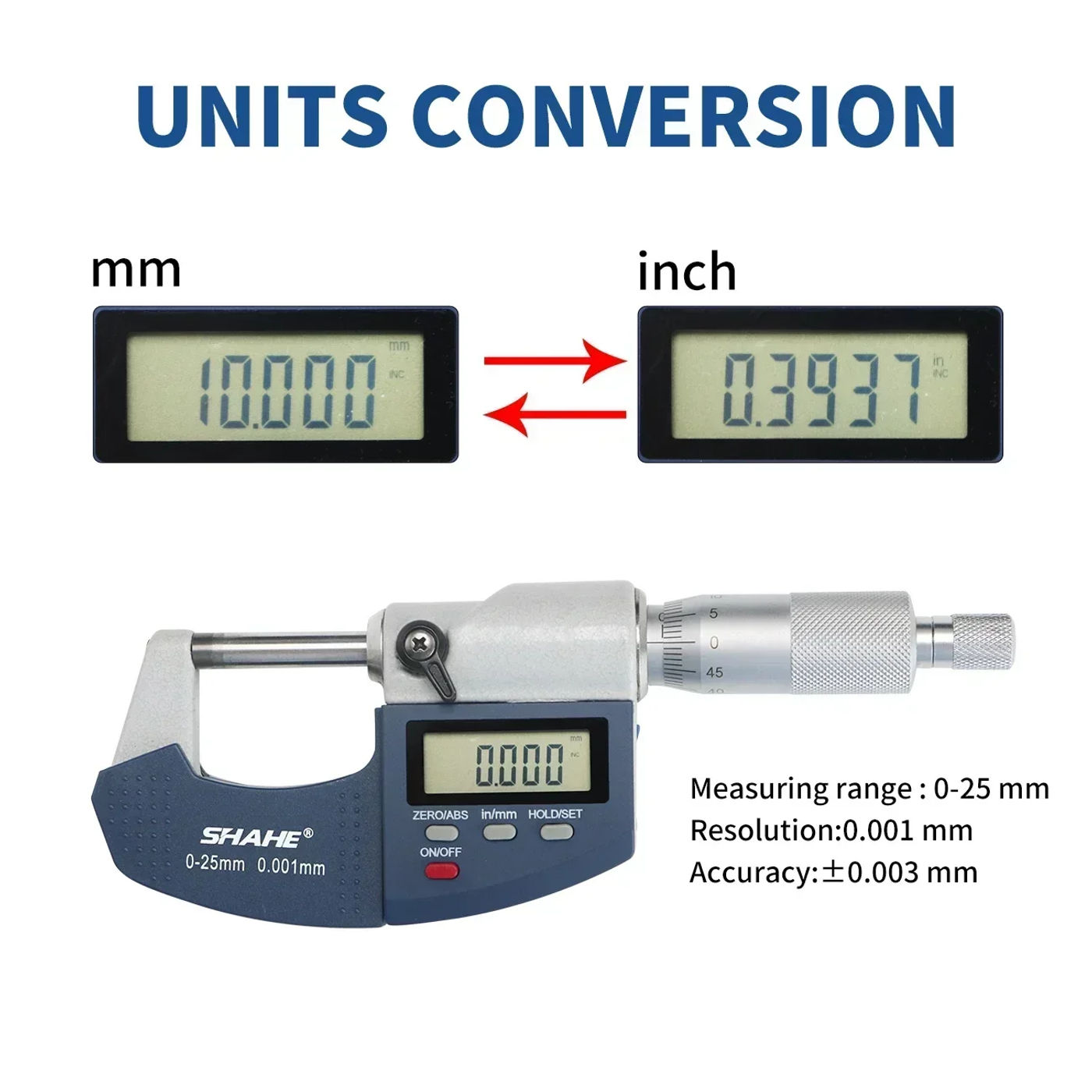

6 Kinds of Measurement Units Optional: Metric or Inch, More Convenient for Daily Use
7 temperature: 0-40℃, carrier humidity: ≤ 80%;
8 supply: CR2032
Measuring vary : 0-25 mm
Resolution:0 mm
Accuracy:±0 mm
Battery: 3V CR2032 (Not included)
Measuring Force:5-10N
Power intake :<=20uA
Storage temperature :-20-60°C
Operation temperature:0-40°C

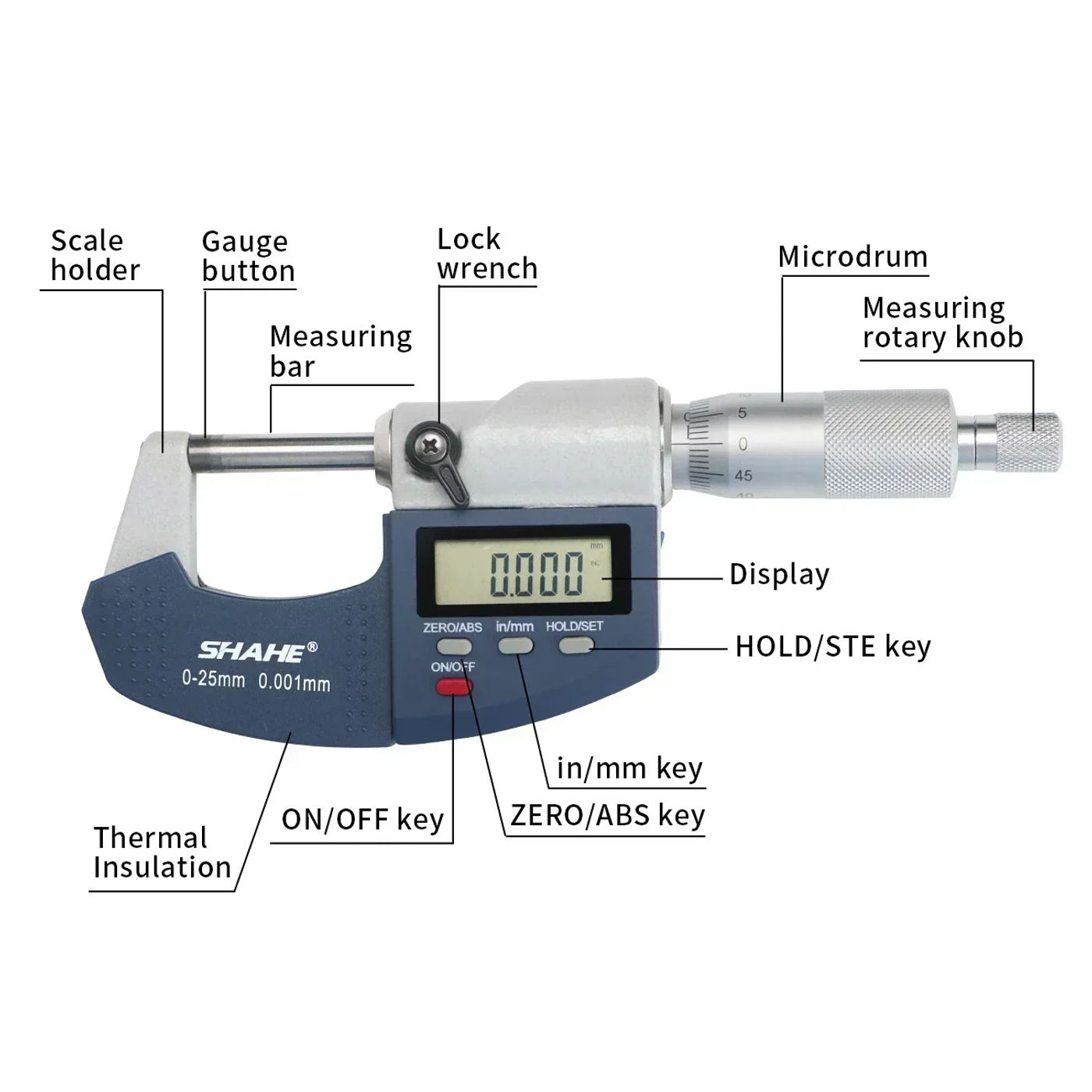

Key operation
ZERO/ABS: relative and absolute size conversion keys and reset key Short press to expose "INC" for relative and absolute measurementconversion Long press to reset records
in / m m : metric and British conversion keys
HOLD/SET: records retention and surroundings keys Short press: the present size records stays locked When in the 0 position, lengthy press to set zero function cost to "0,25,50,75"; press and preserve to let these values be displayed in turn; launch the press when the required price is displayed, and this 0 role cost is the worth at the moment displayed
ON/OFF: energy supply change
