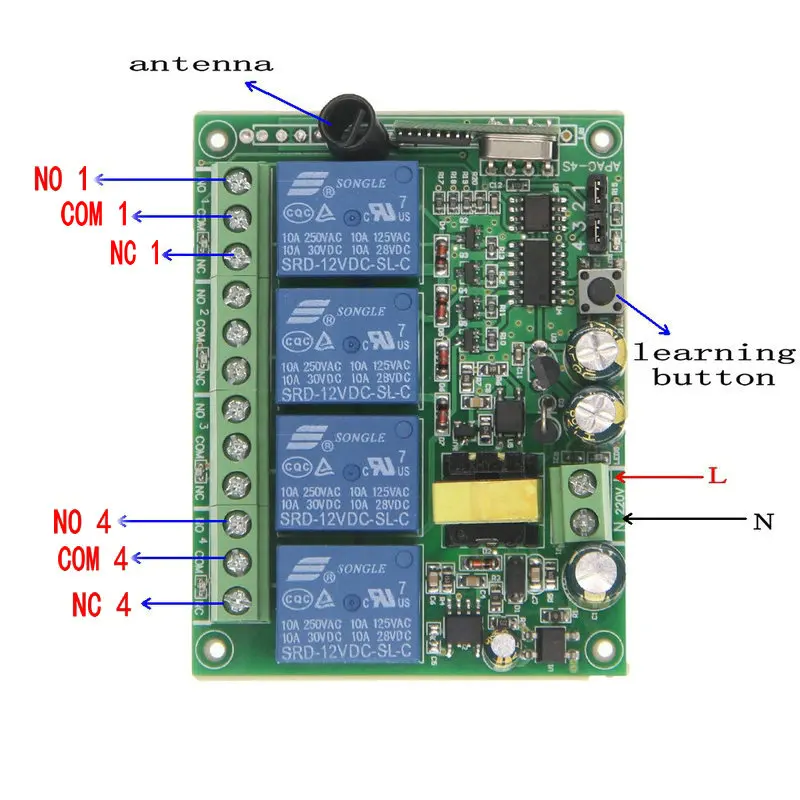

• Specifications: Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows. 1. Transmitter Channel: 4 CHRemote Control Distance:0-50mEncode: EV1527Frequency:315 or 433 MHzSize: 55mm x 30mm x 13mmPower Supply: 2 X CR2016 3V Lithium Battery(NOT included) 2 module 1)Toggle/Self-Lock: Press->On; Press again->OffPress one button for one time is working/ON an identical button back is stop/OFF .(1 channel switch(receiver) desire 1 button remote control (transmitter))Latched/Inter-Lock: Press->On; Press varied button->OffPress one button is working/ON ,press another button is stop/OFF . ( 1 channel switch( receiver) prefer 2 buttons remote control (transmitter))Momentary/Jog: Press and hold->On; Release->OffKeep pressing one button is working /ON. loosen your finger is stop/OFF channel switch(receiver) favor 1 button remote control (transmitter ) (Original Setting is Toggle , Change it through approach of yourself.) Decode: Learning code,soldering codePower Supply (Operating Voltage): AC 220VRelay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DCCurrent:<=7maSensitivity:-107 dBmOperating Temperature:-10‘C ~ 70’CSize:75 mm x 58 mm x 30 mmFrequency:315 / 433 MHz 3 Included 0/1 x Receiver (with cover)1/2/3 x Transmitter ( with out battery) four code and Remove Code Learn: input the 220V for the receiver,press the training button then the LED indicator ON and unfasten your finger press any key on the transmitter ,the indicator flashs 1 time,it capability learning successfully:keep pressing the tutorial button at the receiver about 10 seconds till the indicator turns off,it capability the codes are cleared successfully.

•
•
•
•
•
