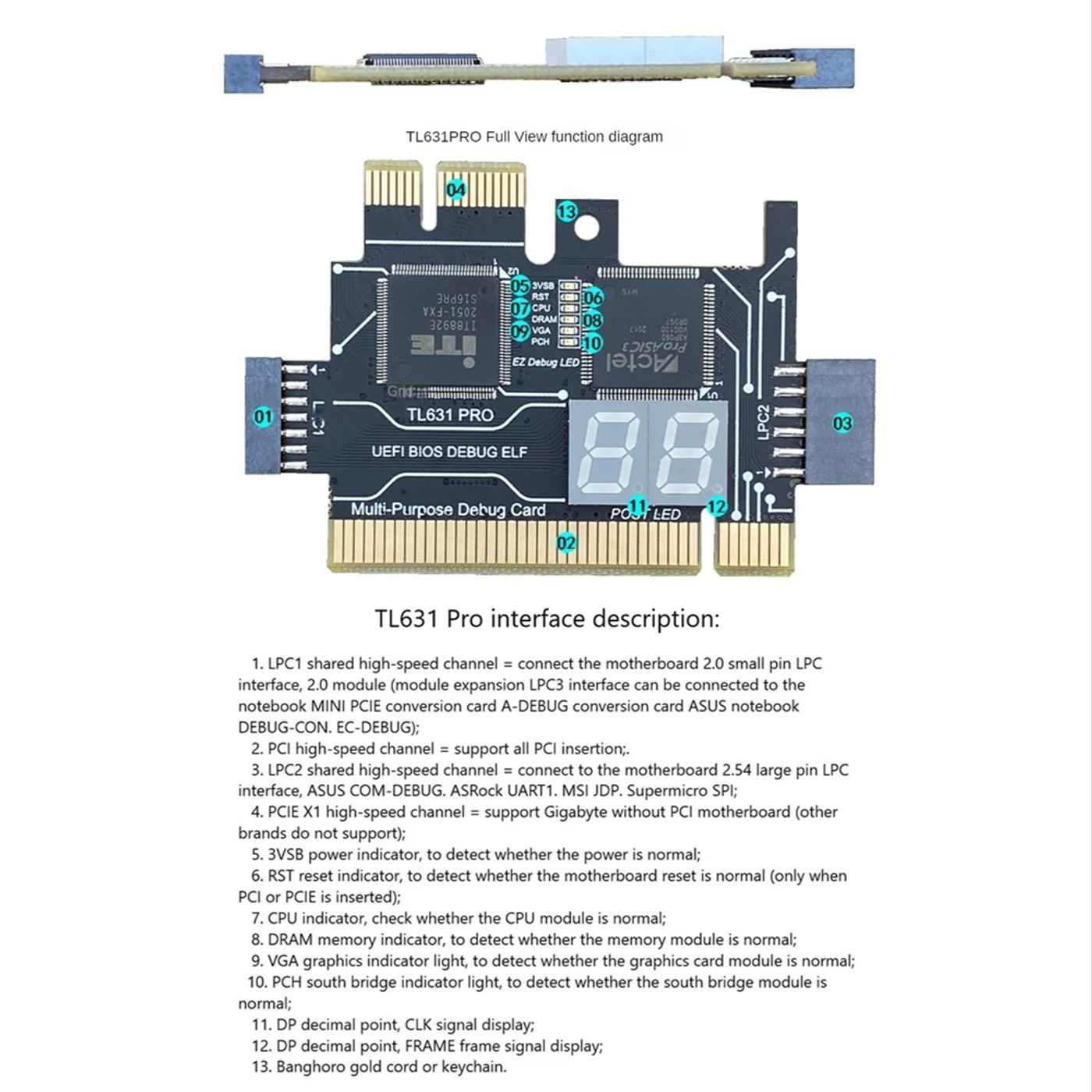

• Note: This product is a pro maintenance product Do now not use it when you don&;t are aware of it Inserting the wrong port may cause the diagnostic card to burn In addition, there are many kinds of motherboards on this planet The diagnostic card is not well suited with all motherboards If the diagnostic card is not like minded with the test motherboard, the diagnostic card will not run out of codes, the motherboard difficulty cannot be identified It isn't that the diagnostic card cannot work Colour: Black Material: PCB board + electronic components TL631 Pro interface description: 1: LPC1 shared high-speed channel = connect to the motherboard 2 small pin LPC interface, 2 module (Module enlargement LPC3 interface can connect pocket book MINI PCIE conversion card, A-DEBUG conversion card, ASUS pocket book DEBUG-CON EC-DEBUG) 2:PCI high-speed channel = support all PCI slots 3:LPC2 shared high-speed channel = hook up with the motherboard 2 large pin LPC interface, ASUS COM-DEBUG ASRock UART1, MSI JDP, SuperMicro-SPl 4:PCIE X1 high-speed channel = support Gigabyte without PCI motherboard (other brands don't support) 5:3VSB energy indicator, to stumble on whether or not the ability is normal 6:RST reset indicator, to discover whether the motherboard reset is regular (only when PCI or PCIE is inserted) 7:CPU indicator light, to detect whether or not the CPU module is ordinary 8:DRAM memory indicator, to locate whether the reminiscence module is traditional 9:VGA graphics indicator light, to discover whether the graphics card module is normal 10:PCH south bridge indicator light, to come across whether or not the south bridge module is typical 11:DP decimal point, CLK sign exhibit 12:DP decimal point, FRAME frame signal reveal 13:threading hole Package Contents: 1 x TL631 Pro Diagnostic Card 1x 2 modules 1 x Dupont wire Only the above kit content, different products usually are not included Note: Light reflection and assorted displays could cause the color of the thing in the photograph somewhat varied from the real factor The measurement allowed error is +/- 1-3cm

•
•
•
•
•
