Description

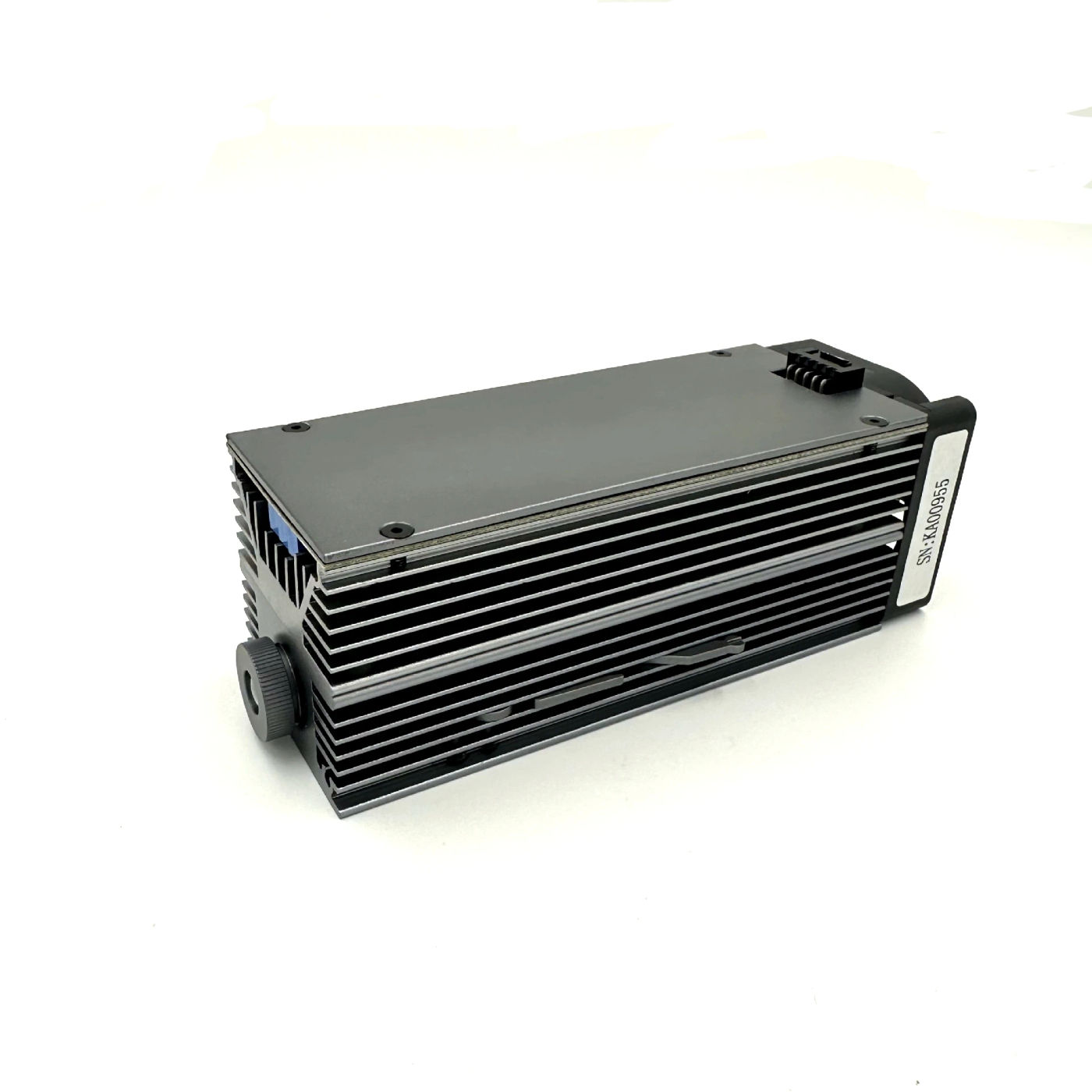

• Features:The 1064NM 2W engraving laser uses pleasant imported laser diodes with lengthy service life, steady output power, clean mild spots, and uses a 12/ 24V DC fan with nice warmth dissipation impact and occasional energy consumption. This product can be used to carve copper, aluminum, bamboo and wood, leather, crystal, metal plate, rubber plate, resin, etc：Can Engraved aluminum and copperProduct parameters:product mannequin FFJG1064-2WR1 wavelength 1064±1nm calories >2W pulse width ≈8ns frequency 20-30 kHz (uncontrolled) strength supply DC 12V≥8A/ DC 24V≥4A (80W) soft output management The PWM laser outputs the optical sign input pin, and uses a 3-5V level. The excessive level outputs the laser and the low level turns off the laser. The red indicator soft and the laser state are opposite. focal length 25mm Structural length 50*50*140mm operating temperature 20-30°C storage temperature -10℃ to 50℃ cooling formulas Air -coolingprecautions for use1. The laser emitted by the laser module has a safety level of ClassIV and can set off harm to eyes. When the laser module is working, it's strictly prohibited to immediately look at its end face and put on keeping glasses. Recommended glasses: 2. The gadget calls for an acceptable using energy supply. When the laser module is connected to the flexibility supply, the ability shipping output voltage needs to be zero; when adjusting the current, it'd be increased or decreased slowly to avoid the inrush current destructive the device. 3. The system must be stored or worked in a dry environment with a dirt rating of one million, so that the lens ought to be averted from falling into dirt and affecting the sunshine spot. 4. Working at larger temperatures will increase the edge current, decrease conversion efficiency, and accelerate gadget aging. 5. Operating with output power more than specified parameters will speed up machine aging. 6. During continual operation, the laser tube temperature reaches 70℃, and warmth dissipation should be completed well. 7. This product is a static sensitive method and can solely be taken when the human physique is definitely grounded. Anti-static bracelet can be used to stop static electricity.

•
•
•
•
•
