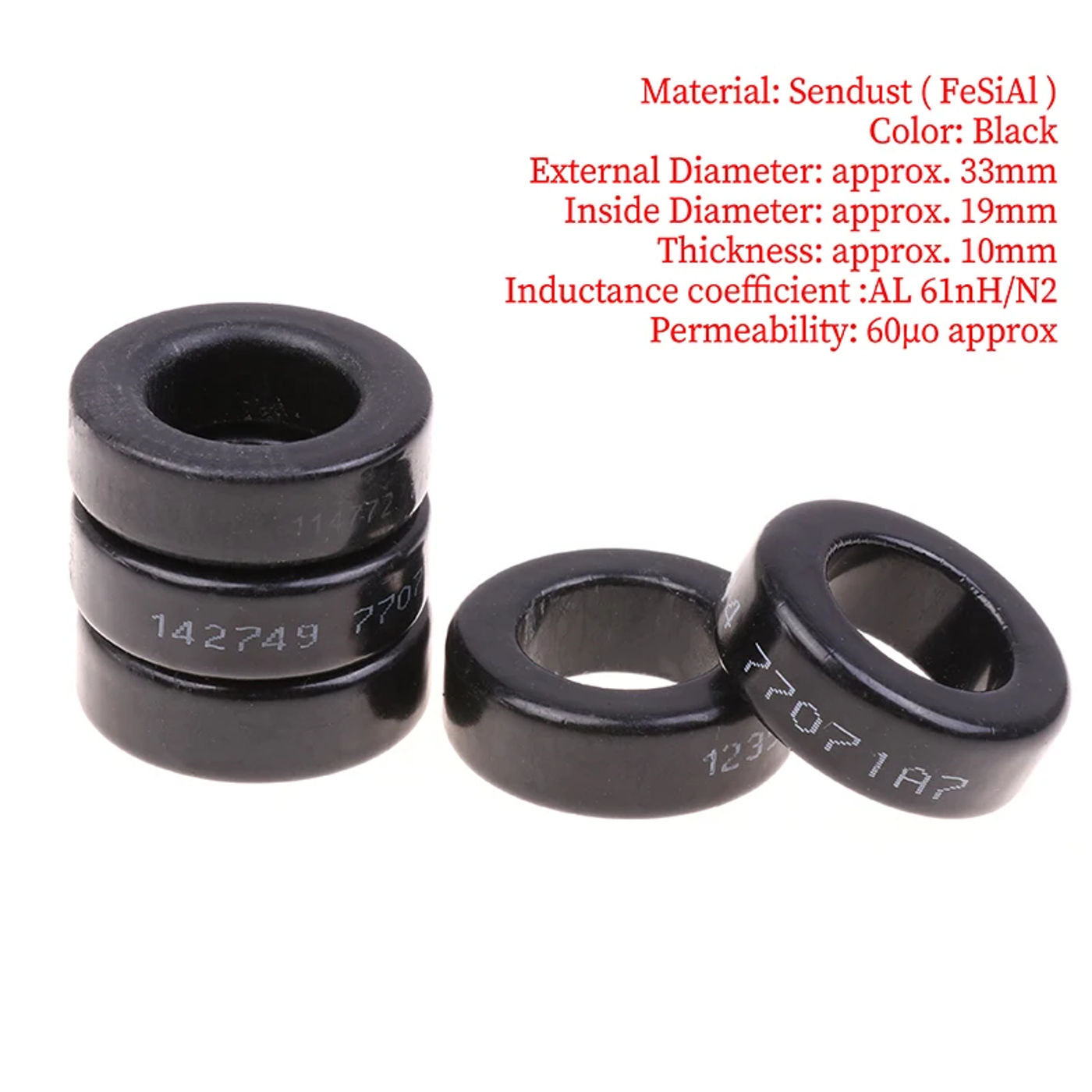

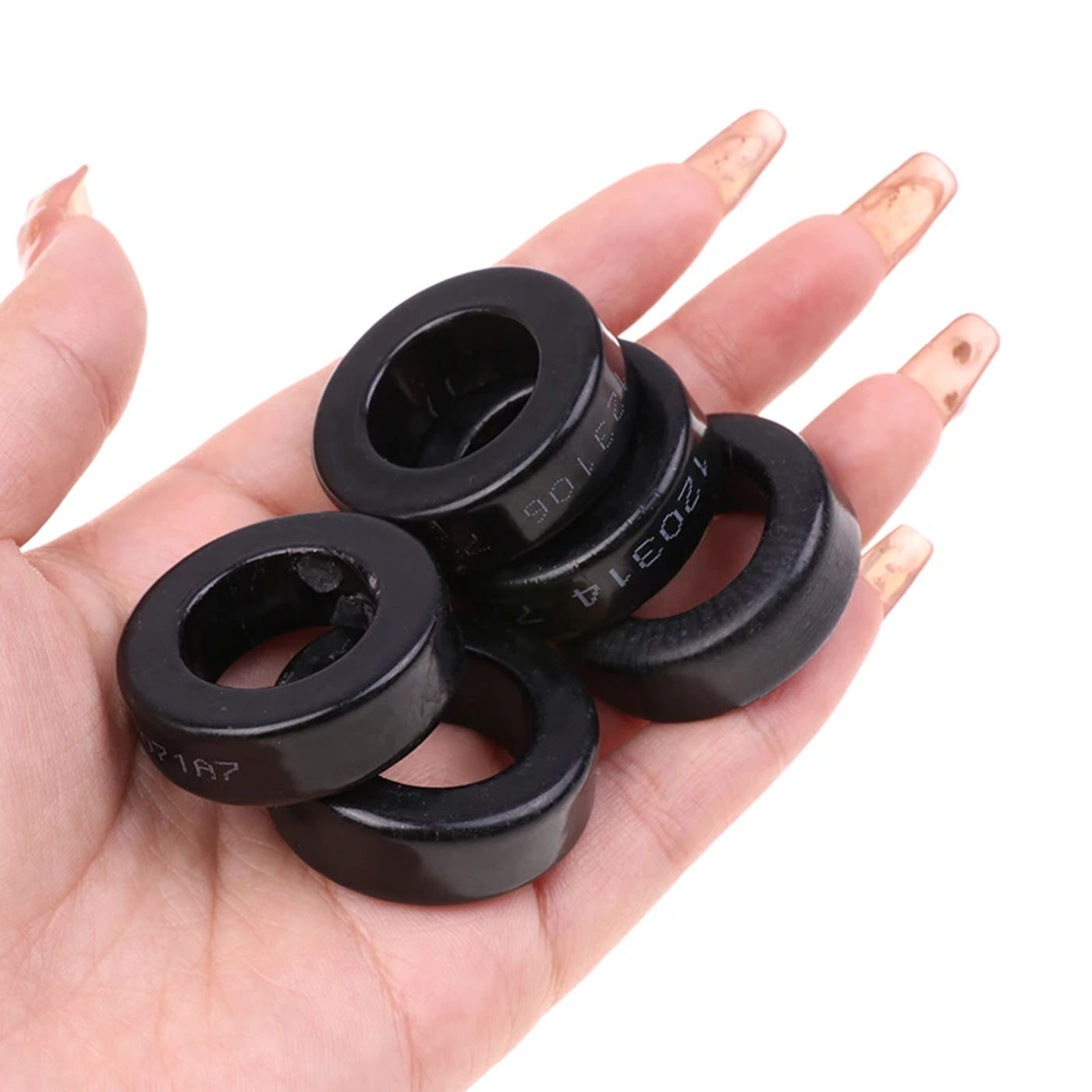

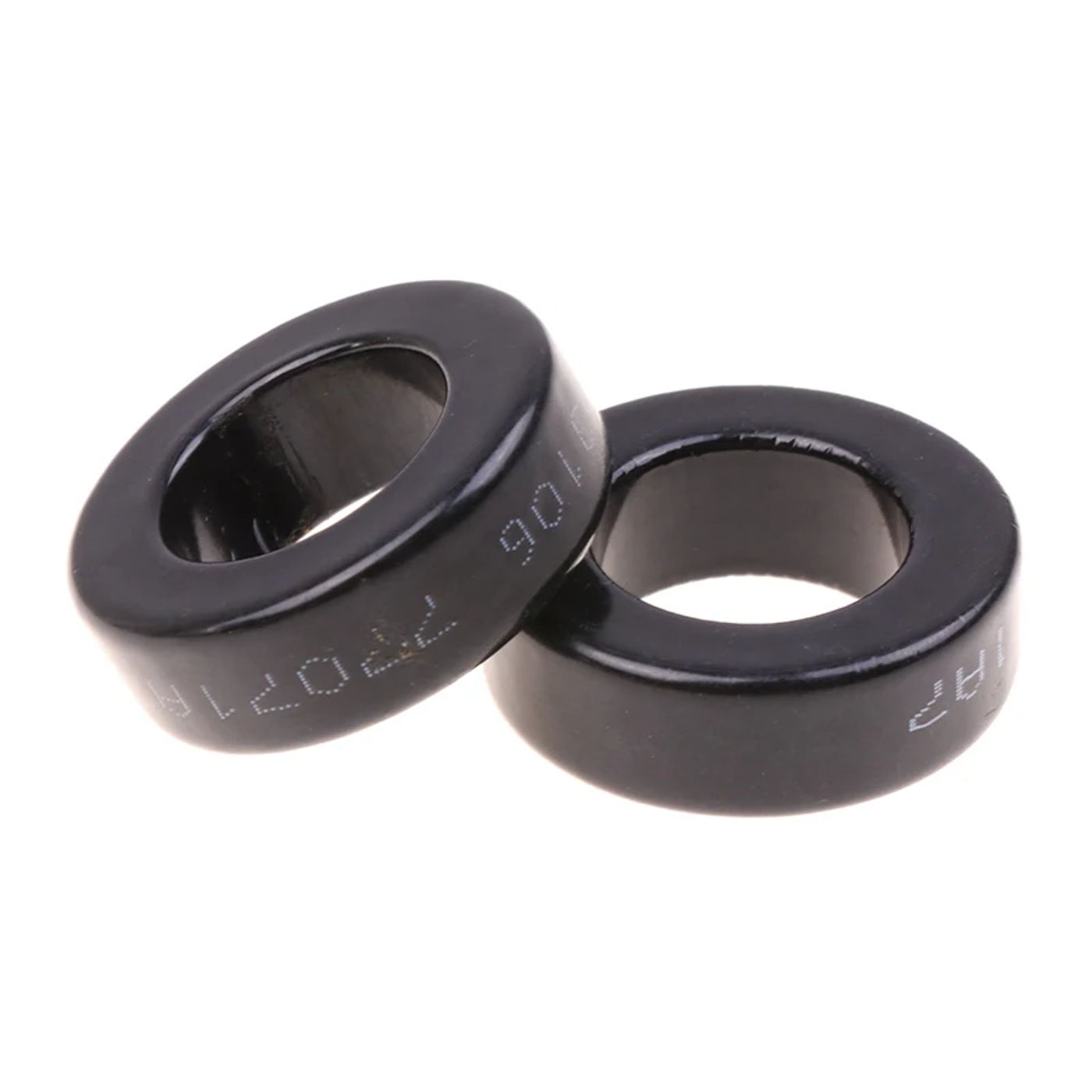

Model: AS130060A CS330060 77071-A7 P
Material: Sendust (FeSiAl)
Color: Black
External Diameter: approx 33mm
Inside Diameter: approx 19mm
Thickness: approx 10mm
Inductance coefficient :AL 51nH/N2
Permeability: 60μo approx
QTY:5PCS
Feature of Sendust Magnetic Ring
Has excessive saturation magnetic induction depth (1)
The core loss is lower than that of iron powder core, excessive flux powder core and iron silicon powder core
The magnetostriction coefficient is close to zero, and there isn't any noise in varied operating environments
High Curie temperature and stable functionality at high temperature
Please enable 0-2mm error thanks to guide dimension pls make sure you do not mind before you bid
Due to the variation between various monitors, the image won't replicate the particular shade of the object Thank you!
