Description

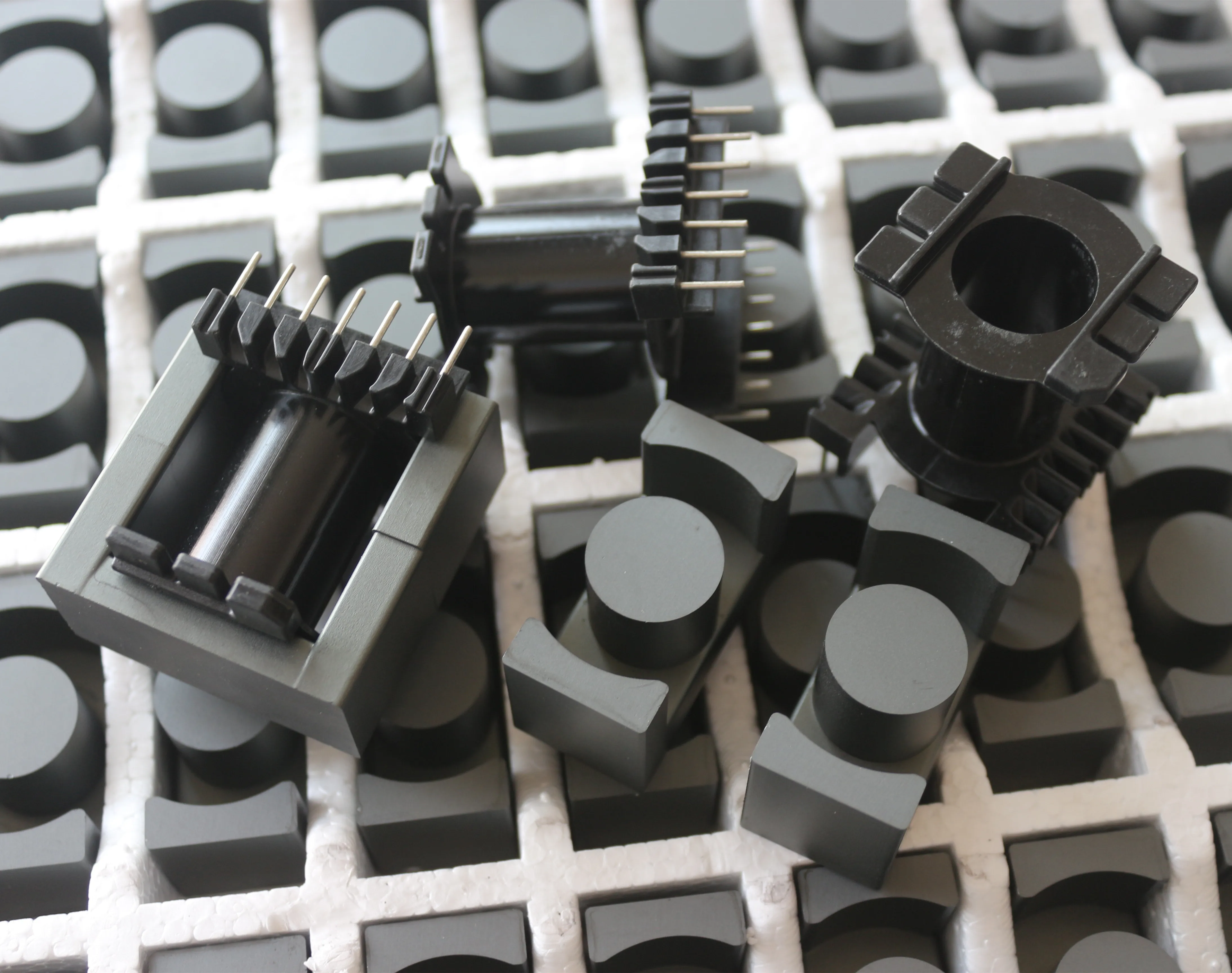

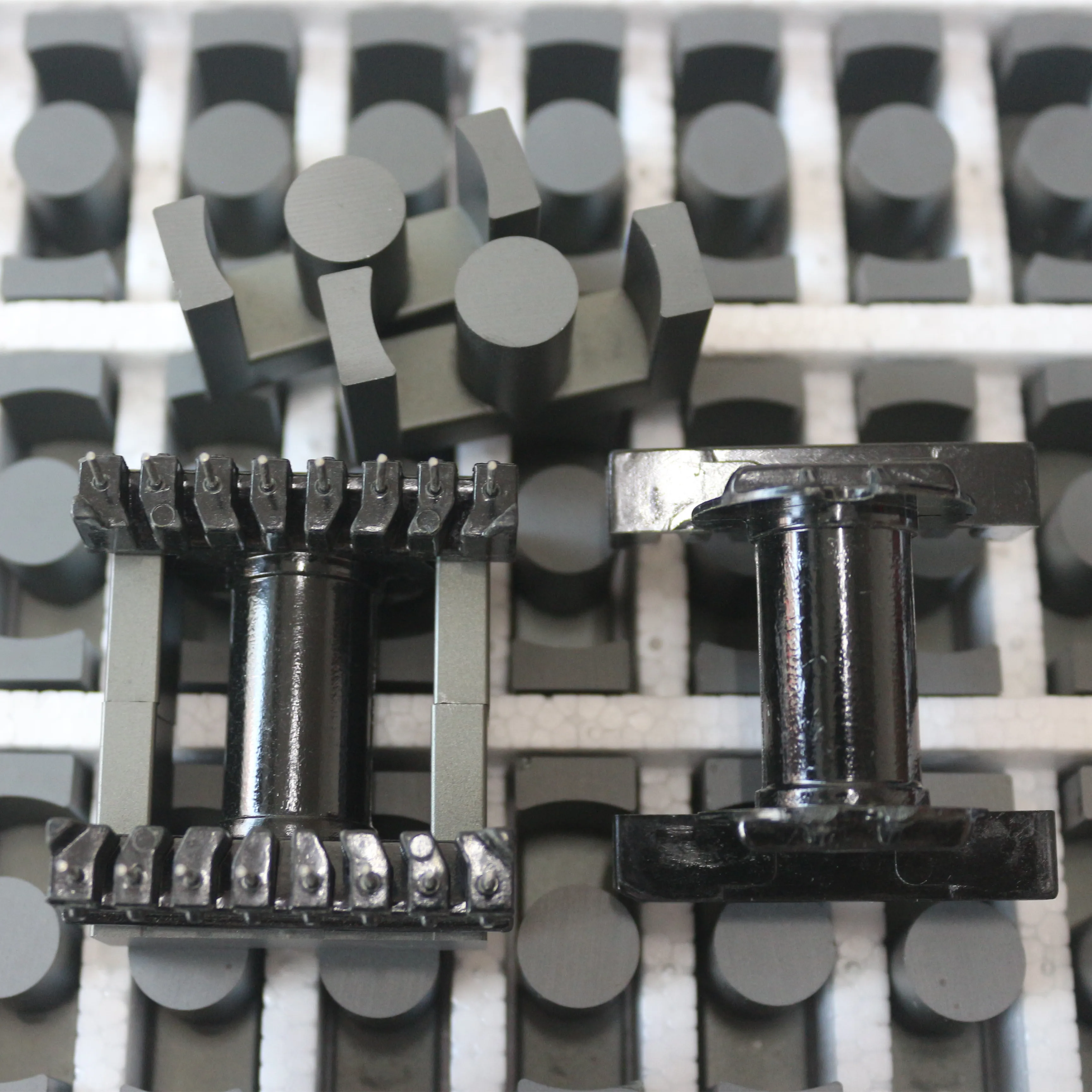

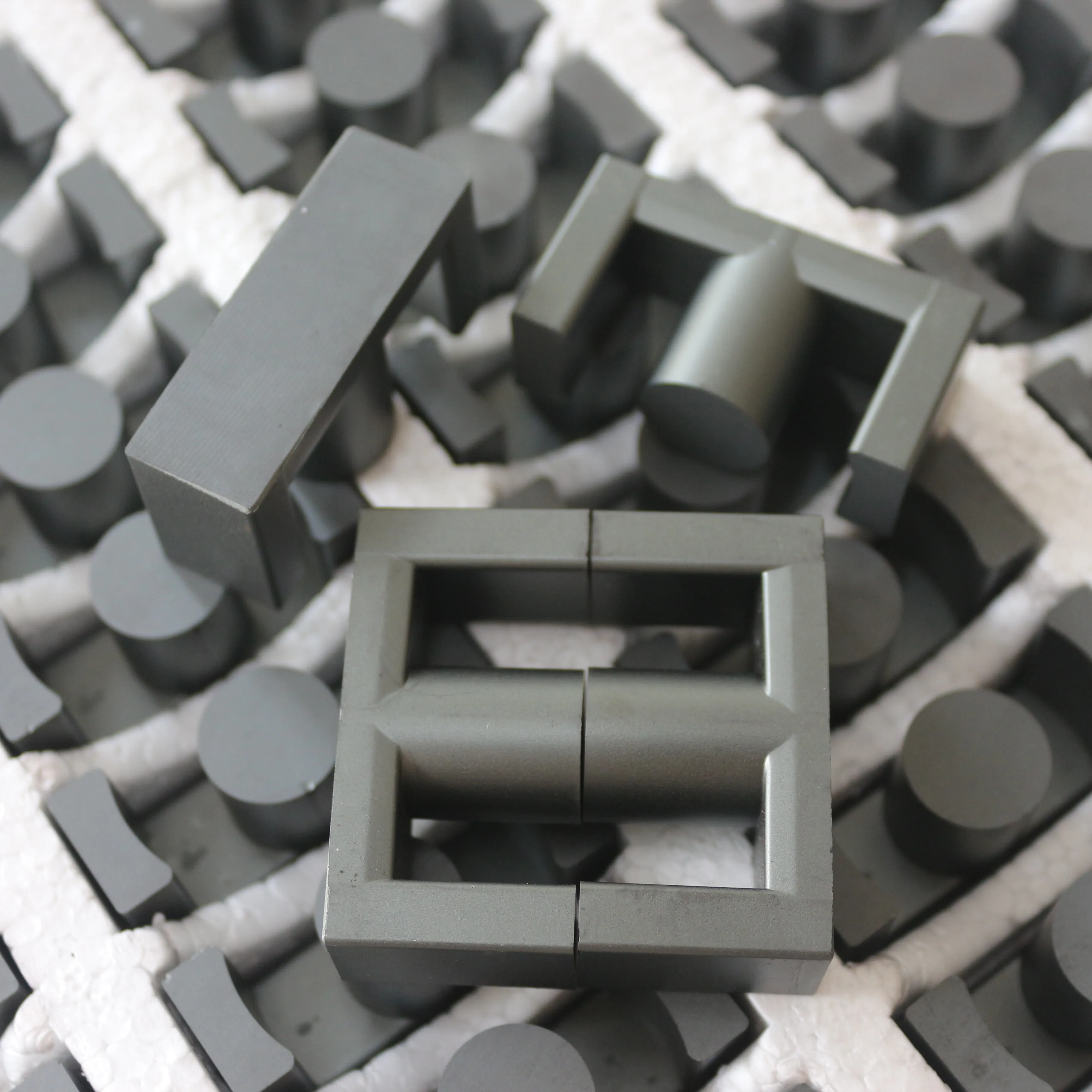

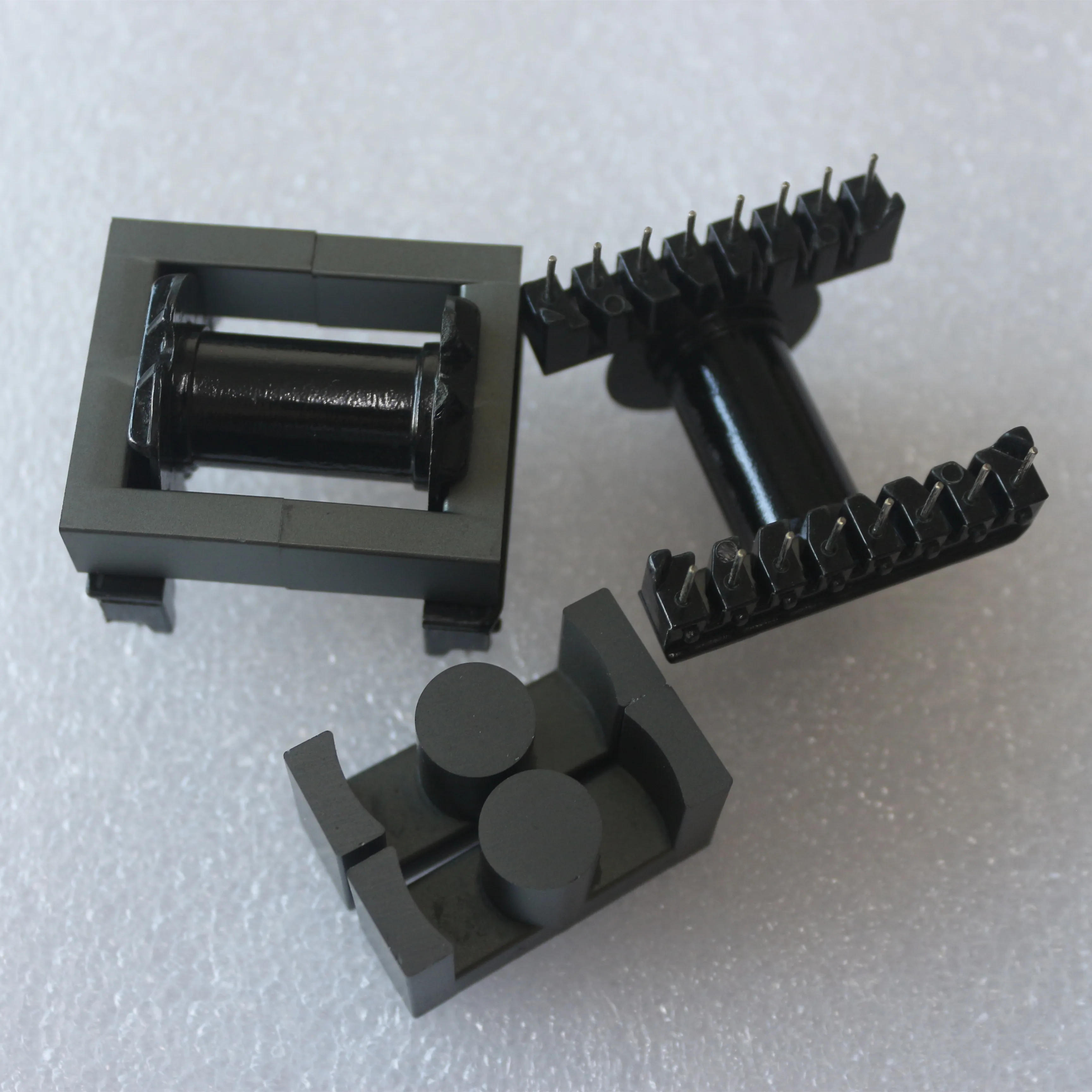

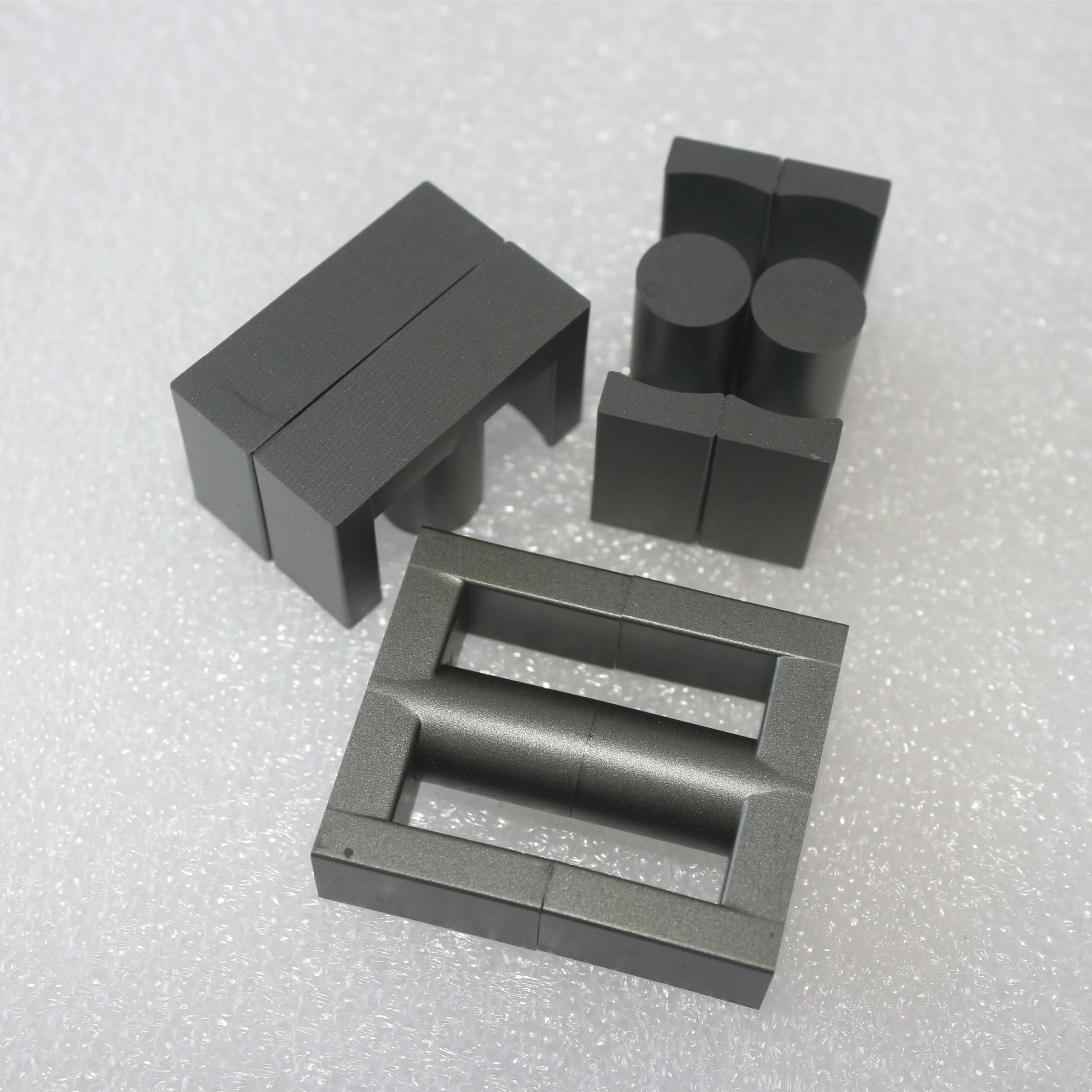

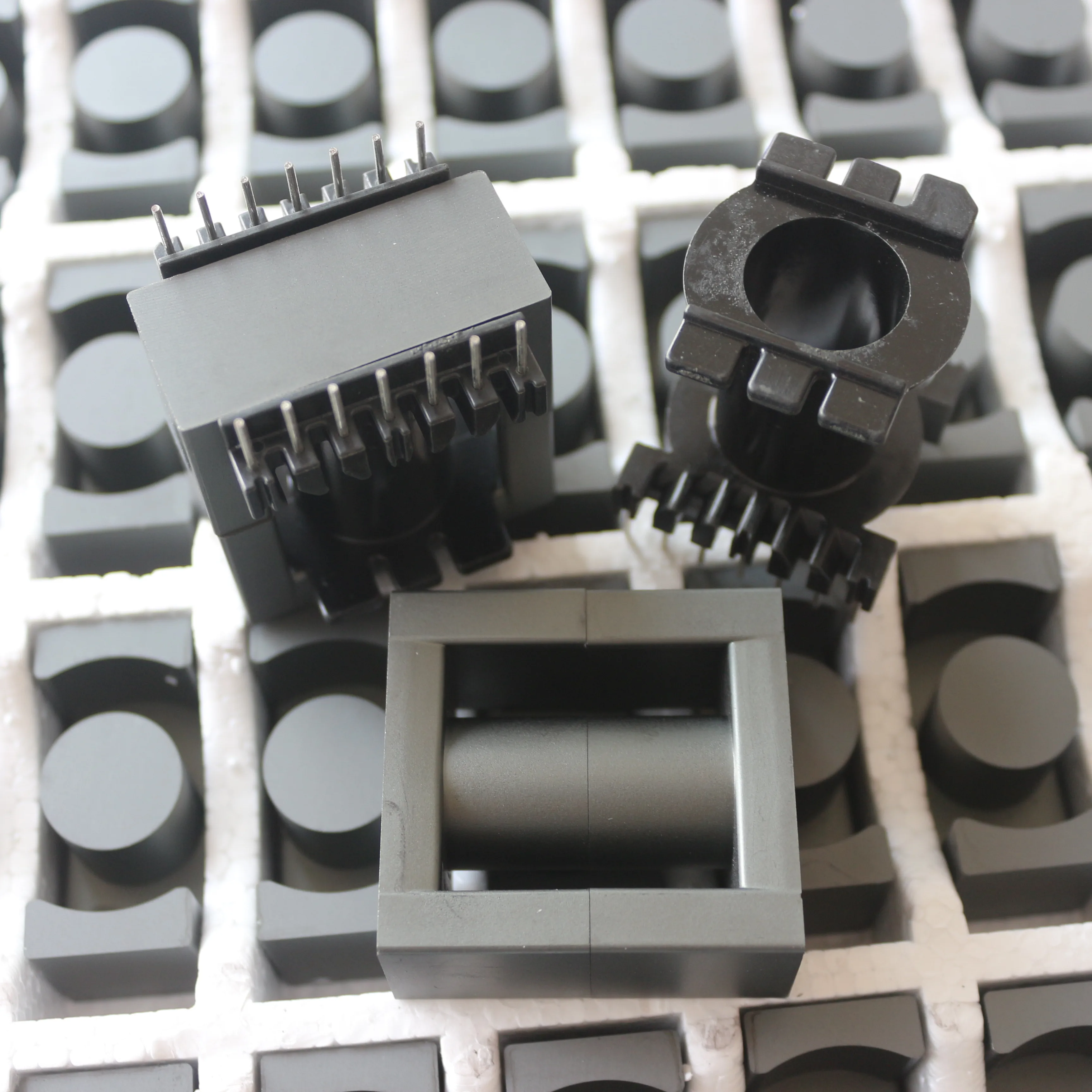

• Product Name Ferrite Core + Bobbin Model PQ Material Iron, Plastic Color Dark Gray, Black Model: EC28*28 Frame: Horizontal 6+6 Material: PC40 Needle pitch: five Row pitch: 25 Slot pitch: 16 Unit: one set (including one magnetic core and one skeleton) A: 28 B: 21 C: nine D: eleven E: 10 F: 14 Model: EC28*34 Frame: Horizontal 6+6 Material: PC40 Needle pitch: five Row pitch: 30mm Slot pitch: 21 Unit: one set (including one magnetic core and one skeleton) A: 28 B: 21 C: nine D: 11 E: 13 F: 17 Model: EC35*42 Frame: Horizontal 8+8 Material: PC40 Needle pitch: five Row pitch: 35 Slot pitch: 25 Unit: one set (including one magnetic core and one skeleton) A: 35 B: 25 C: eleven D: 11 E: 15 F: 21 Model: EC42*15 Frame: Horizontal 8+8 Material: PC40 Needle pitch: 5 Row pitch: 35 Slot pitch: 27 Unit: one set (including one magnetic core and one skeleton) A: 42 B: 30 C: 15 D: 15 E: 15 F: 21 Model: EC42*20 Frame: Horizontal 7+7 Material: PC40 Needle pitch: 5 Row pitch: 35 Slot pitch: 25 Unit: one set (including one magnetic core and one skeleton) A: forty two B: 32 C: 17 D: 19 E: 15 F: 22 Model: EC42*20 Frame: Horizontal 8+8 Material: PC40 Needle pitch: 5 Row pitch: 35 Slot pitch: 26 Unit: one set (including one magnetic core and one skeleton) A: 42 B: 32 C: 17 D: 19 E: 15 F: 22 Model: EC28*28 Frame: Vertical 5+5 Material: PC40 Needle pitch: 5 Row pitch: 17 Unit: one set (including one magnetic core and one skeleton) A: 28 B: 21 C: nine D: eleven E: 10 F: 14 Model: EC28*34 Frame: Vertical 6+6 Material: PC40 Needle pitch: 5 Row pitch: 20 Slot pitch: 20 Unit: one set (including one magnetic core and one skeleton) A: 28 B: 21 C: 9 D: eleven E: 13 F: 17 Model: EC35*42 Frame: Vertical 6+6 Material: PC40 Needle pitch: five Row pitch: 22 Slot pitch: 26 Unit: one set (including one magnetic core and one skeleton) A: 35 B: 25 C: eleven D: eleven E: 15 F: 21 Model: EC35*42 Frame: Vertical 7+7 Material: PC40 Needle pitch: five Row pitch: 22 Slot pitch: 25 Unit: one set (including one magnetic core and one skeleton) A: 35 B: 25 C: 11 D: 11 E: 15 F: 21 Model: EC3940 Frame: Vertical 8+8 Material: PC40 Needle pitch: 5 Row pitch: 25 Slot pitch: 26 Unit: one set (including one magnetic core and one skeleton) A: 39 B: 29 C: 12 D: 12 E: 15 F: 20 Model: EC42*15 Frame: Vertical 7+7 Material: PC40 Needle pitch: 5 Row pitch: 25 Slot pitch: 27 Unit: one set (including one magnetic core and one skeleton) A: forty two B: 30 C: 15 D: 15 E: 15 F: 21 Model: EC42*15 Frame: Vertical 9+9 Material: PC40 Needle pitch: five Row pitch: 25 Slot pitch: 27 Unit: one set (including one magnetic core and one skeleton) A: forty two B: 30 C: 15 D: 15 E: 15 F: 21 Model: EC42*20 Frame: vertical 7+7, vertical 9+9 Material: PC40 Vertical 7+7 stitch pitch: five row pitch: 30 slot pitch: 27 Vertical 9+9 stitch pitch: 5 row pitch: 27 slot pitch: 27 Unit: one set (including one magnetic core and one skeleton) A: 42 B: 32 C: 17 D: 19 E: 15 F: 22

•
