Description

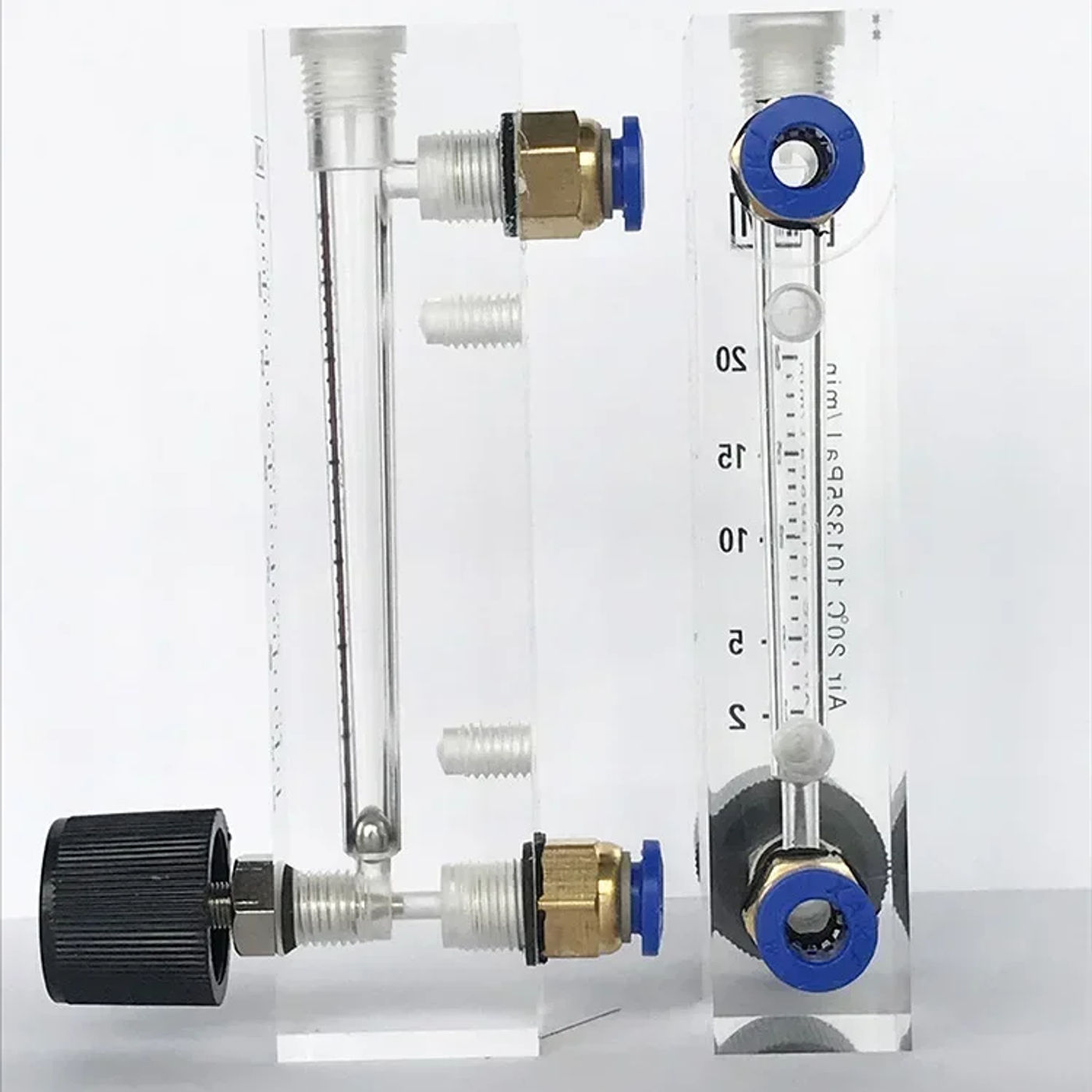

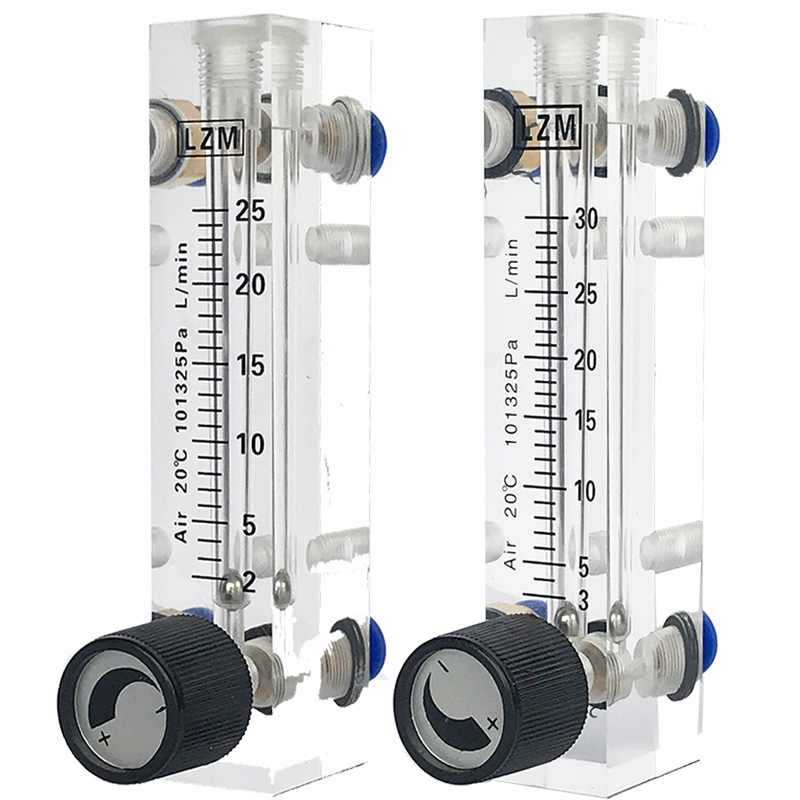

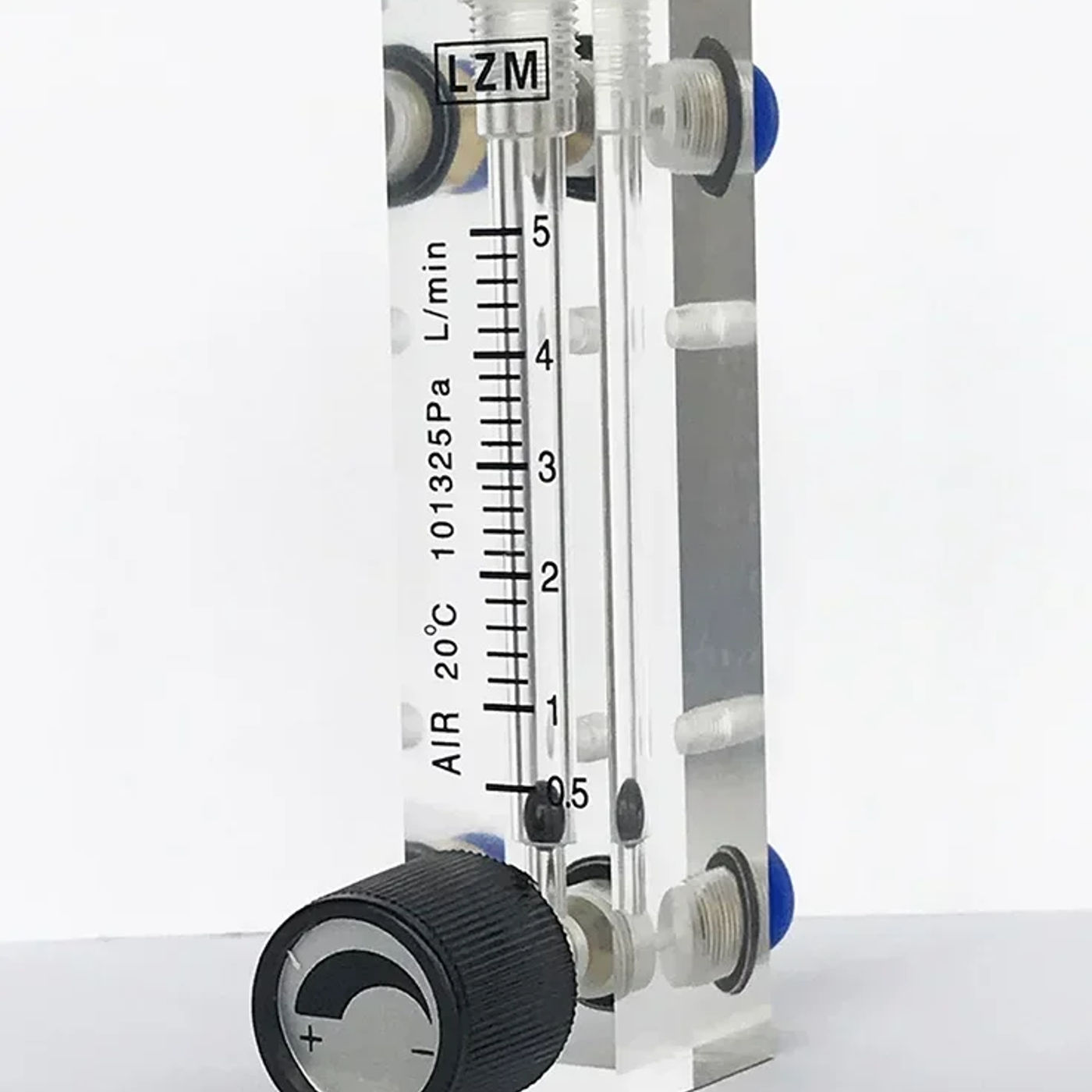

• This sort of flowmeter is equipped with a 6mm quick connector as standard Instructions The flowmeter is manufacturing facility calibrated in keeping with vertical calibration, and should be vertically put in on a vibration loose panel throughout use The pipeline in which the fluid flows needs to be clear and freed from impurities, and the fluid ought to be natural (dry) Before utilizing the flowmeter, slowly open the air supply valve and adjust it to an acceptable strain range, after which adjust the stream throughout the regulating valve of the flowmeter four Do not use over pressure, over temperature, or over range If it is a hazardous fluid that supports combustion, combustibles, or corrodes, it would comply with working specs and shouldn't be operated blindly Product Information Body material: biological glass Float material: agate (below 5L/min)/316 stainless-steel (above 10L) Valve physique material: copper electroplated nickel Connector material: brief coupling (copper) screw (copper)/ferrule (304 stainless steel) Single weight: 0/piece Working pressure: ≤ zero Working temperature: ≤ 60 ° c Working principle There is a proportional dating between the stream charge of the flowmeter and the movement discipline Fluid flows through the flowmeter tube from bottom to top, and the glide is subjected to pressure, creating a strain difference within the tube When the elevate pressure of the drift is equal to the gravity and buoyancy of the float, the drift is balanced The position of the glide and the corresponding scale are the stream price

•
•
•
•
•
