Description

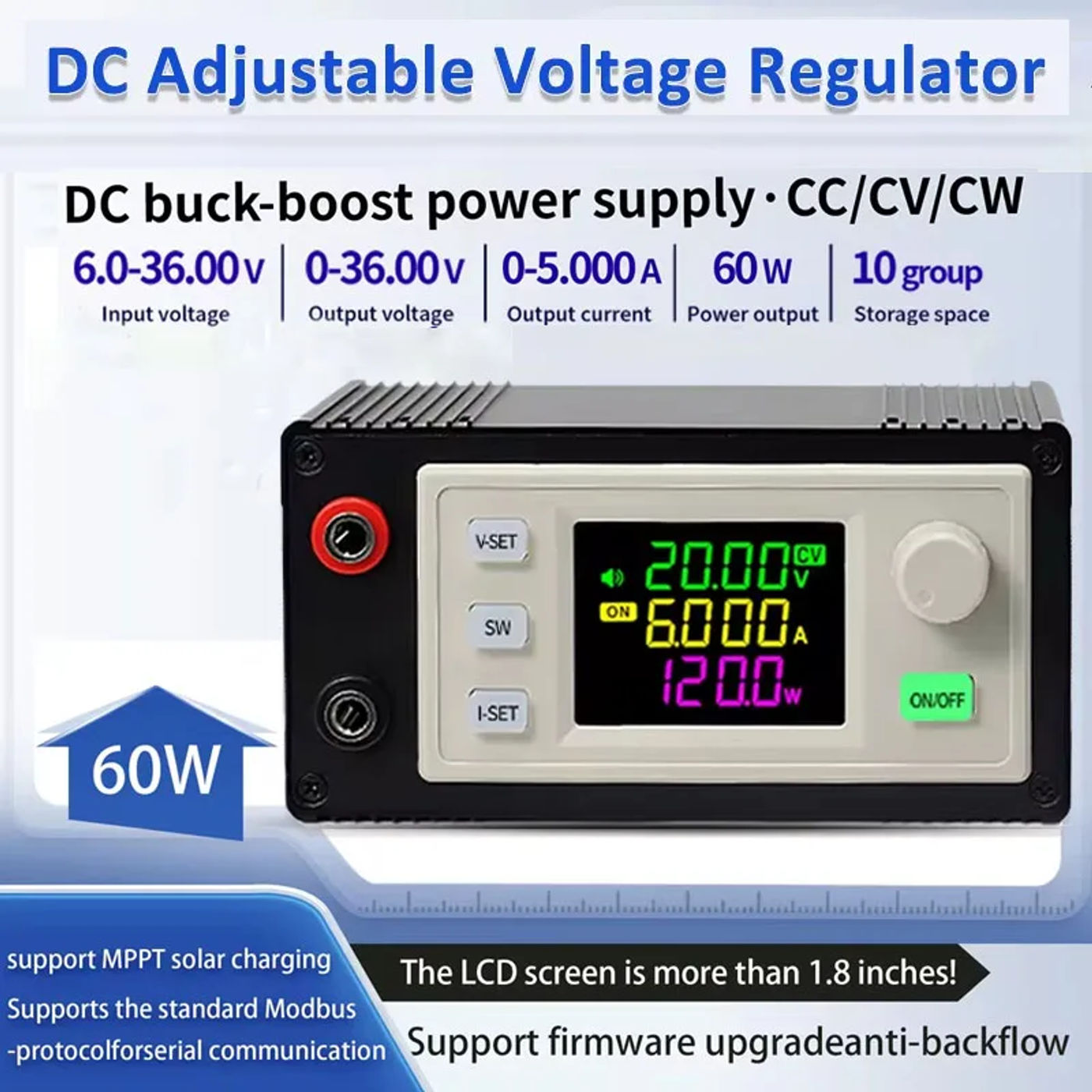

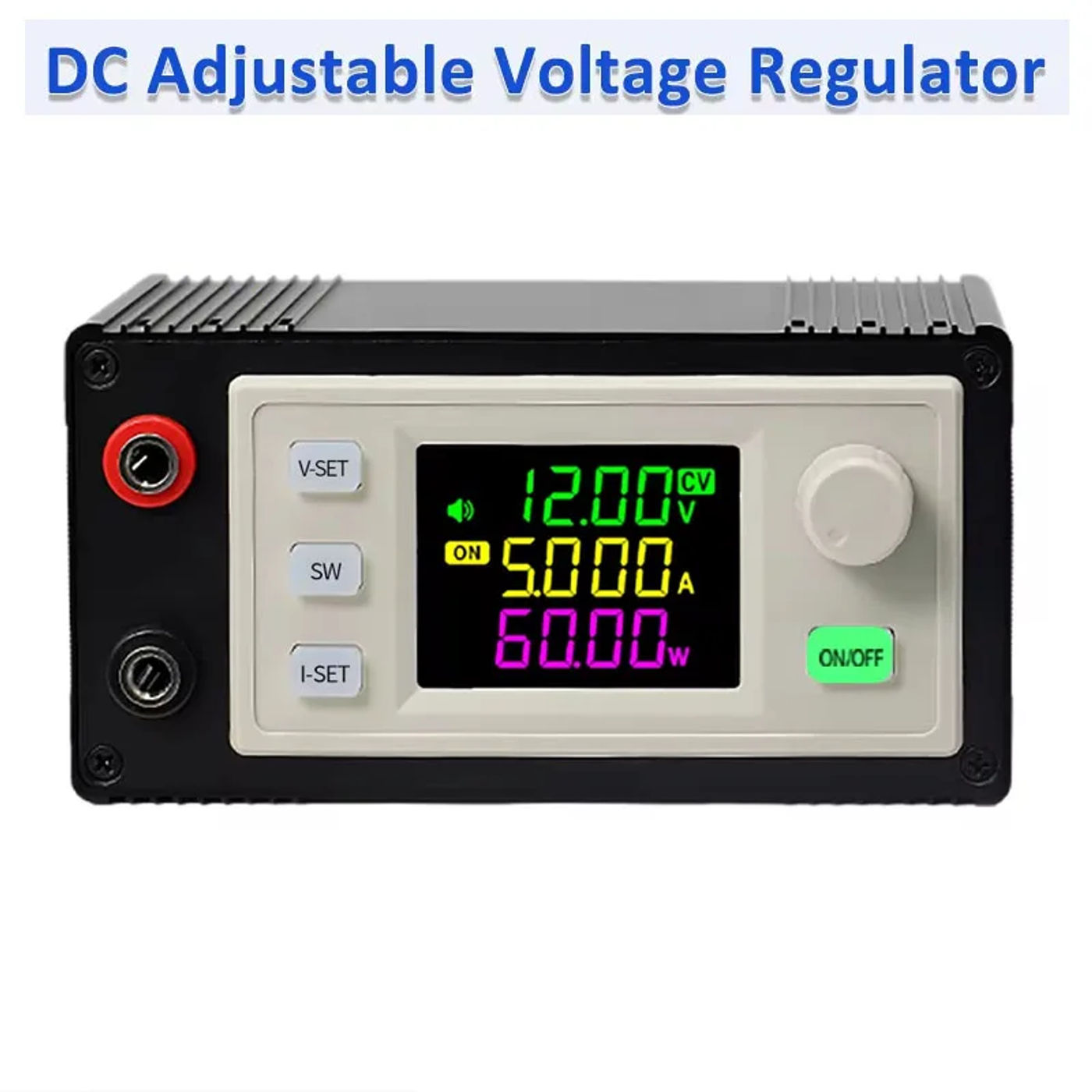

• CNC DC Adjustable Voltage Regulator Buck Boost Converter 0-36V Power Module Constant Voltage Constant Current Charging Module Parameter: SK60X: Input voltage: 6~36V Output current: 0~5 Output power: 60W Voltage resolution: zero Conversion efficiency: 88% or so Output Voltage: 0~36V Voltage accuracy: ±0%+1 word Current accuracy: ±0%+3 phrases Current resolution: zero Storage records group: 10 teams MPPT function: support MPPT solar charging Buzzer: Yes Soft start: Yes SK120X: Input Voltage: 6~36V Output Current: 0~6 Output power: 120W Voltage Resolution: zero Conversion efficiency: 88% or so Output Voltage: 0~36V Voltage accuracy: ±0%+1 note Current accuracy: ±0%+3 words Current resolution: 0 Storage information group: 10 teams MPPT function: support MPPT solar charging Buzzer: Yes Soft start: Yes Protection mechanism: Input anti-reverse connection: Yes Output anti-reverse: Yes Input undervoltage protection: five adjustable, default five Output over-voltage protection: 0-38V adjustable, default 38V Output overcurrent protection: SK60X: 0-5 adjustable, default five SK120X: 0-6 adjustable, default 6 Output over power protection: SK60X: 0-80W adjustable, default 65W SK120X: 0-150W adjustable, default 125W Over-temperature protection: 0-110°C adjustable, default 95°C Timeout protection: 0 -100H adjustable, default off Over ability protection: 0~9999AH adjustable, default off Super energy protection: 0~4200KWH adjustable, default off

•
•
•
•
•
