Description

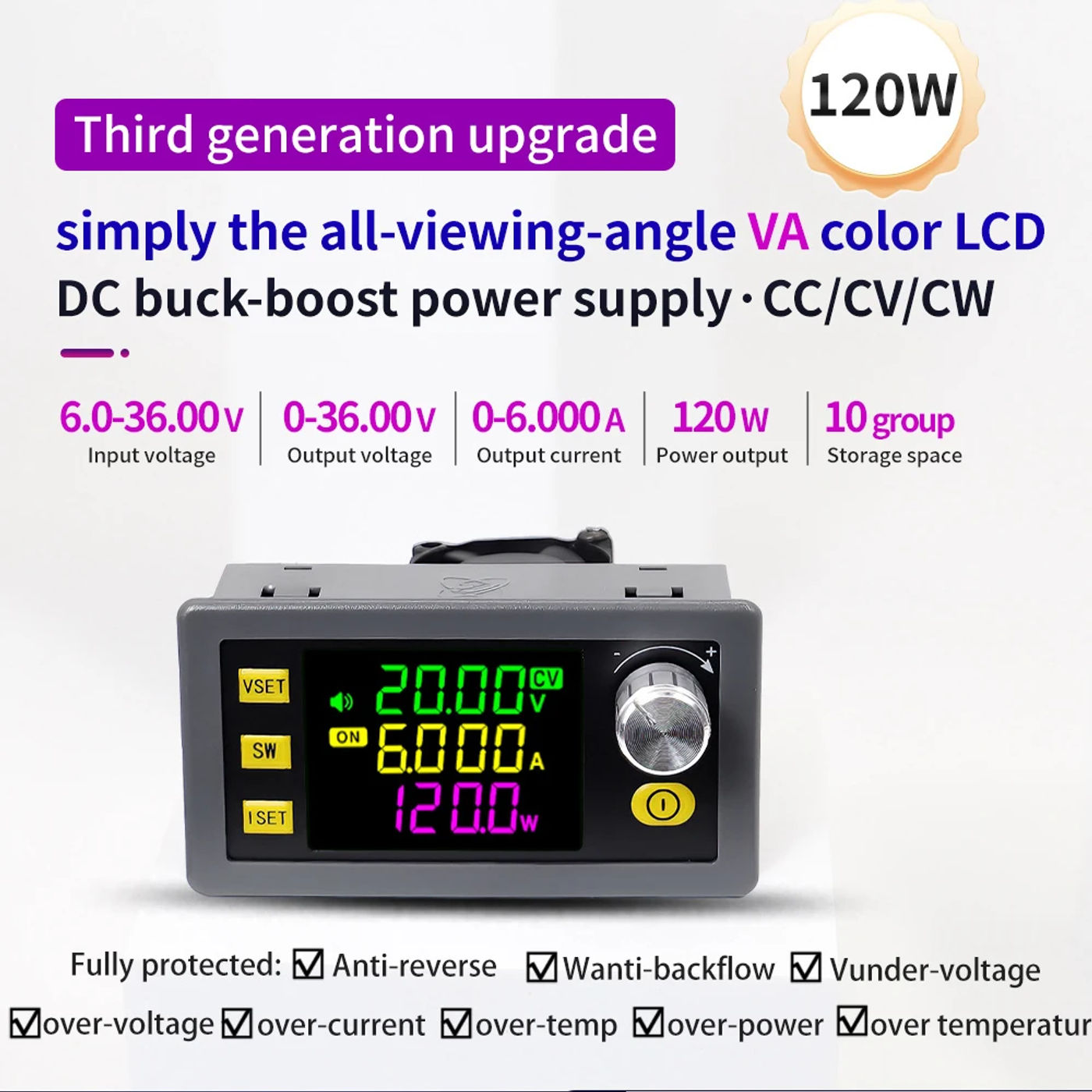

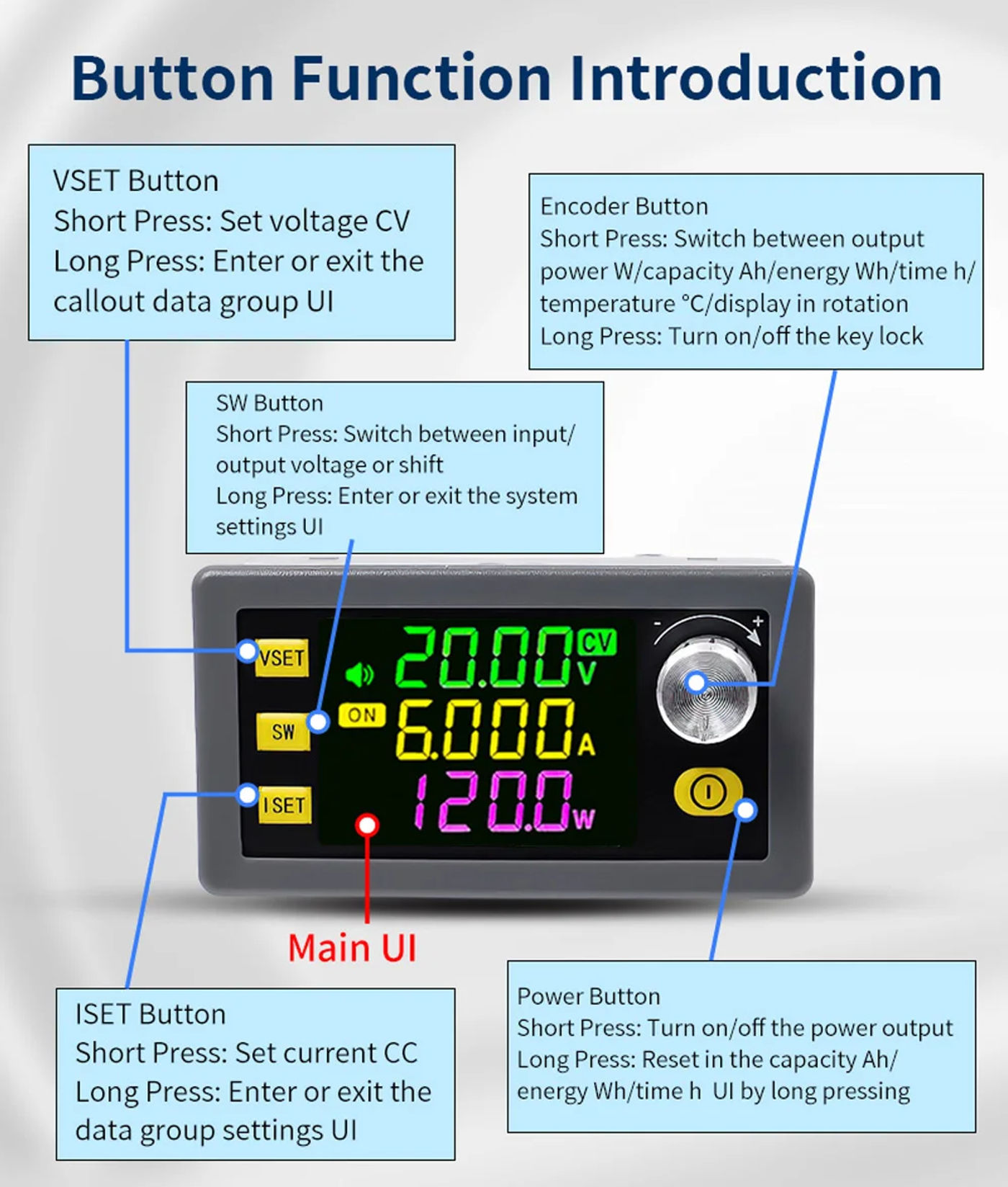

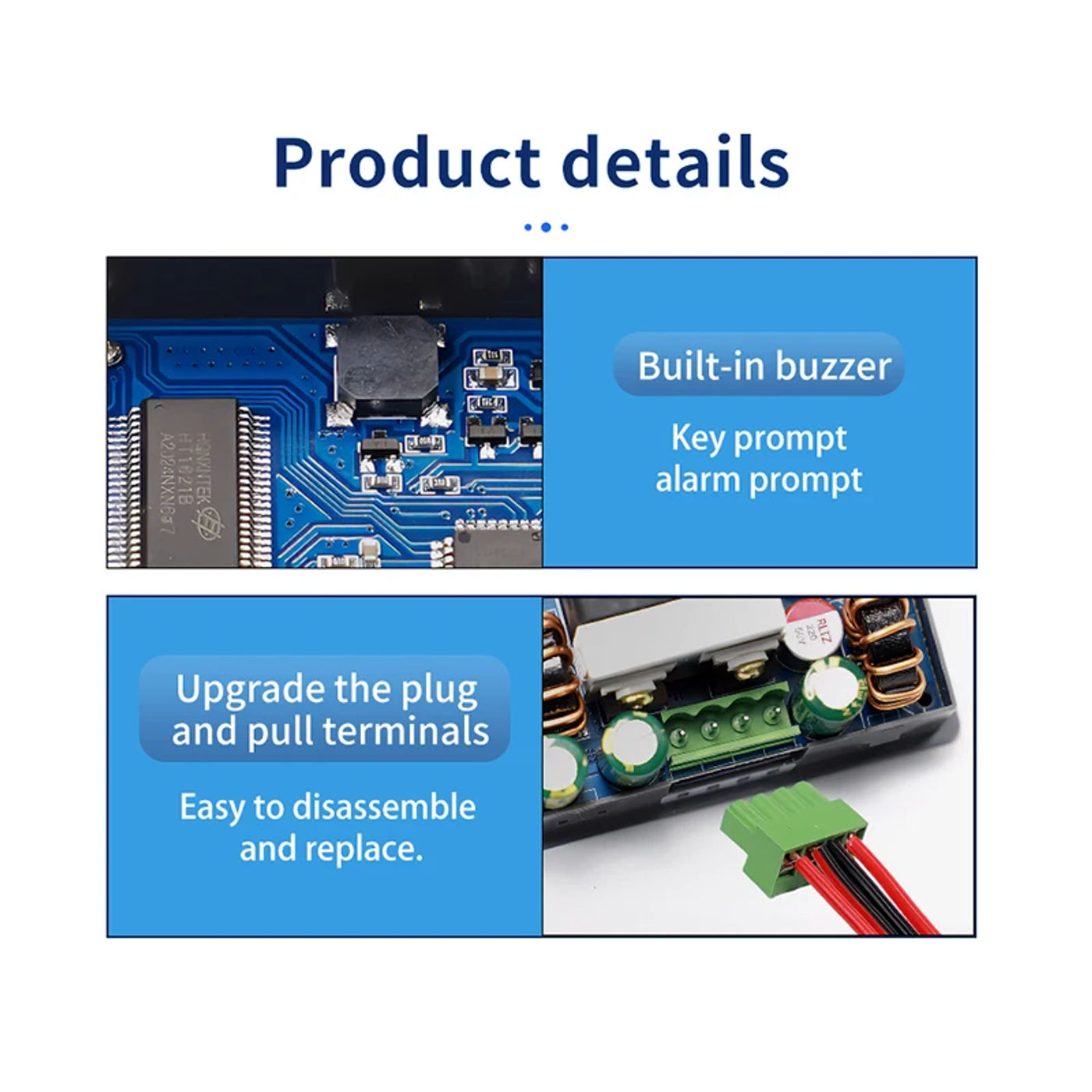

• DC Buck Boost Converter Adjustable Voltage Regulated Power Supply Step up down Constant Voltage Current Solar Charging Module Features: 1 The use of advantageous PCB materials, quality assurance, significantly recuperating the carrier lifetime of the product 2 LCD screen structure is reasonable, the font is large and full of rounded, legitimate power delivery LCD screen, you want the operate it has! 3 Built-in buzzer, key prompts, alarm prompts, more secure and extra assured use of the product four Upgraded plug-in terminals, clean to disassemble and update five The product has a variety of applications, with MPPT function, support for MPPT solar charging, would be connected to the exterior temperature probe to support over-temperature defense Parameter: Input voltage: 6~36V Output current: 0~6 Output power: 120W Voltage resolution: 0 Conversion efficiency: 88% or so Output Voltage: 0~36V Voltage accuracy: ±0%+1 note Current accuracy: ±0%+3 phrases Current resolution: 0 Storage data group: 10 teams MPPT function: assist MPPT solar charging Buzzer: Yes Soft start: Yes Protection mechanism: Input anti-reverse connection: Yes Output anti-reverse: Yes Input undervoltage protection: 5 adjustable, default five Output over-voltage protection: 0-38V adjustable, default 38V Output overcurrent protection: zero -6 adjustable, default 6 Output over power protection: 0-150W adjustable, default 125W Over-temperature protection: 0-110°C adjustable, default 95°C Timeout protection: 0 -100H adjustable, default off Over capacity protection: 0~9999AH adjustable, default off Super energy protection: 0~9999KWH adjustable, default off Package include: Adjustable boost and buck module *1

•
•
•
•
•
