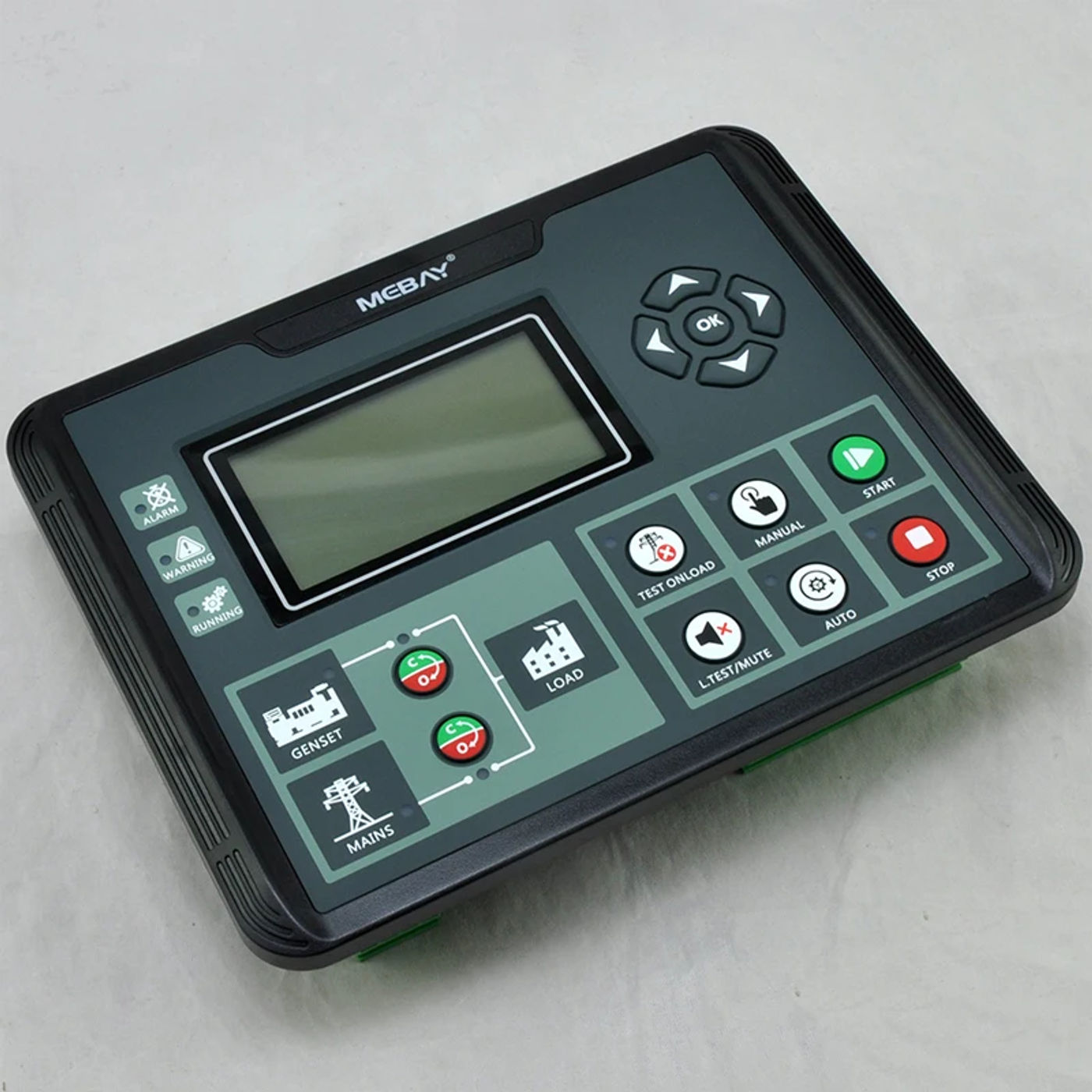

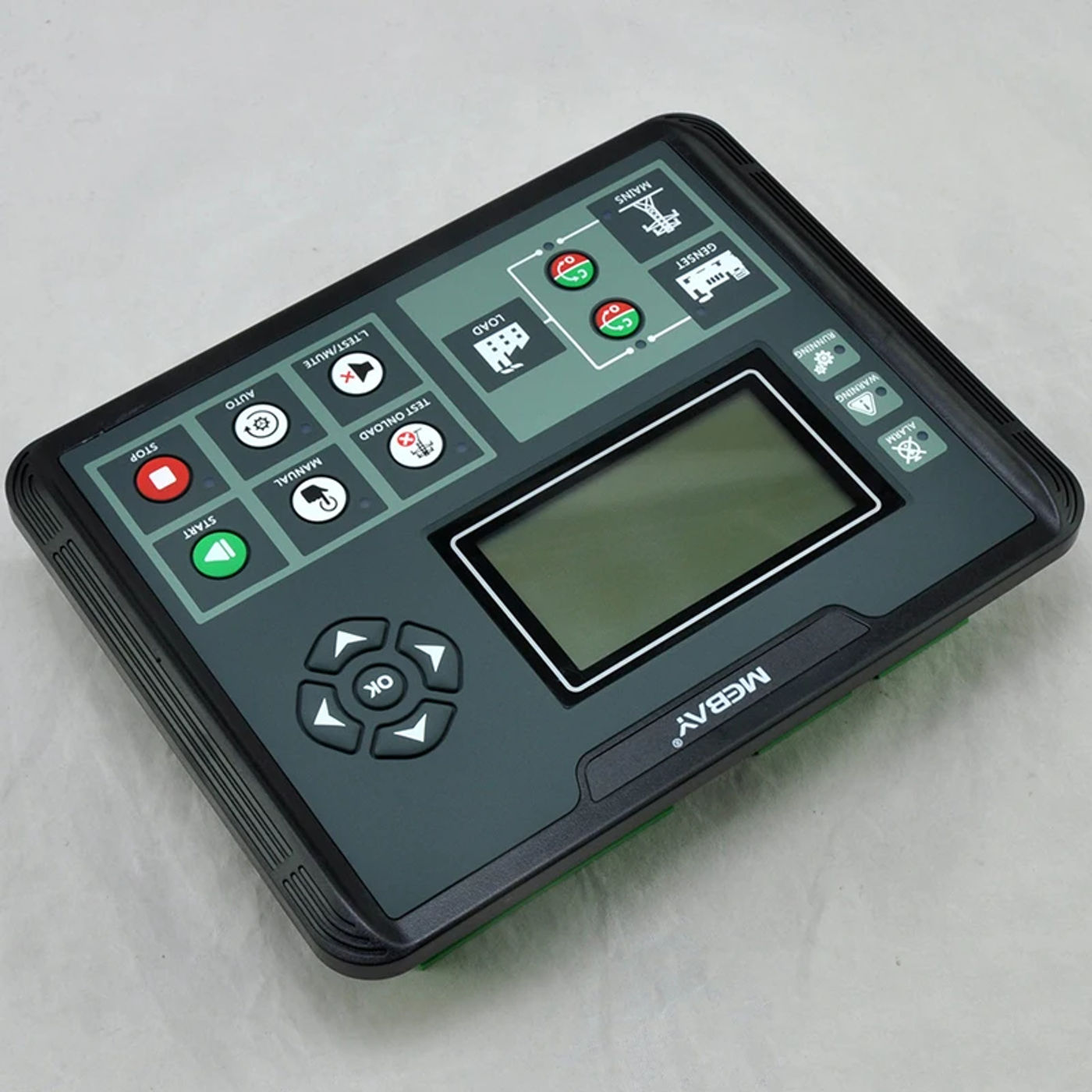

• Mebay DC52D MK3 Original Diesel Generator Set Controller Genset Control Panel RS485 Overview This series of controllers is specially designed for starting, stopping, parameter monitoring and fault tracking of diesel, gasoline, and gasoline generator sets and has parameter environment purposes This controller uses a three 240*128 large-screen high-resolution LCD display, a brand new and fashioned UI design, and the parameters are displayed via analog guidelines and numbers The LCD screen can reveal a number of current fault states at the identical time, and might efficiently enforce protective shutdown when the generator set isn't working wisely The controller has built-in show interfaces in Simplified Chinese and English, and the language interface can be custom-made in keeping with customer requirements All parameters of the controller could be adjusted through the buttons at the controller panel, or adjusted and monitored using a PC throughout the USB port or RS485 interface It would be extensively used in assorted sorts of generator set automation systems Performance and contours The DC5xD MK3 series is supplied in 4 models: DC50D MK3: used for stand-alone automation, controlling the automatic beginning and stopping of the generator set by way of distant beginning signals; DC52D MK3: Based on DC50D MK3, it adds mains tracking and mains/generation automatic switching management (AMF) functions, and is appropriate for stand-alone automation systems consisting of 1 mains delivery and one generator set DC50DR MK3: Adds RS485 interface at the basis of DC50D MK3; DC52DR MK3: Adds RS485 interface on the foundation of DC52D MK3; The leading elements are as follows Controlled by means of a 32-bit imported high-performance microcontroller; 3 240*128 large-screen high-resolution LCD display, with Chinese and English switches, and the language could be custom-made according to customer needs; The UI interface of pointer instrument and electronic show is a brand new usual design that integrates dynamics and accuracy; The display protection is product of demanding screen acrylic material, which is wear-resistant and scratch-resistant; Using silicone panel, it is effectively waterproof, oil-proof and UV-proof, has nice operating really feel and long carrier life; It has a USB interface, during which parameters can be set, real-time tracking can be performed, and parameters would be set when the controller is powered off; Equipped with RS485 interface, the "three remote" applications can be discovered using MODBUS protocol; Collect and show a variety of engine and generator parameters; The reputation of the enter and output ports is displayed obviously at a glance; Built-in real-time clock, with responsibility plan and upkeep plan functions: via settings, the month-to-month or weekly duty plan of the generator set would be arranged, and the month-to-month or weekly maintenance plan of the generator would be arranged, in order that the generator set can be utilized extra flexibly ; Maintenance countdown function, you possibly can set the upkeep timer or date; Equipped with a black field function, it's going to save the applicable parameters of the unit when a fault alarm happens in real time, making it smooth in finding the cause of the fault; It has 6 relay outputs, 4 of that are configurable, each with greater than 20 non-obligatory functions, and 3 sets of outputs are passive contacts; Equipped with five configurable switching inputs, each with greater than 20 non-obligatory functions; Equipped with 3 sensor analog inputs, the oil strain sensor is compatible with voltage signal input, and quite a lot of demonstrate items would be configured; Battery charging control can control the paintings of the charger in keeping with the battery voltage, effectively preventing battery overcharging and loss of power; The sensor curve can be customized via panel buttons and PC software; Suitable for three-phase four-wire, three-phase three-wire, single-phase two-wire, two-phase three-wire (120V/240V) power delivery 50/60HZ system; Various mixtures of starting circumstances (speed, frequency, oil pressure) are available; Control and defense functions: understand automated start/stop of the generator set, ATS switching and total fault show and protection; Equipped with a water-proof ring as standard, the protection performance of the panel after set up reaches IP54 level; Modular design: All connections are accomplished via European-style terminal blocks, making it really easy and handy to assemble, connect, fix and replace the equipment; Parameter show Engine speed; Engine oil pressure; engine temperature; Engine gas level; Engine battery voltage; Engine charging voltage; Mains frequency (only available in DC52D MK3 series); Mains phase voltage L-N (only available in DC52D MK3 series); City twine voltage L-L (only available in DC52D MK3 series); Generator three-phase voltage L-N; Generator three-phase line voltage L-L; Generator three-phase recent A; Generator frequency Hz; Generator strength component COSφ; Generator lively energy KW; Generator obvious strength KVA; Generator reactive strength KVar; Generator recent load charge %; Generator cumulative average load price %; The generator generates Kwh of electrical energy this time; The generator generates cumulative electricity Kwh; Cumulative variety of starts of the unit; The cumulative number of unit motor operations; The cumulative power-on time of the module; The recent operating time of the unit; The cumulative working time of the unit; Unit maintenance countdown; Switch input operate display; Relay output operate display; recent date and time; Alarm protection rushing Underspeed low oil stress High temperature low fuel point External prompt alarm D+ open circuit Speed signal lost Sensor open circuit Overclocking Underfrequency Generation overvoltage Generation undervoltage Overcurrent Current imbalance Over energy Maintenance due Low water point alarm emergency pull over Start failed Battery overvoltage Battery undervoltage Charger failed to charge Charger failed to price Shutdown failed Specifications project Parameters Operating Voltage DC8V to 36V continuous energy supply Machine strength intake Standby: 24V: MAX 1W Operation: 24V: MAX 5W AC voltage input One phase two wires 30VAC-276VAC (ph-N) Two-phase three-wire 30VAC-276VAC (ph-N) Three-phase four-wire 30VAC-276VAC (ph-N) Engine speed signal differ 50-10000Hz Maximum cumulative working time 99999 hours (minimum garage time 6 minutes) gasoline output 16Amp DC+VE supply voltage output Motor output 16Amp DC+VE delivery voltage output Configurable relay 1 5Amp DC+VE delivery voltage output Configurable relay 2 5Amp passive contact, one usually open and one usually closed output Configurable relay three 5Amp passive touch usually open output Configurable relay 4 5Amp passive contact usually open output Excitation output Maximum 1Amp DC+VE supply voltage output Switch input Effective when connected to the negative pole of the battery working conditions -25-65℃ garage conditions -40-85℃ Protection point IP54: When a water-resistant ring is installed between the controller and the management panel Insulation level When AC2 voltage is utilized between the AC high-voltage terminal and the low-voltage terminal, the leakage latest shall no longer exceed 3mA inside 1 minute Dimensions 210mm*160mm*50mm Hole Size 186mm*142mm weight zero

•
•
•
•
•
