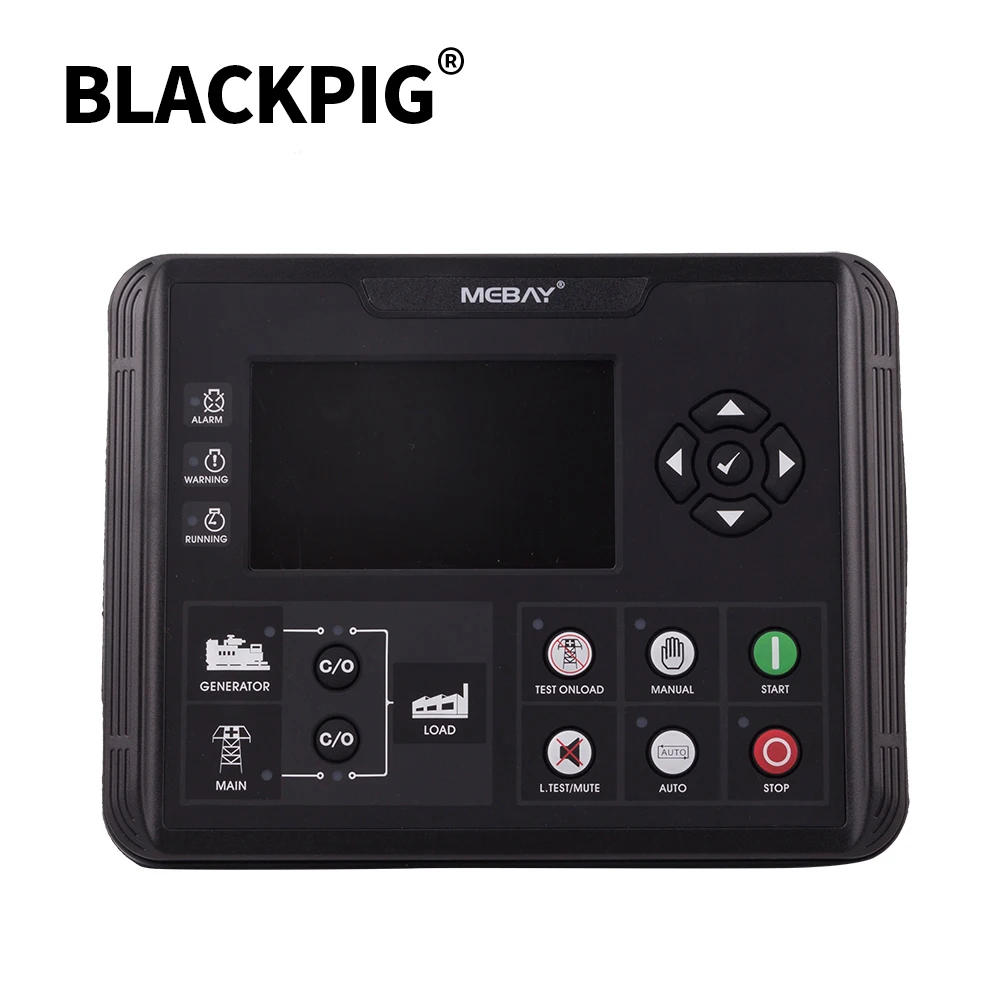

Genset Controller DC7XD Series This sequence controller is really good for Diesel / Gasoline / Gas Genset Start, Stop,Parameters monitoring, faults-checking in addition information surroundings
difference:
DC72D: Add Mains popularity display operate in line with DC70D;
DC70DR: Add RS485 interface according to DC70D;
DC72DR: Add RS485 interface according to DC72D;

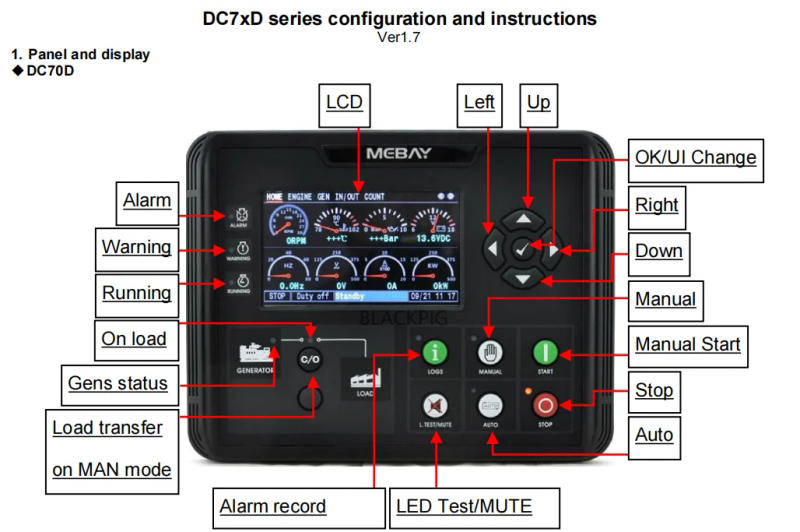

4 inch colorful LCD display demonstrate with fresh UI design is adapted on this controller that the relative failures could be displayed directly All the parameters could be displayed via simulated signals and words, LCD display can exhibit varied faults in the identical time that the genset could be stopped as soon as it's going to no longer work easily
There are Chinese/English interface options, extra language would be set in line with user’s request All the parameters would be configured in the course of the front
face buttons or use programmable interface via RS485 or USB to adjust by way of PC would be widely utilized for all kinds of auto management method of gensets
Parameters
Options
Parameters
Working voltage
DC8V----36V Continuous
Power consumption
Standby:24V:MAX 1W
Working:24V:MAX 5W
AC Voltage Input
1P2W 30VAC-276VAC(ph-N)
2P3W 30VAC-276VAC(ph-N)
3P4W 30VAC-276VAC(ph-N)
Rotate pace sensor Frequency
200-10000Hz
MAX Accumulating Time
99999(Min Store time:6min)
Fuel Relay Output
16Amp DC+VE Supply voltage
Start Relay Output
16Amp DC+VE Supply voltage
Programmable Relay output 1
5Amp DC+VE Supply voltage
Programmable Relay output 2
5AMP Non-contact-Normal open--Normal shut output
Programmable Relay output 3
5AMP Non-contact Normal Open output
Programmable Relay output 4
5AMP Non-contact normal open output
Programmable Relay output 5
5AMP Non-contact-Normal open--Normal close output
Excitation output
Max 1AMP DC+VE delivery voltage
Switch value input
Available if connecting with Battery -
Working condition
-20-65℃
Storage condition
-40-85℃
Protection Level
IP54:when waterproof rubber gasket is added between controller and its panel
Overall measurement
210mm*160mm*50mm
Panel cutout
186mm*142mm
Weight
0
