Preces apraksts

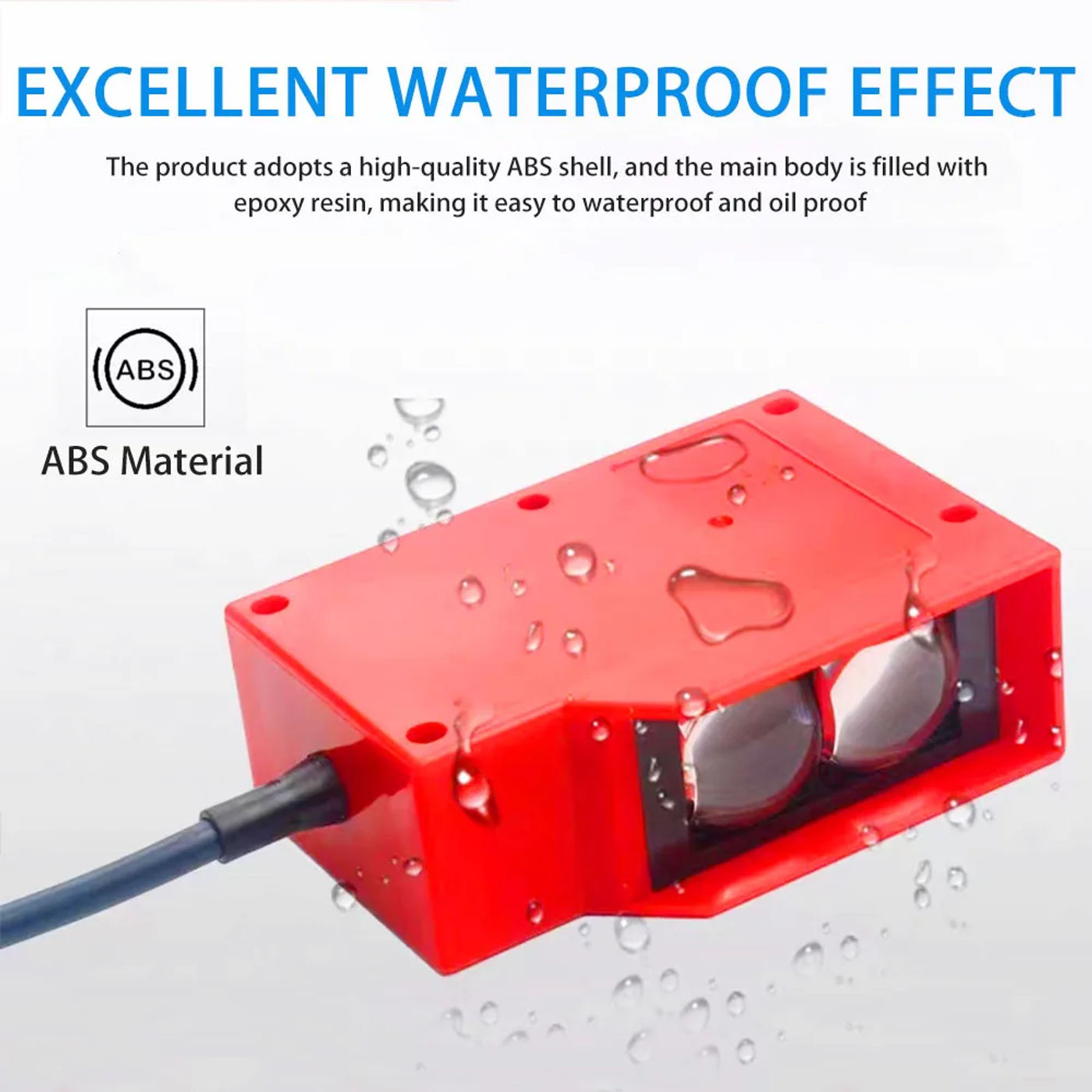

• Model Diffuse Reflection Feedback Reflex Opposite Type Sense Distance E3K100-3M E3K100-7M E3K100-10M E3K100-15M 3M 7M 10M 15M Detected Object Transparent/Opaque Objects Detection Range Adjustable Sensing Ddistance Input Method Relay (can freely swap NPN, PNP, usually open, usually closed) Supply Voltage DC 12-24V DC AC 24-240v0 AC AC DC common Withstanding Voltage Within ± 15% of the rated strength supply voltage differ and inside ± 10%of the detection distance at rated strength supply Consumption Current Type A: beneath 1 control output Type A: Within 3A Circuit Protection N P type: opposite connection protection, surge absorption, load short circuit protection, A type: surge absorption Environmental Temperature/humidity Protection during operation: -30-+65 ℃each (no ice or frost), defense throughout operation: 35-95 ℃each Insulation Impedance Above 50MQ (DC500 megohmmeter) between the charging part and the housing Shell Material ABS Detection Surface PMMA Protection Grade IP67 (IEC specification)

•
•
•
•
•
