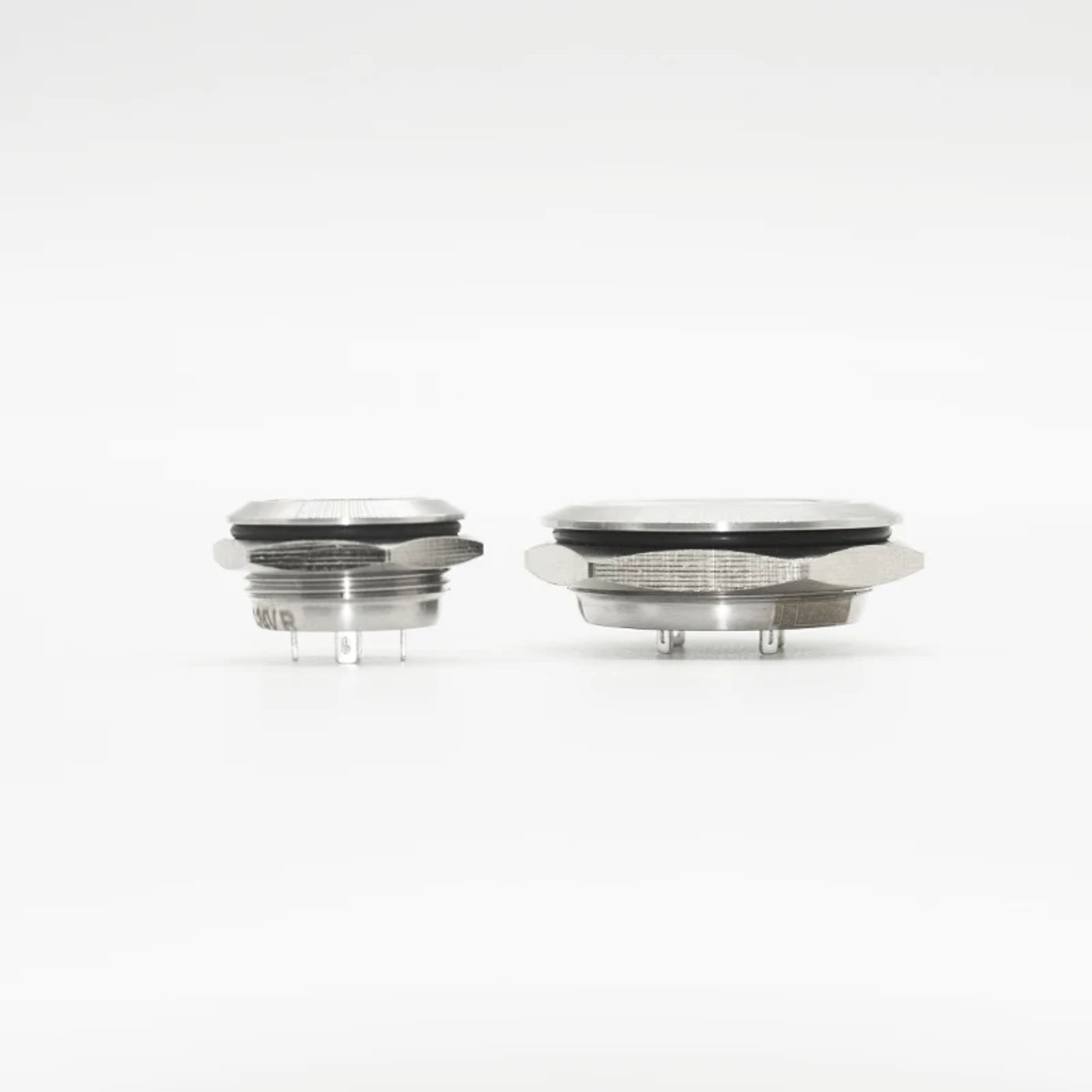

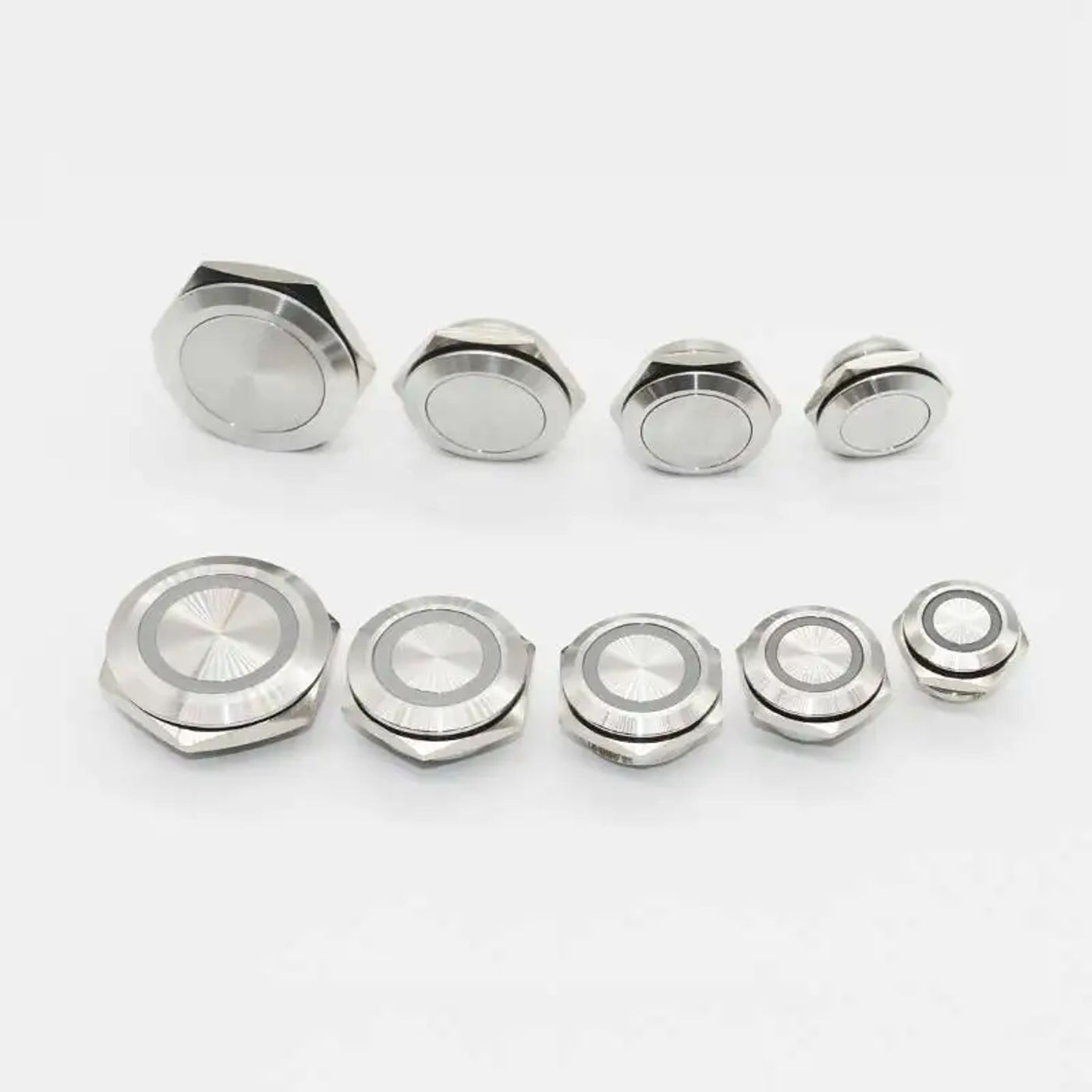

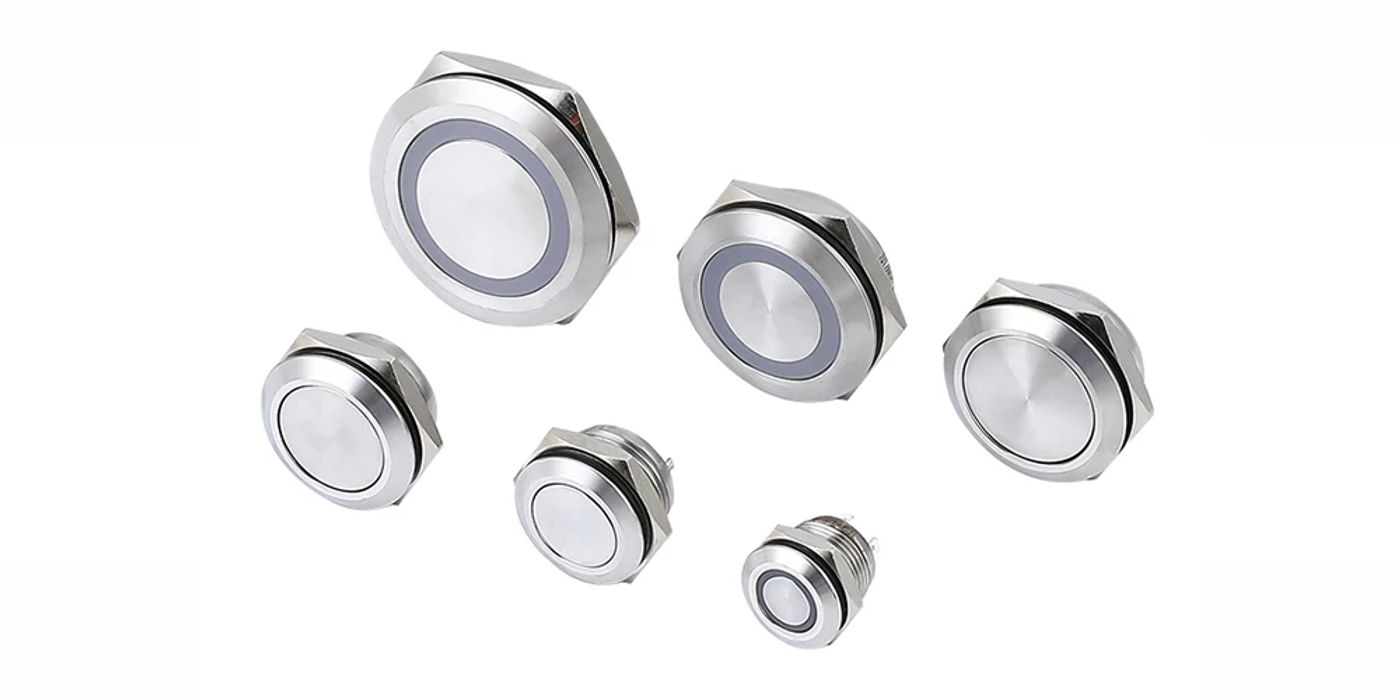

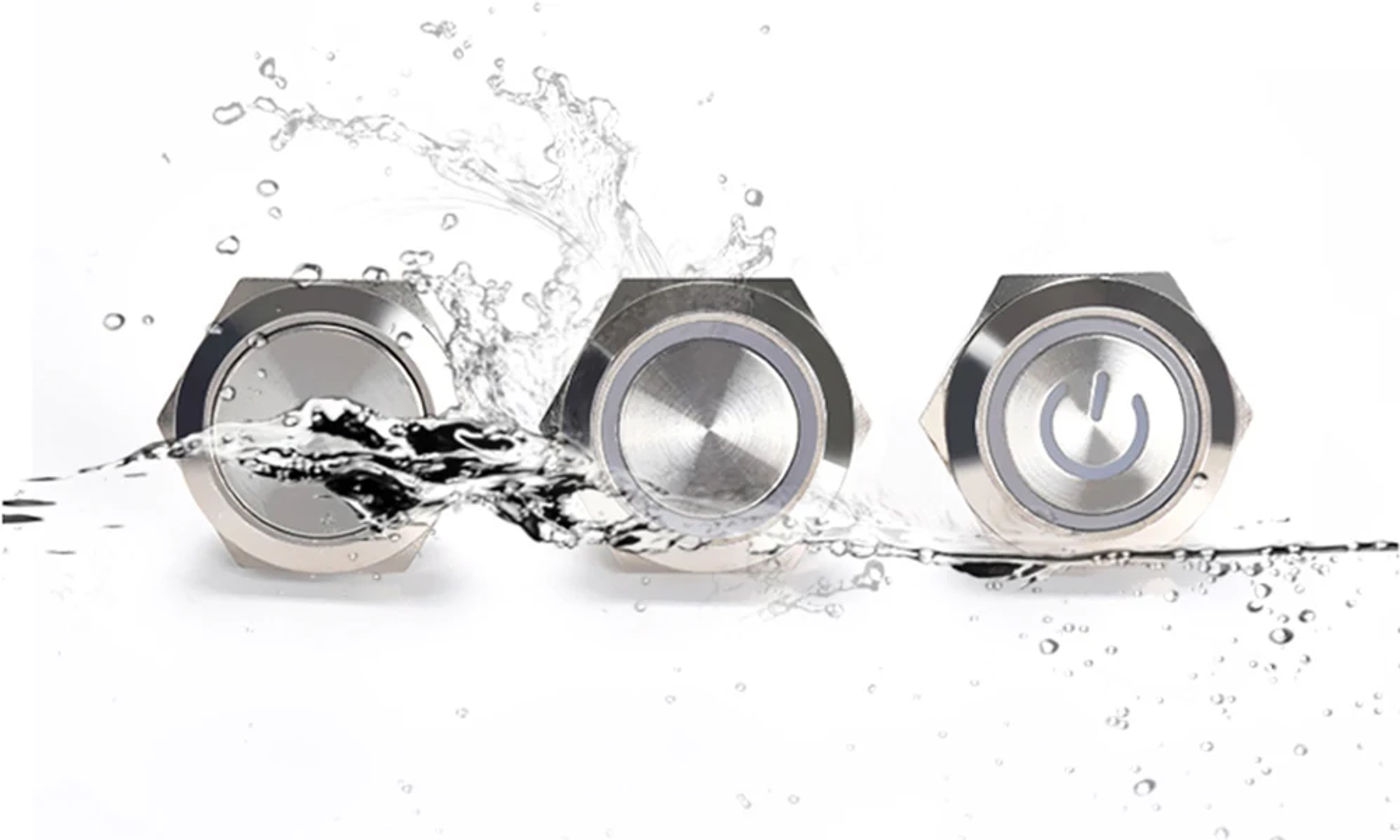

• If you want more item, please contact us,we will upload the quantity and give you the lower cost The button only have the momentary(like Car or Computer), don&;t have the lacthing (like the lamp), and don&;t have the Suitable connector,please think carefully earlier than you purchase Operation Type :Momentary After urgent the button ,press-key will return mechanically If you don&;t continue to press the button。Self-reset Specification The button don&;t have suitable connector,only buy the single connector If you need special specifications, please feel free to touch customer service,we can customize it Contact:sterling silver Material: Nickel Brass Or aluminium oxide Color: Silver Or Black LED color: White Yellow Red Green Blue Switch Rating: 2A /250VAC Press distance : ≤0 Waterproof Grade: IP65 LED Voltage: 3-6V,12V,24V,220V Operation Type: Momentary （like the button of Car or Computer） Hole size: 12/16/19/22/25/30mm Voltage Selection 3V-6V :3V 5V 6V 12V-24V: 12V 24V 220V: 220V 230V Other voltages are required Please touch customer service No led switch button can be applied to 2-250V Pin Terminal Introduction "+": effective pole of the led " - ": destructive pole of the led " NO ": Normal Open " C " : Common Connect " NO " and " C " : The circuit is alway open except press the button Flat Head Wiring Diagram There are many wiring method, the picture below is just for reference Wiring Diagram of Normal Open When the switch is pressed, the LED lighting up and the weight is energized After press-key return, the weight is de-energized, and the light is off Features Made of metallic material, strong and sturdy High-grade look and nice contact feeling Adopt rubber ring and hexagonal nut fixed, anti filth and waterproof, which make it great for outside use Copper plating silver terminals for good conductive homes Momentary type, push it-on, release it-off Metal button head durable for longstanding press

•
•
•
•
•
