Product Features
Intelligent LCD display with backlight can show the working time, speed percentage, current mode, ahead rotation, opposite rotation status, and so forth
Equipped with wireless remote control
Various limit modes available
Slow beginning and sluggish quit time can be set
Upper velocity restrict and decrease velocity restrict can be set
Total working time would be set, preventing on the end of time
Support dual-speed control, ahead speed and opposite velocity separate speed control
Two modes of guide and automated would be chosen Automatic mode in the set time computerized forward and reverse rotation
Touch swap to modify forward and reverse pointing acceleration and deceleration to unravel the ancient potentiometer easy to break the difficulty
Product parameters
Input voltage: DC10-55V (the specific voltage is equivalent to the rated voltage of the motor)
Output voltage: linear beneath load
Instantaneous current: 50A
Continuous current: within 30A
Forward and opposite rotation: help
Wireless distant control: Yes
Timing: Yes
Limit function: Yes
Slow delivery and stop: can be set
Speed digital display: 0-100 share table
Type of pace regulation: recent law
Speed regulation mode: level + -
Speed range: zero - 100 percent
Control frequency: 15KHZ

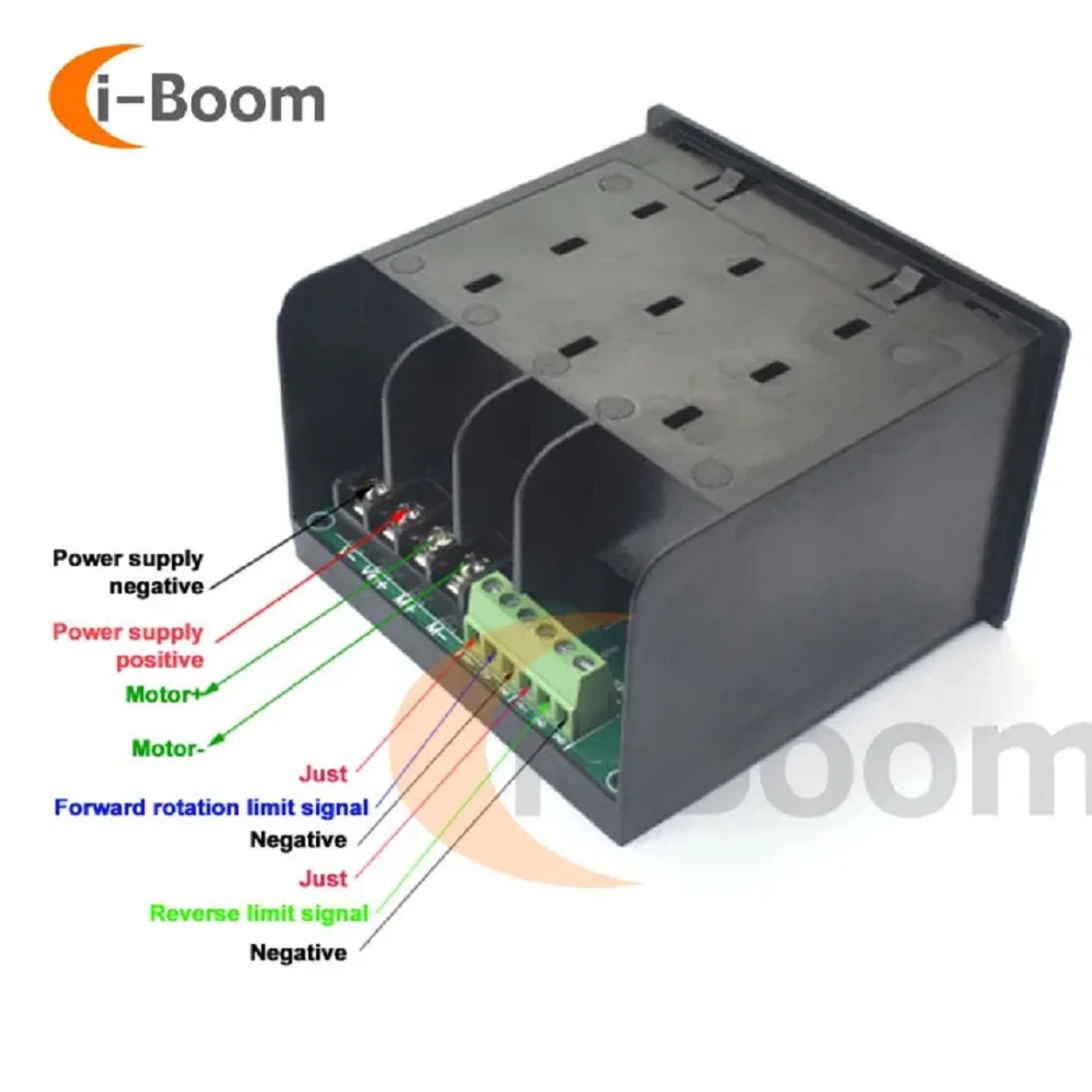

Wiring type: fence form terminals
Support motor: brush motor
Module Size: L*H*D 105mm*70mm*95mm
Product web weight: 275g
Panel opening: L*W98mm*63mm
Installation: Embedded
Press and keep MENU button to turn off and turn on the backlight
Press FWD/REV to opposite beginning if you would like to reverse birth
Note: Input ought to be divided into effective and destructive The enter voltage needs to be equal to the rated voltage of the motor (within 10-55V)
For example, if the motor rated voltage is 12V and the governor is 12V, and the motor rated voltage is 36V and the governor is 36V, the motor rated voltage is 36V and the governor is 36V
Input 220V will burn
Instructions for use:
Support normally open mechanical switch, NPN kind photoelectric switch, metallic proximity switch, Hall magnetic change
0-1-2-3-4-5-6-7-8-9-E form of operate settings as follows
Manual-automatic mode selection Function 0: 1 for guide mode 2 for computerized mode Default is 1 for guide mode
Slow beginning time surroundings Function 1: 000 - one hundred Slow begin to 100 percent speed time is adjustable between 0-10 seconds Default is 1 second
Slow give up time surroundings Function 2: 000 - a hundred Slow stop time is adjustable between 0-10 seconds Default is 1 moment
Lower Speed Limit Setting Function 3: 000 - 080 The minimal velocity is adjustable from 0-80% and fewer than the maximum velocity atmosphere cost
Upper Speed Setting Function 4: 000 - 100 The most pace is adjustable from 0-100% and is larger than the minimal velocity atmosphere price Default is 100 percent
Acceleration and deceleration value atmosphere Function 5: 001 002 005 010 015 020 025 Every time you press the acceleration and deceleration keys, the speed will substitute 1%, 2%, 5%, 10%, 15%, 20%, 25% accordingly
Total motor working time surroundings Function 6: zero sec min - 999 hrs 59 min 59 sec max Default is 0 hrs zero min zero sec No timer operate
The following functions 7 are time surroundings in complete automatic mode
Function 7: 0sec min - 999h 59m 59sec max Default is 10sec
Stop time environment Function 8: 0sec min - 999hrs 59min 59sec max Default is 10sec
Reverse Time Setting Function 9: 0sec min - 999hrs 59min 59sec max 10sec by means of default
Limit Mode Selection Function E: E1 Infinite role Default endless role
E2 Press to begin motor ahead ahead to advantageous limit motor quit Press forward and opposite key to opposite start
E3 Press beginning motor forward forward to tremendous limit motor opposite opposite to opposite limit motor give up
E4 Press to begin motor ahead forward to superb limit motor reverse Cycle operation
Manual-Auto Mode Selection Press MENU key 1 to reveal 0 to enter guide and full-auto mode selection 1 for handbook mode 2 for auto mode Press plus/minus key to change Press RUN/STOP to save lots of and exit
Slow beginning time setting Press MENU key 2 to go into operate 1 atmosphere key floor Press plus/minus key to set time Press RUN/STOP to save and exit (10 is 1 second a hundred is 10 seconds)
Product List
1X Speed Controller
1X handheld remote control
