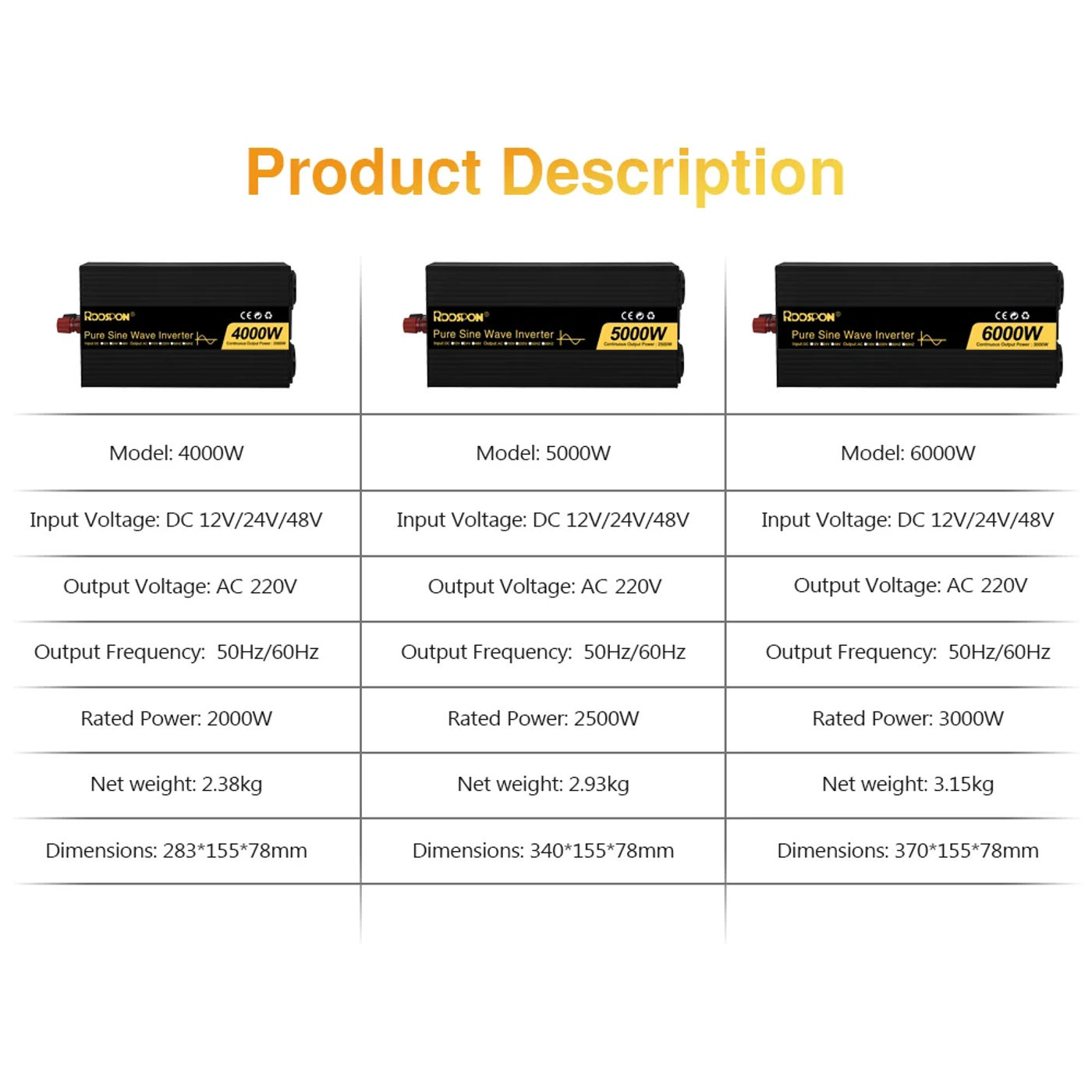

• Specifications: Type: Pure Sine Inverter Model: 4000W / 5000W / 6000W Output Waveform: Pure Sine Wave Socket Type: EU Input Voltage: DC 12V / 24V / 48V Output Voltage: AC 220V Output Frequency: 50Hz / 60Hz Rated Power: 2000W / 2500W / 3000W Conversion Efficiency: 90% Protection Function 1: Over Temperature Protection Protection Function 2: Low Voltage Protection Protection Function 3: High Voltage Protection Notice: > 12V&;s inverter only can join 12V&;s battery (Input voltage fluctuate about 10V to 15V) > 24V&;s inverter only can connect 24V&;s battery (Input voltage differ about 20V to 30V) > 48V&;s inverter only can join 48V&;s battery (Input voltage differ about 40V to 60V) > Don&;t join the inverter to the family circuit > Small good judgment of electrical strength Inverter conversion efficiency about 90% Rated energy * Conversion performance = Actual power How to decide an acceptable battery for inverter Working time = U (voltage payment) × I (battery capacity) × zero × 0 ÷ electric energy Example: a 12V 50AH battery with a 220V 100W bulb Working time=12Vx50AH×0×0÷100W=4(hours) Note: zero is the battery discharge coefficient (constant) 0 is the conversion efficiency of the inverter (constant) How long it may be used also is associated with the hot and outdated functionality of your battery

•
•
•
•
•
