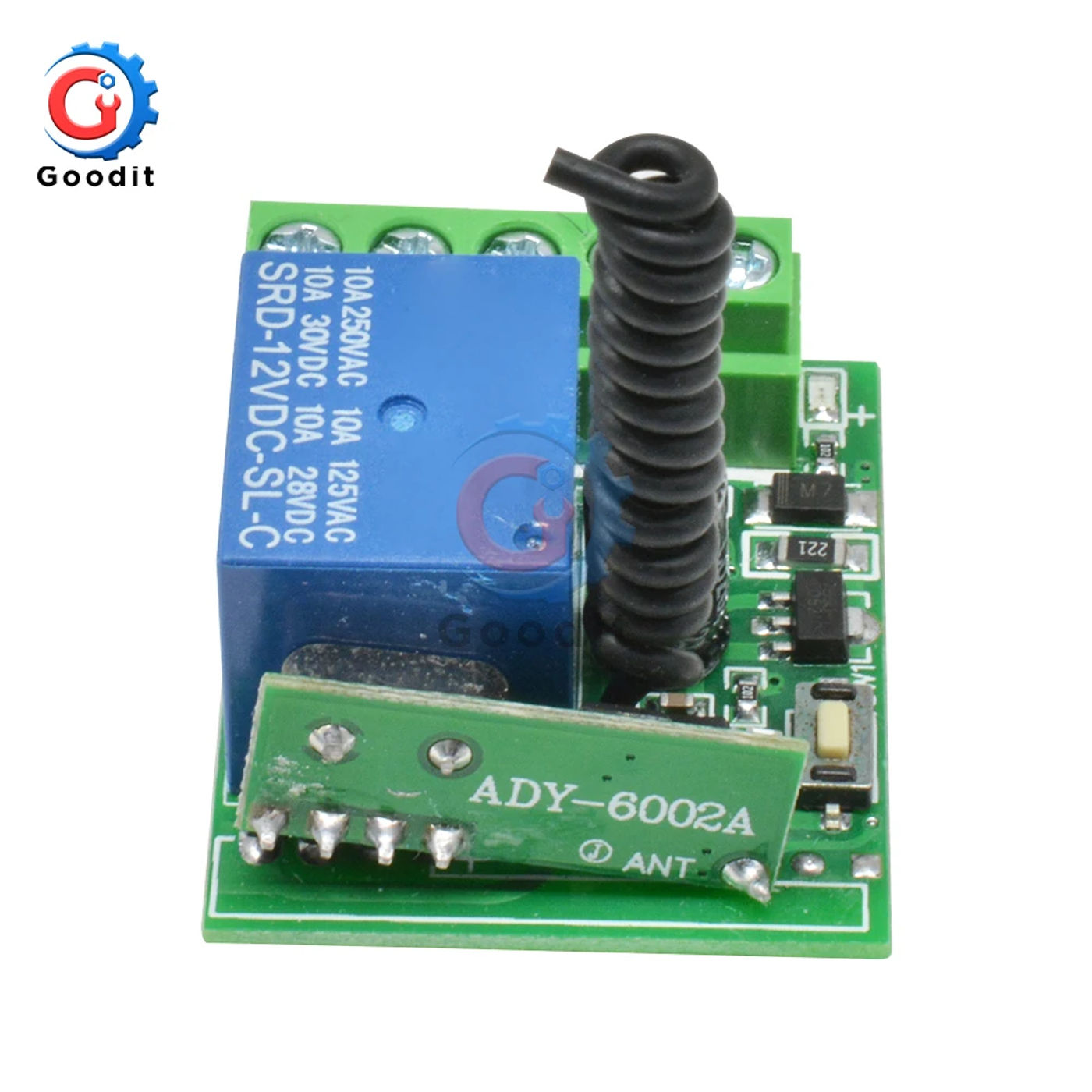

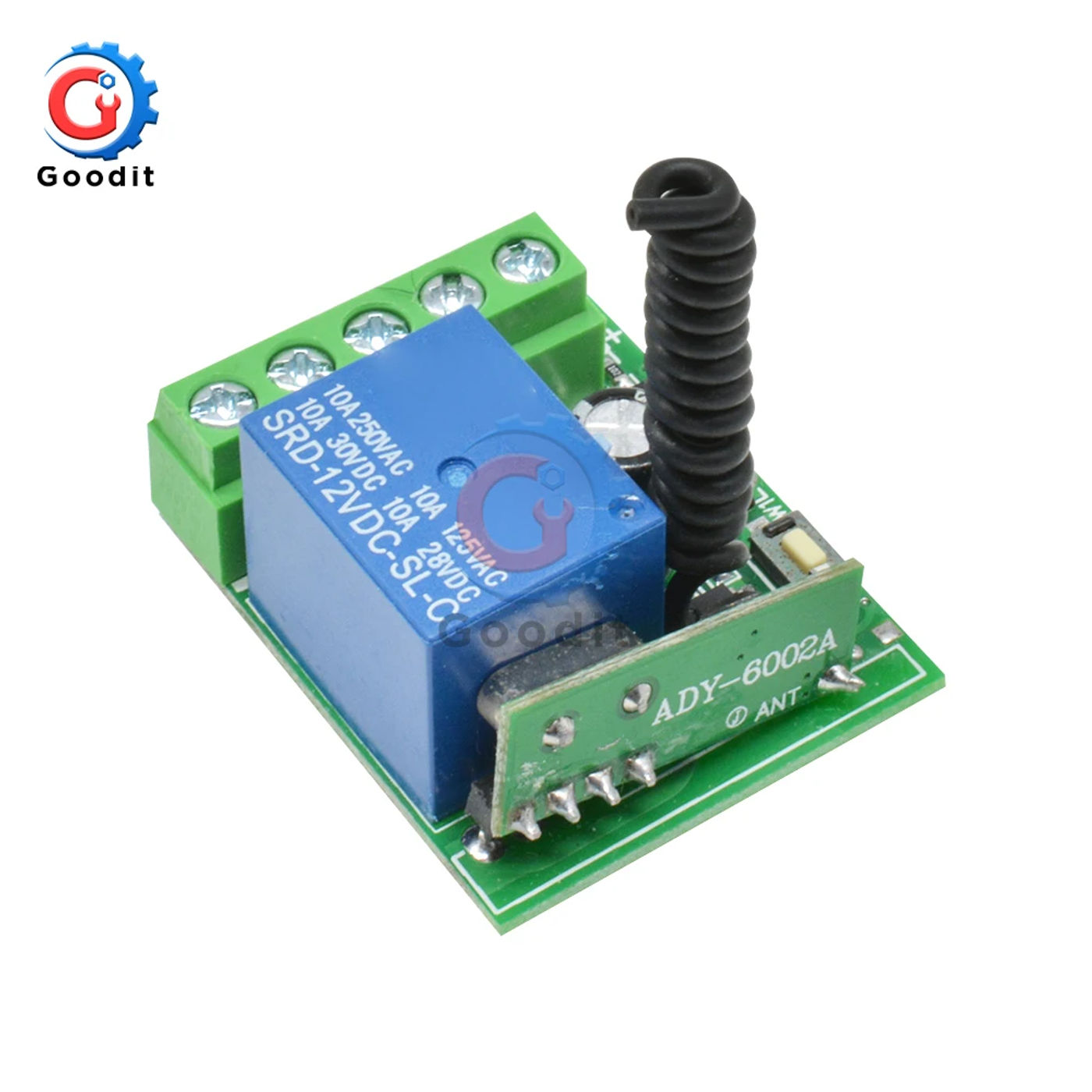

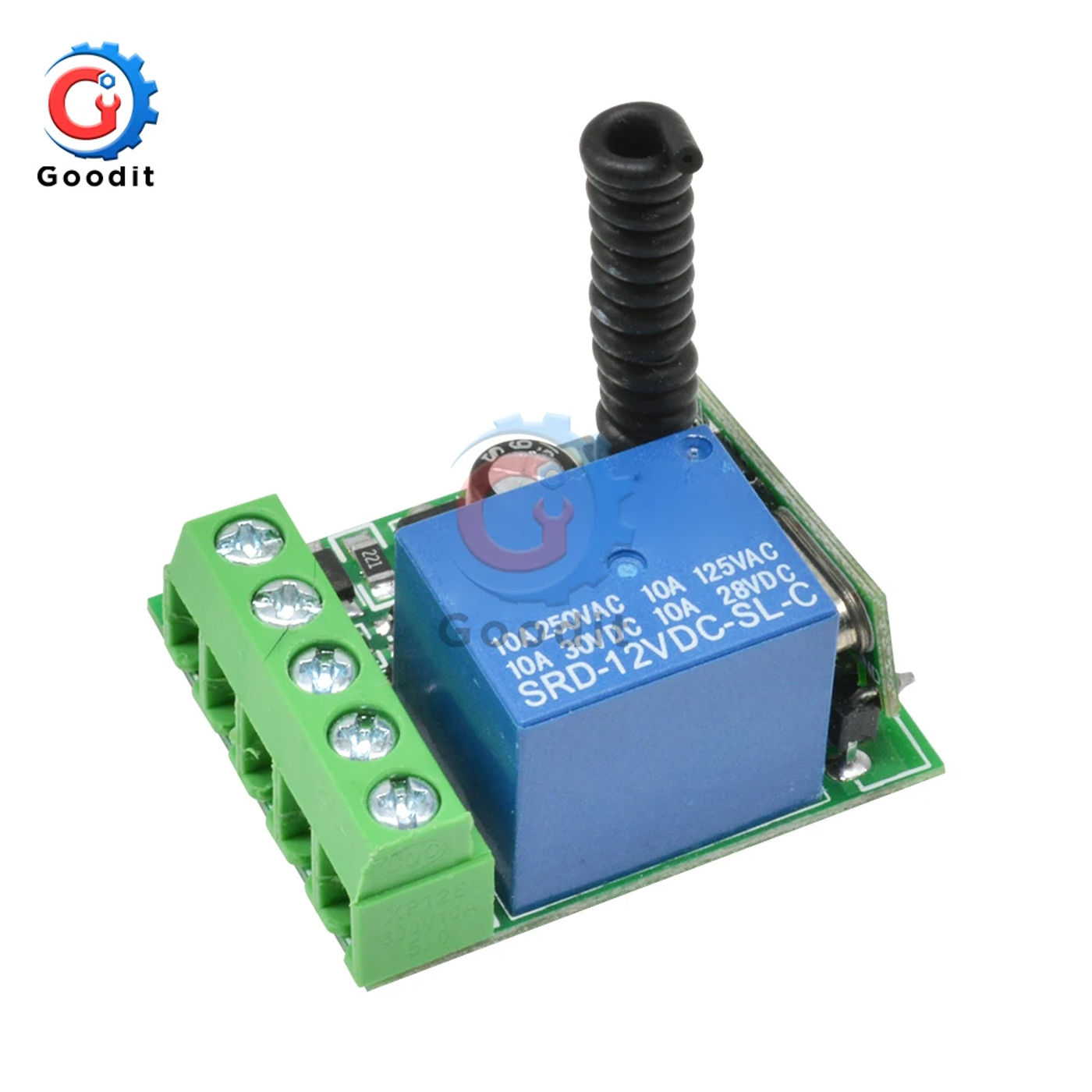

• Wireless Relay Module DC 12V 1Channel 315MHz RF Remote Control Switch Heterodyne Receiver Controller Board Features: 1 Small product 2 Widely used three Suitable for DIY humans four Long service lifestyles 5 Multiple offerings Receiver Specifications: 1 Model: KR1201B-4 2 Modulation mode: ASK 3 Input voltage: DC 10~14V DC 4 RF frequency: 15MHz five Quiescent current: 5mA 6 Receiving sensitivity: > 97dbm 7 Remote control range: > 100 meters (air-wide environment) 8 Wired connection method: fixed terminal 9 Decoding mode: MCU software deciphering Total load power: 10A 10 Working mode: inching, self-locking, interlocking mode, delay mode 5, 10, 15, 20 seconds eleven Load power: 1000W (Note: inductive a lot resembling water pump motors more than 50W deserve to upload contactors) Wiring tips: 1 +: Connect to the fine pole of the 12V energy supply; 2 -: Connect to the destructive pole of the 12V energy supply; 3 NO: output terminal; normally open terminal of the relay; four COM: output terminal; regular terminal of the relay; five NC: output terminal; normally closed terminal of the relay; Working mode operation instructions: Press the management panel code pairing button 8 instances in a row, and the LED indicator will flash 8 instances At this time, the LED indicator will robotically flash 8 times in a row, and the code clearing is completed, clearing all the previously discovered remote control key codes According to the prompts, choose the specified working mode [number of times] for code pairing 1 Inching function: Press the management panel pairing button once, the LED indicator flashes once, and after the LED indicator lighting fixtures up, press the remote control button that must be paired The control panel LED indicator flashes thrice in a row, and the pairing is profitable 2 Self-locking function: Press the control panel pairing button two times in a row, the LED indicator flashes 2 times, and after the LED indicator lights up, press the handheld remote control button that should be paired The management panel LED indicator flashes three times in a row, and the pairing is successful 3 Interlocking function: Press the control panel pairing button three times in a row, the LED indicator flashes 3 times, and after the LED indicator lighting fixtures up Press the remote control button that ought to be paired, and the management panel LED indicator flashes thrice in a row, and the pairing is profitable 4 Delay 5 seconds: Press the management panel pairing button 4 times in a row, the LED indicator flashes four times, and after the LED indicator lighting fixtures up, press the remote control button that should be paired, and the control panel LED indicator flashes three times in a row, and the pairing is profitable 5 Delay 10 seconds: Press the control panel pairing button 5 occasions in a row, the LED indicator flashes 5 times, and after the LED indicator lights up, press the handheld remote control button that should be paired The control panel LED indicator flashes three times in a row to successfully pair 6 Delay 15 seconds: Press the control panel pairing button 6 occasions in a row, the LED indicator flashes 6 times, and after the LED indicator lighting fixtures up, press the remote control button that needs to be paired The management panel LED indicator flashes three times in a row to successfully pair 7 Delay 20 seconds: Press the control panel pairing button 7 occasions in a row, the LED indicator flashes 7 times, and after the LED indicator lighting fixtures up, press the remote control button that must be paired The control panel LED indicator flashes thrice in a row to successfully pair Note: Set the put off mode If you keep pressing the button during use, the put off will proceed Package Included: Relay module*1

•
•
•
•
•
