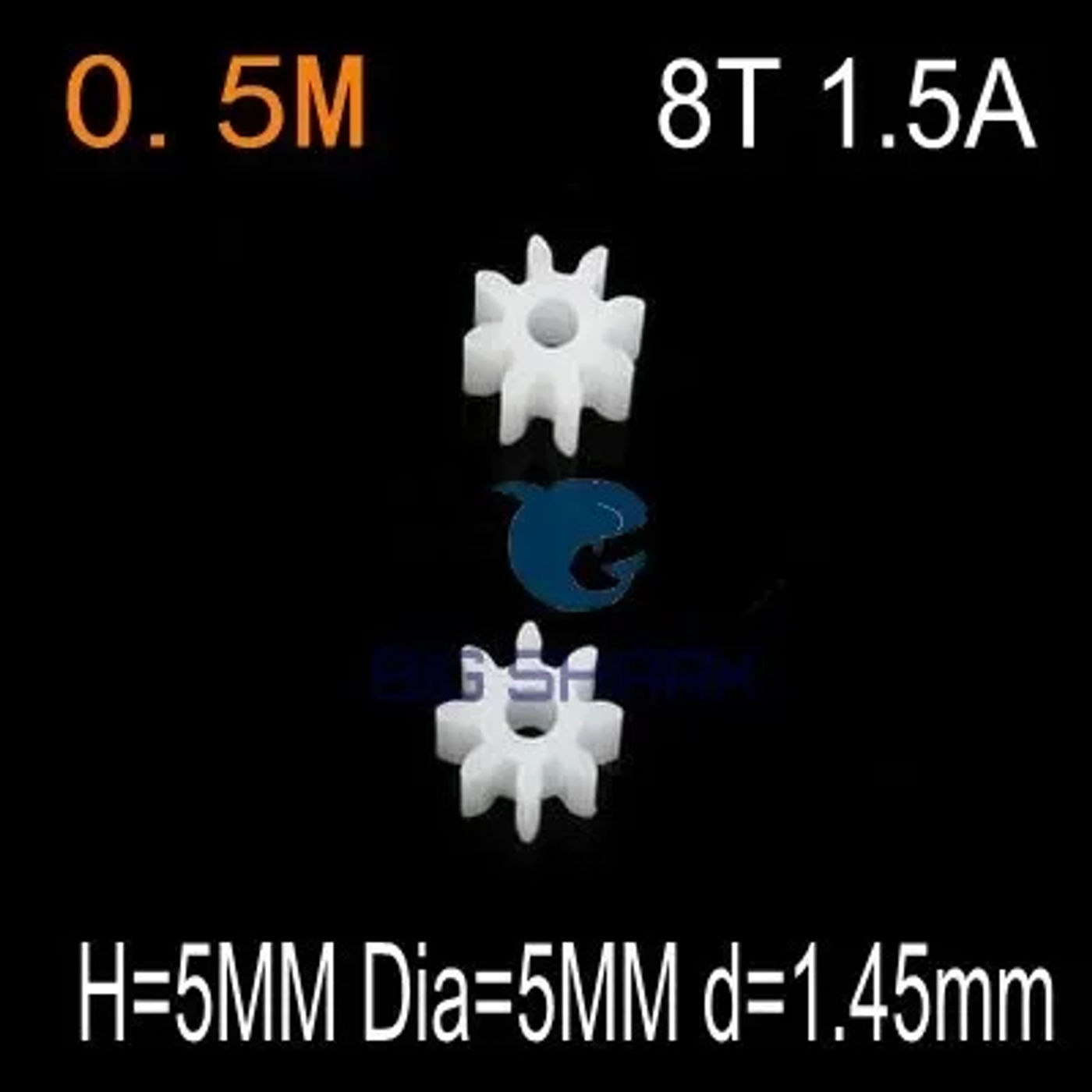

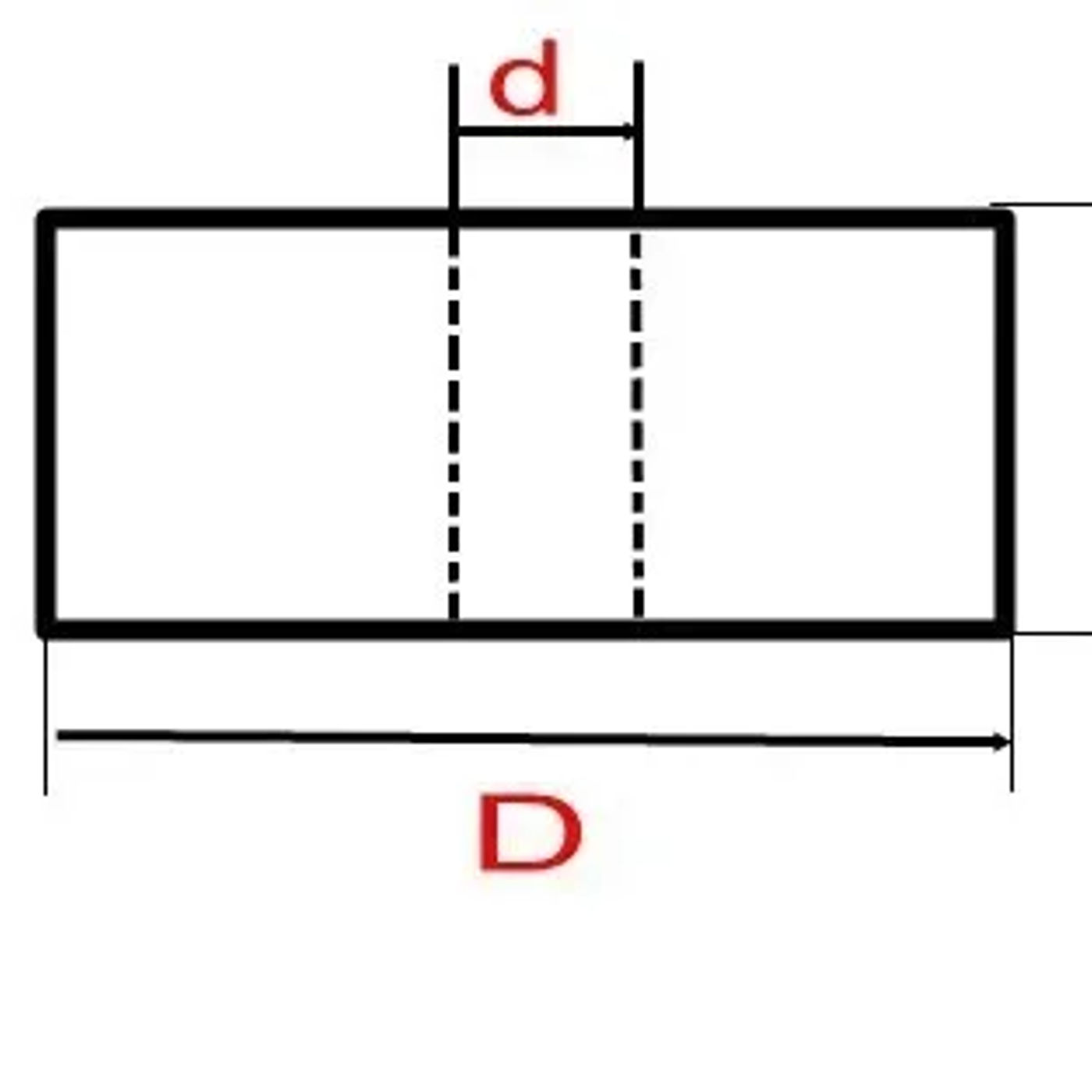

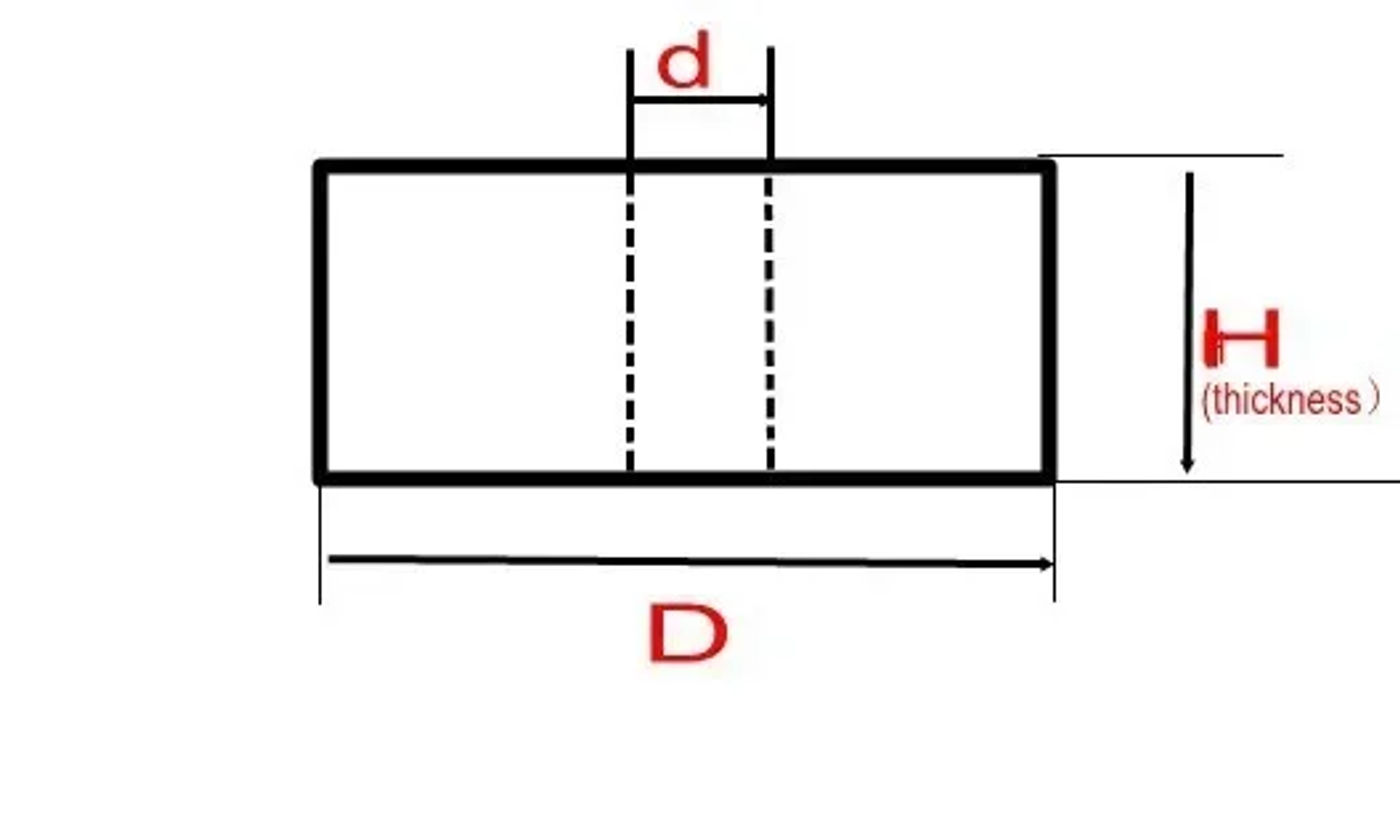

• NOTE:There is an error between the technical length and the particular size NOTE: Data parameters have error ± 0.1mm as an instance :X2A X1.5A X2.5A 1.X : Number of teeth 2.A: tight with B: loose with 0.8A shows the central axis of 0.75mm; 0.8mm of the optical axis, with a tight, rotates together with the optical axis. 1.5A displays the central axis of 1.45mm; 1.5mm of the optical axis, with a tight, rotates together with the optical axis. 2A displays the central axis of 1.95mm; 2mm of the optical axis, with a tight, rotates together with the optical axis. 2.5A displays the central axis of 2.45mm; 2.5mm of the optical axis, with a tight, rotates along with the optical axis. 2B represents the central axis of 2.05mm; and the optical axis of 2mm, loosely fitted, loose to rotate at the optical axis. Gear diameter = (number of enamel +2) * 0.5 ( mm) Modulus:0.5 d(Aperture) :1.45MM H(Thickness):5MM Diameter:5MM

•
