Features:
fresh and effective
Products with diversified R and B values would be provided, with secure interchangeability and immoderate precision.
The structure is simple, the set up is simple, and the waterproofness is good.
The temperature sensor has immoderate sensitivity and immediate response.
The use temperature vary is wide, the soundness is good, and the reliability is high.

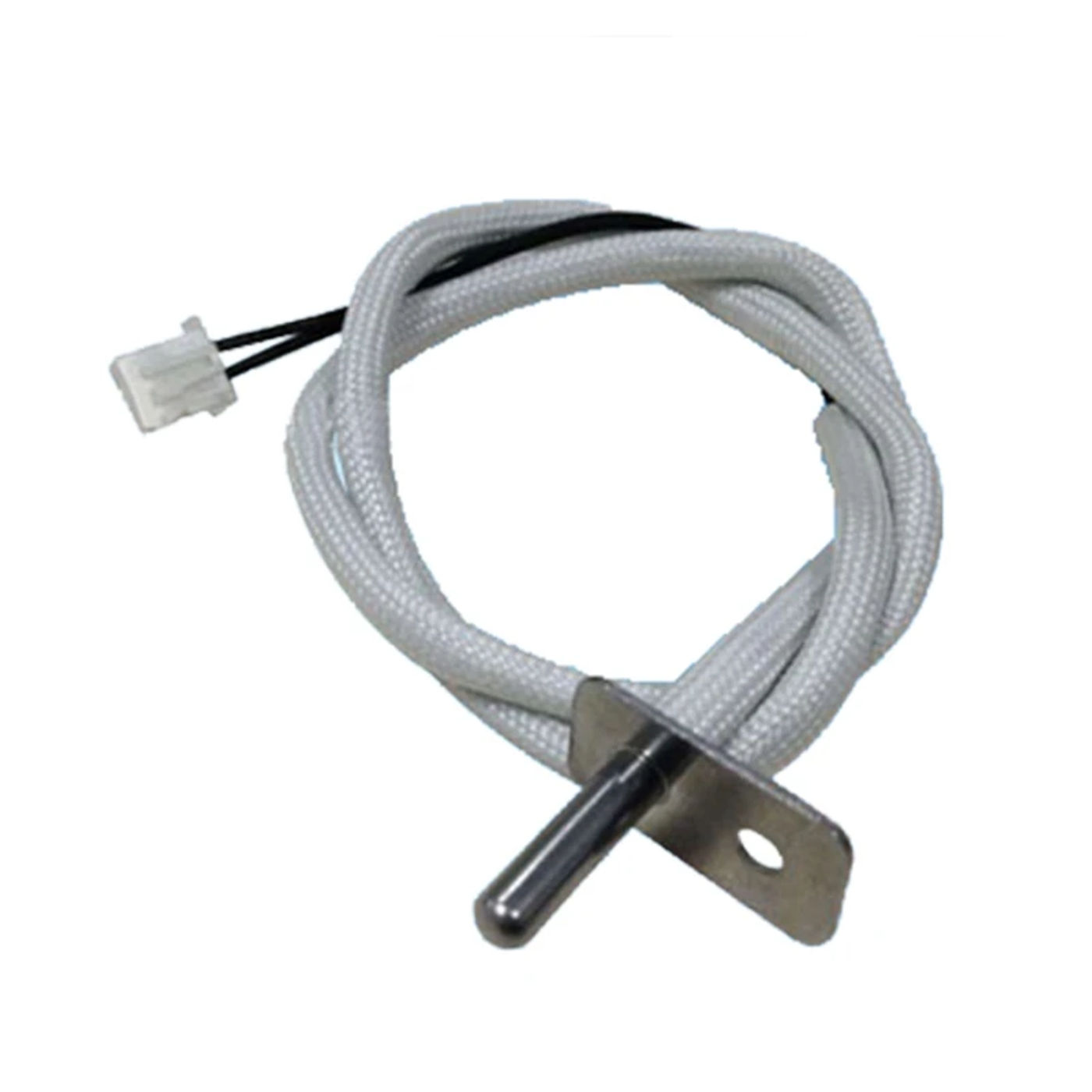

This NTC temperature sensor is suitable for electric kettles, water heaters, wall-hung boilers, ice crushers, bread machines, ovens, microwave ovens, etc.
Specifications:
Material: Plastic + Metal
Weight: 12g

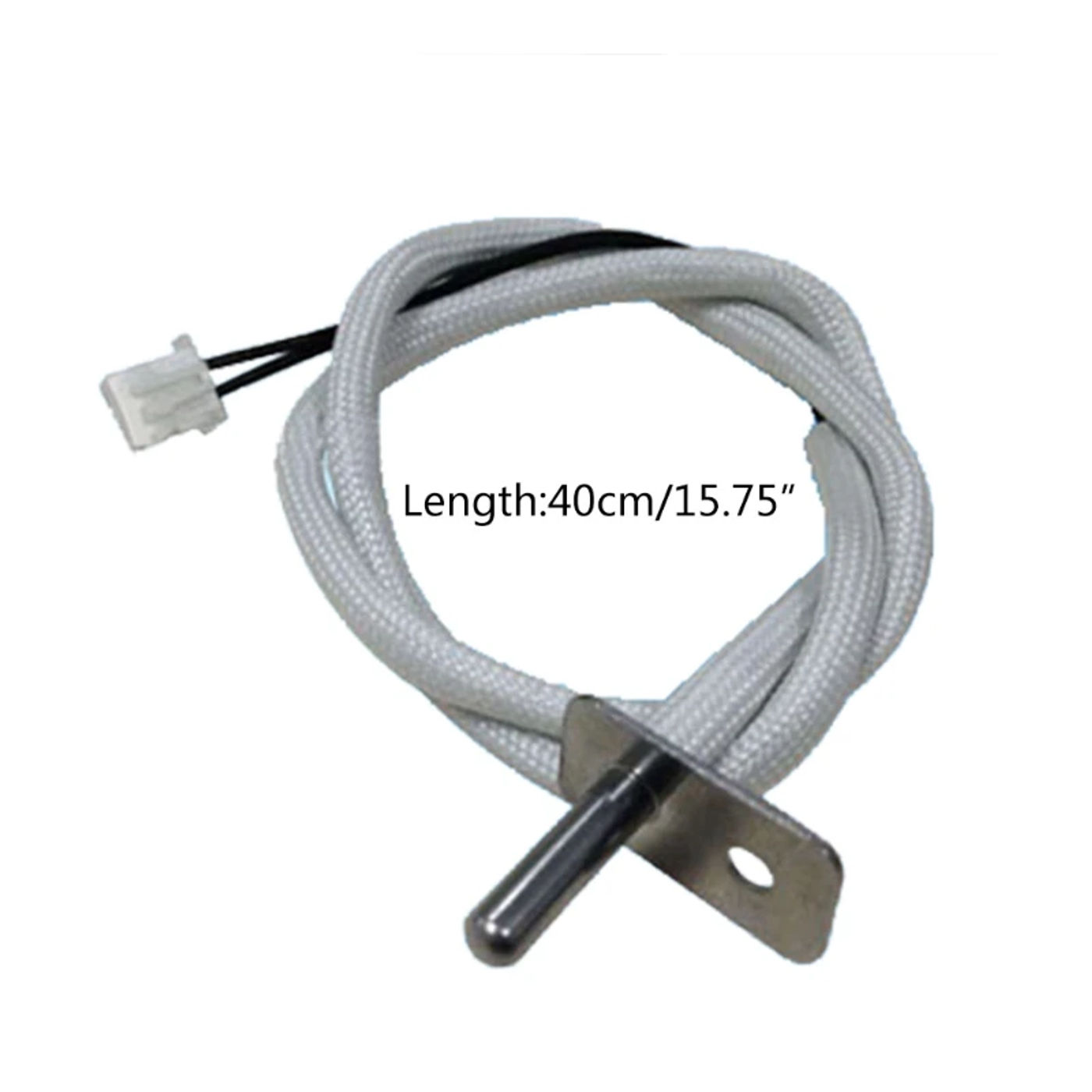

Size: As photo exhibits
Operating Temperature Range: -40℃~+150℃
Dissipation Power Coefficient: ≥5 mW/℃ (in Static Air)
Maximum Rated Power: 45mW
Thermal for Time Constant: ≤7S (in Static Air)
Temperature Coefficient of Resistance: -2~-5%/℃
Insulation Performance: 500V for DC Test Single Insulation Resistance ≥100mΩ
Withstand Voltage Performance: 1500V Ac, 5s, 0 Without Breakdown
Package Includes:
1x Temperature Sensor
Note:
1 allow 1-2cm errors due to guide measurement, simply be sure to do not mind earlier than you order.
2 to the adaptation between different monitors, the picture won't mirror the particular colour of the item.
