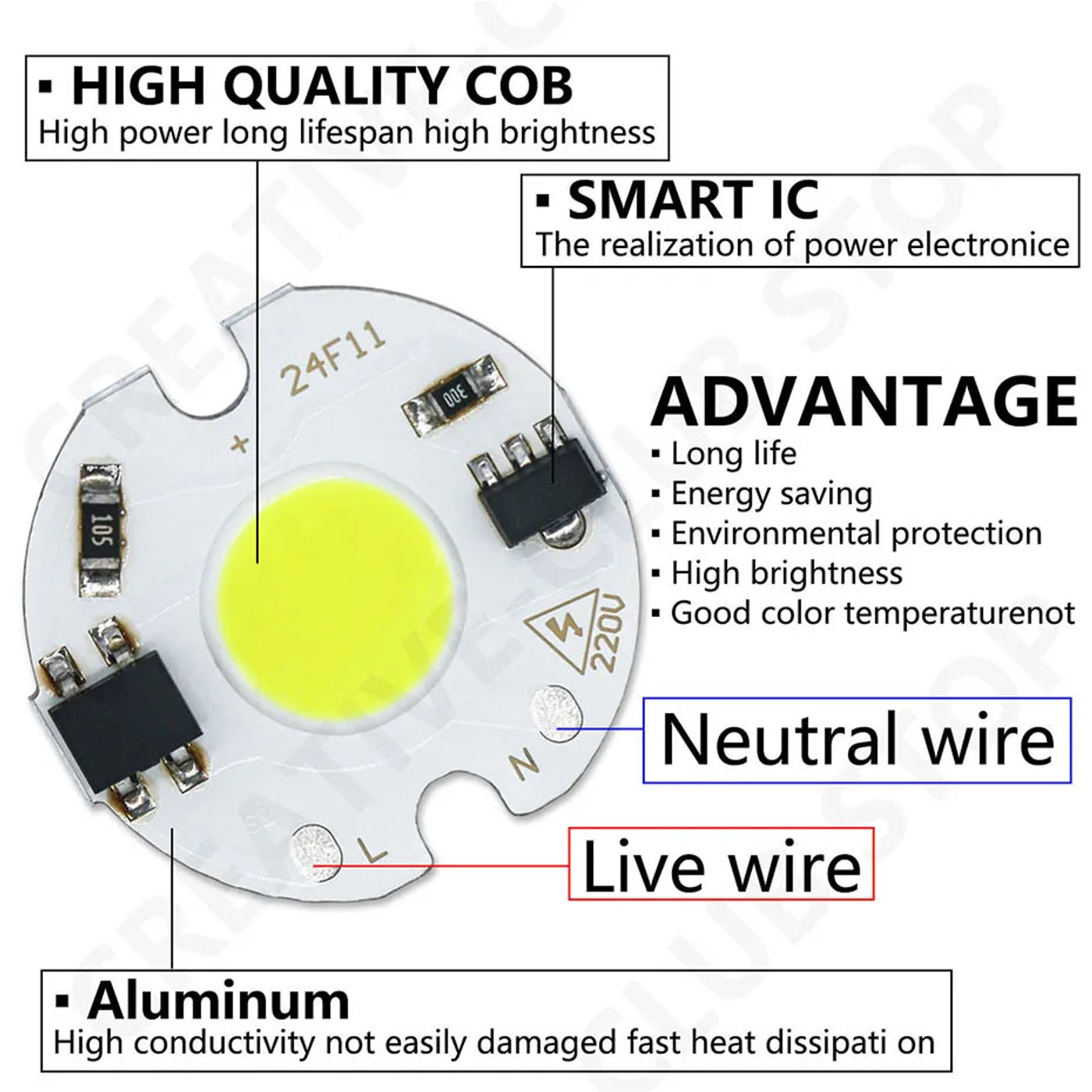

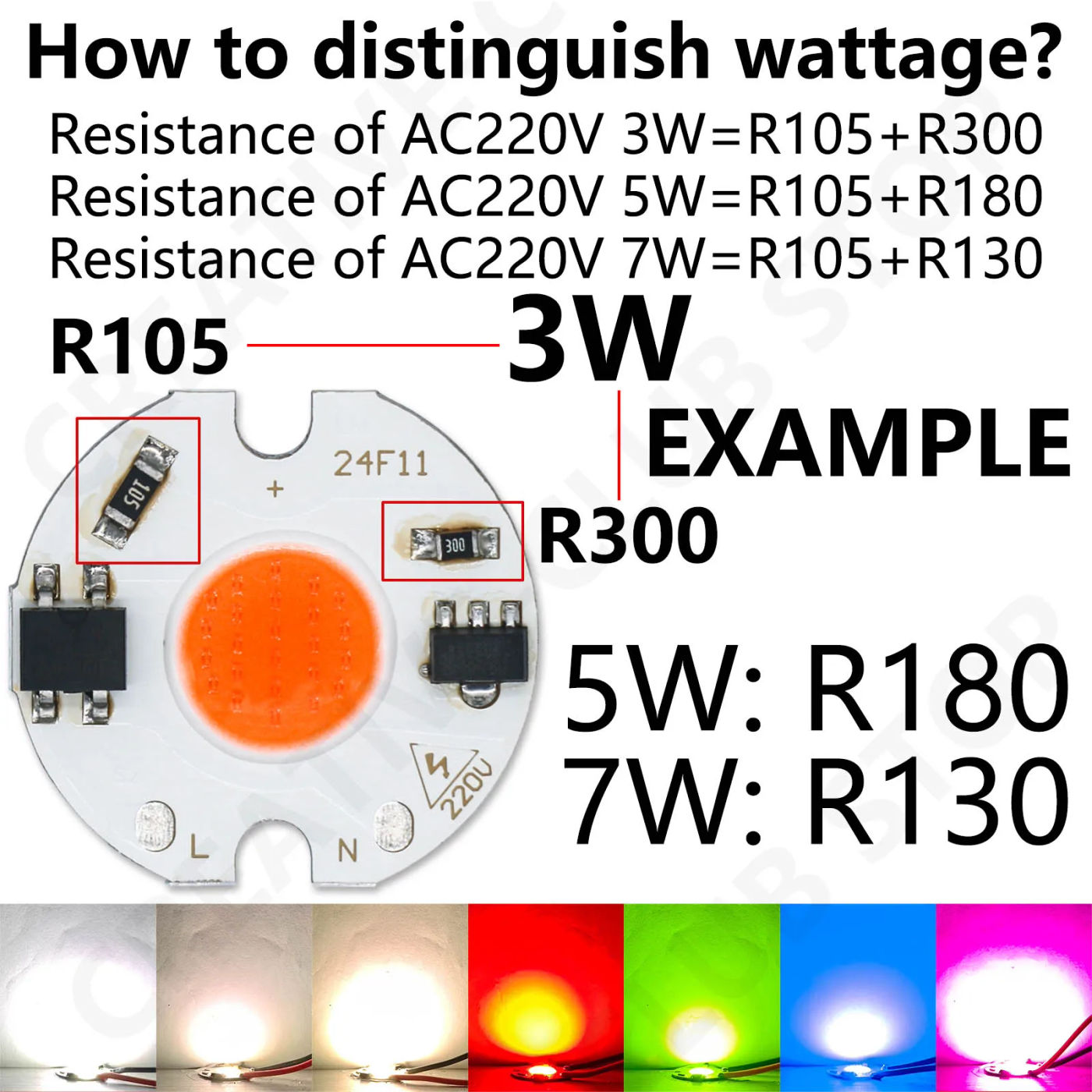

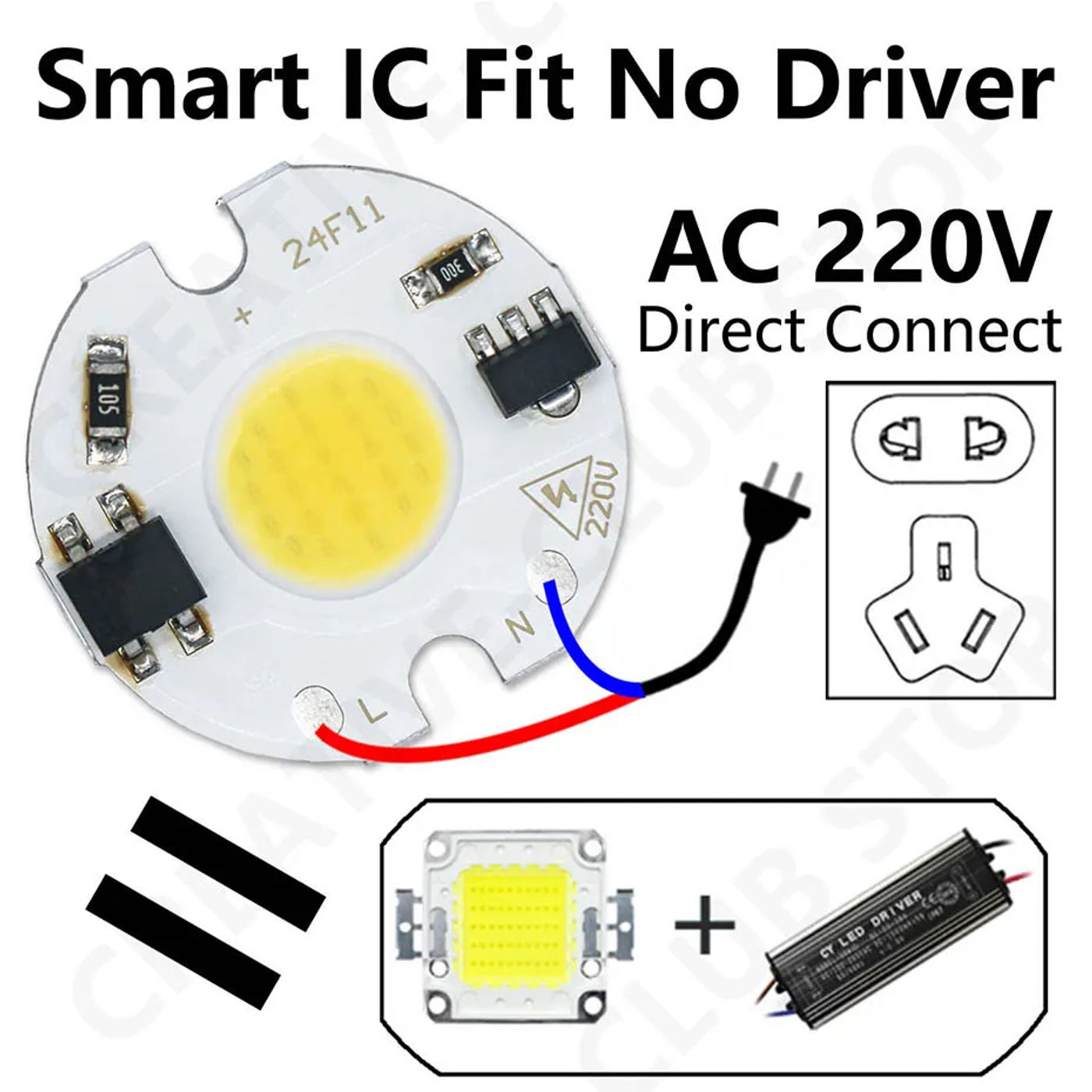

• Product details Power：3W/5W/7WVoltage: AC220VResistance of AC220V 3W=R105+R300Resistance of AC220V 5W=R105+R180Resistance of AC220V 7W=R105+R130Color: Cold White/Warm White/Natural White/Red/Green/Blue/PinkBasic type: WedgeCrystal name: Epistar chipSize: Diameter 24mm(0)Light-emitting floor size: Diameter 11mm(0)Aluminum substrate thickness: 1 conductivity of aluminum substrate: 2/(m·K)Beam angle: 120°Lumens: About 100LM/W to demonstrate (3W=300LM)Long life: 30000 hoursCRI: Ra≥75N is connected to the live wire, L is attached to the impartial wireFunction: Smart IC with out driverLED bulb type: spotlight bulbScope of application: squares, gardens, parks, courts, outdoor, used in spotlight bulbs. Repair and amendment DIY: The chip is not suitable for direct testing, it wishes a radiator, and the working temperature can't exceed 60°C, which is easy to burn out. It must be installed and fixed before testing, thank you.

•
•
•
•
•
