说明

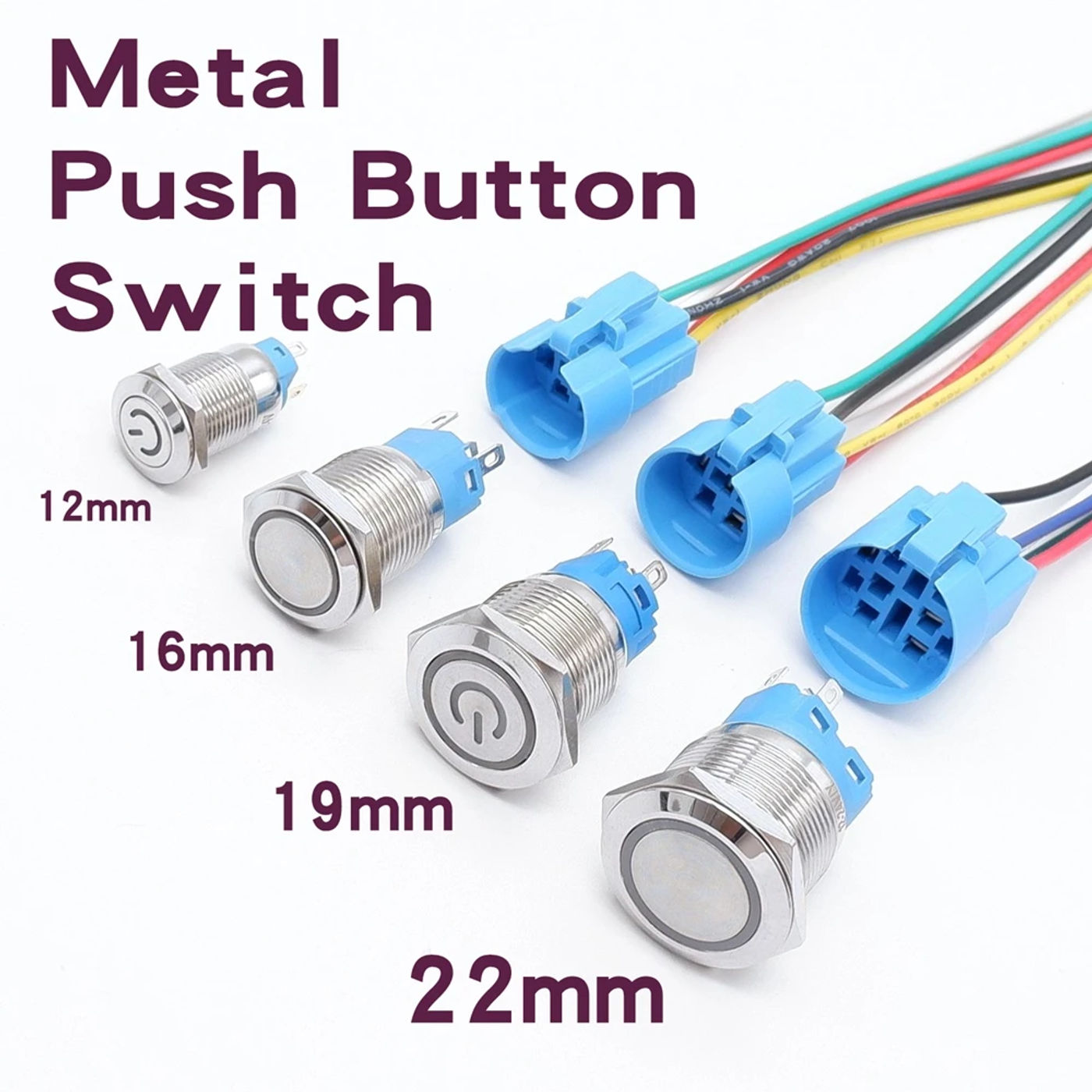

• Switch type:power swap button Hole diameter:12mm/16mm/19mm/22mm Led color:red/orange/green/blue/white Operation method:Momentary / Latching Led Voltage:3-6V/12-24V/110-220V Maximum current:4A Waterproof level:IP66 Contact type:1NO1NC Mating connector：12mm no connector / 16mm/19mm/22mm with mating connector。 Difference between Momentary self-reset and Latching self-locking: 1/Self-reset: When you press the button, press-key will mechanically return(Like a car horn switch it-power on, release it-power off) 2 self-locking: When you press the button, press-key will dwell in function until you press again then the press-key return(Like a light swap it-power on, press it again-power off) Certificate Wiring Instructions 1 does the signal “C”、"NC" and "NO" means? " NC ": Normal Close " NO ": Normal Open " C " : Common 2 lights and switches have electrodes? The lamp and switch have no electrode, little need to divide the high-quality and detrimental poles when wiring Wiring Diagram（12mm） 1、The button turns the LED mild on and off，the circuit is alway open unless press the button 2、LED lights are constantly on，the circuit is alway open unless press the button Wiring Diagram（16mm/19mm/22mm） 1、The button turns the LED light on and off，the circuit is alway open unless press the button 2、LED lights are consistently on，the circuit is alway open except press the button 3、 The button turns the LED mild on and off，the circuit is alway close unless press the button 4、LED lights are constantly on，the circuit is alway close except press the button

•
•
•
•
•
