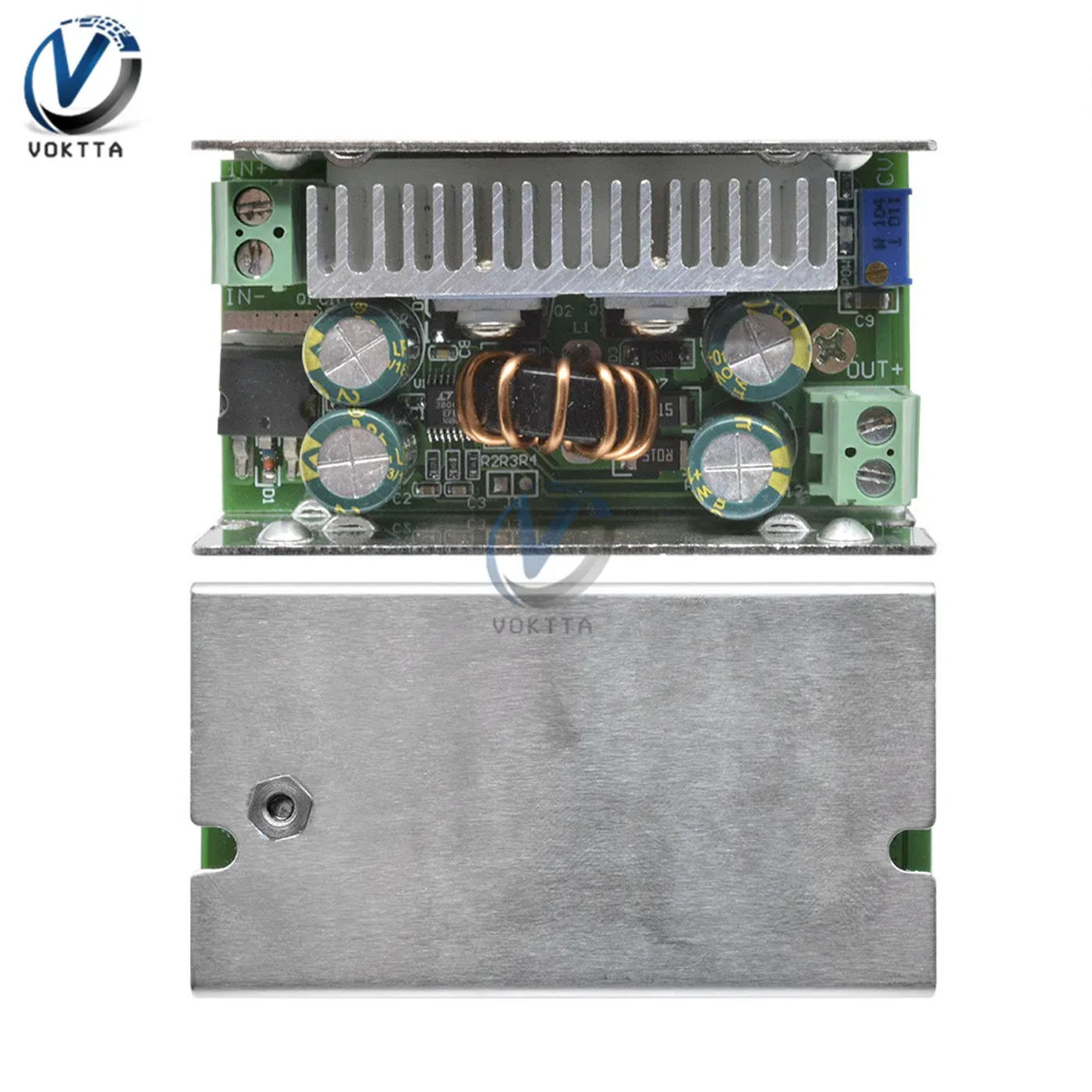

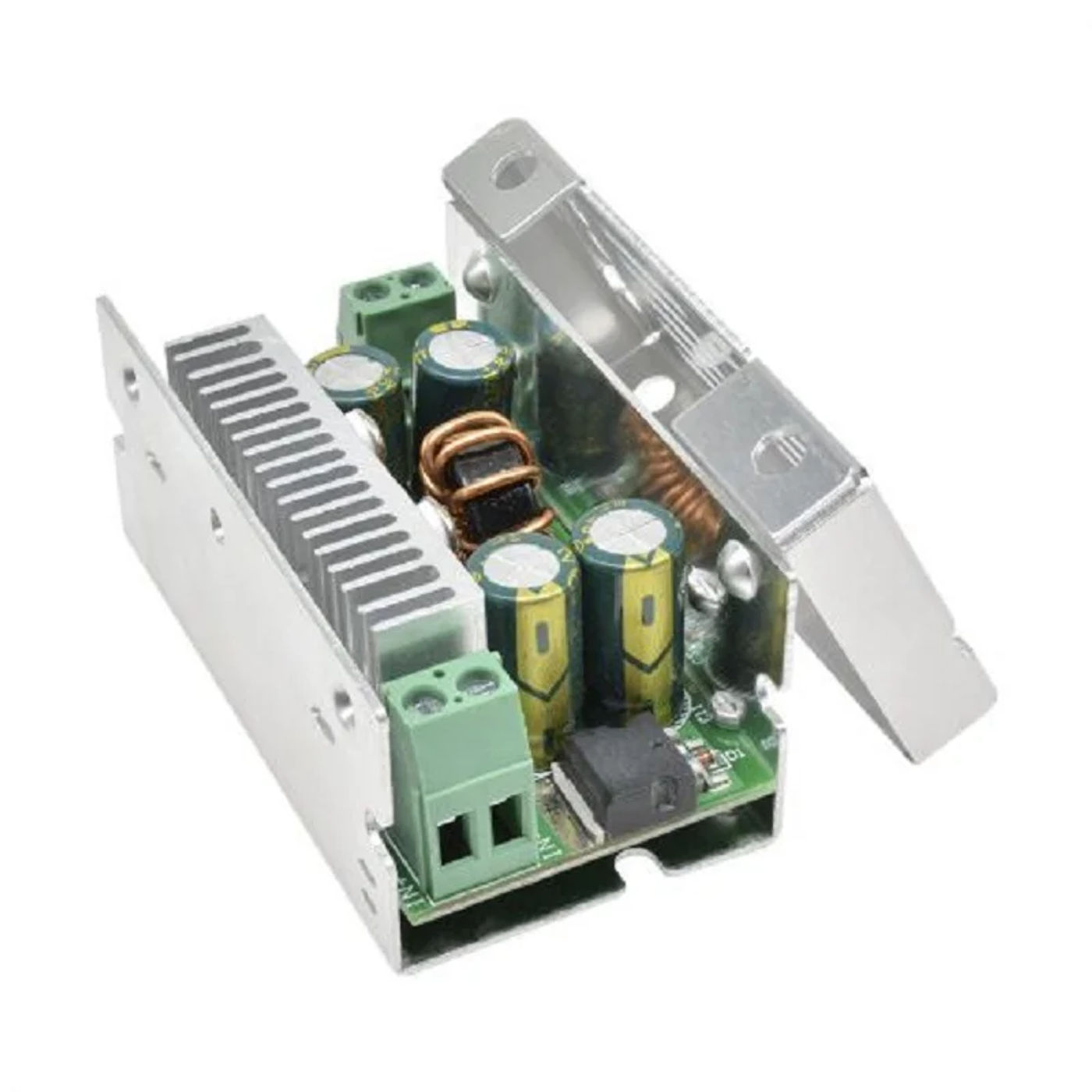

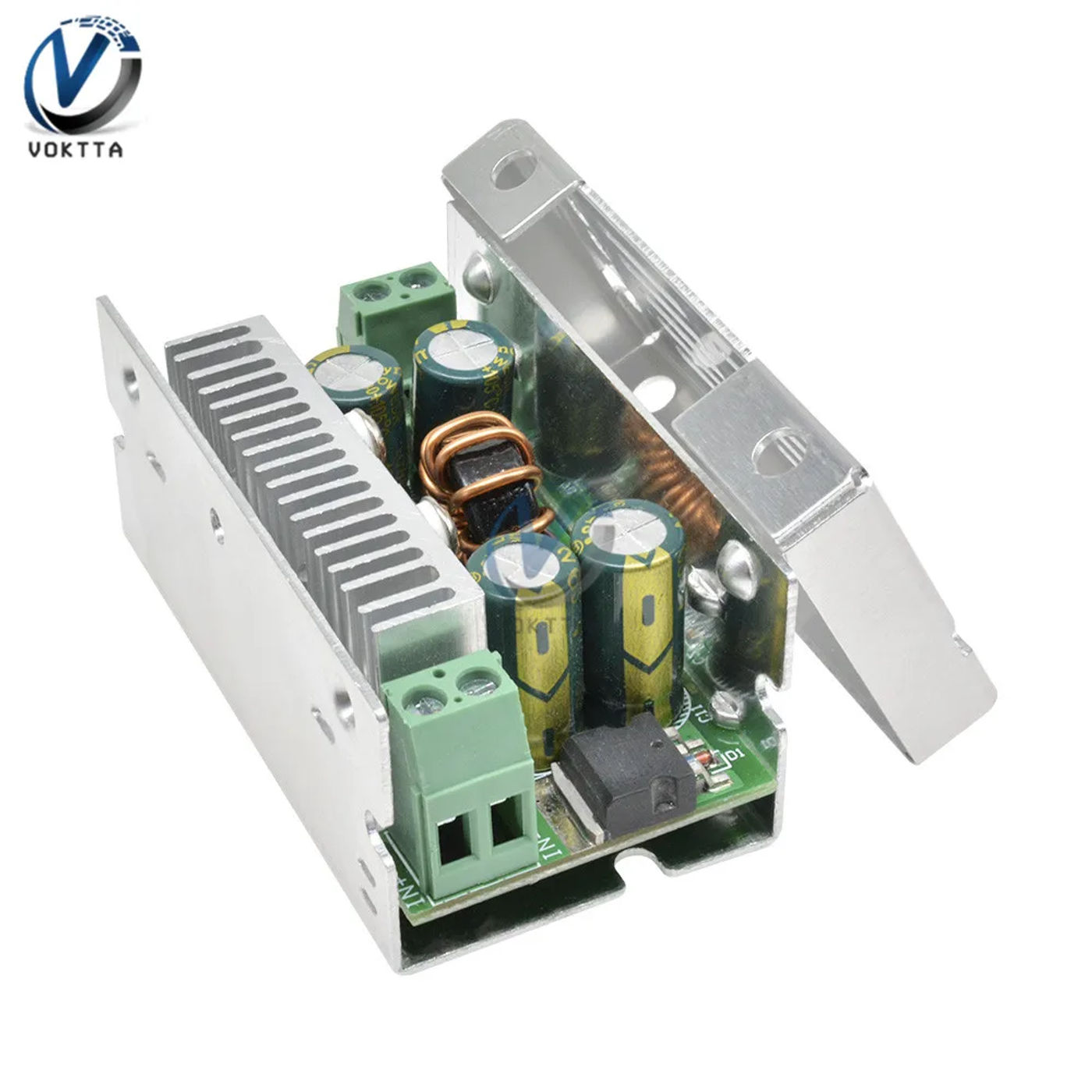

• 200W 15A 8-60V DC-DC Adjustable Step Down Converter Buck Board Power Supply Module Voltage Regulator with Case Description: 200W DC-DC excessive voltage strength synchronous dollar module8-60V large voltage input, 1-36V stepless adjustable outputThe most top output latest 15APerfect ultra-efficient circuit design as much as 94% Low Ripple Parameter: Name: 200W adjustable synchronous greenback moduleType: Non-isolated step-down module (BUCK)Aluminum housing Size: 70 x 38 x 31mm / 27"x15" x12"Input voltage: 8-55V (limit 60V, please leave allowance)Output voltage: 1-36V consistently adjustable (the default output 12V)Output Current: Normal 10A , MAX15A Output power: pure cooling ventilated long-term energy 100WTo enhance heat dissipation as much as 200WSuch as long working hours, please be aware left margin and make the heat riseOperating temperature: -10 to +85 degreesOperating frequency: 180KHzConversion efficiency: up to 94%Overcurrent protection: Yes (the output current exceeds (15A) latest most sample defense only)Reverse polarity protection: (reverse does not burn)Wiring: excessive recent terminals, solderless, IN + enter is positive, IN- is the input negative, OUT + nice output, OUT- output detrimental Package included: 1 * Step Down Power Supply Module Feature: With a large enter voltage differ from 6V to 40V, the dollar converter can precisely modify the output voltage and current performance can reach 96%, and the size is 20A, which is switched over into 24V to 12V / 80A high recent twin MOS tube design input and output use high-frequency and low-resistance electrolytic capacitors with low ripple and secure output high-current 30A screw terminals are easy to twine greenback module has 2 heat sinks for enhanced heat dissipation the enter and output voltages are enormously different, reduce the ability and current:Input voltage: 6V to 40V DC (recommended 10V to 40V)Output voltage: 1 to 36V DCOutput current: 20A (maximum), 15A (recommended)Efficiency: 95% (24V ~ 12V, 20A)Output ripple: ≤50mVWiring method: terminalShort-circuit protection: self-recovery (can not short-circuit for an extended time)Dimensions: 60 × 53 × 27mm / 2 × 2 × 1 "Wiring Diagram:VO +: Output is positiveVO-: damaging output+ IN: input positive-IN: input a detrimental numberCV: Output voltage adjustmentCC: Output current adjustmentEN: enable, flip off the output at low level; pause, valid at high voltage levelWhen the enter and output are grounded, the no-load CV outputs constant voltage and CC outputs constant currentPackage Included:1 × 300W 20A Constant Current Adjustable Buck Converter Buck Voltage Module

•
•
•
•
•
