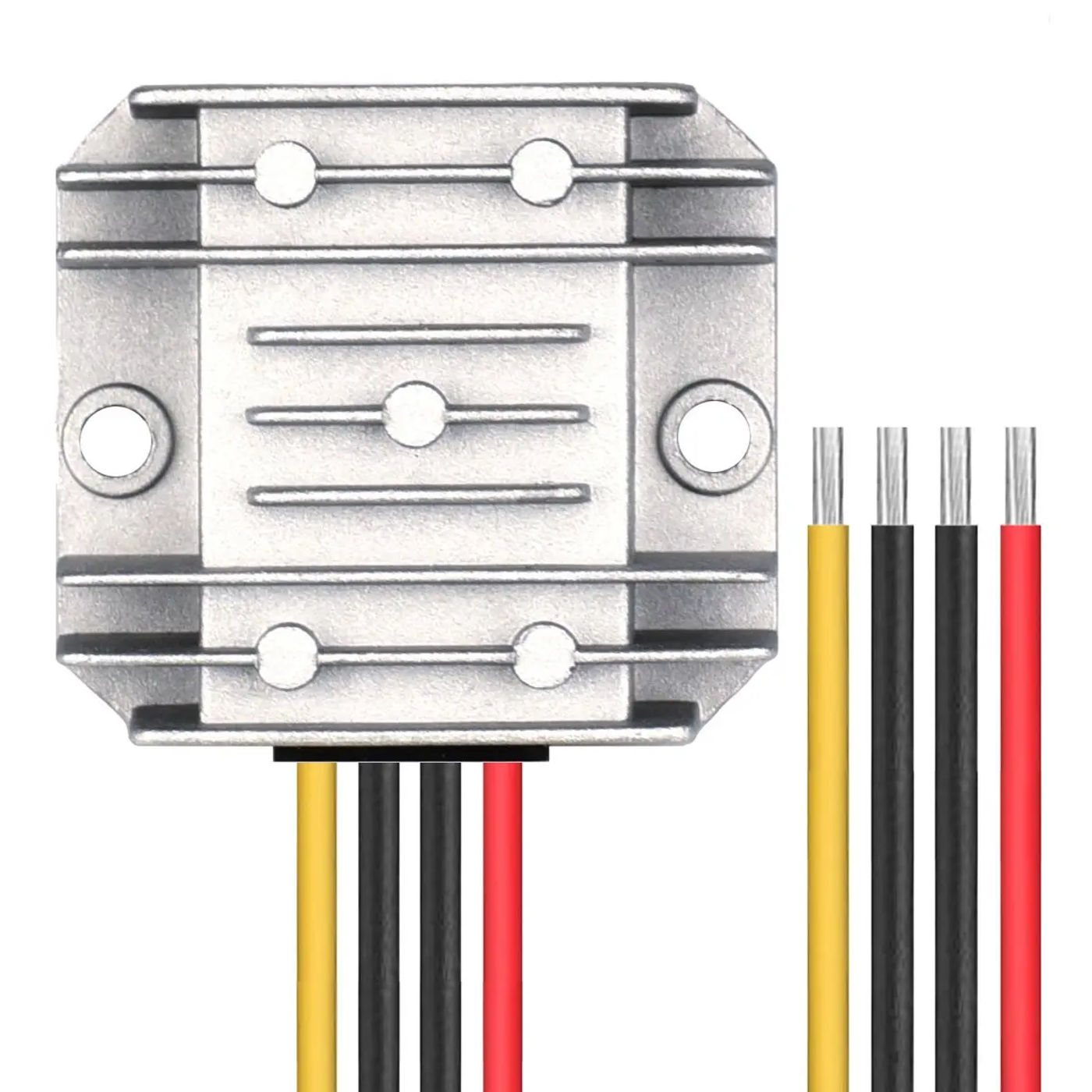

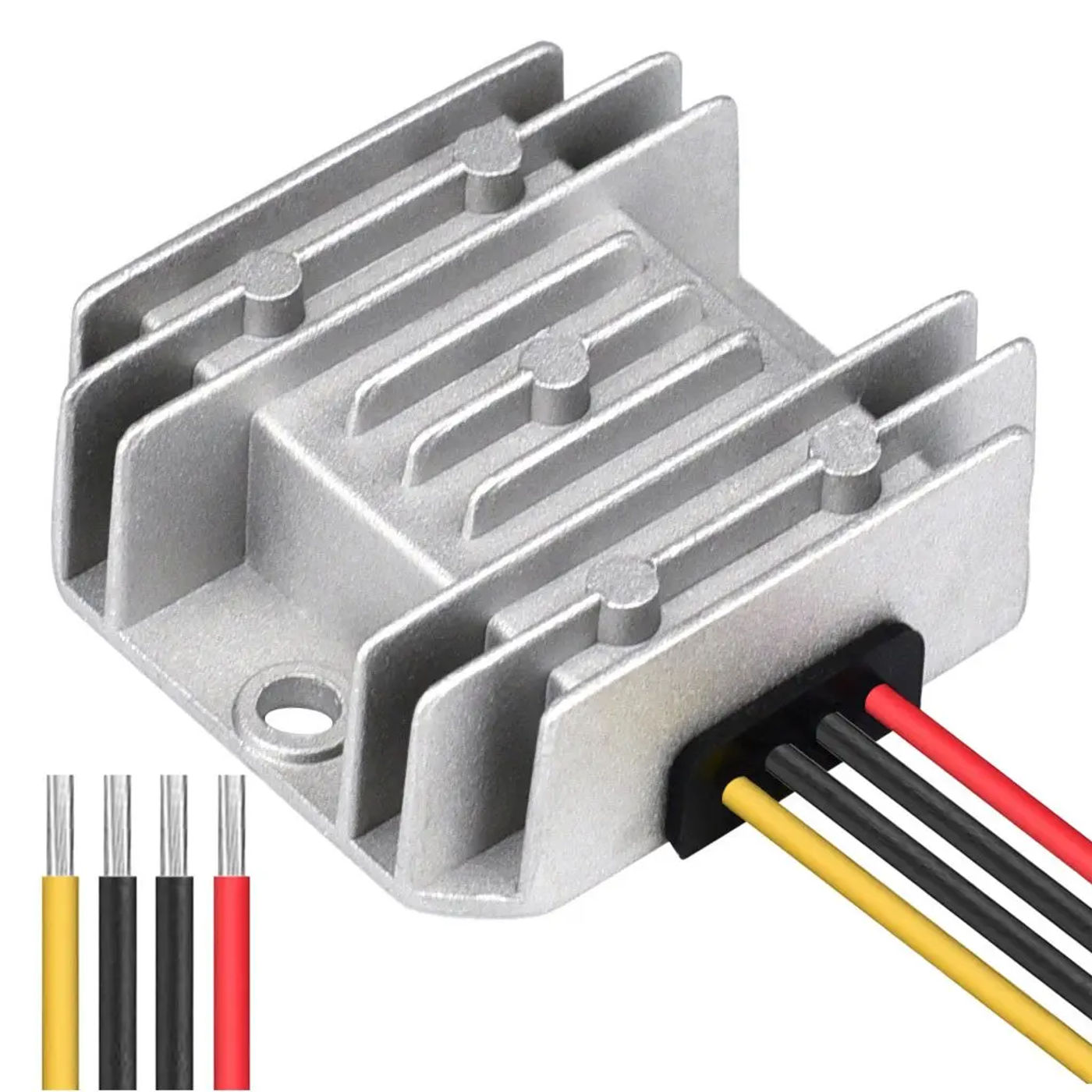

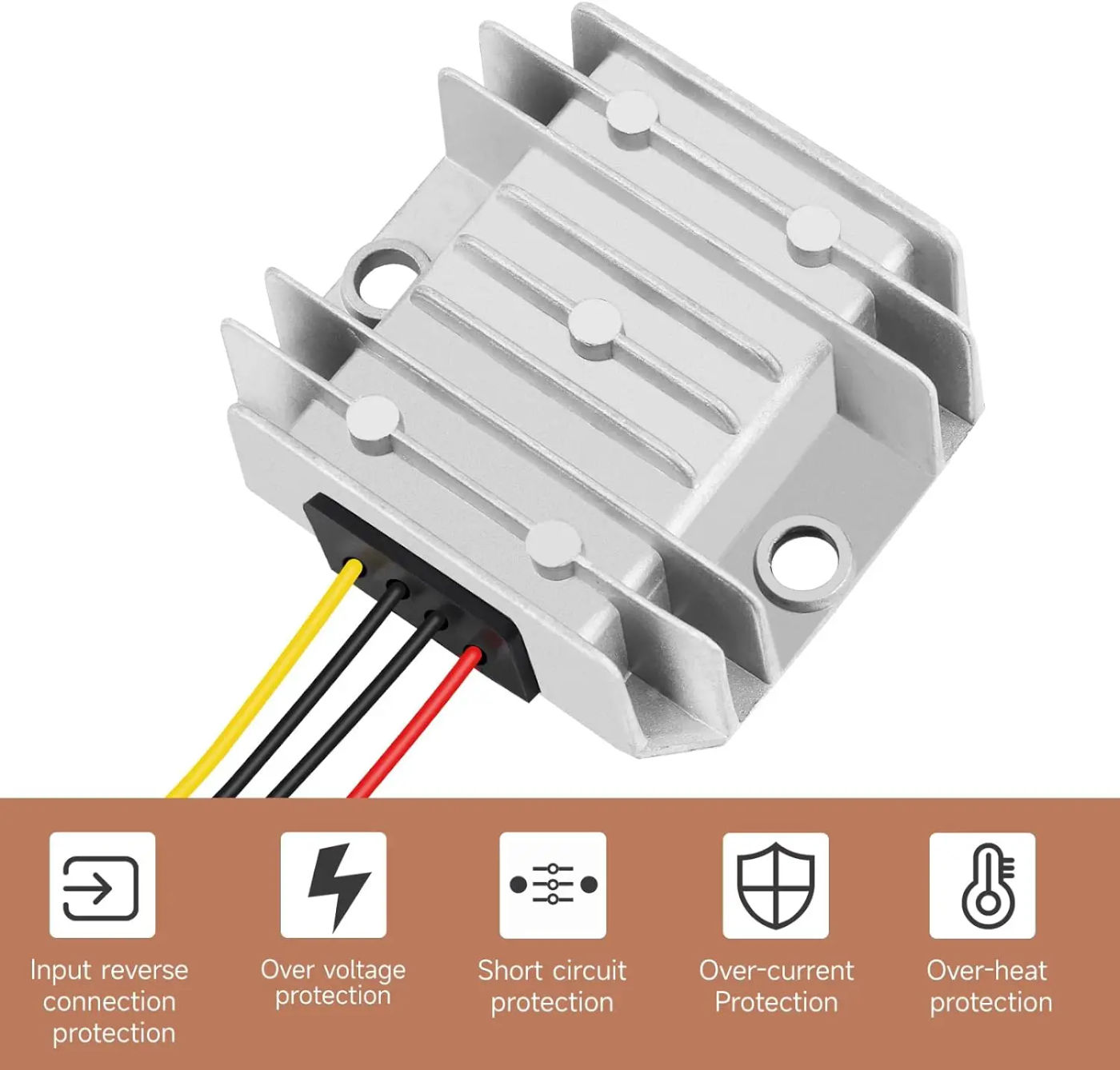

• Product Name DC DC Converter24V to 12V 5A10A Brand Fulree Model quantity F35J12V5A4L F35J12V10A4L Module Properties non-isolated dollar module Rectification synchronous rectification Input (cable length: 13-14cm) Input Voltage DC24V Input Voltage Range DC18-35 V Output(cable length:13-14 cm) Output Voltage DC12 V Output Current 5A/60W 10/120W Conversion Efficiency 90% Voltage legislation ± 1% Load law ± 2% Ripple (Full load test) <150mV No-load current <100mA Working Temperature -40 ~ +85 ℃ Waterproof IP68 Protections Over-current, Over-voltage, Overheat, Output Short circuit Product Size 64*58*22 mm Product Weight 100g Cooling Way Free air convection

•
•
•
•
•
