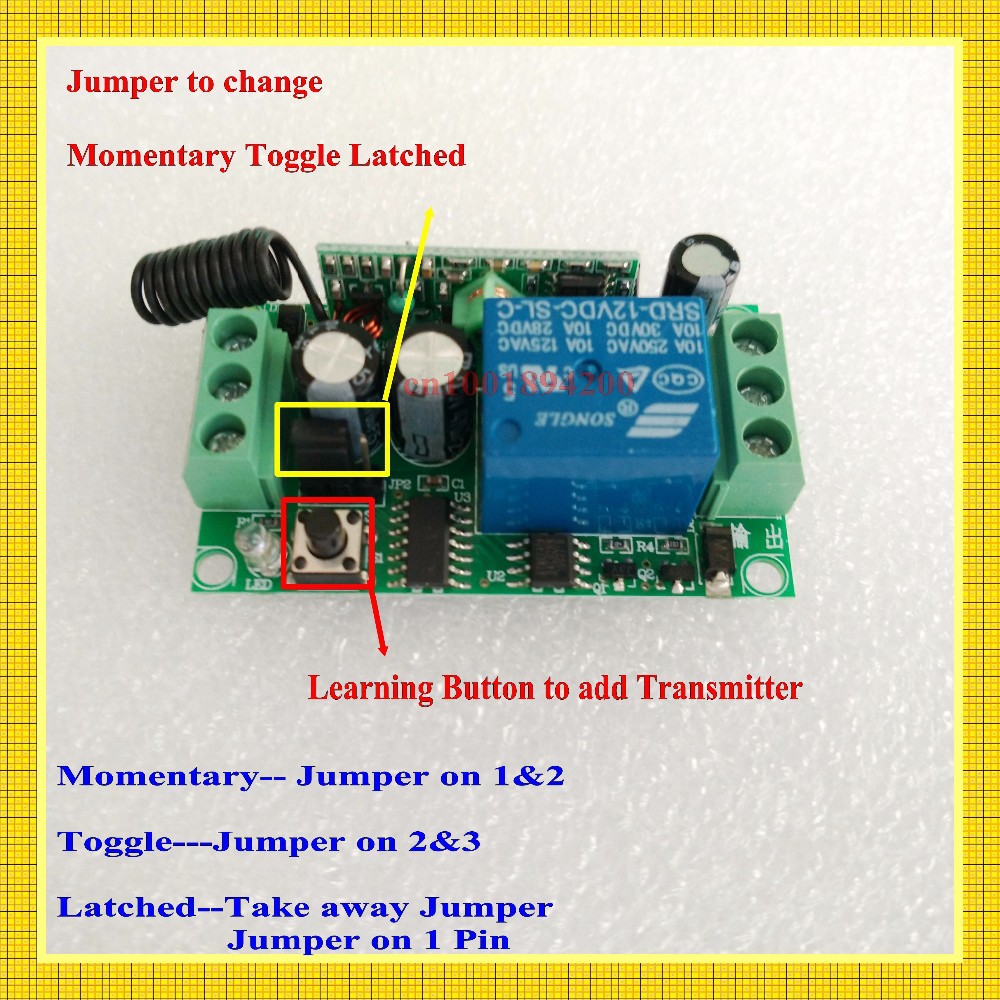

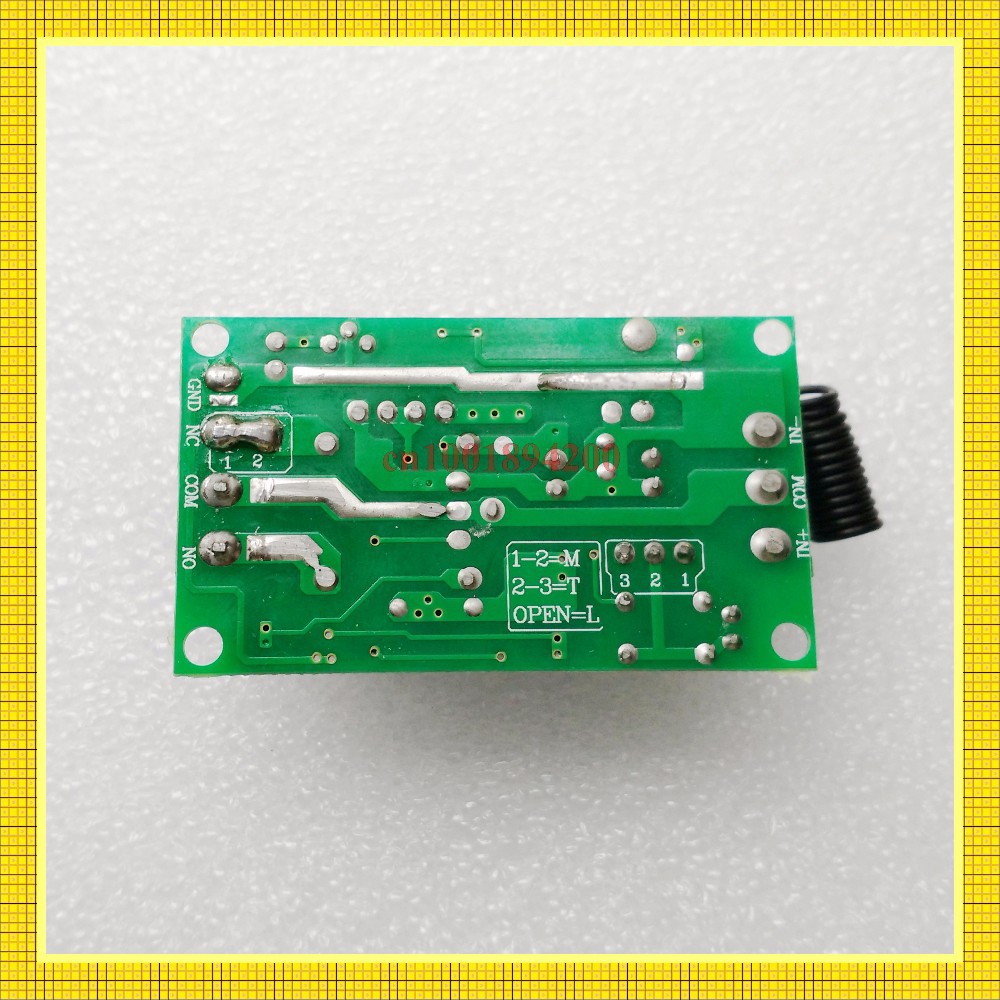

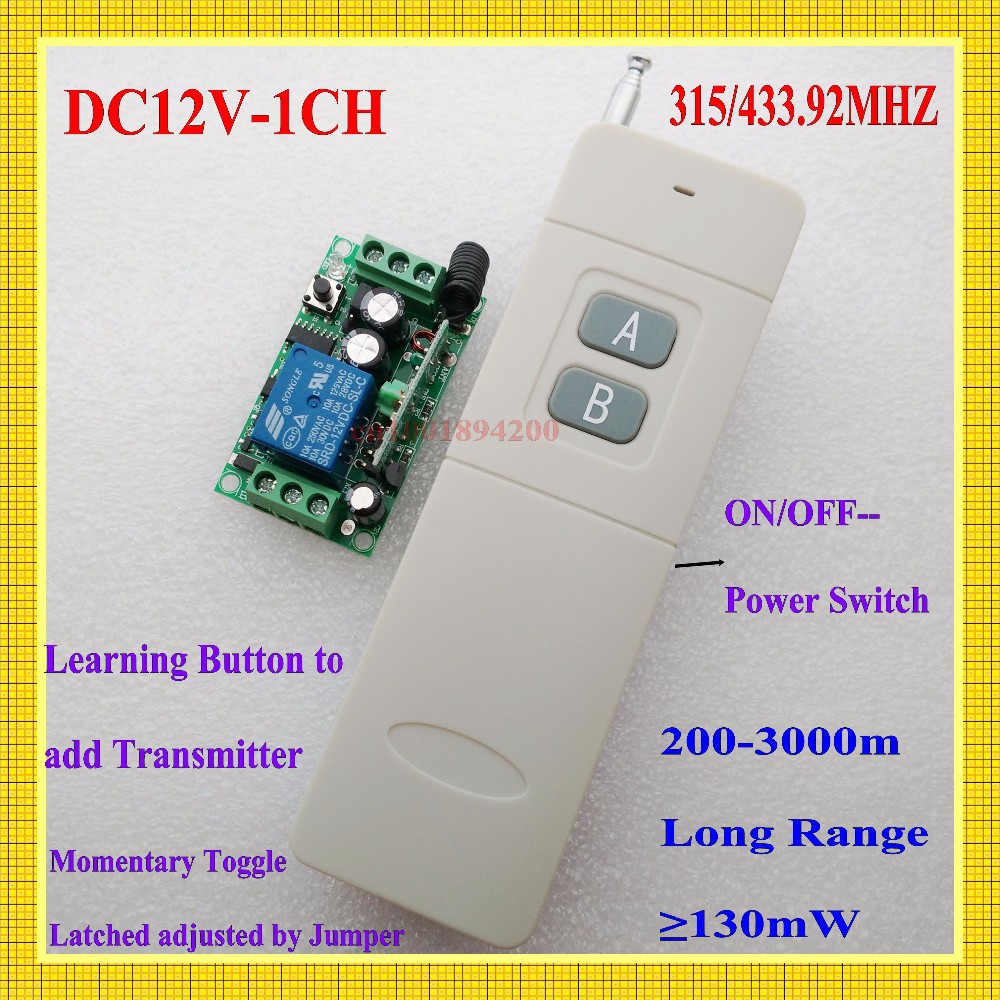

• DC12V 1CH Receiver Board 1 Voltage: DC12V extra or lower than 10%2:Standby≤10mA,Working ≤128mA3 Temperature: -10&;C—+60&;C4 Frequency: 315MHz/433MHZ Optional5 Sensitivity: -110dBm6 State: Output 0V Switching Value use Relay NO COM NC7 Load:10A Relay, Resistive load≤8A,Inductive load≤3A8 Board Size:55×31×16mm9 Size:73×36×24mm Learning Code: Add transmitter by the Learning Button at the receiver Output State: It is adjusted through the Jumper at the Receiver Board, (before you alter it need flip OFF the flexibility Until you've replaced it, then flip ON the flexibility again, or the State usually are not changed) Momentary----------Jumper on “1&2”Toggle----------------Jumper “2&3”Latched--------------Take away the Jumper or put the Jumper on 1 Pin Momentary------------Press the Transmitter button and keep, the receiver relay is ON, launch button, the receiver relay is OFF, Toggle---------------Press transmitter button for 1 time, the receiver relay is ON, press button again, the receiver relay is OFF, Latched------------------Press transmitter button A, the receiver relay A is ON, Press Button B, the Receiver is OFF Learning Method Input power for the Receiver the Learning Button till the Led indicator ON Then press transmitter, the Led indicator flash fast, it mean learning successfully Clearing Code Keeping press the Learning Button on the receiver till the LED indicator ON and flash fast, it mean the code have been cleared successfully Transmitting Distance: 200-3000m Transmitter Power : more than 130mW 220V 1Channel Radio Wireless Switch for Light Lamp LED SMD ON OFF Wireless Receiver&Transmitter 10A Momenrary Toggle Latched US$ 17/set 220V 1CH Wireless Switch for Light Lamp LED SMD ON OFF Wireless Remote Control Receiver&Transmitter10A Momenrary Toggle Latched US$ 18/set 220V 1Channel Radio Wireless Switch for Light Lamp LED SMD ON OFF Wireless Receiver&Transmitter 10A Momenrary Toggle Latched US$ 18/set RF 220V 30A 3000WWireless Remote Control Switch System315/433 light/Lamp LED water pump electric mechanical device ON OF Latched US$ 15/set 3000M Long Range Remote Control Switch System 220V RF 4 Receivers+1Transmitter Through Wall Remote Control For LED Light Lamp US$ 32/piece 220V Wireless Switch Remote Control System 30A 3000W 315/433 light/Lamp LED water pump electrical machine ON OF Momentary US$ 13/set AC220V 30A 3000W RF Wireless Remote Control Switch Transmitter&Receiver System For Light/LED/Lamp Water Pump electrical mechanical device US$ 15/set wireless swap remote control swap method &controller 3000M 220V 1CH(Channel) 4Receiver&1Transmitter 1000W Toggle /Momentary US$ 35/set DC12V RF Wireless Switch Wireless handheld remote control system1transmitter+6receiver10A 1CH Toggle Momentary Latched Learning Code US$ 40/set 12V Mini Size Relay Receiver +Transmitter Remote Control Switch System Long Range High Power Toggle Momentary Learning Code US$ 50/piece DC12V 1CH Wireless Switch Mini RF Receiver &Transmitter Toggle Jog Lactched Adjusted Add controller Freely For SMD LED Access US$ 45/set 12V15CH RF wireless handheld remote control change system 15receivers&1 transmitter independently Toggle/Momentary/Latched Adjustable US$ 72/set DC12V Door Access/Entery Guard Wireless Control Switch System Momentary Time Delay 3-12S Adjustable Door Controller System US$ 42/set Free transport RF Wireless remote control components 1 (controller)transmitter +4 receiver(switch)12V 10A 315MHZ-433MHZ US$ 28/set DC12V 1CH Keyless Entery Door Lock Remote Control System 1Receiver&1Transmitter/ Toggle /Momentary /Latched Factory Sell US$ 10/set RF Wireless Remote Control Switch System 12V 1CH AB Receiver&Transmitter10A output state is adjusted Toggle /momentary/Latched US$ 12/set

•
•
•
•
•
