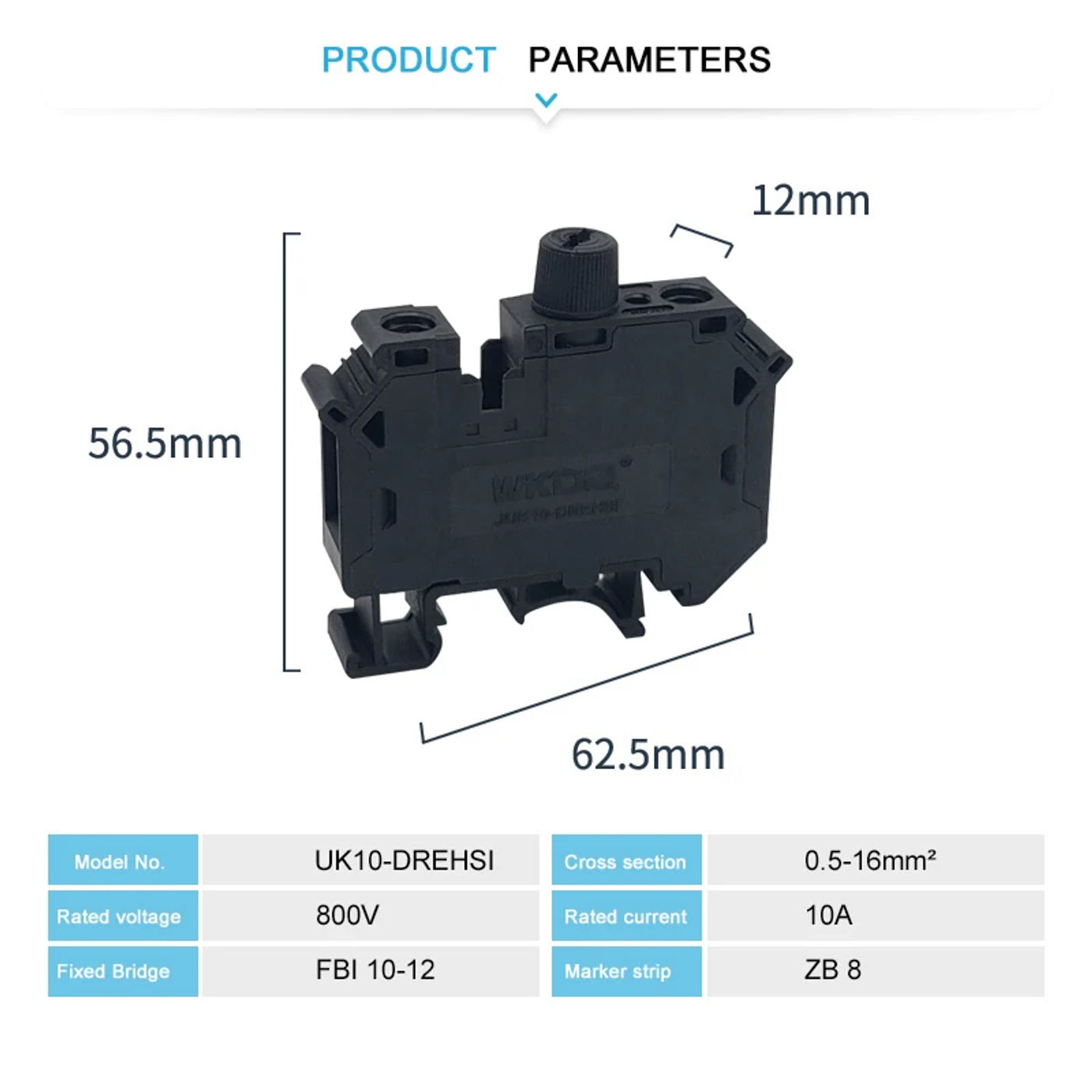

• DESCRIPTION Accessories (· Click the pictures) Fixed Bridge FBI 10-12 Marker Strip ZB eight TECHNICAL PARAMETERS Type No Details Accessories UK 10-DREHSI 800V/10A 0²/0² L62/H56/W12mm Fixed bridge: FBI 10-12 Marker strip: ZB 8 Fuse: 1A 2A 4A 6A 10A, and so on Model Number UK 5-HESI, Fuse terminal block Length/Height/Wide (mm) L62/H56/W12 Connection components Screw connection Material Nylon PA66 Rated Voltage/Current 800V/10A Cross section, solid/soft Cable 0²/0² Conductor Size 24-6 AWG Mounting Type NS 35/7 Standard IEC 60947-7-1 LOGO Customized brand are supported Certification CE/RoHS/CQC/ISO 9001

•
•
•
•
•
