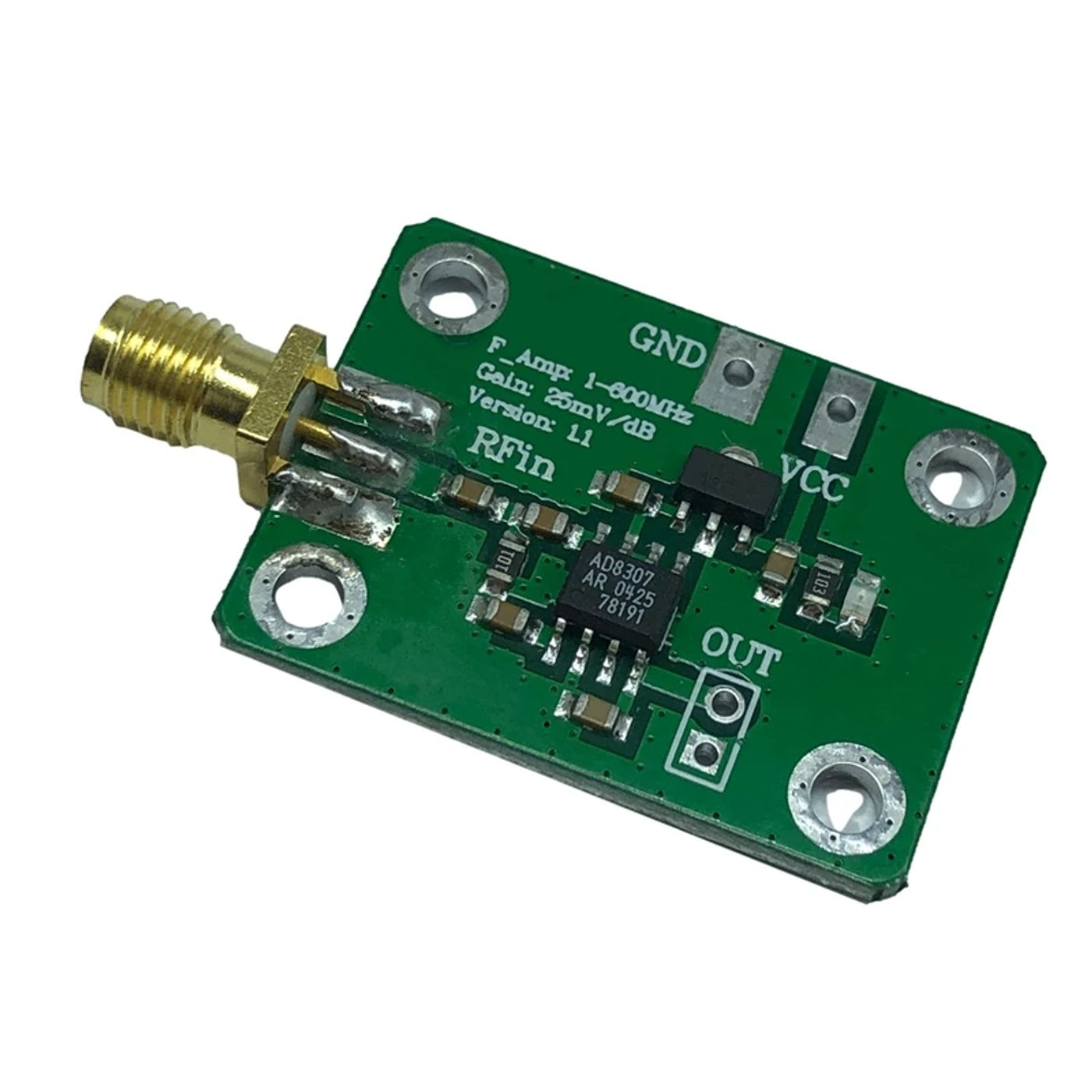

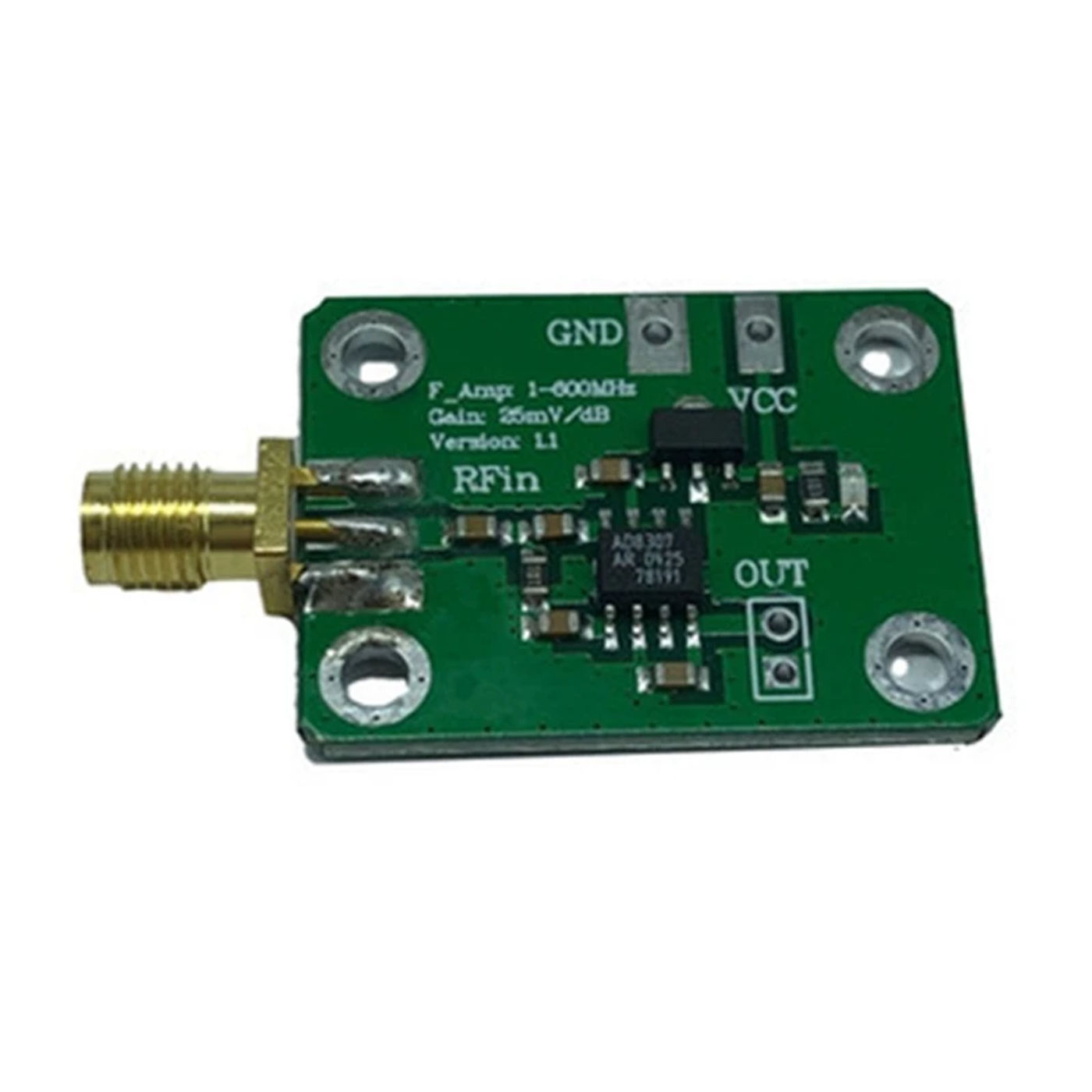

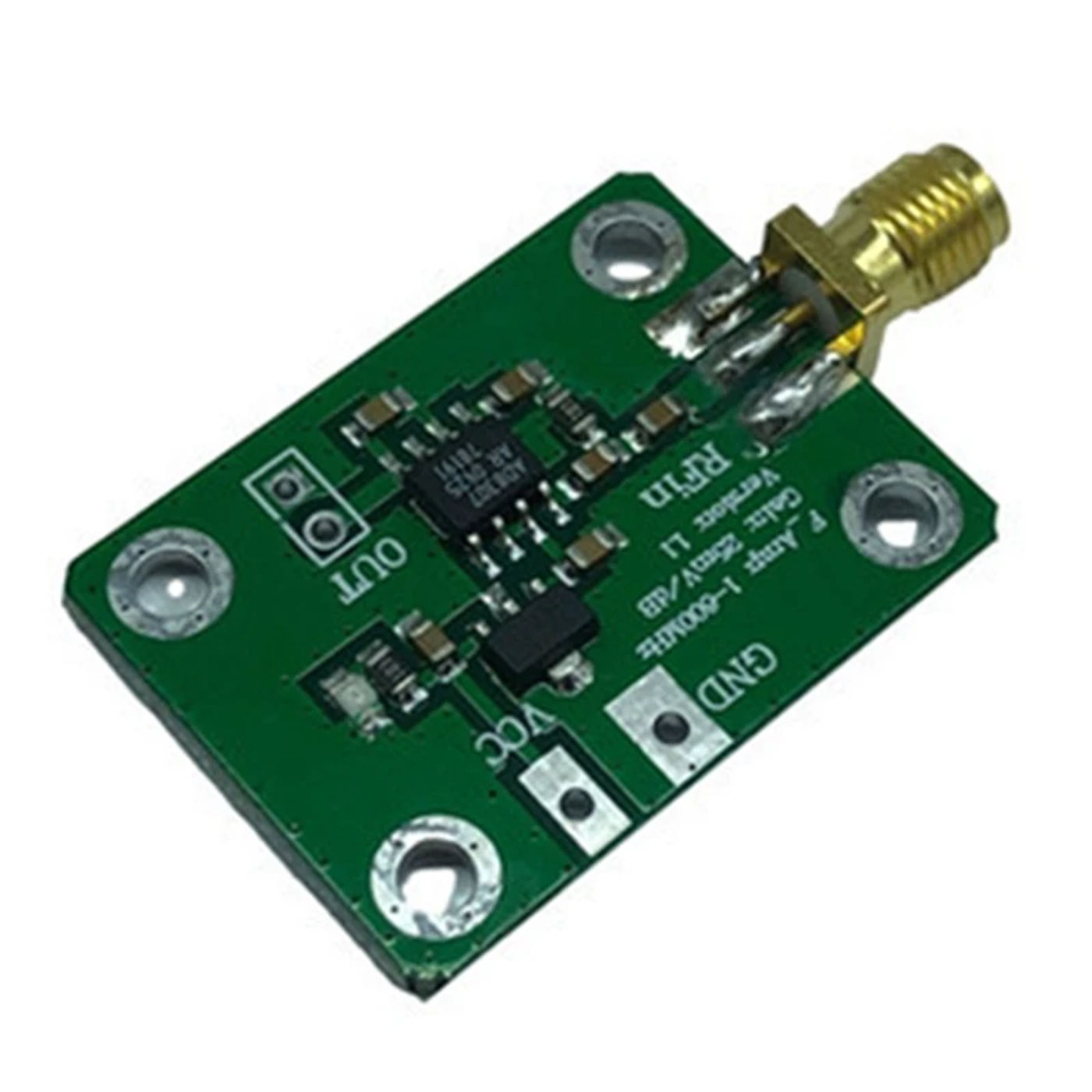

• High steadiness over the whole temperature range. Complete differential DC-coupled signal path. It is used for RF signal energy detection, the detection frequency fluctuate is 1MHZ - 600MHZ, it'll discover a RF sign with an influence of -74dBm to 18dBm, and convert this type of RF sign appropriate into a output. The greater the amplitude or energy of the RF signal, the higher the output voltage, which is proportional to the of the amplitude of the enter signal, thus expanding the dynamic range of the detected signal, which reaches 92dB. It could be widely used in RF sign detection, signal strength measurement, environmental subject energy detection, and can even be used as a factor of automatic gain management and automated point control. Working frequency: 1MHZ---600MHZ Measurement power: -74dBm to +18dBm Output voltage: 0---2 Detection slope: 25mV/dBm (typ.) Input impedance: 50 ohms Supply voltage: 6-15V Type: RF Power Meter Model: AD8307 color:Green Material:Metal Package Contents: 1 x RF Power Meter Only the above package content, varied products will not be included. Note: Light and varied reveals could cause the colour of the object within the photo a bit various from the real thing. The length allowed error is +/- 1-3cm.

•
•
•
•
•
