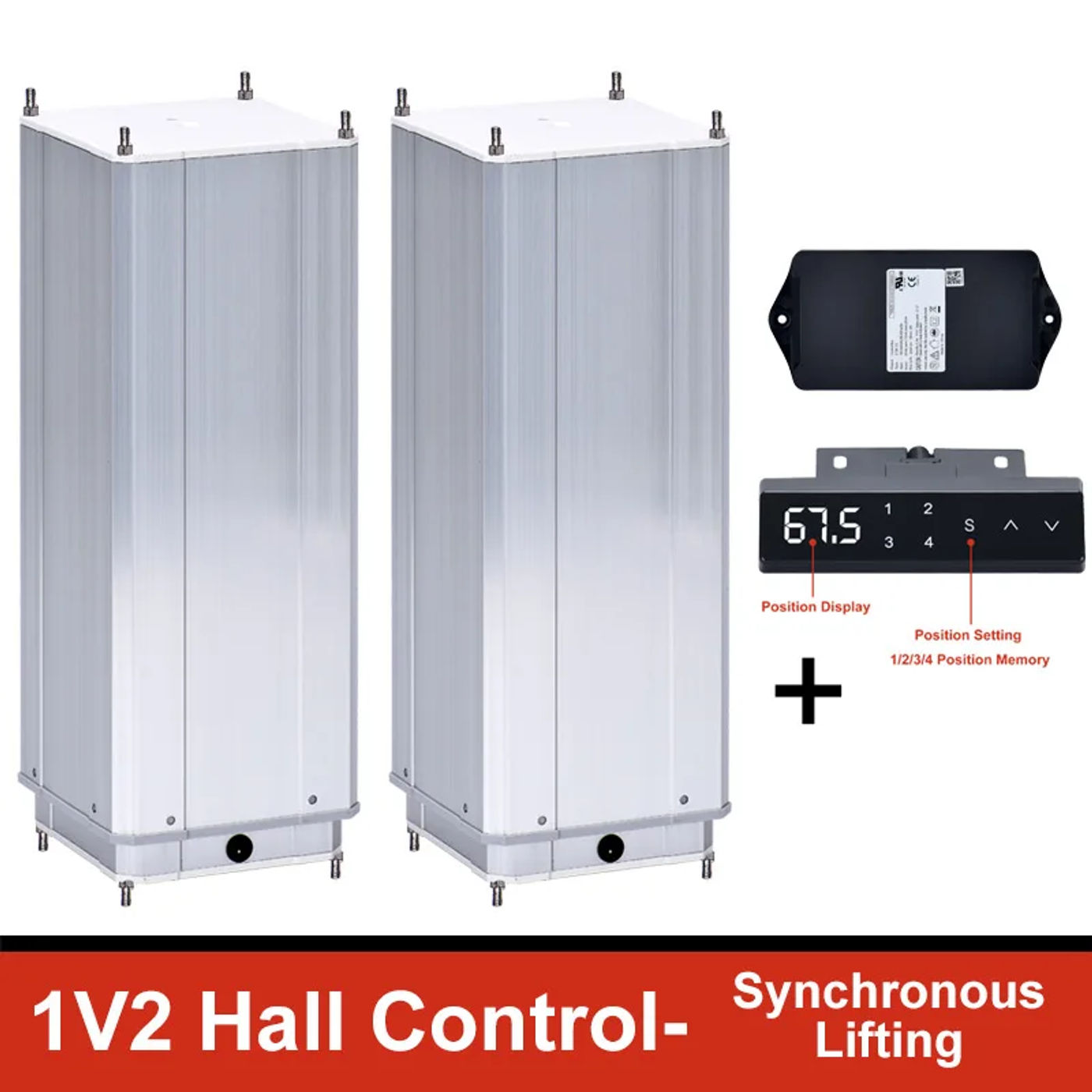

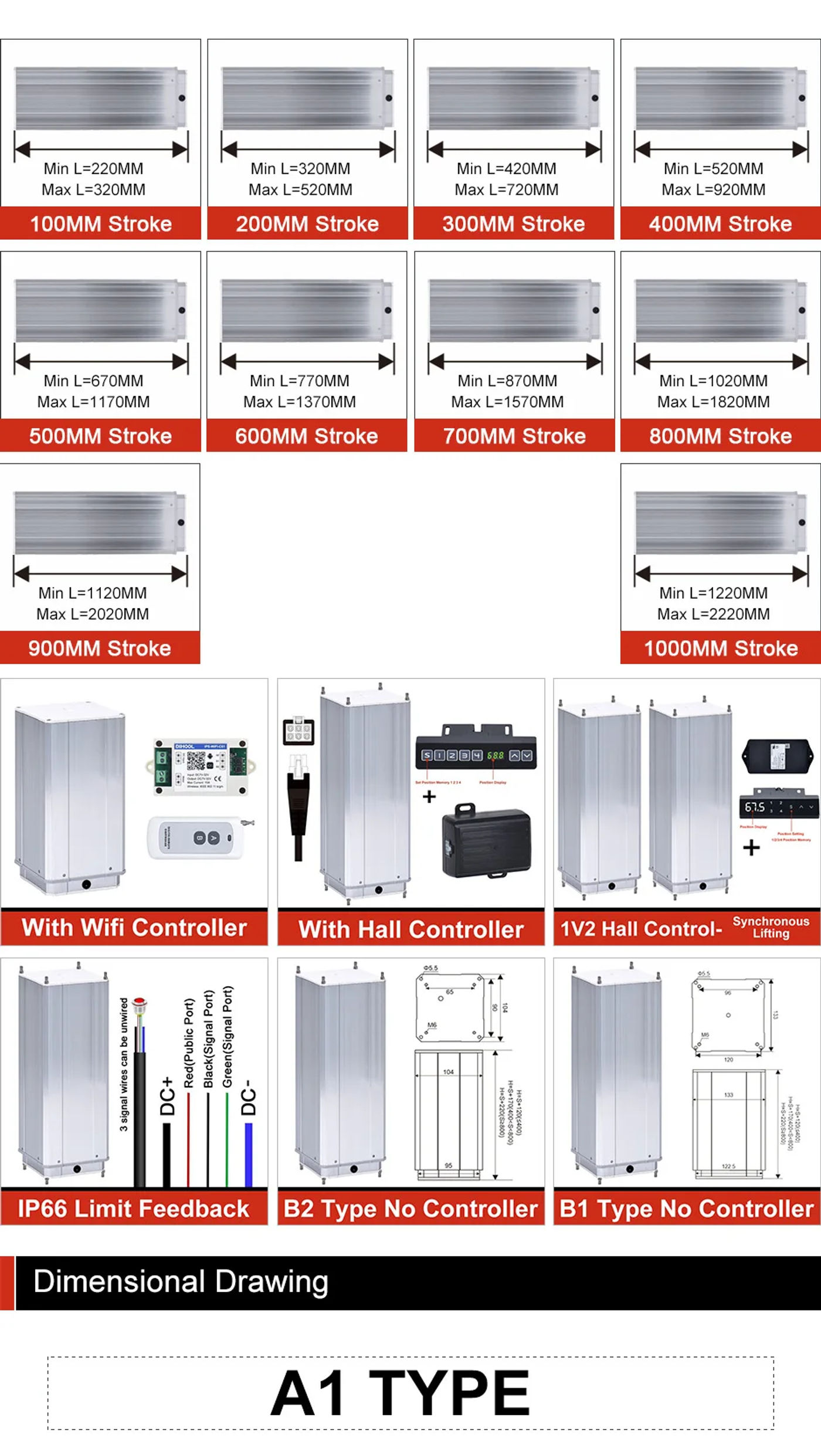

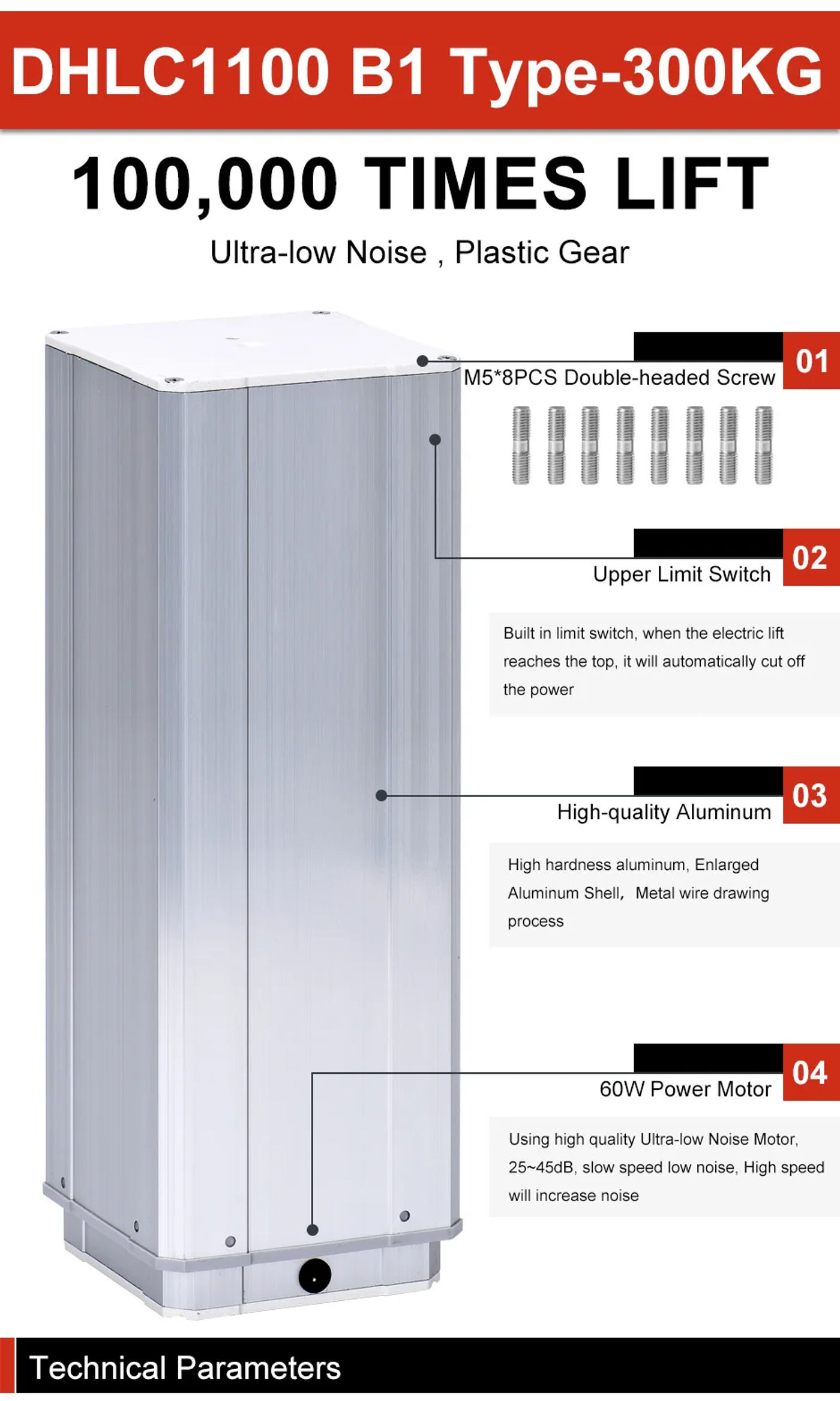

• ----- Product Description DHLC1100 is a 2-section aluminum shell electric lifting column with a maximum load of 3000N and a maximum speed of 50MM/S It can be treated with IP66 water-resistant and dustproof The product has low power, low noise and powerful load capability The merchandise are divided into two types: extensive aluminum column and medium aluminum column The width of the big aluminum column is 133/123MM, the panel size is 200/290MM, the medium aluminum column width is 104/95MM, the panel size is 152/245MM; the panel thickness is 5MM, The higher and decrease panels are manufactured from iron supplies and handled with white spray paint ----- Technical Parameters Input Voltage: DC24V / DC12V Maximum Load: 3000N Maximum Current: DC24V 2 / DC12V 5A Motor Power: 60W Maximum Speed: 50MMS Protection Level: IP43 / IP66 Working environment temperature: -25℃ to 65℃ Color: Silver Limit Switch: Built-in; Screw Type: T Type Work Cycle: 10% Work System, Maximum 1 Hour Continue Working Product Certification: CE Mechanical Life: More than 100,000 instances Voltage DC 24V Speed(MM/S) five 10 15 20 28 36 50 Load Pull Capacity(N) 3000 1500 1200 800 500 three hundred two hundred Load Push Capacity(N) 3000 1500 1200 800 500 three hundred 2 hundred Self-locking Capacity(N) 3000 1500 1200 800 six hundred 400 three hundred Voltage DC 12V Speed(MM/S) 5 10 18 25 36 Load Pull Capacity(N) 2400 1200 500 300 two hundred Load Push Capacity(N) 2400 1200 500 300 200 Self-locking Capacity(N) 2400 1200 700 500 300

•
•
•
•
•
