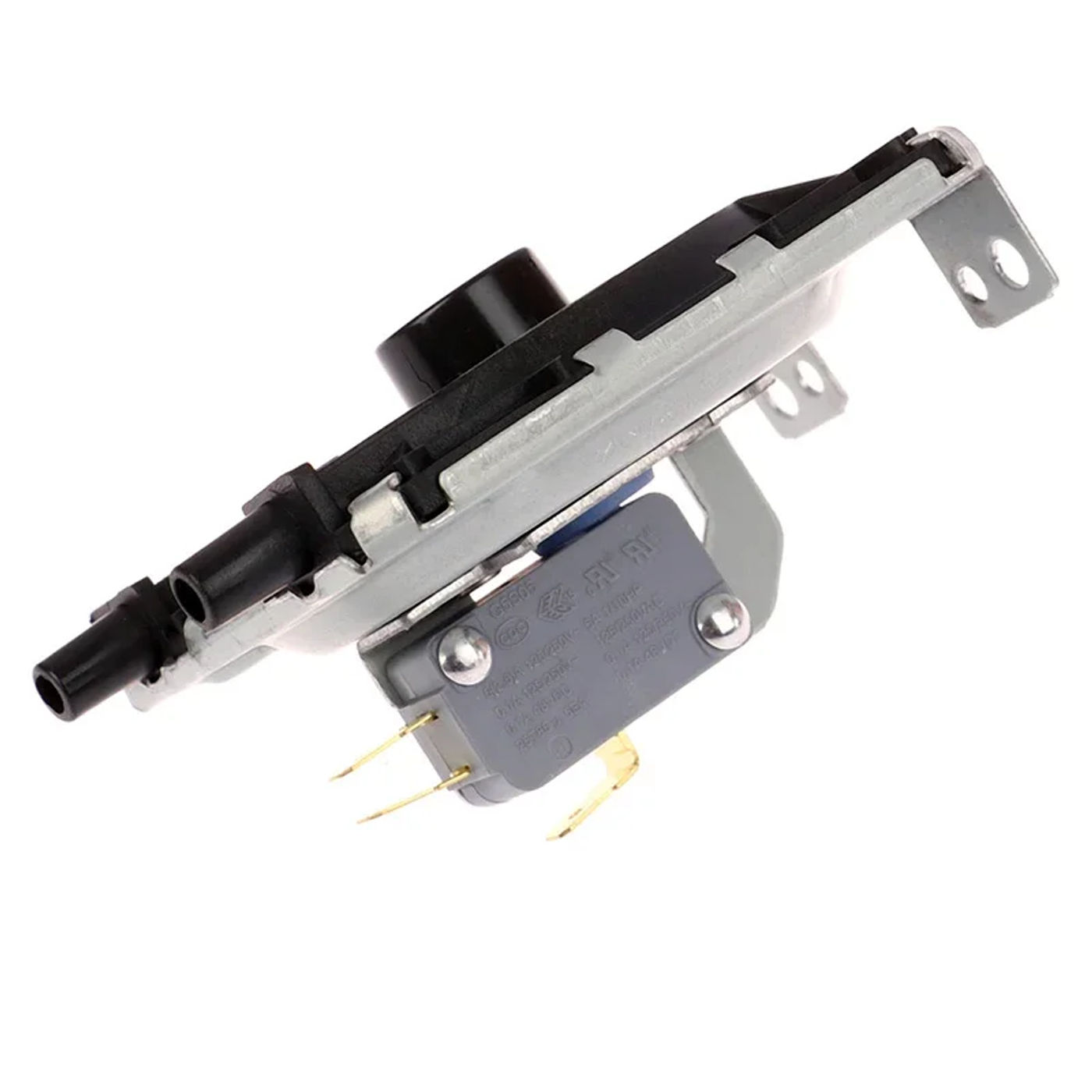

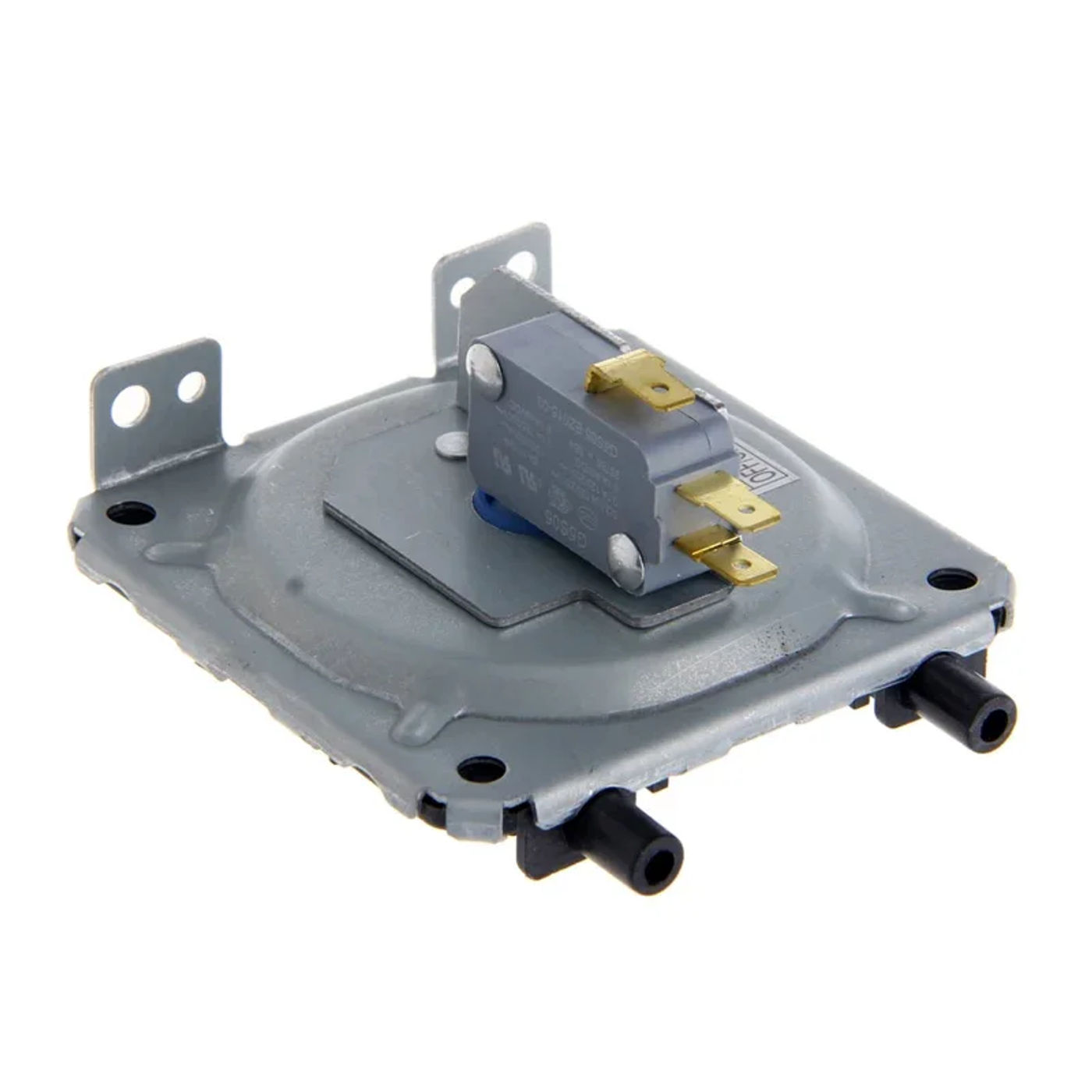

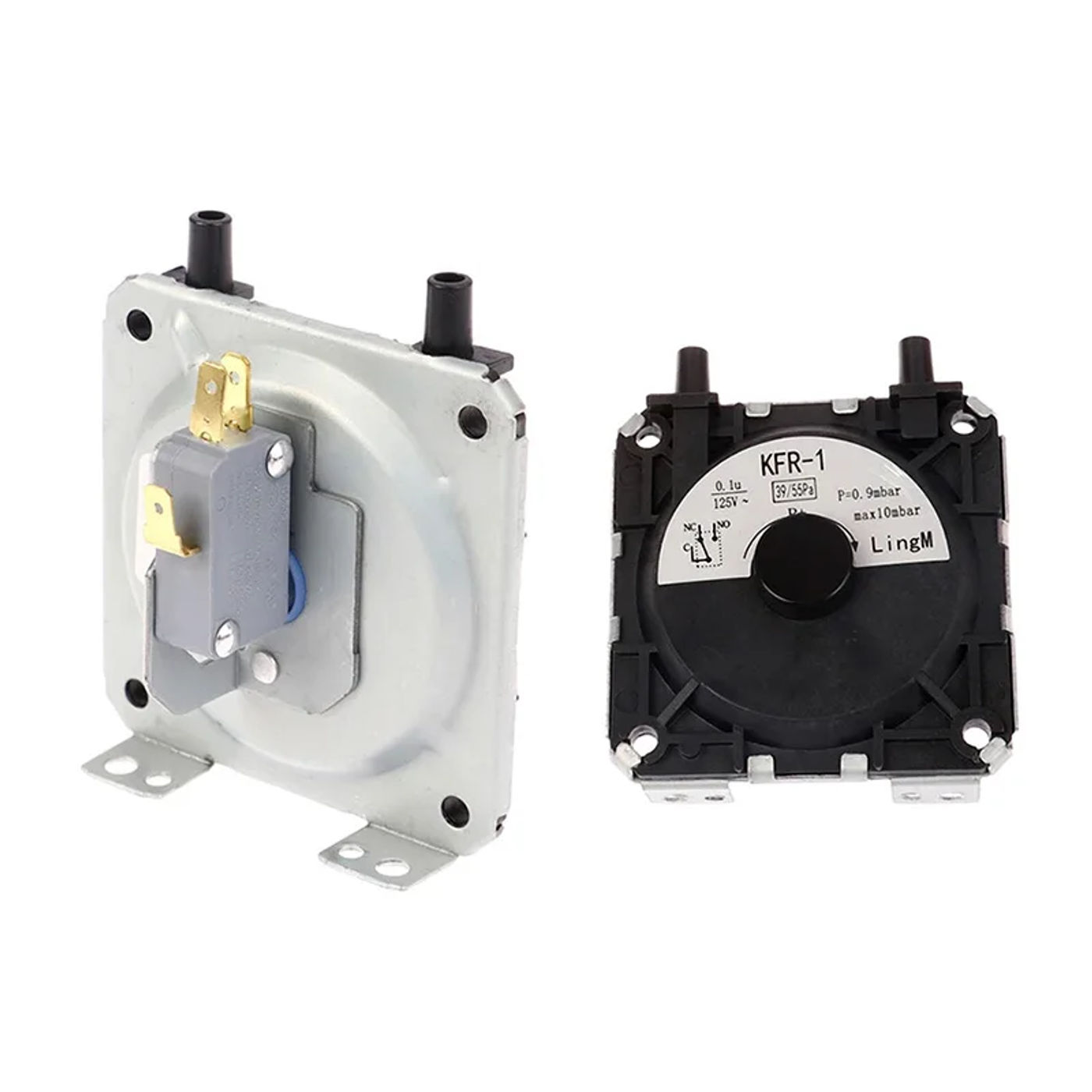

• Specifications:Material: Plastic+MetalColor: BlackAir strain switch (differential stress switch) parametersTemperature range: -40℃~+85℃Use of humidity range: ≤95%Switch load: 0/125V AC（30VDC）Work pressure value: <600PaWithstand the maximum pressure: 2000PaLife: 200,0000 timesAction parameters: in keeping with actual product adjustment (Adjustable)Contact resistance: ≤50mΩInsulation resistance:> 100MΩ DC500V (between the terminal and the metal shell)Pressure: AC 2000V 50Hz 60S, leakage latest <0 mA (between the terminals and the steel shell)Size: 7*8cm Package Contents:1x Air Pressure Switch Note:1. The real coloration of the item could also be slightly diverse from the pictures shown on online page caused by many factors corresponding to brightness of your display screen and light-weight brightness. Please allow slight handbook dimension deviation for the data.

•
•
•
•
•
