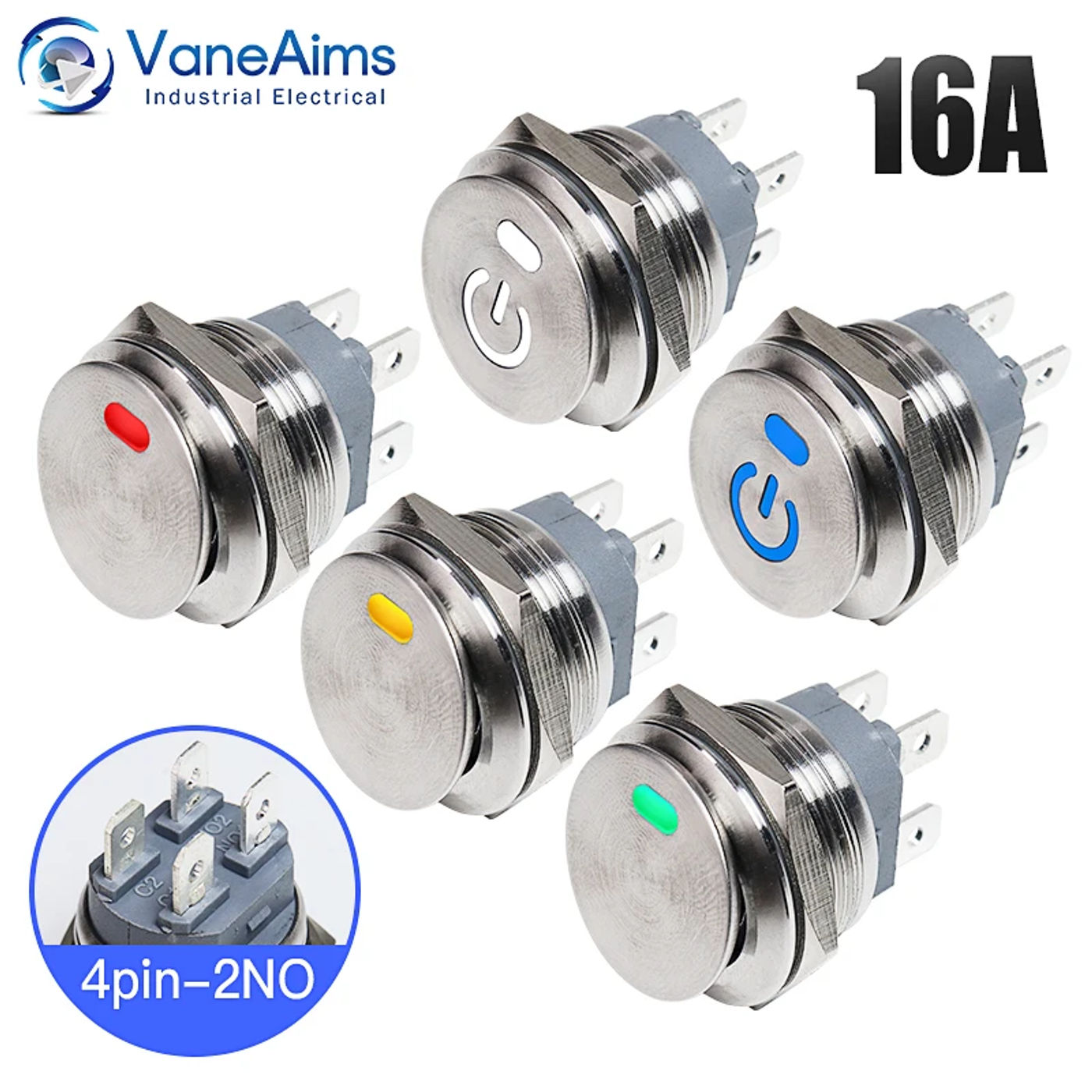

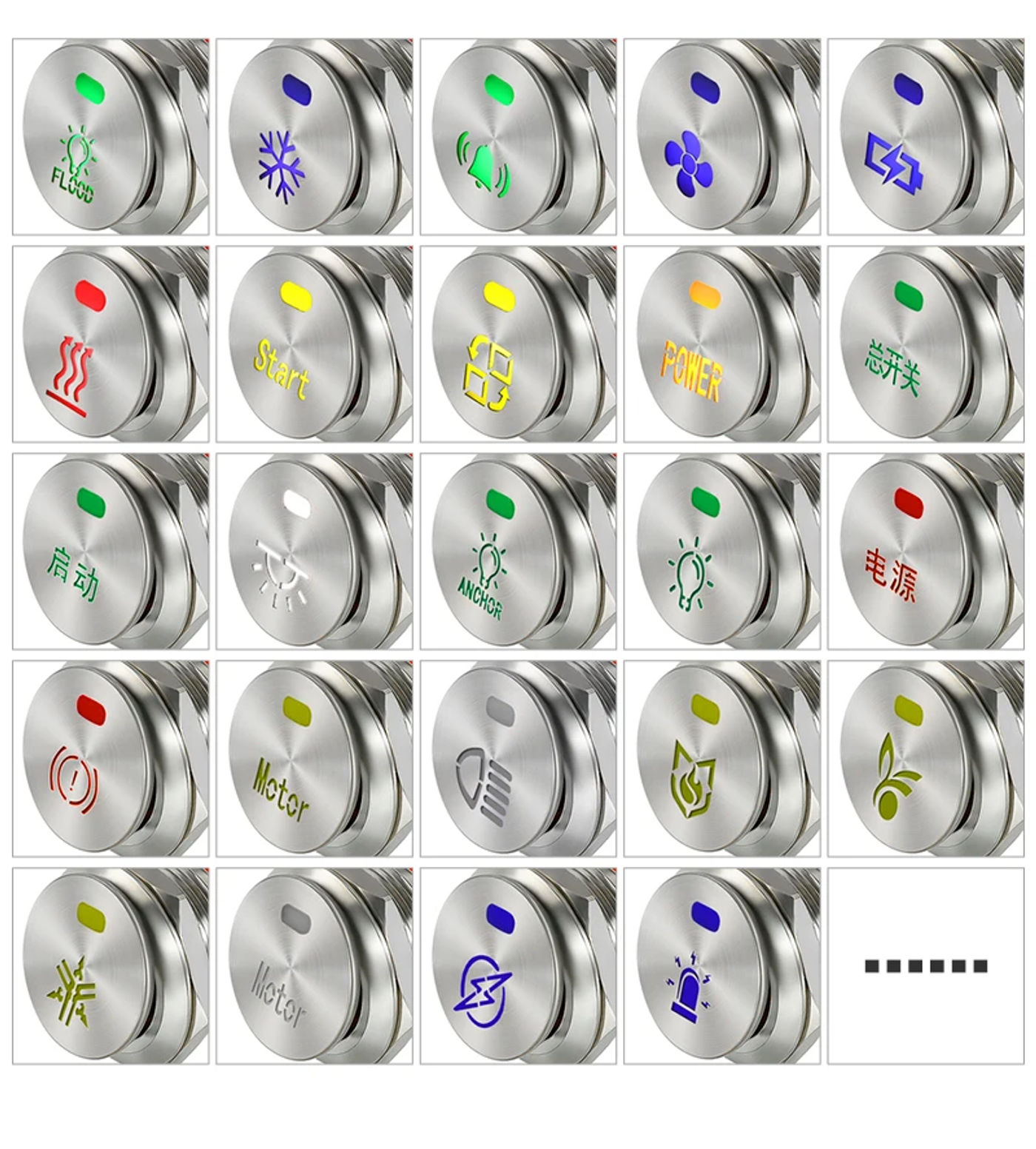

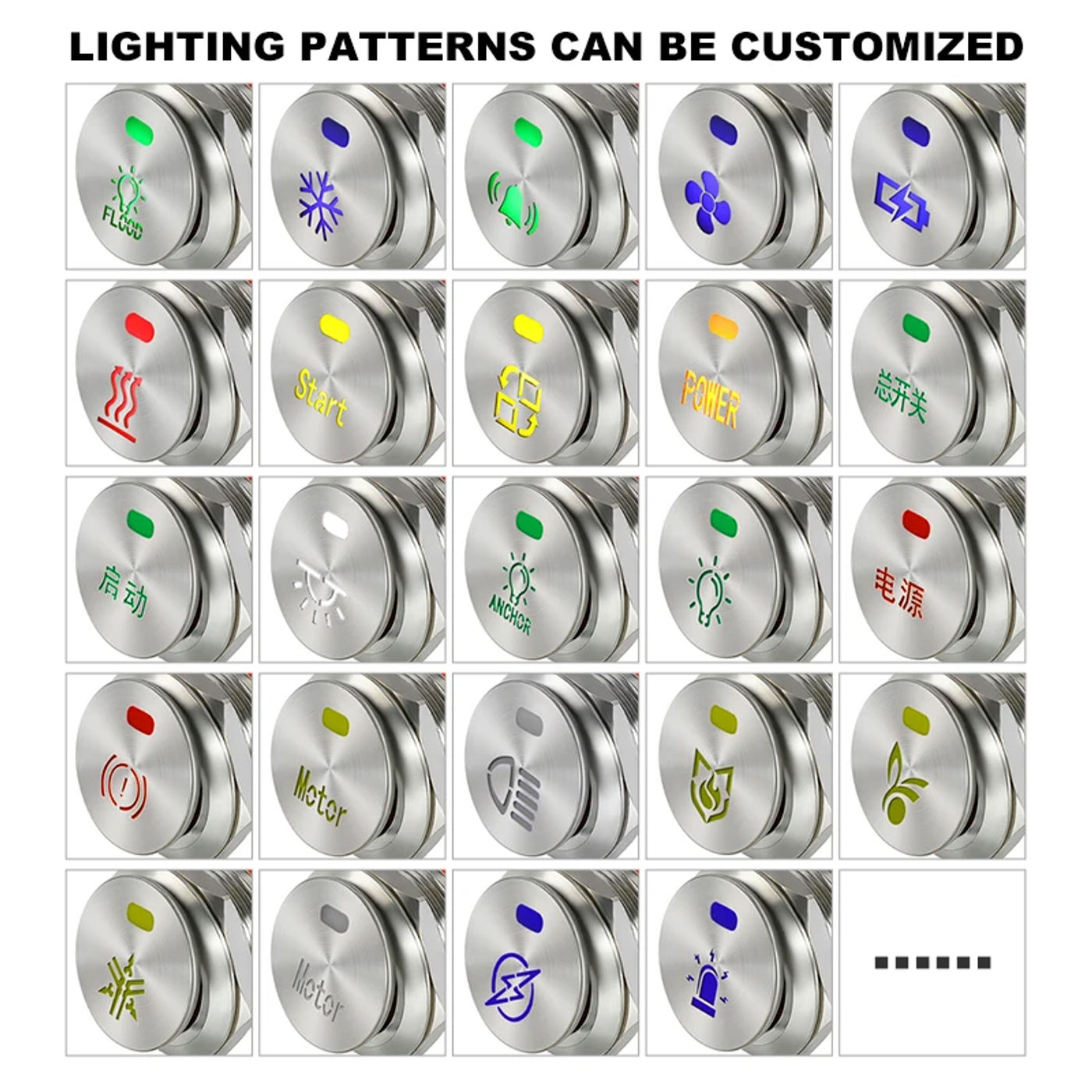

• Lighting effect reveal video Product Name: Metal Rocker Switch Light Pattern: Default/Power/Custom Colour: Red/Yellow/Blue/Green/White Shell color: Silver Shell(Stainless steel)/ Black Shell(Oxidation Aluminum) Operation Type: Self-locking (when you press it, it get fixed, the package may be power on, and once you press it again, it's going to leap up, the kit will be energy off For example, family gentle switches all have this function) Contact Form: Default two normally open contacts Pin feet: 4pins (2NO) Load Current: 16A Mounting Dimension: 22mm Contact resistance: ≤50mΩ Insulation resistance: ≥100mΩ Mechanical life: >10000 instances LED operating current: ≤20mA Base Material: Engineering PVC Wiring Style: Welding Foot

•
•
•
•
•
