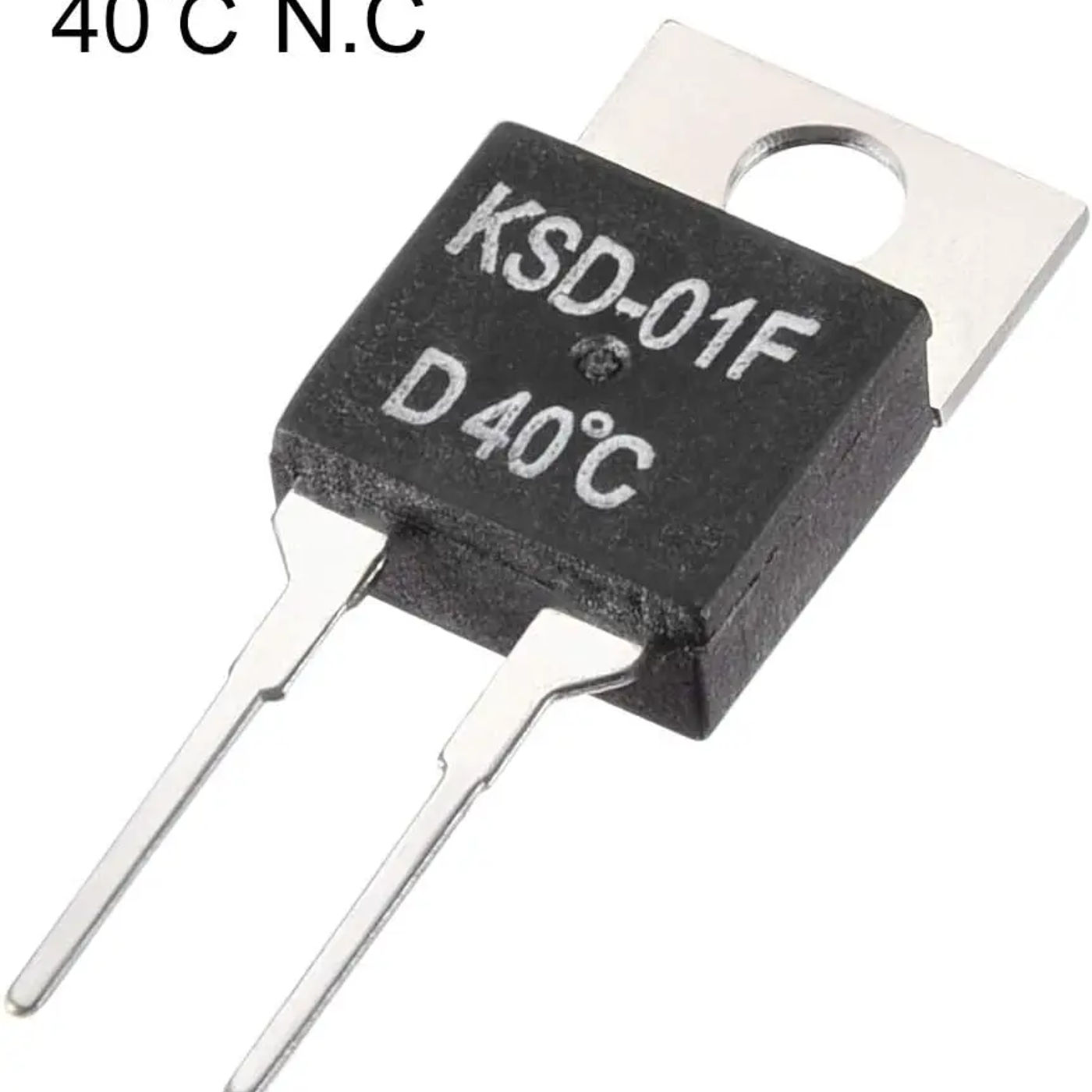

Thermostat D (NC – Normally Closed)
How it works: At temperatures under your set point, the circuit stays closed and power flows When it will get too hot, it opens the circuit and cuts power
Best for: Overheat protection—shuts off warmers or motors when they attain your restrict
Thermostat H (NO – Normally Open)
How it works: Below your set point, the circuit stays open and power is off Once it’s too hot, it closes the circuit and switches energy on
Best for: Cooling or alarms—automatically starts fans, pumps or warning signals when it gets too scorching
Quick Pick:
Cut strength at excessive temps? Go with D (NC)
Turn anything on at excessive temps? Choose H (NO)
--------------------------------------------------------------------------------------------------------------------------------------

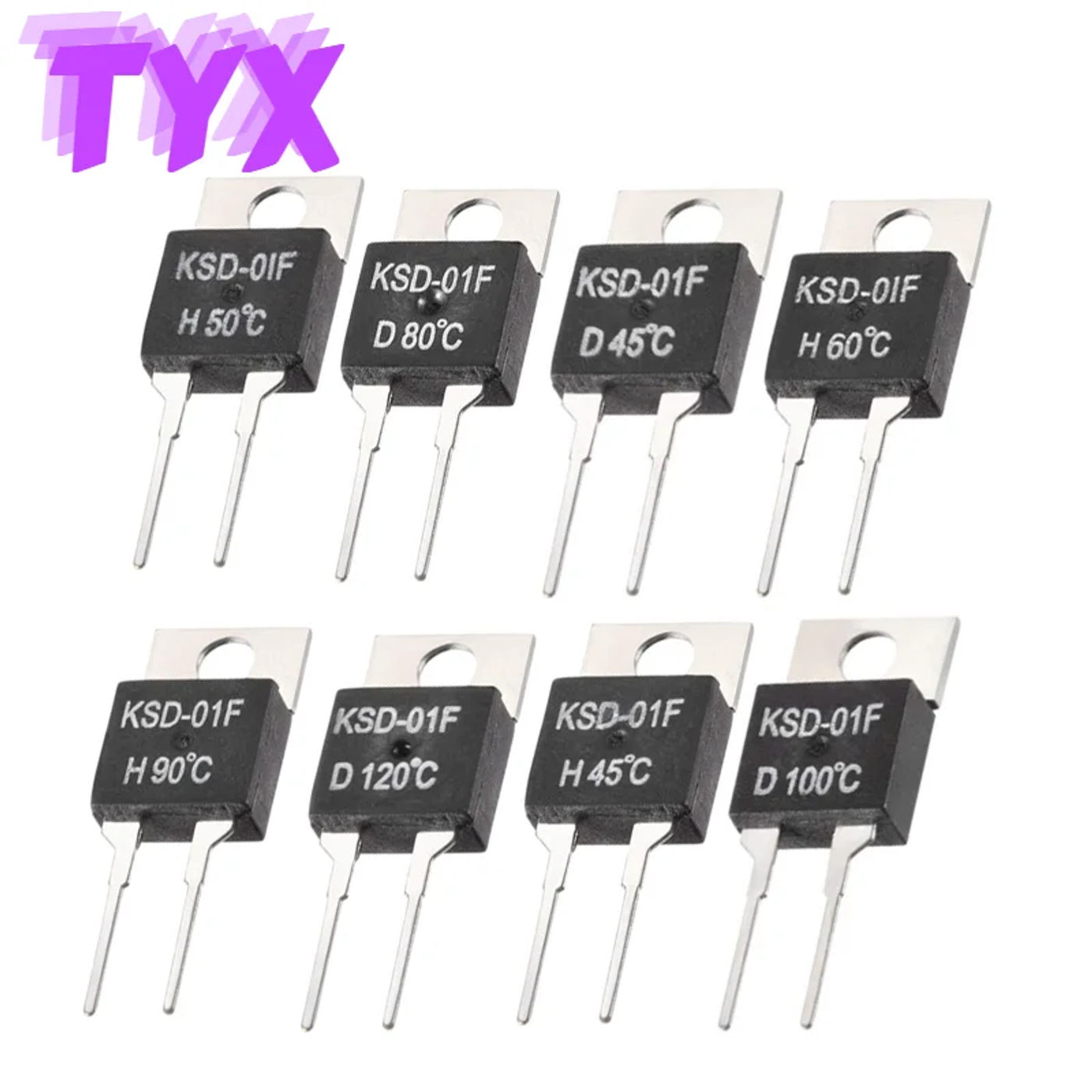

Ksd-01f temperature management change product introduction:
Technical parameters:
Contact load :220 VAC 1A or 24 VDC 3A
Dimensions (total length× width× thick): 29× 10 × four
0-5 ℃ for each specification
Contact types: usually closed (-D) or usually open (-H)
Packaged in: TO-220 steel base plate
Contact resistance: ≤ 50m
Insulation value: ≥ 100m Ω (500VDC)
Insulation energy :1500 V/DC,60Hz
Standard tolerance: ± five ℃
Working surroundings temperature: - fifty five ℃ - one hundred sixty ℃ (short time most temperature: 260 ℃ 10 seconds)
Weight ≤2g
How it works:
The KSD-01F temperature control switch adopts one hundred pc conduction constitution of TO-220 package, unexpected jump, unipolar / single throw contact point, when the exterior temperature is simply too high
In this way, the circuit (normally closed or normally open) is bring to a halt or linked When the temperature drops to
When the temperature is reset, the bimetallic sheet will reset soon and paintings repeatedly to guarantee the safety of product temperature protection
Product use:
Suitable for space-saving PC forums Typical uses encompass alarm or shutdown systems when the circuit overheats, computer systems and pc peripherals, electrical equipment;
Electronic products; power supplies; aircraft, automobiles, clinical kit and verify equipment; and management of mild thermal overload defense in family appliances and circuit boards
