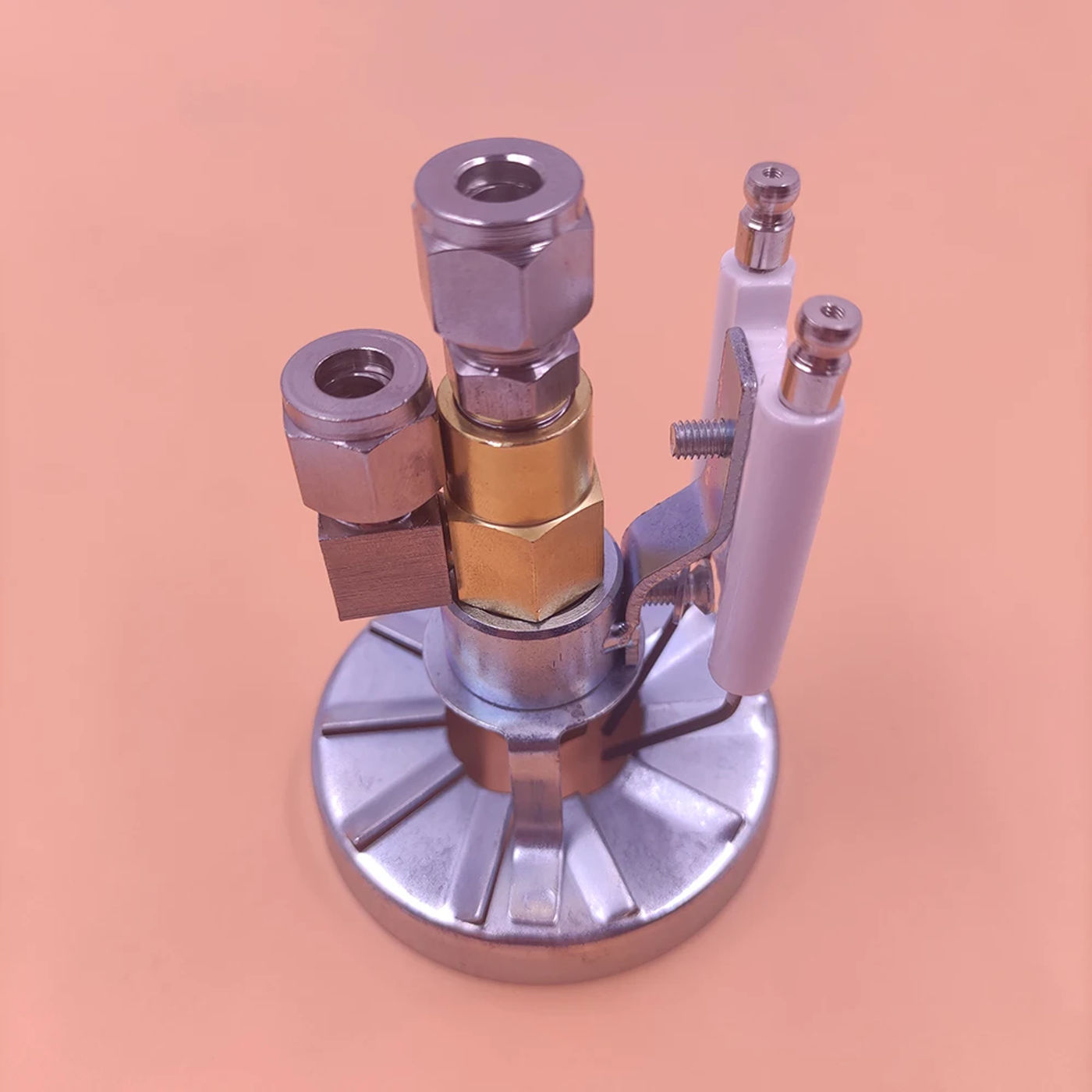

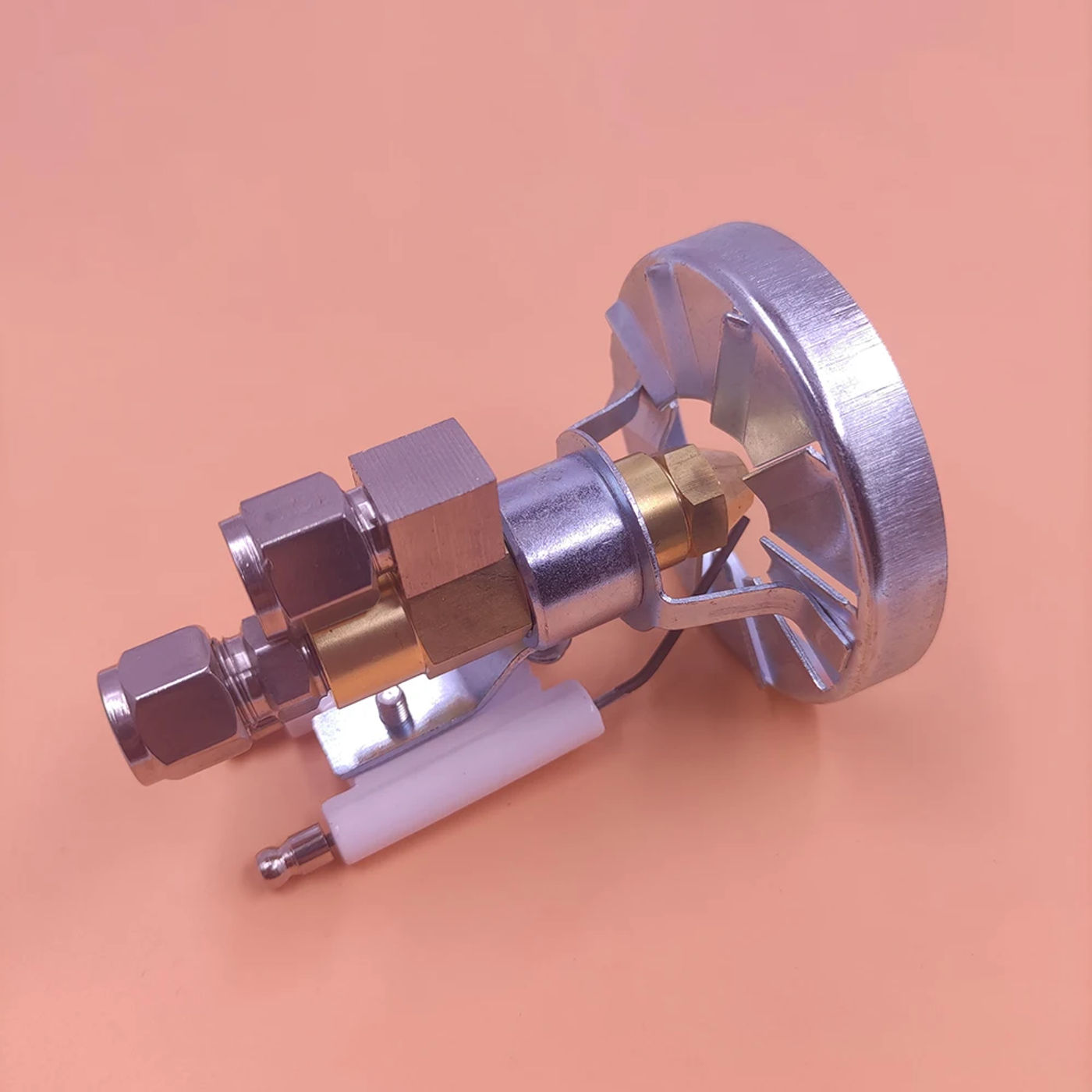

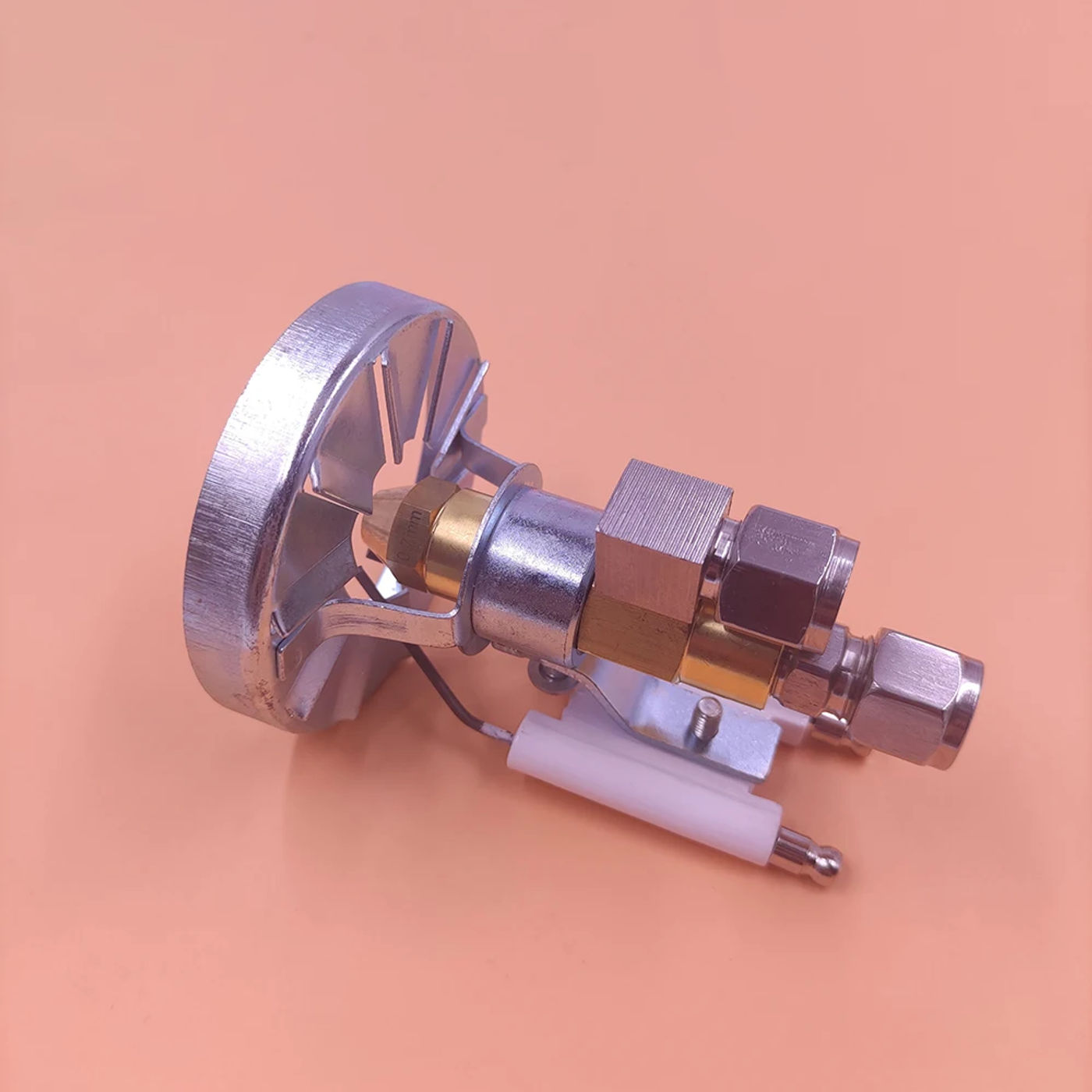

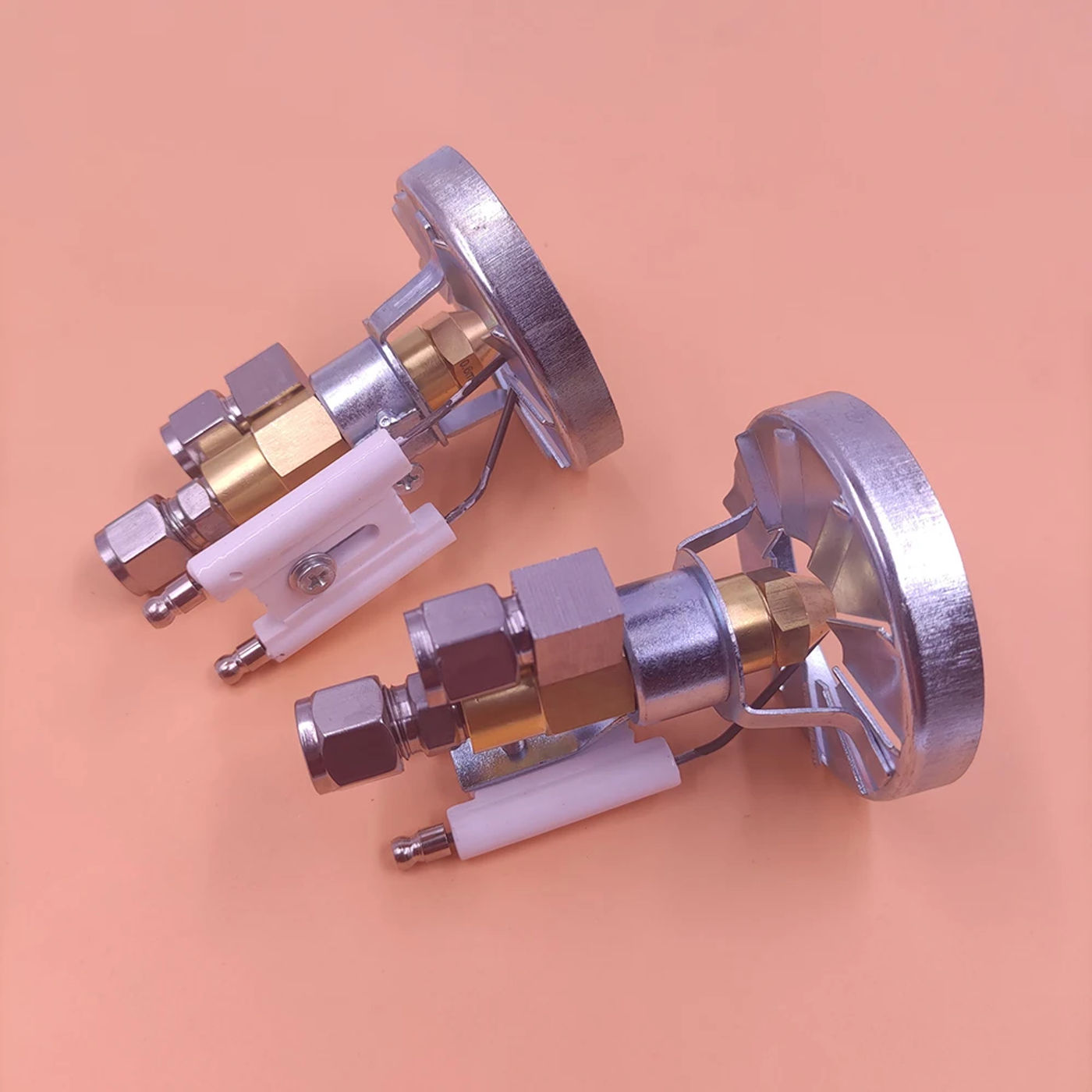

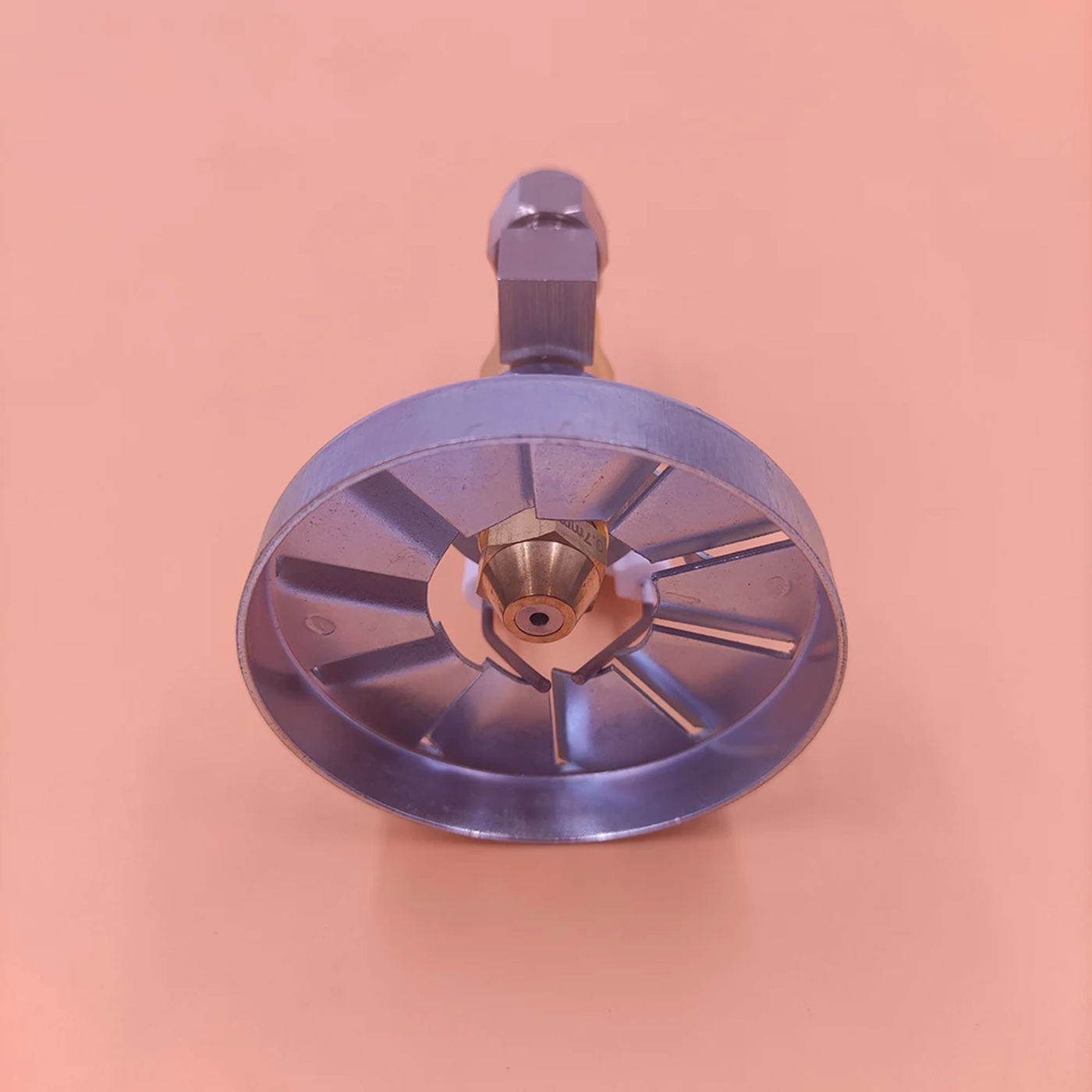

• Specification： Fuel nozzle siphon air atomizing nozzle two-fluid nozzle diesel heavy oil waste oil Alcohol-based fuel burner nozzle Bore diameter: 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 3, 3, 4 Oil inlet : 1/8" Air inlet: 1/4" Nozzle size: 9/16" Compression fitting: 8mm (leave message in order for you 6mm) Product Introduction Siphon air atomizing nozzle is a low stress can spray atomization of the best at low stress air atomizing nozzle Widely utilized in diesel, heavy oil, waste oil, animal and vegetable oils, alcohol-based gasoline burner system, and for kerosene, oil atomization Product Features 1 The use of compressed air to swirl inside the tubes and mix the atomized droplets impact 2 Can produce tiny micro particle length mist particles at low pressure and low volume circumstances three Can management the air flow and pressure to regulate the spray flow, angle and length granularity 4 Since the fluid passage has a large, and therefore have a good anti-clogging effect five In the heavy oil, waste oil burner, oil and other utility viscosity of the liquid atomization impact is excellent Application Widely used in diesel, heavy oil, waste oil, waste oil, animal and vegetable oils, and different alcohol-based gas oil, gas, combustion spray systems, spray workshop humidification cooling system, mechanical cleansing dust, diverse sorts of industrial spray aerosol products Product Description Spray nozzle chractistics: 1 Produces a stable cone spray sample with ultra tremendous particle size at low air pressures and occasional CFM 2 Flow rates, spray angles and droplet sizes would be modified, with limitations, through variations in air , lift, etc 3 Clog unfastened operation of low quantity due to relatively vast passages The air compressor must be capable of providing at the very least 10% more air than the desired values All fuel and airline connections needs to be tight Any leaks, especially within the gas line, will have an negative effect at the lift characteristics The nozzle will move in both a horizontal or vertical function The lift distance for a vertical fixed nozzle is measured from the liquid point to the tip (face) of the nozzle The lift distance for the horizontal mounting is shown within the installation drawing If the combustion software doesn't enable the use of a relentless point device, preferrred spray characteristics would be received using a gasoline metering pump and an air compressor It also is possible to function the nozzle in a closed pressurized components utilizing air strain for either lifting and atomizing the gasoline Related Picture Payment: -We accept the following price methods: -Credit Card, VISA, Bank to Bank Wire Transfers, PayPal, Western Union and so on -All payments made on Buydo are processed via Alipay and PayPal Shipping: -Please pay more attention to your order address which MUST MATCH your shipping handle -Shipping might be international via: e-Packet / China submit air mail / CDEK / ARAMEX / EMS / UPS / FEDEX / DHL / TNT -Remote area could cause more transport commission -Please test items when delivered, if damaged,please kindly settle for it and call us instantly We will make a affirmation and resend you a brand new one Feedback: -All products are 100% original new and tested again earlier than shipment Customers&; passable is our goal -Any suggestions from you will be a lot appreciated If you&;re convinced with our service or products, please give us five stars -If you have any questions, please contact with us, and we will come back to you faster Please Note: -Import duties, taxes and costs aren't integrated in transport charge -Buyers bear all responsibility for all extra expenses incurred (if any) -What when you are disillusioned with the products, or the products has any high quality problems, please touch me at any time We will resolve your problem, pointless to publish a dispute -For our customers from Brazil, Chile: if you choose any courier, please depart your tax number in order that make certain our shipping usually Warranty : -1 years manufacture warranty: We will supply your unfastened new parts or equipment with free delivery throughout three months after your buy We will supply your free new components or equipment but you must pay for some shipping commission if greater than three months lower than 1 12 months -Defective concern has to be submitted within 7 enterprise days after product is delivered; -Shipping harm has to be submitted inside five business days after product is delivered -Please show us photograph or video if happens problems on merchandise Contact Us: -If you would like position a massive order for wholesale, please be happy to contact us -If it is best to order a number of items, pleases tell us first We can give you some discount

•
•
•
•
•
