Description

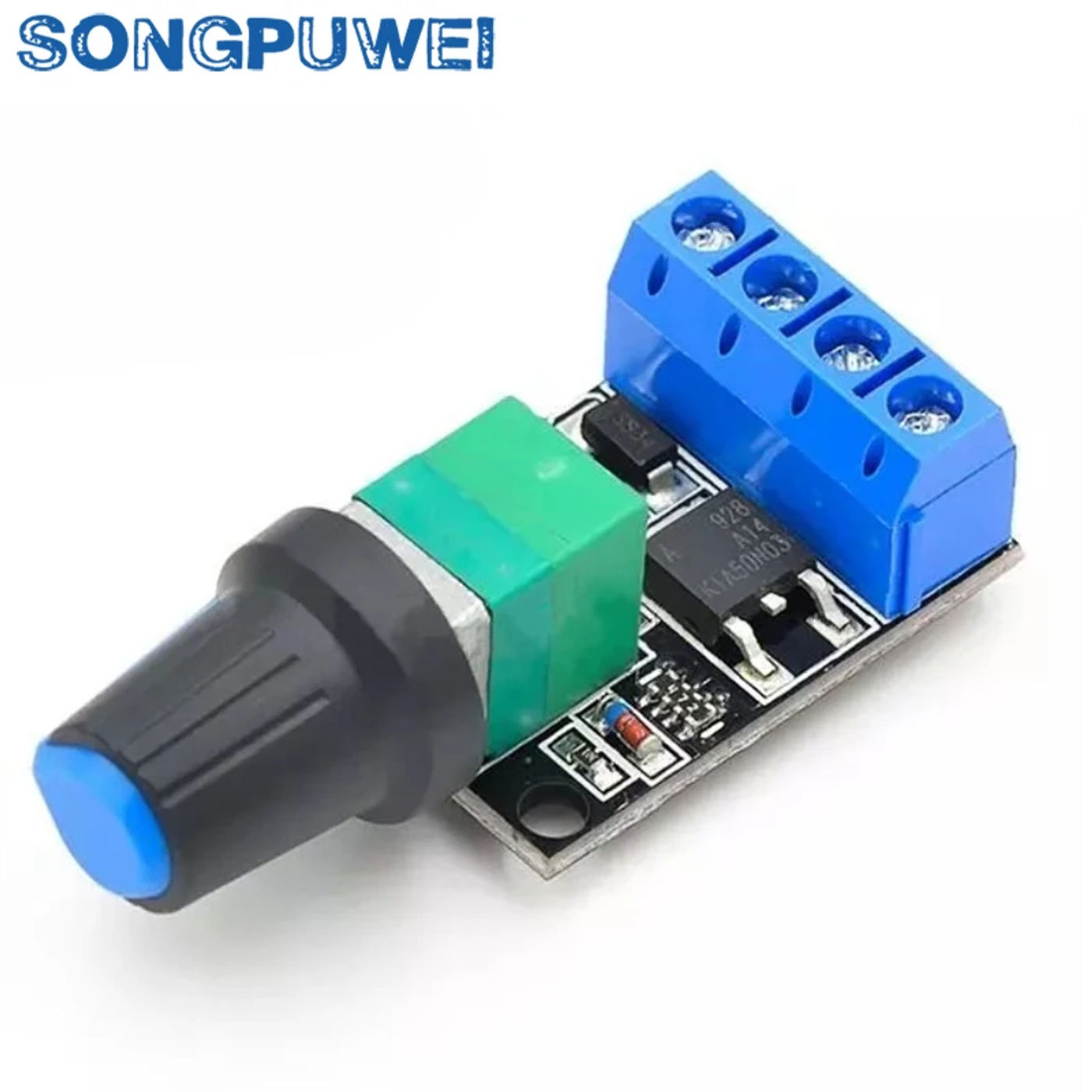

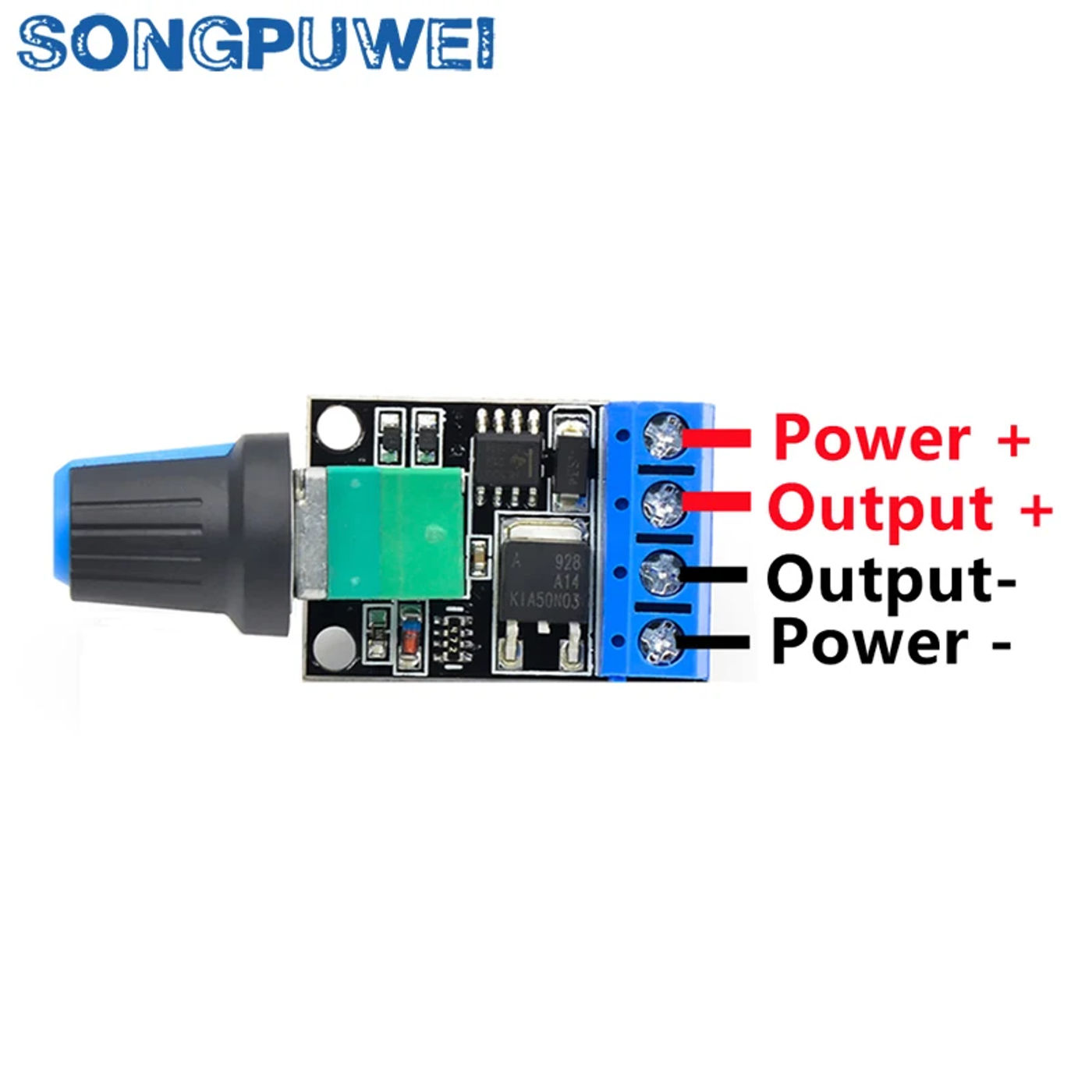

• Description: Max voltage: 16V Minimum voltage: 5V Continuous current: 10A Short most current: 20A (less than 10 seconds) Speed control mode: PWM stepless speed regulation, is also used to adjust the sunshine Control mode: speed management potentiometer (clockwise clicked open, proceed to rotate clockwise from 1% to 99% speed) Duty cycle: 0%-99% (0% role is the state of the swap off when the potentiometer is most at the left) When the current is switched on, the zero (long time no need to modify off the governor is not any current) Efficiency: the utmost performance is as high as 98% Volume: lengthy 3cm (excluding potentiometer), extensive 2cm, excessive 1 If you are utilizing the rate management (dimming) to do the product, the store can give free Custom service, would be in response to the necessities of the shopper to change the form of the circuit board, set up Mode, current and voltage parameters, add other functions, and so on Note that the governor is mainly used in motor pace control, while you are used to LED dimming, must be sure that the LED also can paintings in direct energy supply, the dimming range of the rate governor is from LED to LED immediately connected to the flexibility supply is completely extinguished between dimming, if LED is immediately related with a power which will burn via dimmer the dimming is burned, which typically requires a series recent restricting resistor, if you don&;t understand how much resistance can contact customer support

•
•
•
•
•
