Description

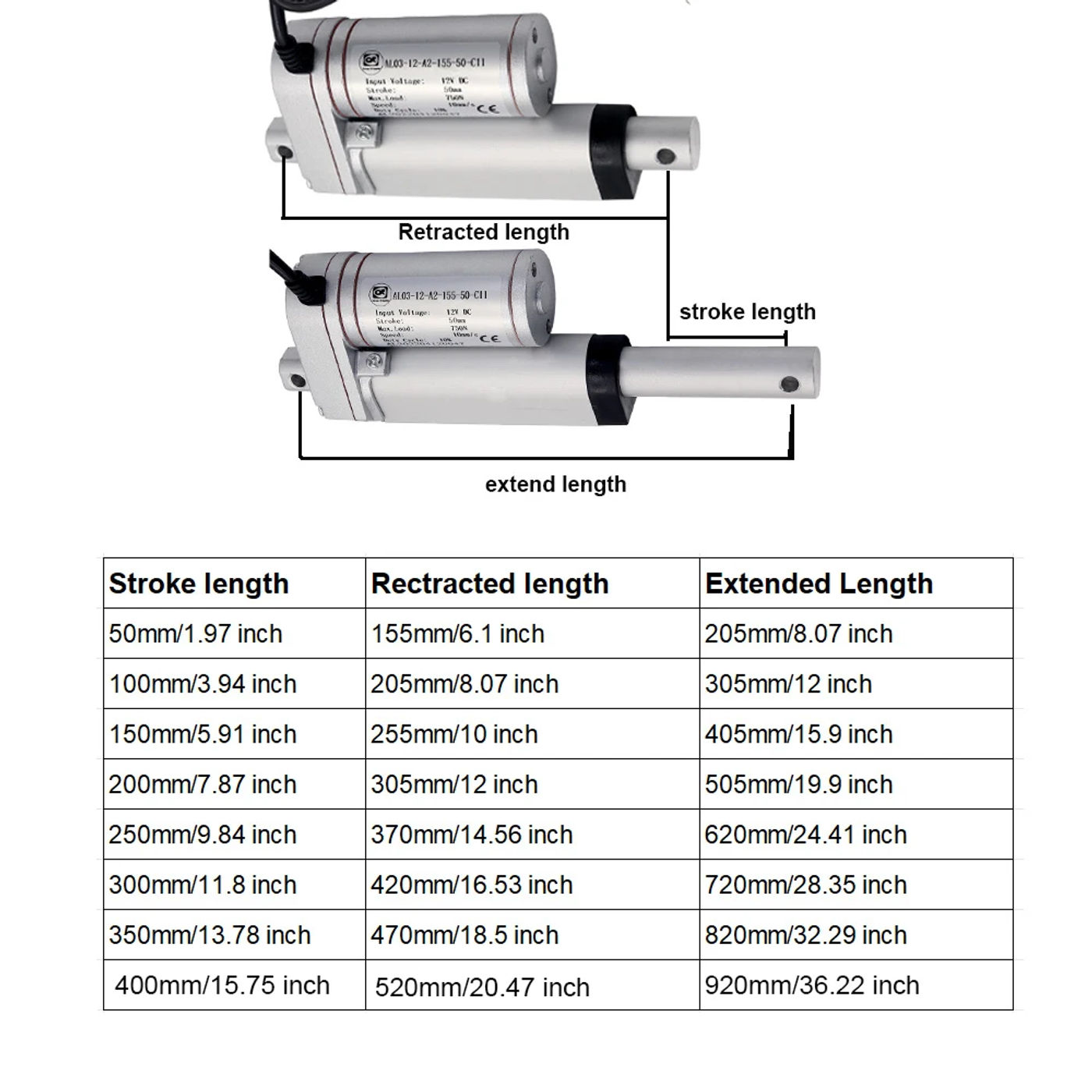

• Technical Parameters: Material: Aluminum alloy Load capacity: 750N/160LBS Input Voltage: 12V DC Speed: 10mm/s Stroke Length:50mm/100mm/150mm/200mm/250mm/300mm/350mm/400mm Working frequency: 20% Rated power: 20W, maximum 30W Push bar Each aspect includes a travel restrict change When the telescopic bar runs to the top or to the top, it'll robotically disconnect the electricity The motor won't idle Cut off the power, it may be give up at any position, with self-locking operate The push rod is driven via a DC motor with a screw force The telescopic rod can solely be retracted with out rotation The motor is positive and unfavourable For example, if the fine electrode is stretched and the unfavorable electrode is shrunk, the telescopic route of the rod would be replaced by means of changing it Ambient temperature -20°C to +75°C Standard protection class: IP54 Low noise design, noise point lower than 42dB Please do not disassemble the mechanical device Product features: pressure other objects to push, pull, rise, drop Product Applications: TV lift tables, rub down beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, digicam frames, cameras and extra Package Included: 1×Linear Actuator Motor

•
•
•
•
•
