Description

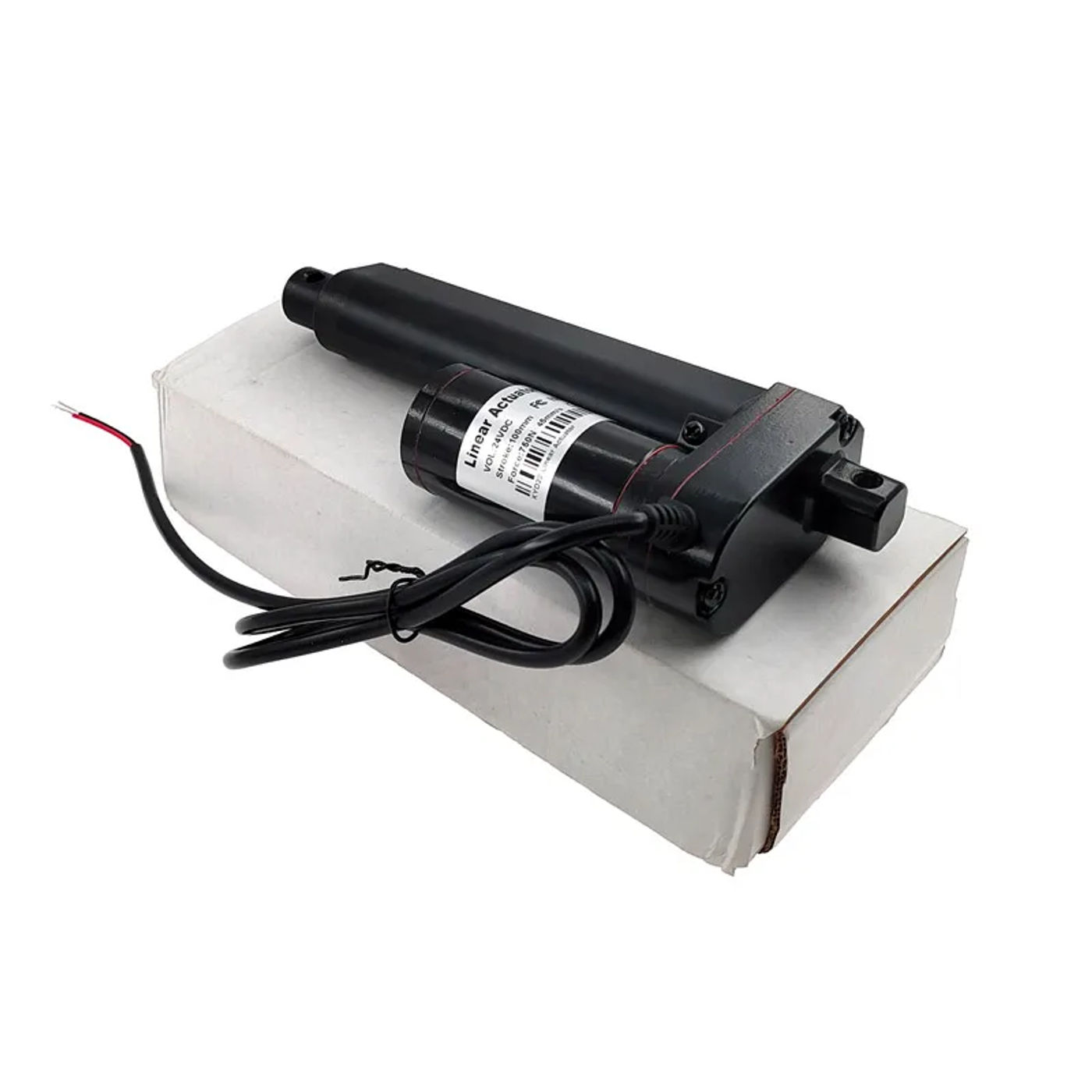

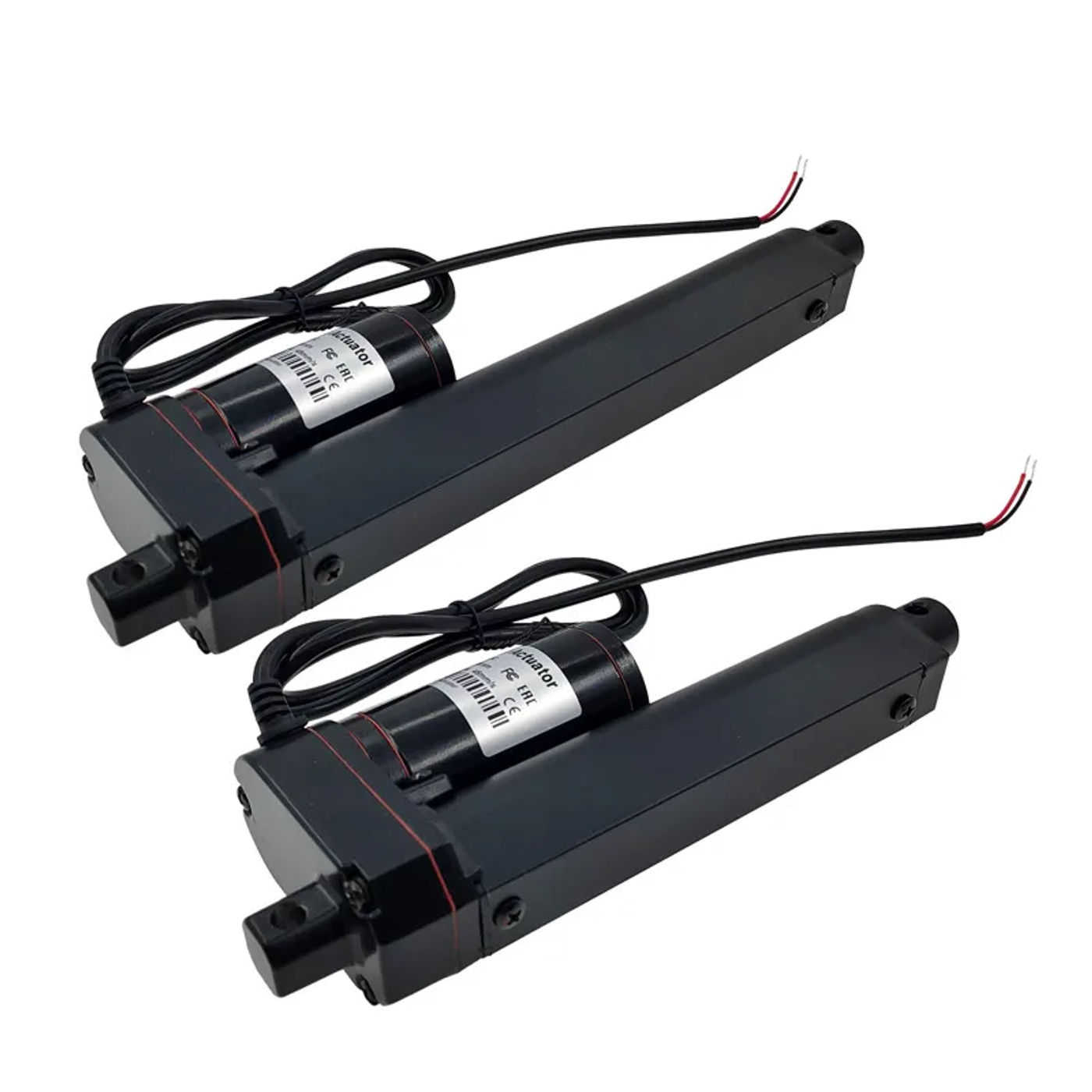

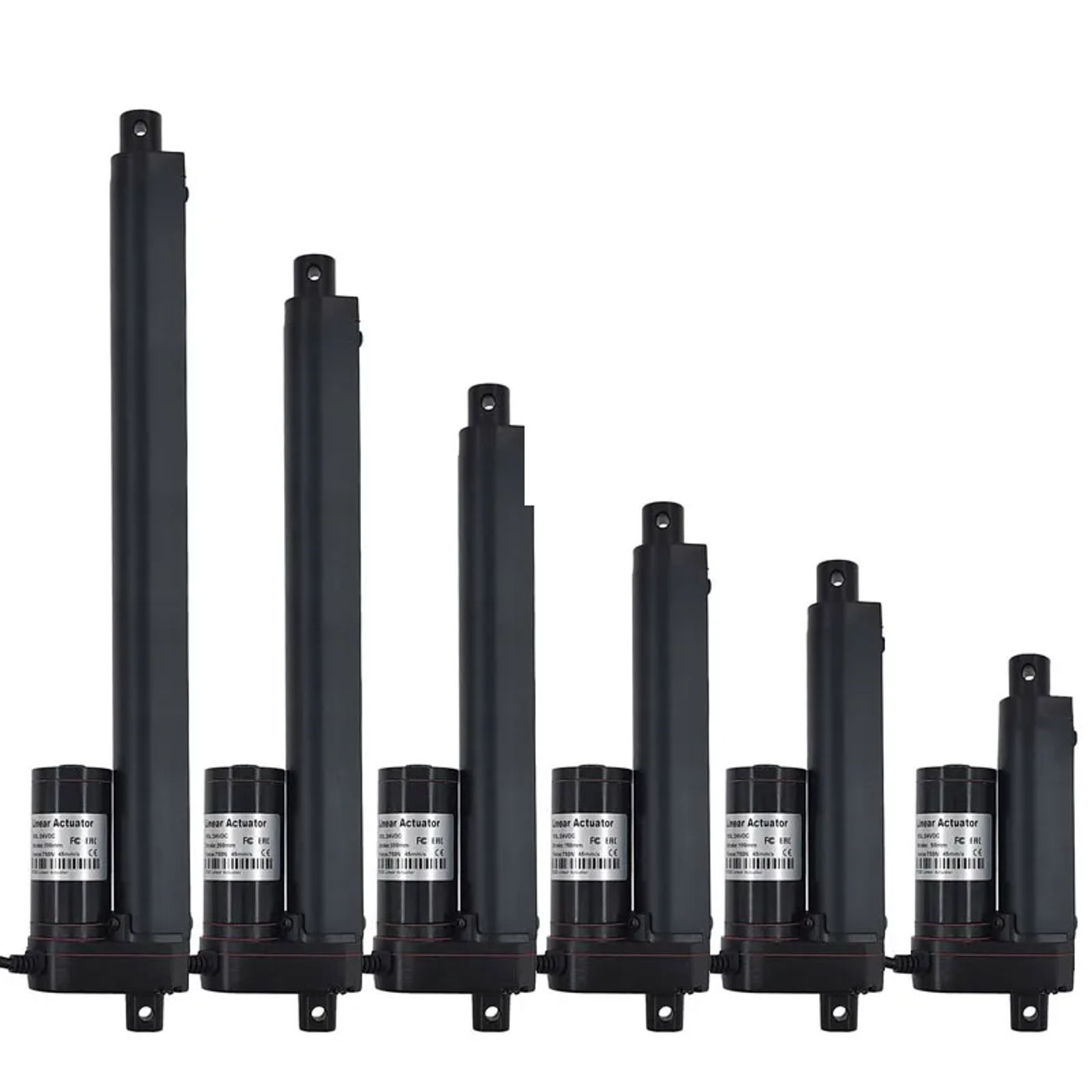

• Technical Parameters: Rated power: 20W Maximum 30W Stroke: 50mm/100mm/150mm/200mm/250mm/300mm Permanent magnet DC motor drive; Voltage: 12V,24V Standard defense grade: IP54 Material: aluminum alloy Ambient temperature -20°C to +75°C Low noise design, noise point lower than 42dB Application: Television console for rubdown mattress chair kit The self-locking power of the linear actuator is ready 80% Size： L= Minimum installation distance S= Effective stroke Size introduction: Stroke Length: capability the movement length of linear actuator Retracted Length: capacity the size when linear actuator 100% completely closed Extended Length: skill the length when linear actuator one hundred pc entirely open Stroke size introduction: 50mm Stroke, Retracted Length=155mm, Extended Length=205mm 100mm Stroke, Retracted Length=205mm, Extended Length=305mm 150mm Stroke, Retracted Length=255mm, Extended Length=405mm 200mm Stroke, Retracted Length=305mm, Extended Length=505mm 250mm Stroke, Retracted Length=355mm, Extended Length=605mm 300mm Stroke, Retracted Length=405mm, Extended Length=705mm

•
•
•
•
•
