Description

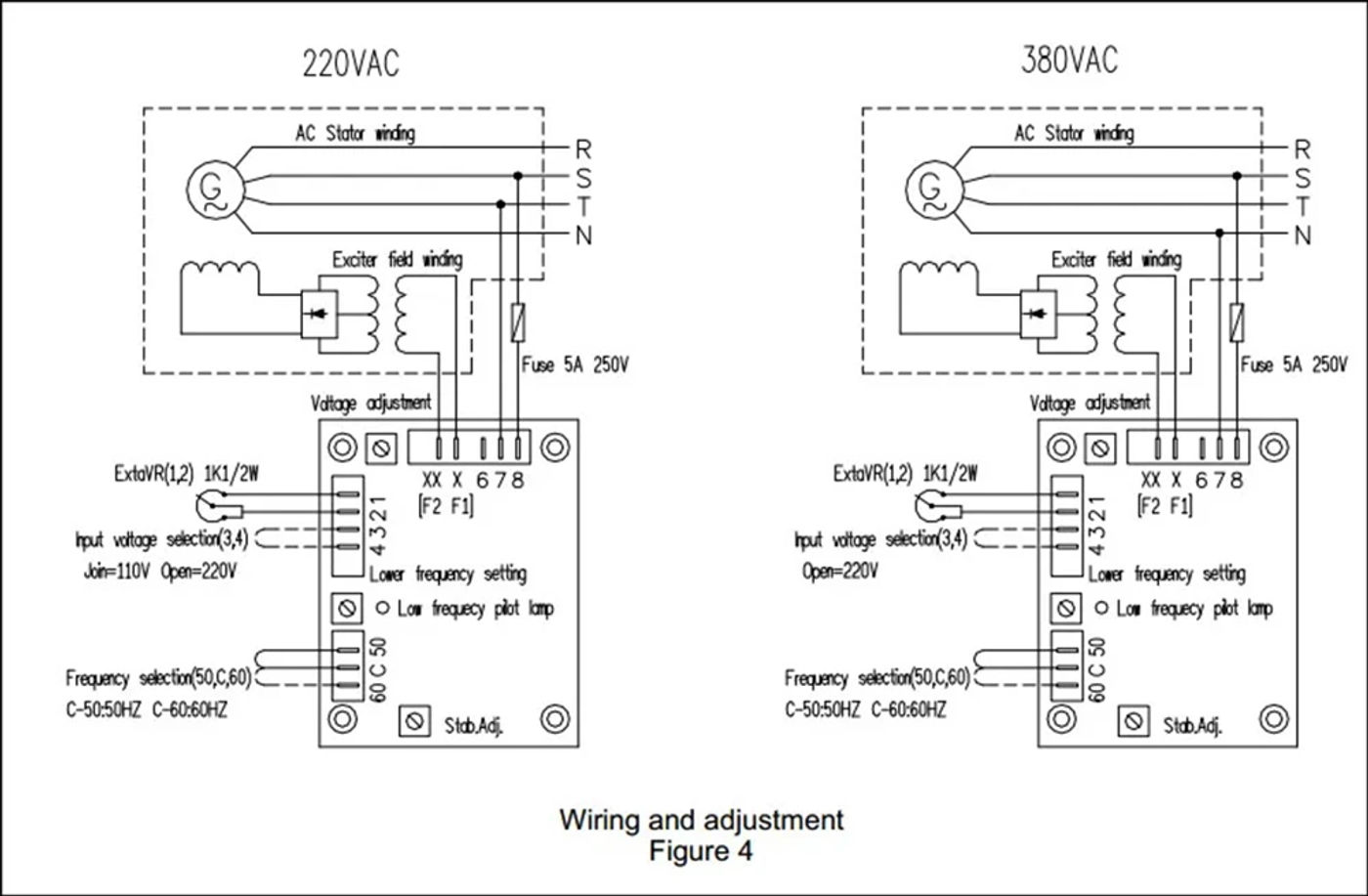

• 1 INTRODUCTIONSensing Input Voltage:95~132VACor190~264VAC1 phase, jumper selectable Frequency：50160 Hz, selectableOutput Voltage：Max 90 VDC @ 207 VAC Current：Continuous 4A ，Intermittent 10A for 10 sec Resistance：Min ohmVoltage Regulation<+ 1% ( with 4% engine governing )Voltage Build-up：Residual voltage at AVR terminal> 5 VAC Thermal Drift：0% per C change in AVR ambientExternal Volts Adjustment：7% with 1K ohm 1 watt trimmerUnit Power Dissipationt：Max wattUnder Frequency Protection：Set level ，95% Hz( UFRO )： Slope 170% right down to 30 HzSoft Start Ramp Time：2 sec：135mmL*100mmW*49mmHWeight：243g t 2%WIRING (Refer to wiring diagram)1 ConnectF1, F2 to DC output port Connect the sensing port at 7, 8 (the manufacturing unit setupis 220V, if 110V is required, please connect 3, 4)3 External voltage regulator is as Figure four Connect a jumper from COM to the 50Hz terminal for 50Hz operation :please install 5A 250V fuse at strength enter portas Figure 4WARNING:This Automatic Voltage Regulator isn't geared up with loss-SensingProtection function /Over Excitation Protection An extra Over-Voltage Protection gadget for load could also be required to circumvent possible damage to the kit or extreme personalinjury or dying SX460Durable SX460Four plugsDurable SX460Four plugs high-quality SX460 Red Capacitor

•
•
•
•
•
