CE/EMC Certified, 1000W Peak Power Full Power 500W Off Grid Pure Sine Wave Solar Power Inverters Converters DC To AC Voltage Transformer LED Display Iron Shell With Wired Controller
About us:
-Our corporation is the leading and professional manufacturer for 150w to 8000w DC TO AC OFF GRID PURE SINE WAVE INVERTER Our authentic technical department, will support the finest technical service and after-sale technical carrier
-Our precept is “quality first, customer priority, service best, trade honest”
-With the excessive quality, favorable fame, excellent service, our strength inverters are bought around the world We have many unswerving customer in the Europe, America, Asia, and so on
-All inverters are stricktly inspected earlier than leaving factory, Reliable Company Guarantees that each inverter is in its ideal working condition
About avantage of our inverter:
1 high quality transformer
As the core components, transfer the DC power to AC power, we use the excessive frequency transformer, make sure the steady and entire AC output, no failure
2 capacitor
Adapted the imported capacitor, extensive electricity, higher performance, longer lifetime, safer usage
3 copper inductance
High quality true copper inductance, clear out the wave form, make sure the true natural sine wave AC output, safeguard your kit
4 examined
No electromagnetic interference for your equipment, comparable to no noise for TV, FM radio, Audio
five flange
With the large radiating flange, larger cooling performance, ensure the ideal inverter working situation
6 mosfet
All massive mosfet, greater load capacity, steady the inverter performance, supply the continual AC output
7 line connection
Earthe connection for either PCB board and output, extra safe for the burden and the usage
eight thickness
The PCB thickness of 2, thicker than the most inverters on the market, enable the more potent current floating at the circuit, develop the load skill
Applications of Our Customers:
Product Detail Parameters:
DC Voltage
12V or 24V or 36V or 48V or 72V or 96V or 110V
Voltage Range
10-15VDC or 21-30VDC or 30-45VDC or
42-60VDC or 68V-80VDC or 90V-105VDC or 100-120VDC
NO Load Current Draw
<1A
Efficiency
>90%
DC Connector
Cables With Clips or Car Adaptor
AC Voltage
100/110/120VAC or 220/230/240VAC
Continuous Power
500W
Surge Power
1000W
Waveform
Pure Sine Wave
Frequency
50HZ or 60HZ
AC Regulation
3%
Low Voltage Alarm
10DC±0 or 20±1V or 44VDC±1V or 100VDC±1V
Low Voltage Shut Down
9±0 or 19±1V or 42VDC±1V or 96VDC±5V
Over Load
Shut Off Output
Over Voltage Shut Down
15 or 30 or sixty one or 120V
Over Thermal
Shut Off Output Automatically
Fuses
Short Circuit
Working Temperature
Between -10centi and +50centi
Working Humidity
20%~90%RH non-condensing
Storage Temperature
Between -30centi and +70centi
Start
Soft Start
Cooling Ways
Cooling Fan
Total Harmonic Distortion THD
<5%

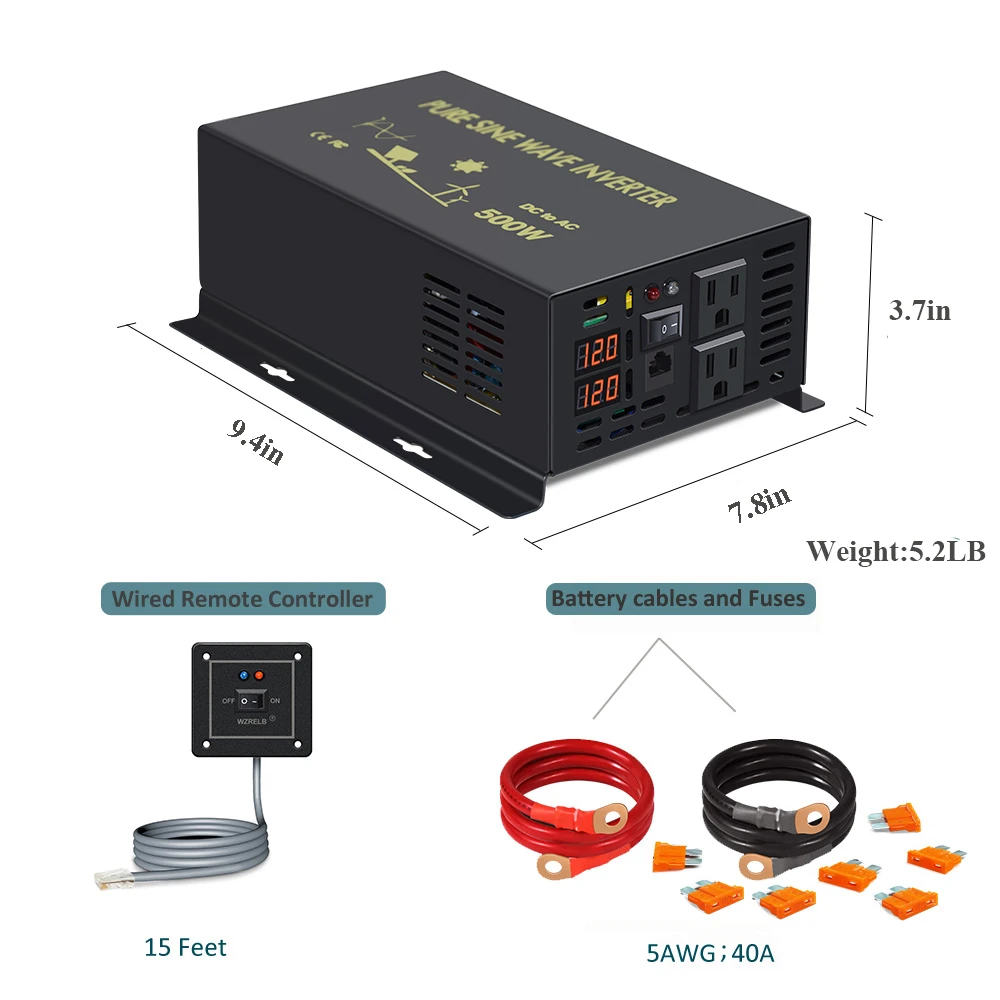

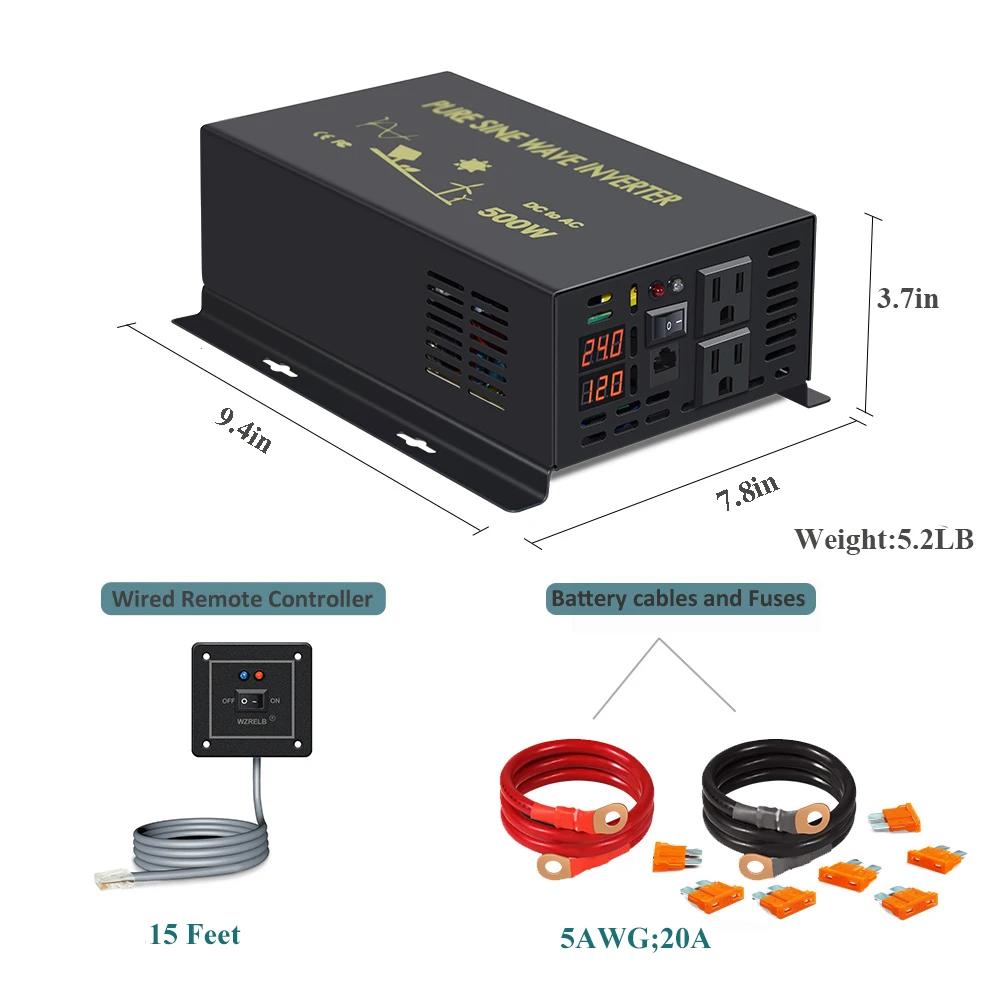

Machine Size(mm)
230*190*95
Packing Size(mm)
360*210*150
Net Weight(kgs)
2KG
Gross Weight(kgs)
3KG
Packing Type
Carton Packing
Feartures:
Pure Sine Wave, pretty much as good as the grid power
Full Power
Core Technology, German Design
Most Advanced Program in Software
Complete Protection Non Defect Rate,
Better EMC - Electro Magnetic Compatibility,
No Noise for TV or Stereo Sound
SMT- Surface Mounting Technology
All Big Imported Mosfet,Strong Driving Capacity
PCB Thickness :2
LED Display
Compact Design, Less Weight, Full Power,
Single Layer Design, Easy to Repair if any
Earth Connection for Both Inverter and PCB,
Low No Load Current Draw
Durable quality with 10 years usage,

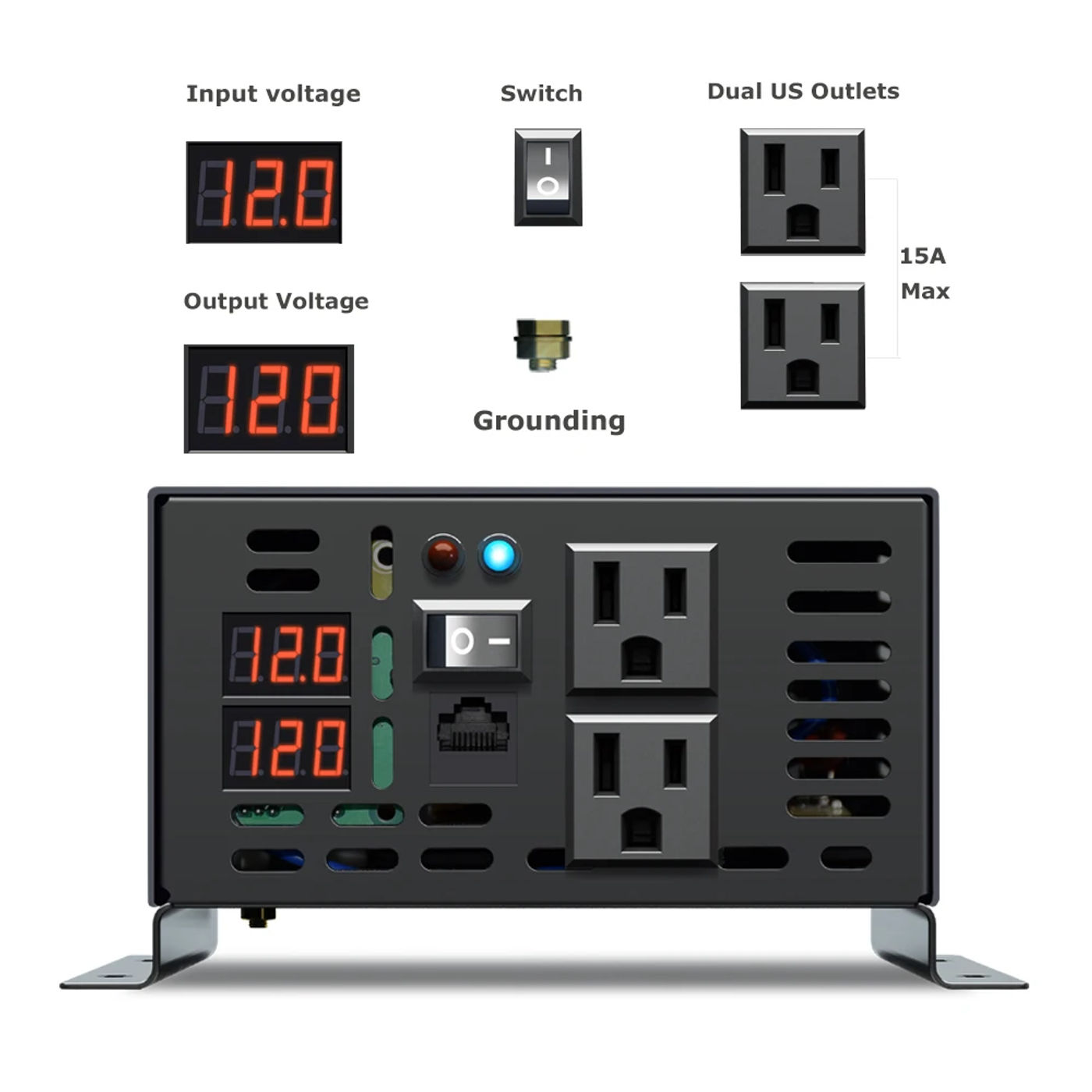

Alarm and LED Indication Light for error warning New inevrter with LED display, allow you to visual display unit the inverter input voltage and output voltage in time With this function, you'll find out about the inverter condition more obviously

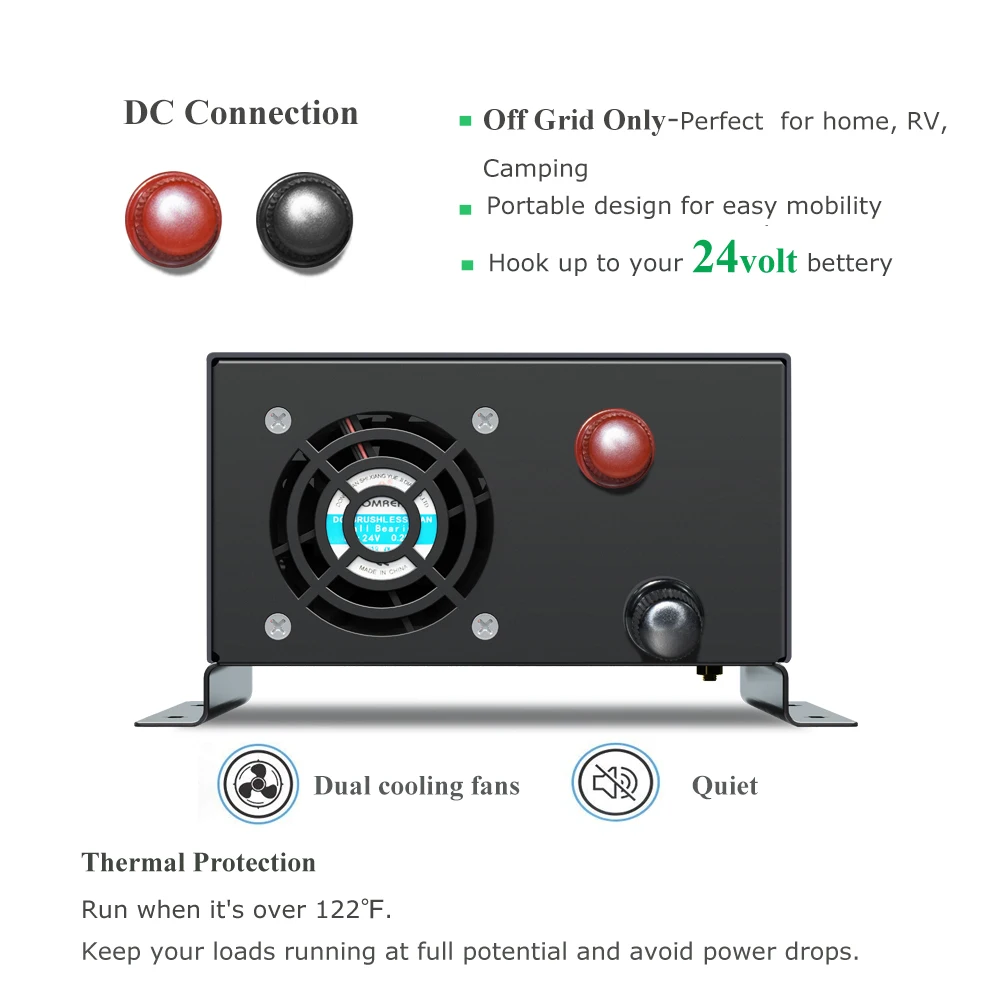

Sufficient Heat Radiation
More Vent Holes on the plates and the bottom for heat radiation
Popular Metal Black Design
Big Current Connector,
All forms of socket are available in
Strong Wiring Row on AC End,
Best high quality ever available in the market
Factory Price
Product Details:
Protection Systems:
Thermal protection, Overload protection, Over Voltage protection, Under Voltage protection, Low Voltage protection alarm Inverter comes with an LED light to indicate the problem
nine sorts of protections:
1 circuit production
When the weight is brief circuit, the inverter will quit operating
2 High temperature manufacturing
When the use environment is stuffy, the warmth of the inverter cannot be radiated The temperature is above the rated temperature, the inverter will stop working
3 High voltage protections
The battery voltage is above the rated voltage of the inverter, the inverter will give up working
4 Low voltage protections
The battery’s voltage falls in the course of the utilization When it is less than the rated voltage, the inverter will mechanically minimize the enter voltage for the self protection
five Surge protection
It can avoid the DC excessive voltage’s surging attack upon the digital ingredients within
6 Overload protection
When the appliances’ power is increased than the inverter’s power, the inverter will quit working for self protection
7 Over latest Protection
When the appliances’ recent is bigger than the inverter’ current, the protection elements on the board will be reduce routinely for self protection
8 defense
When the appliance’s resistance is greater than inverter’s, the fuses on the socket could be mechanically bring to an end for self protection
nine Reverse defense
It can avoid the injuries of burning the inverter if the superb and the unfavourable poles are reverse linked
The Resistive Load Applications and The Inductive Load Applications:
For resistive load applications:
If you would like the inverter to run the resistive load (like laptop, TV, electrical cooker, LED light), please choose the inverter with continuous power higher than the appliance&;s rated strength
For example, for the flexibility inverter with continual energy 2500w,it is advised to run the applying with rated strength lower than 2500w It is best to use 80% of the rated strength
For inductive load applications:
If you would like the inverter to run the inductive load (for appliance equivalent to compressor, motor, water pump), please calculate the ability of inverter three to 7 instances higher than the rated energy of your equipment
Product Certification:
Durable and secure high quality with many years usage, our natural sine wave inverters are accepted via EMC checking out in Australia and CE certified 18 months guarantee
Product Packaging:
The Transportation:
For the small capacity, The inverter may be sent by DHL, EMS, Fedex and e-EMS, it's going to take 3-12 days for delivery
If you would like huge quantity, please contact with me in regards to the delivery job
Customer Service:
1 RELIABLE is your trusted accomplice for future business aretheMANUFACUTERof the solar inverter We are responsible forthe quality of the inverter The inverter has 1 year guarantee We provide technical support and service for the inverter the complete existence
All inverters can be double examined before cargo to be assured in fresh condition and work completely
2 Returns for substitute are accredited and ought to be initiated via the buyer inside 4 days of receipt All go back goods ought to be of their original situation Return delivery and dealing with charge could be at the buyer&;s expense first Please do touch with us for go back address, particulars and every other disorders
3 We aren't answerable for any put off throughout delivery adding yet not limited to the customs kit checking, strike, power majeure, etc
4 In case there may be difficulty with your order, make certain CONTACT US before leaving detrimental feedback Leaving destructive suggestions without communication is a violation of suggestions policy
five Please leave us message you probably have any question, we will respond in 24 hours, thank you
How to determine a correct inverter:
We accpet the personalized made inverter for each customer, please leave me a messages of your inverter specifications:
Leave me a majority of these specifications by means of sending me a message, so that I can make yes of a quick shipping!
1&;s your enter voltage?12v or 24v or 36v or 48v or 72v or 110v?

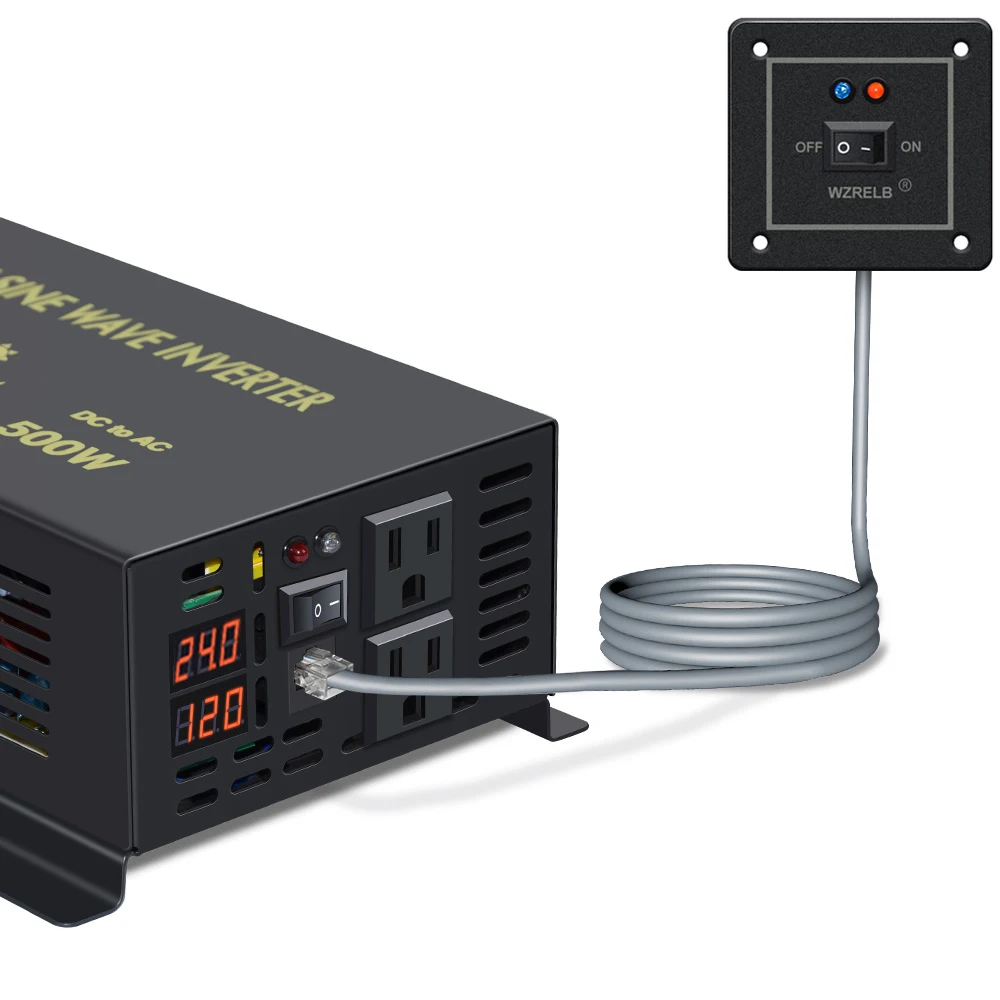

(attention please: only 1 voltage would be choose! If the enter is 48v or 72v, the additional 10% fee could be needed, if the input is 110v, the additional 15% payment will be mandatory If you wish distant controller, we want extra 15 USD touch with me I&;ll substitute your price, otherwise you can pay us by way of paypal)2&;s your output voltage? 100v or 110v or 120v or 220v or 230v or 240v?
3&;s your frequency? 50HZ or 60HZ?
4&;s your socket type? please look at the image I attached and make a choice
Enjoy your looking time in our shop!
