Voltage Meters Current Voltage Capacity Battery Tester USB Volt Current Voltage Doctor Charger Capacity Tester Meter Power Bank
Description:

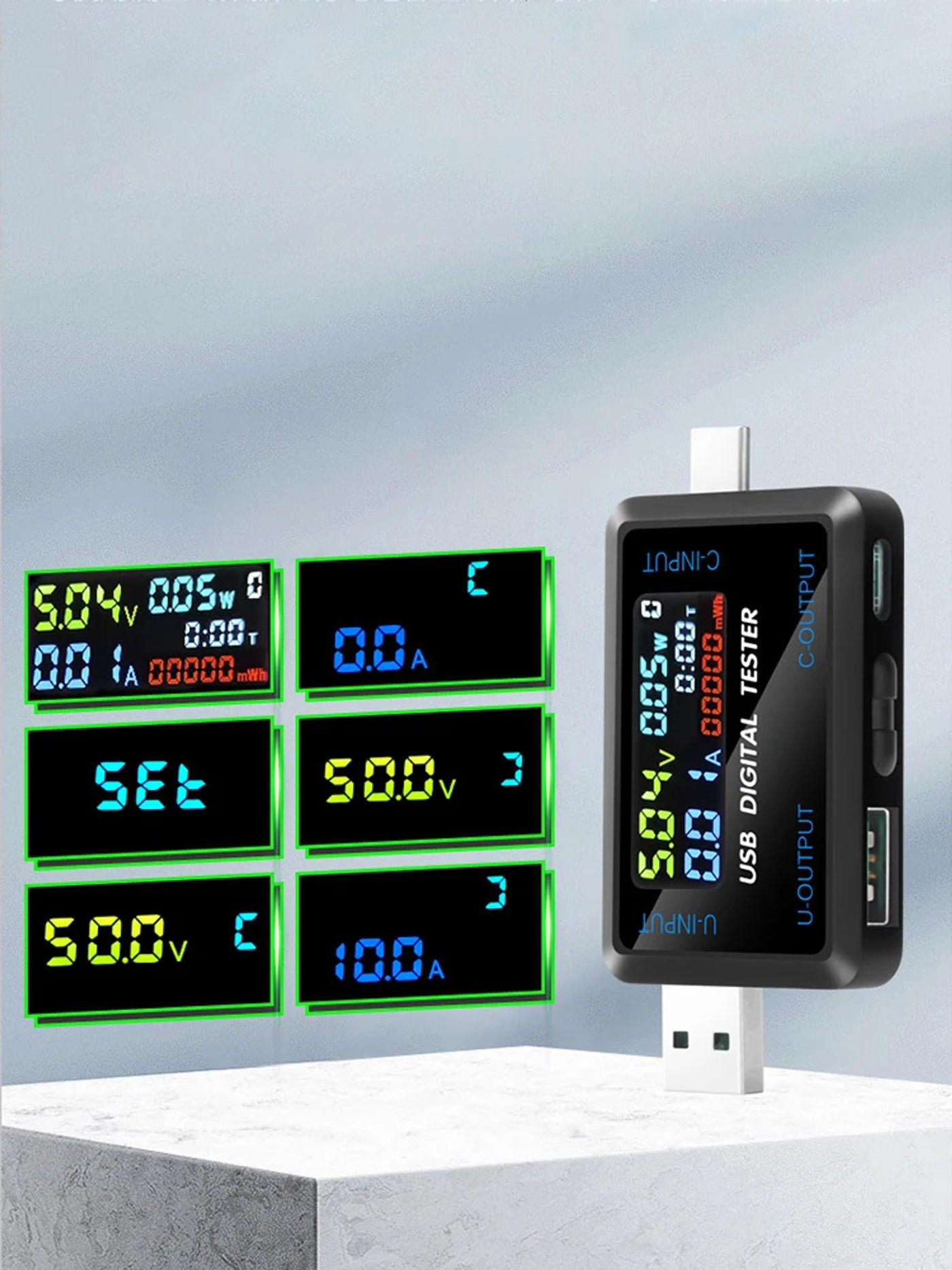

1 Current, voltage, power, power, capacity, capacity, resistance, timing time, capacity group number, Celsius, Fahrenheit, quick recognition and lots of different parameters, a screen exhibit of quite a lot of parameters
2 It can discover the charging reputation of the electrical home equipment in real time, and video display the charging voltage and current in genuine time and different parameters information at a look
three Display on/off function: through the multifunctional key short press change interface to remainder display screen interface for the off display, but additionally can be typical to the gadget charging night charging
4 Test quite a lot of USB and Type-C digital devices: smooth to test quite a lot of chargers, records cables, rechargeable batteries, notebooks, cell phones, Type-C electronic devices and so on
five A kind of fast charging protocols robotically detect, immediate charging reputation detection covers just about all immediate charging protocols, can meet the purposes of all types of cell phone customers
Parameter:
Voltage dimension range: DC 4~36V
Current size range: 0-5A/0-8A
Capacity totalization range: 0-99999mAh
Power Accumulation Range: 0-99999mWh
Power dimension range: 0-150W
Impedance dimension range: 1-999Ω
Temperature dimension range: 0-80℃
Timing time: 999 hours and fifty nine minutes

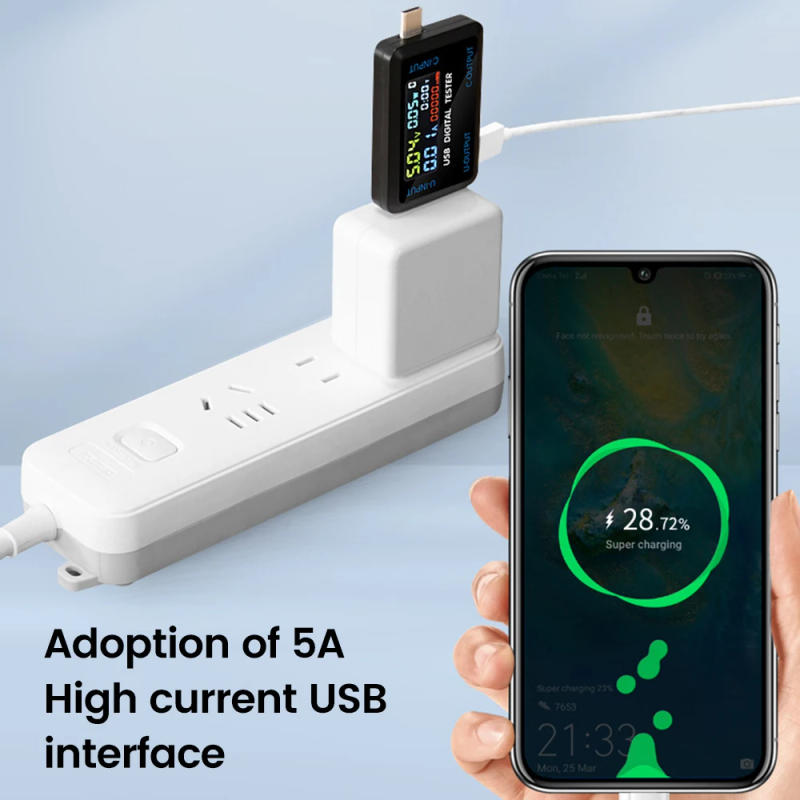

Input interface: 5A high recent USB interface/Type-C interface
Output Interface: USB/Type-C
USB D+ voltage range: 0~2
USB D-voltage range: 0~2
Refresh Time: >500mS/times >500mS/times
Measurement rate: about zero times/second
Display: IPS true coloration electronic LCD display
Self-consumption current: <0
Operating Temperature: -10~60°C
Working humidity: 10~80%RH (no condensation)
Working air pressure: 80~106kPa
Product Dimensions:
USB:77*27*11mm
Type-C:73*27*11mm
USB+Type-C:76*38*11mm
Multi-function button operation instructions:
Short press mode button
1: is to switch the display
2: Quickly triple-tap the switch button to reset the flexibility to 0 (mWh) and the timing reset to 0 the current group (0)

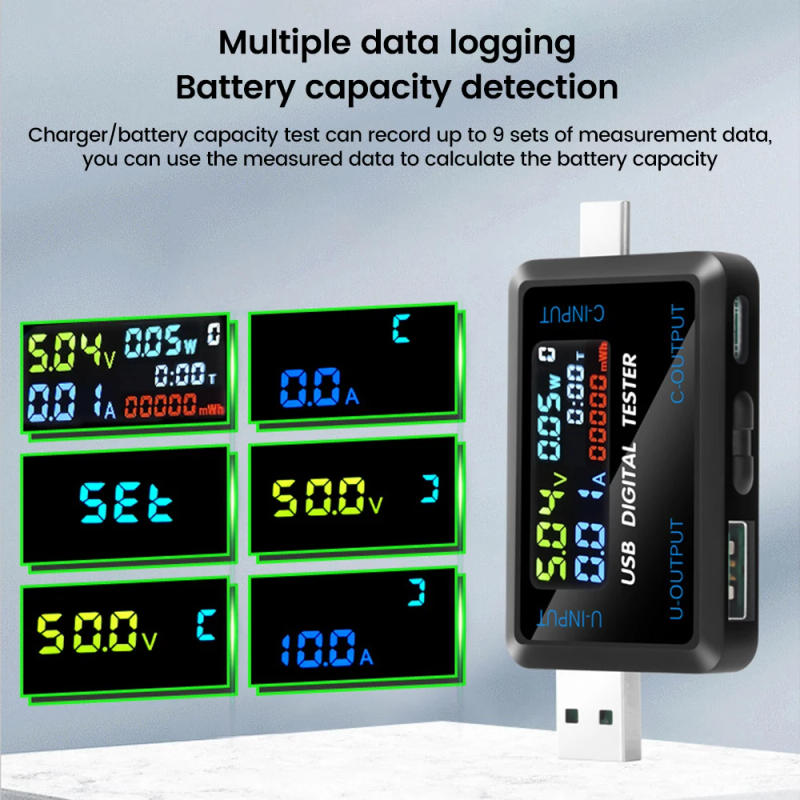

3: Long press the on/off button for two seconds to change the gathered data garage organization quantity (NO)
Interface Description:
USB, Type-C interface: "INPUT" is attached to the power end, "OUTPUT" is connected to the load
USB+Type-C interface: USB interface input=USB interface output, Type-C interface input=Type-C interface output Attention: Type-C interface won't demonstrate without load
Note:Please pay attention to the video input/output interface and persist with the video interface operation
Package include:
Package A: volt-ammeter(USB)x1
Package B: volt-ammeter(Type-C)x1
Package C: volt-ammeter(USB+Type-C)x1
