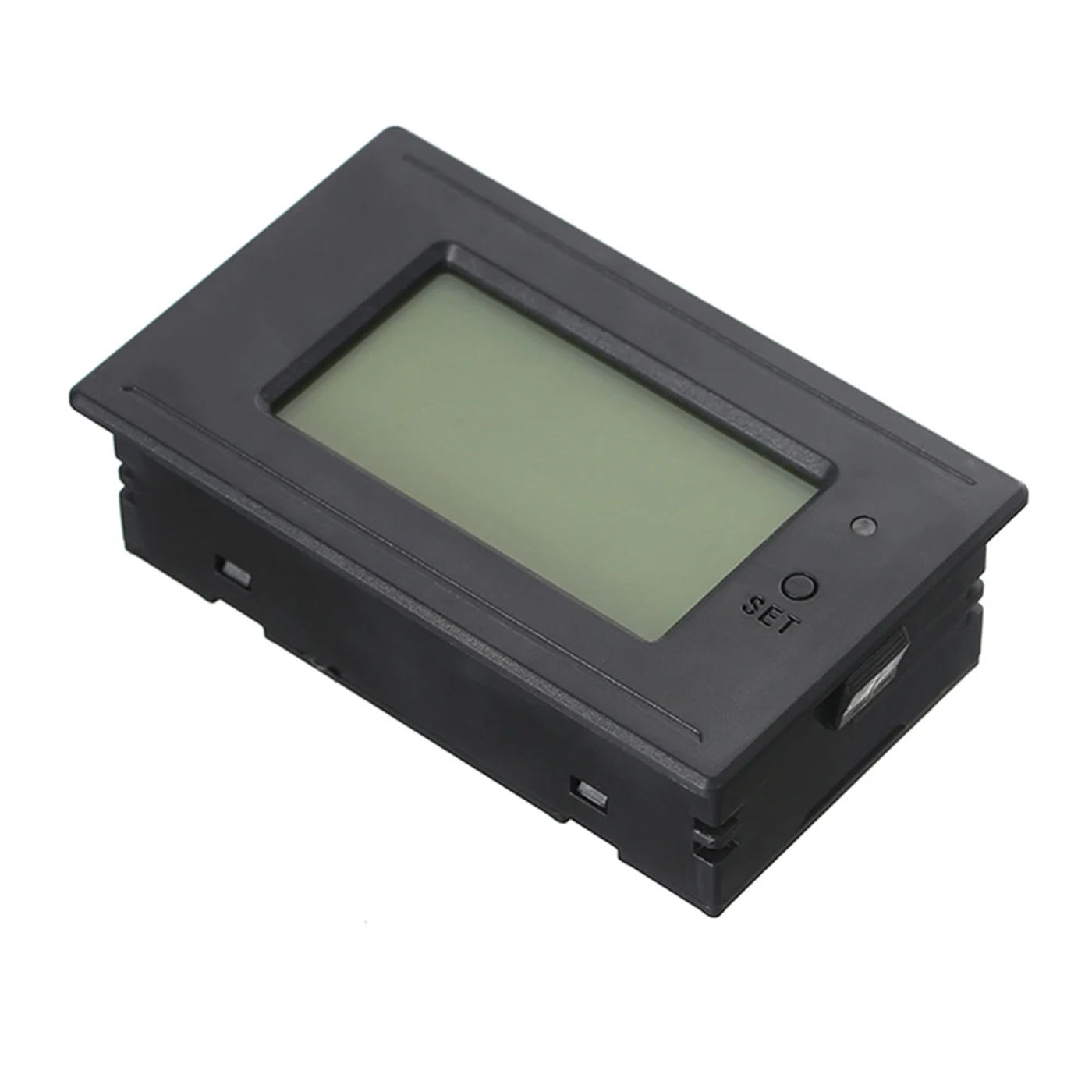

1100W/2200W/4400W/22000W Digital Voltmeter Ammeter AC 5A/10A/20A/100A Power Electricity Meter HD Display Voltage Current Meter
-Product features:
1: HD display, 6 fundamental purposes
2: Backlight display dim environment data can also be obviously displayed
3: High security functionality
4: Simple to use, the main points page has wiring creation
5: Various choices
-Product description:

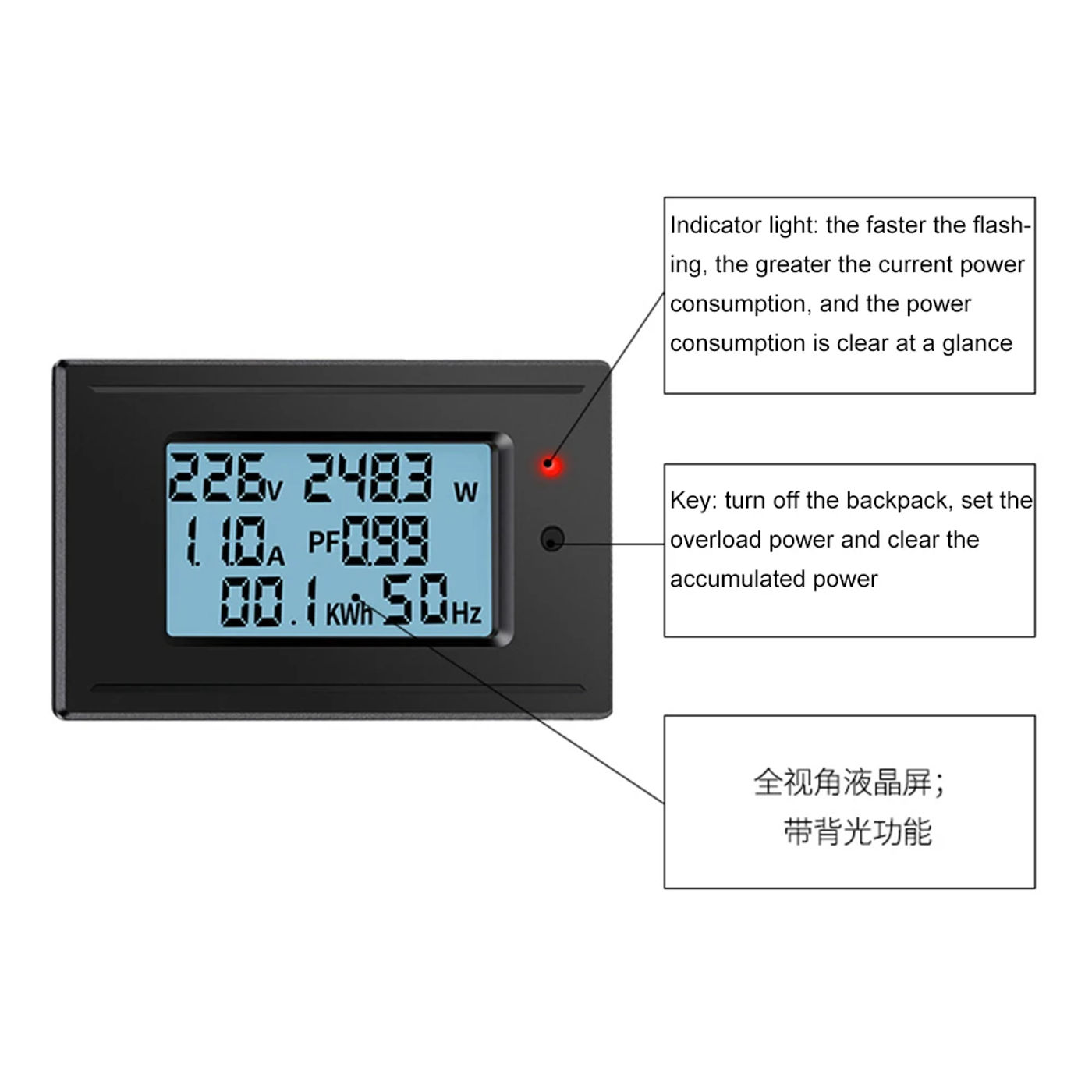

This product is split into two types: 5A, 10A, 20A and 100A It adopts particular metering chip design, which has some great benefits of good stability, low energy consumption and excessive precision Full-screen display of voltage, current, grid frequency, energetic power, strength factor, gathered power, extensively used in civil and industrial fields
-Instructions:
1 Short press the "Settings" button to switch the backlight on and rancid
2 Press and keep the "Settings" button for 3 seconds to go into the overload energy setting:
• Short press the "SET" button to add 1 to the corresponding value, lengthy press for two seconds to move the cursor, the maximum atmosphere cost is 99;
• 5 seconds of inactivity, save data and go out setup
three Press and keep the "Settings" button for 5 seconds, the accrued power might be reset to zero, and the overload power setting can be restored to the default cost
-Product Description
1 When the overload alarm occurs, the power price flashes; when the power is lower than the set overload power, the overload alarm is robotically released
2 The wiring tips of 5A 10A 20A and 100A merchandise are assorted Do not connect the incorrect wiring The particulars have wiring methods The wiring tricks of 5A 10A and 20A are the same
3 The 100A product needs to be connected to an exterior transformer, and the threading path needs to be in step with the direction of the transformer arrow
4 If the flexibility and gear component aren't displayed, please verify the wiring per the wiring diagram
-Precautions
1 The complete energy of the related electrical appliances must never exceed the utmost strength of the model, otherwise the product may be damaged, and a hearth may occur in extreme situations
2 This product has no waterproof function It can only be used indoors and in dry environments Splashing water is exactly prohibited
3 Beware of contact with teens to stop electrical shock accidents
four Please insert the wiring completely into the terminal block and tighten the screws
five Do not disassemble the product without authorization
6 The added load can not exceed the maximum power
-Package checklist
1*Voltage and ammeter
-Notice:
5A 10A 20A most latest is 5A/10A/20A, no use to connect transformer; The maximum recent of 100A is 100A, and an external transformer must be connected The above products have different wiring methods, please purchase according to your desires
