Description

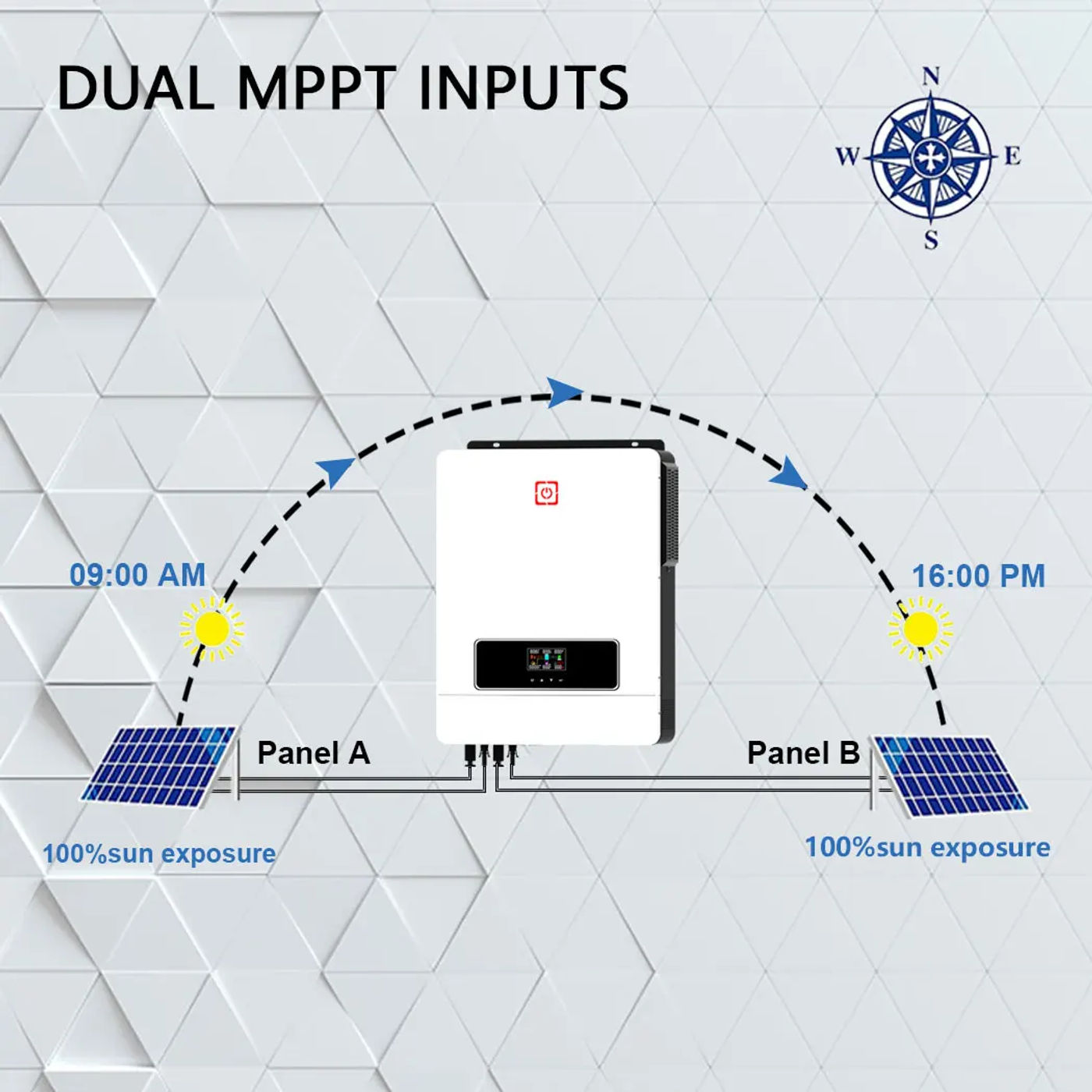

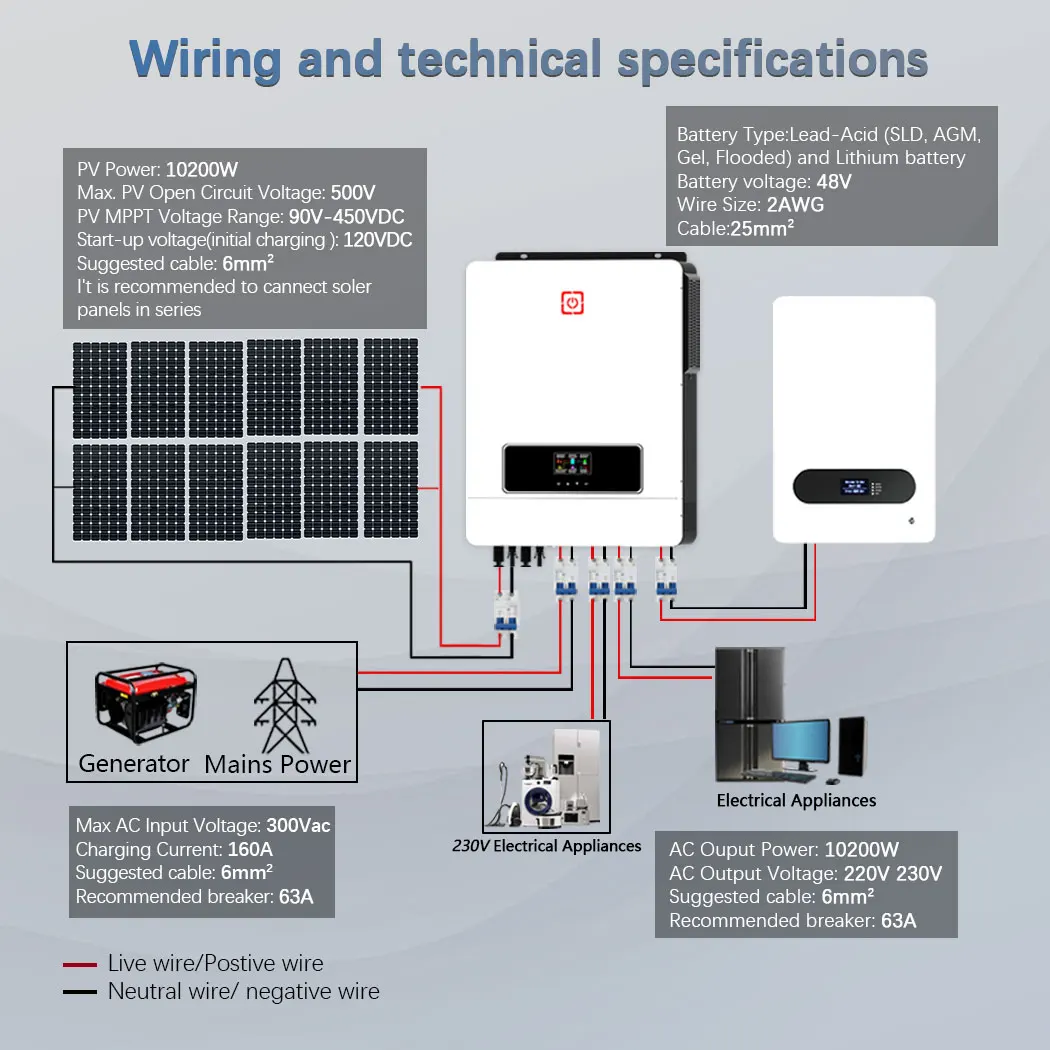

• After EU clients order, the inverter can be shipped from our native EU warehouse inside 24 hours The transport time is about 3-7 days Please preserve the default delivery from China when placing the order, in order that when you make the final checkout The price may be automatically discounted to about 20% less than the displayed payment once you order before, please touch us first, thank you Y&H 10 Hybrid Solar Inverter 48V 230V Dual MPPT 160A Max PV 500V Pure Sine Wave Inverter Solar Charge Controller Inverter startup sequence: Do not switch on every single input at the similar time It is recommended to paintings for three minutes The inverter is working sufficiently and stably 1: Battery 2: AC strength or battery 3: Load Inverter exit formula sequence: 1: Disconnect load 2: Disconnect AC energy and battery 3: Turn off the inverter Disconnect battery Note：DO NOT CONNECT THE SECOND OUTPUT TO THE GRID,IT WILL DAMANGE YOUR INVERTER This Inverter solely have one MPPT, and the twin PV input is to facilitate photo voltaic panel wiring and reduce the use of combiner field Dual AC output: under traditional conditions, the key circuit and secondary circuit outputs are used normally When there's no PV and mains energy enter and the battery voltage is just too low, the main circuit is disconnected and solely the secondary circuit output is retained to save energy Otherwise, you don&;t need to connect to the second one output Features of 48VDC solar energy inverter： Daul PV In-Put and Second Output160A 10 on/off Grid Inverter1 sine wave photo voltaic inverter（on/off Grid）2 running without battery3 strength component 1 PV input voltage range(90~500VDC)5&GPRS available for IOS and Android6 anti-dusk kit for harsh environment7 160A（for 10）MPPT photo voltaic charge8 battery charge design to optimize battery life9 restoration to factory Settings10 Import Dual output Dual MPPT Dual Communication Ports11 Lithium battery computerized activation12 buttom Basic System Architecture:The following representation shows the basic application for this inverter/charger It also includes the ensuing devices to have a complete operating system:1 or Utility modules Consult with your formulation integrator for different possible formula architectures depending on your standards This inverter can power all types of home equipment in-home or office environment, adding motor-type home equipment resembling tube lights, fans, refrigerators, and air conditioners RGB lighting fixtures for various operating modes (purple-PV mode; red-battery mode; blue-utility mode) Four modes would be desire when charging battery:Three Output modes can be choose：Utility first (default):Utility will provide strength to theloads as first priority, Then Solar Power, battery PowerSolar first: Solar energy provides strength to the hundreds as first precedence If solar power isn't sufficient to strength all connected loads, software will supply power to the hundreds on the same time，then battery strength Priority: Solar calories provides power tothe plenty as first priority If solar power is not adequate to power all linked loads, battery energy will supply strength to the loads on the identical time New features: built-in BMS function Lithium battery activation Parameters: INVERTER MODEL eight 10 Output Voltage Waveform Pure Sine Wave Output Voltage Regulation 230Vac±5% Output Frequency 50Hz Peak Efficiency 93% Nominal DC Input Voltage 48Vdc High DC Recovery Voltage 62Vdc High DC Cut-off Voltage 63Vdc No Load Power Consumption 70W 75W Two Load Output Power Full Load 8200W 10200W Maximum Main Load 8200W 10200W Maximum Second Load(battery model) 2733W 3400W Main Load Cut Off Voltage 44VDC Main Load Return Voltage 48VDC Utility Charging Mode AC Charging Current(Max) 140Amp 160Amp Floating Charging Voltage 54Vdc MPPT Solar Charging Mode Max Array Power 8200W 10200W Nominal PV Voltage 360Vdc PV Array MPPT Voltage Range 90Vdc~500Vdc Max Array Open Circuit Voltage 500Vdc Max Charging Current (AC charger plus solar charger) 160Amp 160Amp Grid-Tie Operation Nominal Output Voltage 220/230/240VAC Feed-in Grid Voltage Range 195~253VAC Feed-in Grid Frequency Range 49~51±1Hz/59~61±1Hz Nominal Output Current 35 44 Power Factor Range >0 Maximum Conversion Efficiency (DC/AC) 98% General Specifications Safety Certification CE Operating Temperature Range -10℃ to 50℃ Storage temperature -15C~60℃ Humidity 5%to 95% Relative Humidity(Non-condensing) Dimension(D*W*H),mm 537*390*130 Net Weight,kg 14 14

•
•
•
•
•
