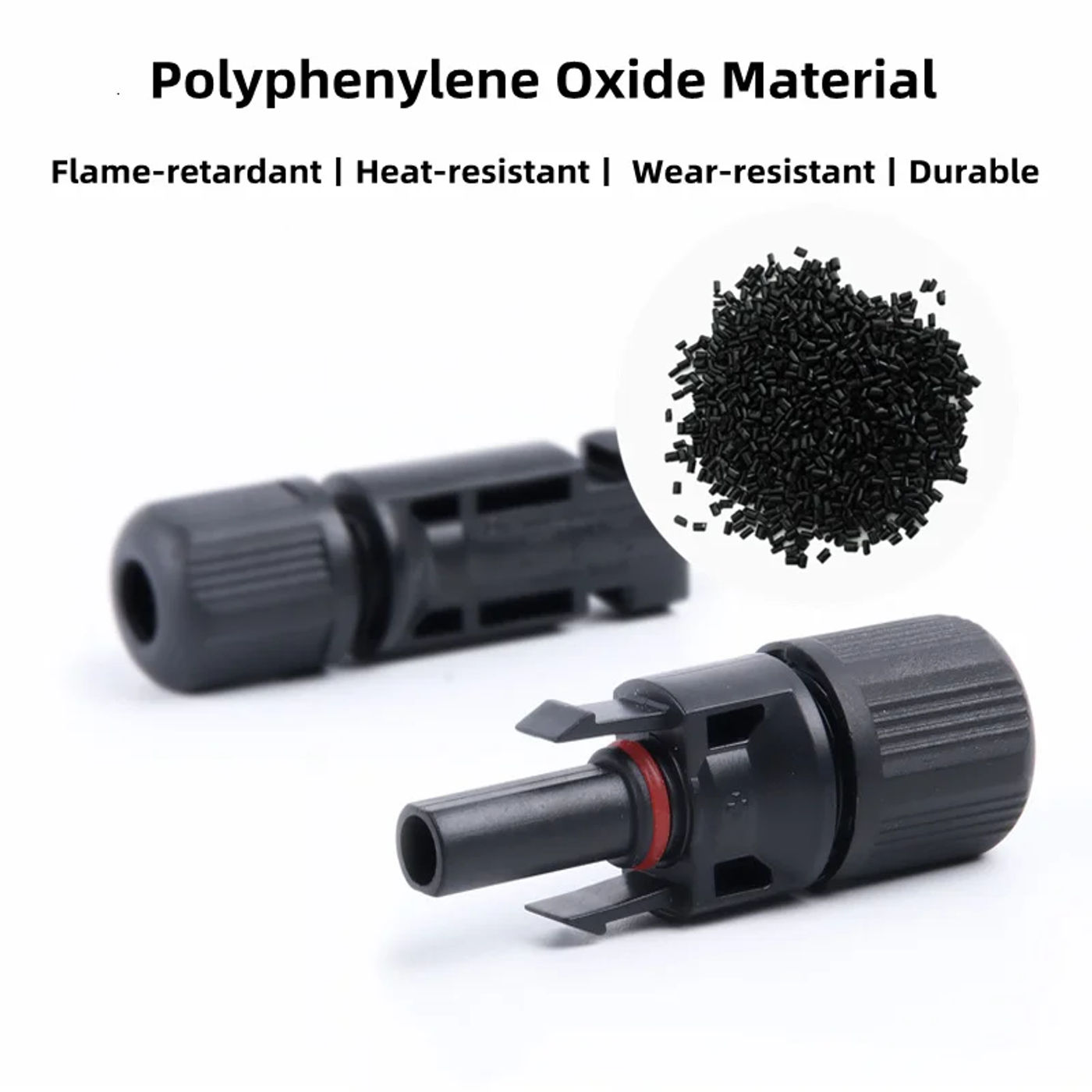

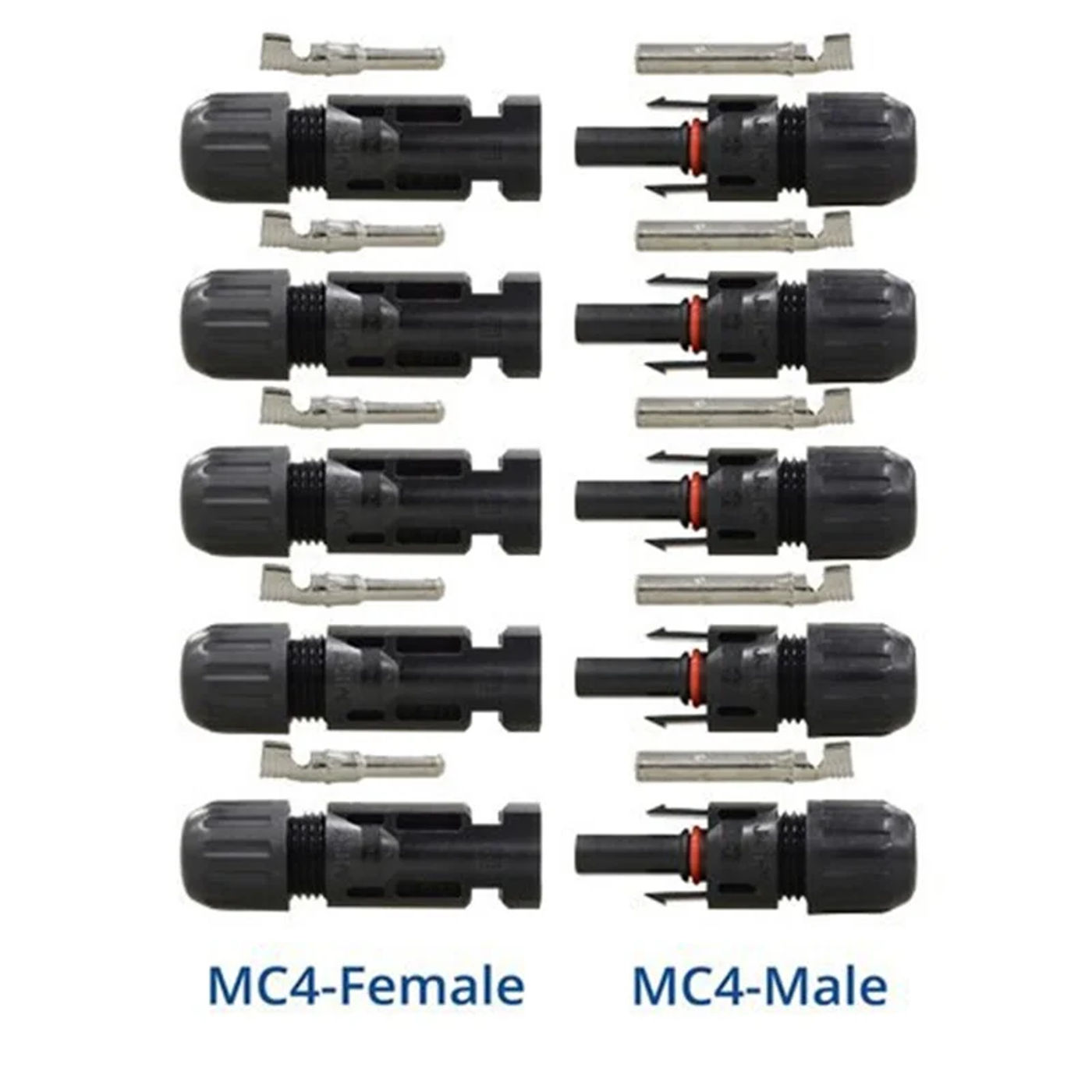

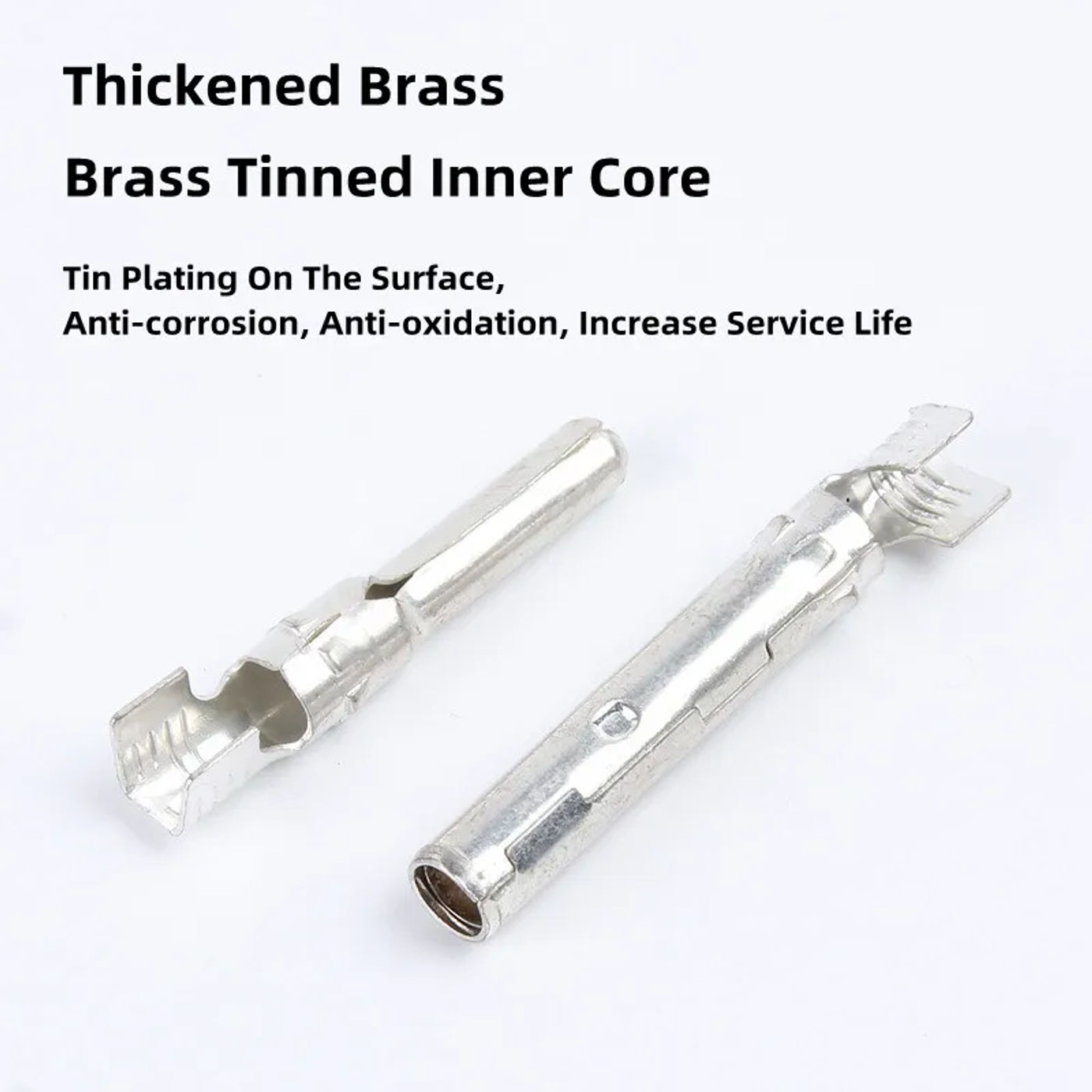

• 10 Pairs Solar Connector Male and Female 30A 1000V Solar Panel Cable Connector Waterproof IP67 with Spanner for Home PV System Features Quick & straight forward meeting processing and easy removal of plugs Compatible with different insulation diameters Double seal ring, better water-resistant Connection by way of the crimping instrument Insulation Material: Made of PPO materials Specifications Maximum operating voltage: DC 1000V Rated Current: 30A Suitable for: 2⊃2;( AWG14 ), 4mm⊃2;( AWG12 ), 6mm⊃2;( AWG10 ) Contact resistance: ≤1mmΩ Safety level: II Temperature Range: -40 ℃ ~ +125 ℃ Flame retardant grade: UL94-V0 Waterproof Class: IP67 Insertion force: ≤50N Withdrawal force: ≥50N Insulation material: PA, ppo, PC black Contact: Copper, Tin Terminal connection mode: crimping Package Include: 5 × Male Solar Connectors+ 5×Female Solar Connectors or five × Male Solar Connectors+ 5×Female Solar Connectors+1 Pair Spanners or 10 × Male Solar Connectors+ 10×Female Solar Connectors or 10 × Male Solar Connectors+ 10×Female Solar Connectors+1 Pair Spanners

•
•
•
•
•
